- Page 1 AP PL I ANC ES FO R L I VI NG CACC30 OPERATION MANUAL...
- Page 2 ARTUSI Family. This instruction manual has been specially created to inform you of the full range of features your ARTUSI appliance has to offer and serves as an introduction to getting the very best out of your ARTUSI appliance.
-
Page 3: Safety Warnings
Safety Warnings Your safety is important to us. Please read this information before using your cooktop. Installation Electrical Shock Hazard • Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it. • Connection to a good earth wiring system is essential and mandatory. -
Page 4: Health Hazard
installation. • This appliance is to be properly installed and earthed only by a suitably qualified person. • This appliance should be connected to a circuit which incorporates an isolating switch providing full disconnection from the power supply. • Failure to install the appliance correctly could invalidate any warranty or liability claims. - Page 5 • Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot • Keep children away. • Handles of saucepans may be hot to touch. Check saucepan handles do not overhang other cooking zones that are on.
- Page 6 • Do not allow children to play with the appliance or sit, stand, or climb on it. • Do not store items of interest to children in cabinets above the appliance. Children climbing on the cooktop could be seriously injured. •...
- Page 7 or similarly qualified persons in order to avoid a hazard. •This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses; -by clients in hotels, motels and other residential type environments ;...
- Page 8 •WARNING: Danger of fire: do not store items on the cooking surfaces. • Warning: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock, for hob surfaces of glass-ceramic or similar material which protect live parts •A steam cleaner is not to be used.
-
Page 9: Product Overview
Congratulations on the purchase of your new Ceramic Hob. We recommend that you spend some time to read this Instruction / Installation Manual in order to fully understand how to install correctly and operate it. For installation, please read the installation section. Read all the safety instructions carefully before use and keep this Instruction / Installation Manual for future reference. -
Page 10: Product Information

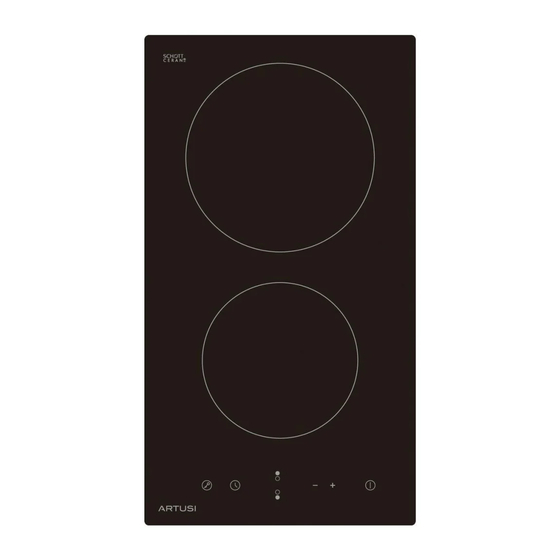

Product Information The microcomputer ceramic cooker hob can meet different kinds of cuisine demands because of resistance wire heating, micro-computerized control and multi-power selection, really the optimal choice for modern families. The ceramic cooker hob centers on customers and adopts personalized design. The hob has safe and reliable performances, making your life comfortable and enabling to fully enjoy the pleasure from life. -
Page 11: Choosing The Right Cookware
Choosing the right Cookware Do not use cookware with jagged edges or a curved base. Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Always centre your pan on the cooking zone. Always lift pans off the ceramic hob –... -
Page 12: Using Your Ceramic Hob
Using your Ceramic Hob To start cooking • After power on, the buzzer beeps once, all the indicators light up for 1 second then go out, indicating that the ceramic hob has entered the state of standby mode. 1. Touch the ON/OFF control. all the indicators show “-“... -
Page 13: When You Have Finished Cooking
4. Select a heat setting by touching the “-“ or “+” control. • If you don’t choose a heat setting within 1 minute, the ceramic hob will automatically switch off. You will need to start again at step 1. • You can modify the heat setting at any time during cooking. -
Page 14: Locking The Controls
4. Beware of hot surfaces “H” will show which cooking zone is hot to touch. It will disappear when the surface has cooled down to a safe temperature. It can also be used as an energy saving function if you want to heat further pans, use the hotplate that is still hot. Locking the Controls •... -
Page 15: Auto Shutdown
Auto Shutdown Another safety feature of the hob is auto shutdown.This occurs whenever you forget to switch off a cooking zone.The default shutdown times are shown in the table below: Power level Default working timer (hour) Using the Timer You can use the timer in two different ways: •... - Page 16 will automatically return to 0 minute. 4. Touching the”-“ and “+” together, the timer is cancelled, and the”--“ will show in the minute display. 5. When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator will flash for 5 seconds.
-
Page 17: Cooking Guidelines
once will decrease or increase by 1 minute. Touch and hold the “-“ or “+” control of the timer will decrease or increase by 10 minutes. If the setting time exceeds 99 minutes, the timer will automatically return to 0 minute. 4. -
Page 18: Cooking Tips
Cooking Tips • When food comes to the boil, reduce the temperature setting. • Using a lid will reduce cooking times and save energy by retaining the heat. • Minimise the amount of liquid or fat to reduce cooking times. •... -
Page 19: Heat Settings
Heat Settings The settings below are guidelines only. The exact setting will depend on several factors, including your cookware and the amount you are cooking. Experiment with the induction hob to find the settings that best suit you. Eignung Heat setting •... -
Page 20: Hints And Tips
Boilovers, melts, Remove these immediately • Remove stains left by melts and with a fish slice, palette knife or sugary food or spillovers as soon hot sugary spills on razor blade scraper suitable for as possible. If left to cool on the the glass ceramic glass cooktops, but glass, they may be difficult to... -
Page 21: Technical Specification
(layers of different metals vibrating differently). Technical Specification Cooking Hob CACC30 Cooking Zones 2 Zones Supply Voltage 220-240V~ 50Hz or 60Hz Installed Electric Power 2700-3300 W Product Size D×W×H(mm) - Page 22 50mm mini 50mm mini 50mm mini 50mm 268mm 500mm mini 2. The ceramic cooker hob can be used on the table top of cabinet.The ceramic hob should be placed horizontally. As shown below: 50mm mini 50mm mini Under any circumstances, make sure the ceramic cooker hob is well ventilated and the air inlet and outlet are not blocked.
-
Page 23: Before Locating The Fixing Brackets
A(mm) B(mm) C(mm) 50 mini 0 mini Air intake Air exit 10 mm Before locating the fixing brackets The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob. Fix the hob on the work surface by screw four brackets on the bottom of hob (see picture) after installation. -
Page 24: Connecting The Hob To The Mains Power Supply
dishwashers and rotary dryers. 3. The ceramic cooker hob shall be installed such that better heat radiation can be ensured to enhance its reliability. 4. The wall and induced heating zone above the work surface shall withstand heat. 5. To avoid any damage, the sandwich layer and adhesive must be resistant to heat. - Page 25 This appliance is labeled in compliance with European directive 2012/19/EU for Waste Electrical and Electronic Equipment (WEEE). By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage to the environment and to human health, which might otherwise be caused if it were disposed of in the wrong way.
- Page 26 Office: 2. What is not Covered by the Warranty. 48-50 Moore Street, Leichhardt N.S.W 2040 The Warranty does not apply if an artusi product Post: is defective by a factor other than a defect arising Locked Bag 3000, Annandale, N.S.W 2038...
- Page 27 Last Name: First Name: Address: State: Postcode: Email: Home Phone: Mobile: Purchase Date: (Please attach proof of purchase to validate warranty) SERIAL NUMBER MODEL NUMBER (if you cannot locate the serial number please call ARTUSI on 1300 694 583) 01032014...
- Page 29 Product dimensions indicated in our literature is indicative only. Actual product only should be used to define dimension cutouts. Distributors, and retailers are not agents of ARTUSI and are not authorised to bind ARTUSI by any express or implied undertaking or representation.
