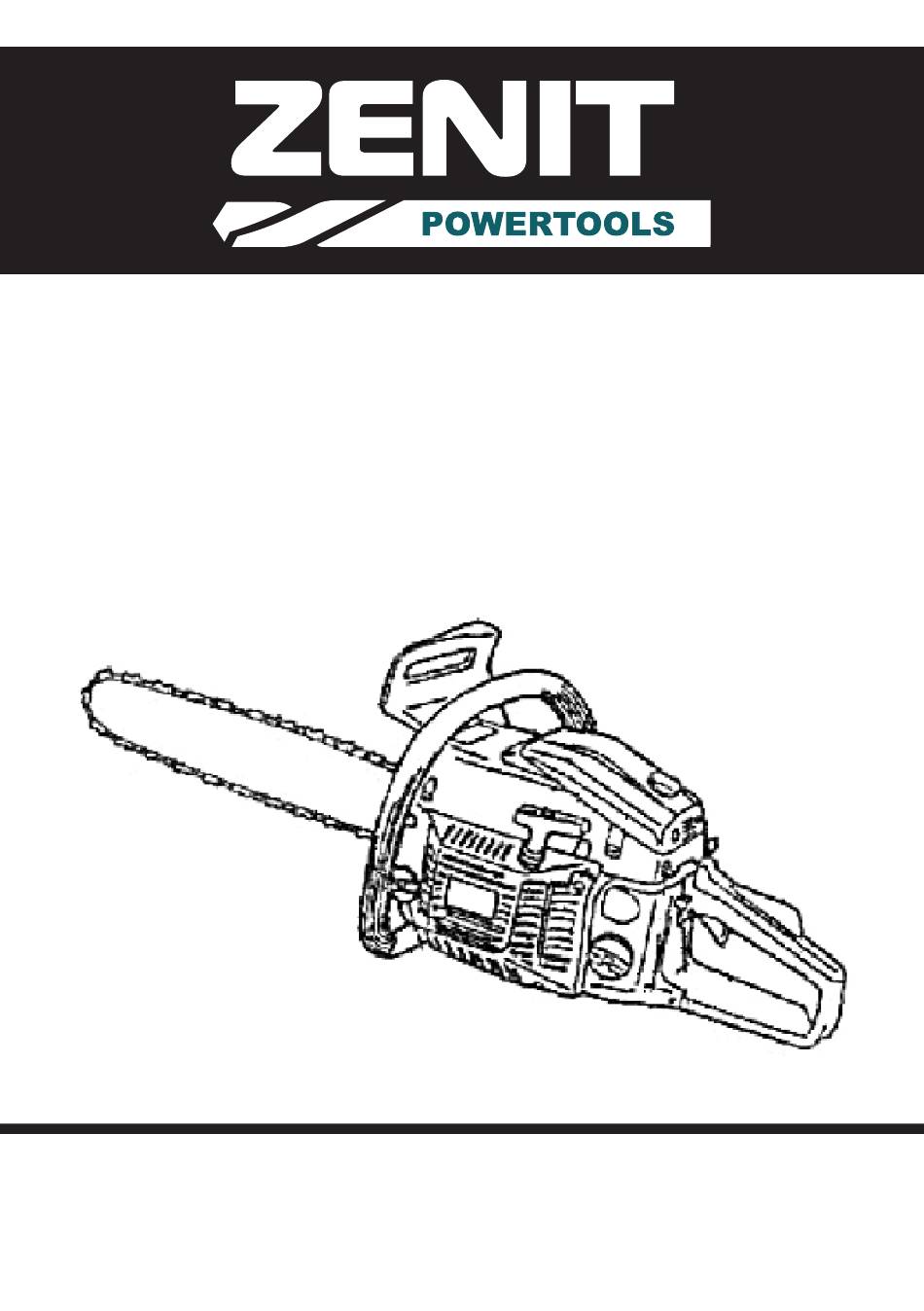

- Page 1 GasolIne chaIn saw cs-508/2300 InstructIon manual...
-
Page 3: Intended Use
• Ambient temperature from -20°С to +40°С; • Relative air humidity up to 80% at 20°С. • Altitude above sea level up to 1000 m. 2. SPECIFICATIONS Model CS-508/2300 Engine type Single cylinder, 2-stroke, gasoline Cooling Forced air cooling Displacement, cc... -
Page 4: Product Features
4. PRODUCT FEATURES guide bar -1; saw chain - 2; chain brake - 3, which stops the chain; front handle - 4; plastic body - 5, with engine inside; choke control knob - 6; ignition switch - 7; throttle trigger lockout - 8; throttle trigger - 9; rear handle - 10; oil tank cap -11; fuel tank cap - 12;... - Page 5 6. Pay special attention when handling fuel. Move at least 3 m away from fueling site before starting engine. 7. Stop the engine before refilling fuel or oil. 8. Do not operate the chain saw near flammable materials indoors or outdoors. There is a risk of explosion or fire.
-
Page 6: Assembly And Operation
on the rear handle, your left hand on the front handle and your thumbs and fingers encircling the handles. Firm grip can reduce danger of a kickback and keep control on the saw. • Make sure working place is free from any obstacles. Top of the guide bar should not touch a tree or another solid object. - Page 7 Attention: Always use fuel, which is mixed with oil. Otherwise the engine may be damaged. Strictly follow the designated fuel/oil ratio. Mix fuel with oil in a separate can before refueling the saw. Shake the can. For correct dosing of oil we recommend using a 10-20 ml medical syringe without needle. For mixing the fuel we recommend using the following table.
-
Page 8: General Cutting Instructions
• Before starting the engine make sure the chain brake is released. • Choke control knob has three positions: normal; warm engine; cold engine. • Switch the ignition switch in «On» position. • Switch the choke control knob in closed position. •... -
Page 9: Maintenance
2. Saw the felling cut from the other side of the tree 3-5 cm above the edge of the notch. 3. Never saw completely through the trunk. Always leave a hinge. • The hinge guides the tree. If the trunk is completely cut through, you lose control over the felling direction. - Page 10 Period, operating № Maintenance procedure hours Check screws and nuts Clean the spark plug and check the electrode gap Change the spark plug Clean the muffler spark arrester Clean the air filter Clean or change the fuel filter Clean or change the oil filter 4.
-
Page 11: Transport And Storage
9. TRANSPORT AND STORAGE 1. Store the saw in a dry place between - 40°С and + 40°С, at a safe distance from sources of ignition. 2. Transport and storage conditions should eliminate the possibility of mechanic damage and influence of atmospheric fallout. 3. - Page 12 Engine runs un- Incorrect gap in the Clean, set the correct gap evenly. spark plug. or replace the plug. Engine emits lot of Incorrect carburetor Adjust the carburetor in smoke. adjustment. the service center. Inadequate fuel. Use the correct fuel mix- ture ratio 25/1.
- Page 14 Demix LLC Head office: 14, Shevchenko str., 3rd floor Dnepropetrovsk, Ukraine, 49044 tel./fax: +38 056 375-43-16 http://www.en.zenit-profi.com...
