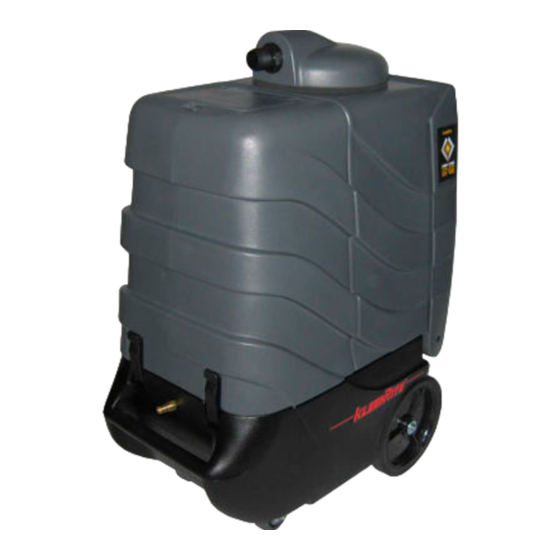

KleenRite 36408D-E3 Operator And Parts Manual

Carpet and upholstery cleaner
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
®
36408D-E3
Carpet And Upholstery Cleaner
Model No.:
Operator and Parts Manual
36408D-E3 – 13 gal Extractor
KLEENRITE
1122 MAPLE STREET
MADERA CA 93637 U.S.A.
FAX: 1-559-673-5725
MNL36408D-E3
CUSTOMER SERVICE: 1-800-241-4865
Rev. 00 (09-04)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 36408D-E3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KleenRite 36408D-E3

Summary of Contents for KleenRite 36408D-E3

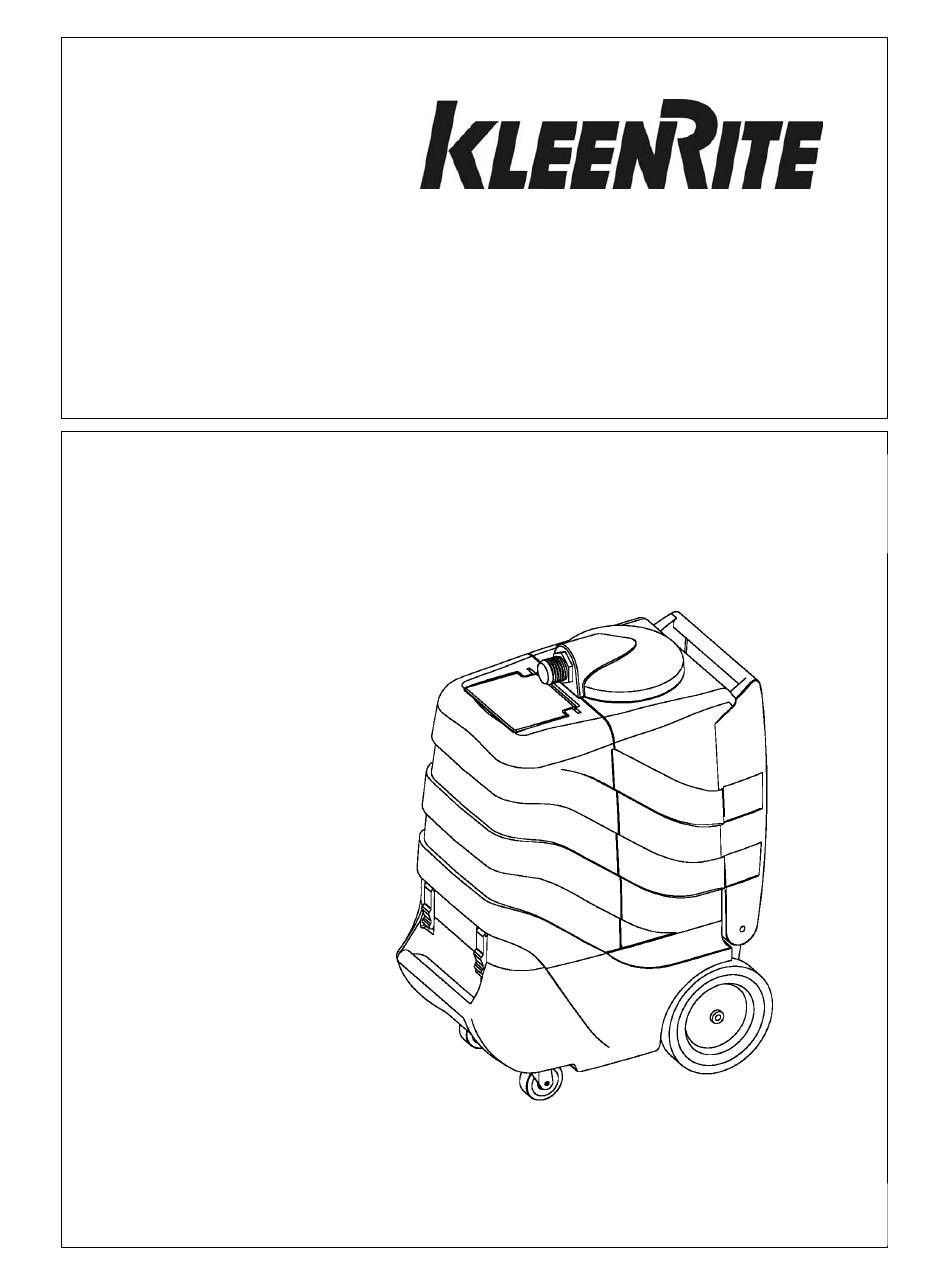

  • Page 1 ® 36408D-E3 Carpet And Upholstery Cleaner Model No.: Operator and Parts Manual 36408D-E3 – 13 gal Extractor KLEENRITE 1122 MAPLE STREET MADERA CA 93637 U.S.A. FAX: 1-559-673-5725 MNL36408D-E3 CUSTOMER SERVICE: 1-800-241-4865 Rev. 00 (09-04)

  • Page 2: Table Of Contents

    © Kleenrite Printed in U.S.A. distributor or directly from Kleenrite. Kleenrite is a registered United States trademark This machine will provide excellent service. However, the best results will be obtained at minimum costs if: • The machine is operated with reasonable care.

  • Page 3: Safety Precautions

    Keep cord away from heated surfaces. Report machine damage or faulty operation – immediately. Follow mixing and handling instructions on – GROUNDING chemical containers. – Connect hoses before turning on pump. – Be sure chemicals are safe and non-toxic. 36408D-E3 (09-04)

  • Page 4: Machine Components

    OPERATION MACHINE COMPONENTS 1. Recovery Tank 8. Power Cord Connector 2. Solution Tank (under lid) 9. Empty-Out Nozzle 3. Recovery Tank Lid 10. Solution Hose Connector 4. Solution Tank Lid 11. Vacuum Hose Connector 5. Vacuum Switch 12. Latches 6. Pump Switch 13.

  • Page 5: Machine Operation

    1. Connect accessory tool hoses to the couplers at exchanger. (Figure 4). the end of the hoses already attached to the machine. (Figure 7). CLEANING CARPETS 1. Turn on vacuum and pump switches (Figure 5). Fig. 4 Fig. 5 Fig. 7 36408D-E3 (09-04)

  • Page 6: Draining Tanks

    OPERATION 2. Operate accessory tool as normal (Figure 8). DRAINING SOLUTION TANK NOTE: Before cleaning upholstery, always check 1. Remove empty-out nozzle from its storage cleaning instructions sewn in furniture by bracket (Figure 10) and attach to end of solution manufacturer.

  • Page 7: Machine Maintenance

    3. Inspect cord and cord grip for damage. Replace immediately if damaged. 4. Lubricate metal shaft on recovery tank drain with water resistant oil. 5. Lubricate female hose couplers with lightweight oil. 36408D-E3 (09-04)

  • Page 8: Trouble Shooting

    OPERATION TROUBLE SHOOTING PROBLEM CAUSE SOLUTION Machine does not operate. Faulty switches or wiring. Contact Service Center. Faulty power cord. Contact Service Center. Building circuit breaker tripped. Reset Breaker. Heater does not heat. Faulty switch or wiring. Contact service center. Solution pump does not operate.

  • Page 9: Specifications

    POWER CORDS 1 @ 7.6m (25 ft) 3/12 DECIBEL RATING 3 METERS (10 FT) FROM <75 db(A) MACHINE ON CARPET MACHINE DIMENSIONS 1016 mm 902 mm (40 in) (35.5 in) 711 mm 450 mm (28 in) (17.7 in) 36408D-E3 (09-04)

  • Page 10: Electrical Diagram

    ELECTRICAL DIAGRAM 36408D-E3 120 V WIRING DIAGRAM 36406D-E3 (09-04)

  • Page 11: Parts List

    PARTS LIST 36408D-E3 TANK GROUP 36408D-E3 (09-04)
  • Page 12 PARTS LIST 36408D-E3 TANK GROUP PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. B-09.1 6-32 X 3/8 PHXSS E-14.65 CUFF, 1 1/2 SLIP 1 1/2 HOSE B-14.5 NUT 6-32 HEX SS NYLOK G-03.19 O-RING,VITON 2-020 BLKHD B-17.2 8-32 X 1/2 PHXSS...
  • Page 13 PARTS LIST 36408D-E3 BASE GROUP 36408D-E3 (09-04)
  • Page 14 PARTS LIST 36408D-E3 BASE GROUP PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. B-09.1 6-32 X 3/8 PHXSS E-14 CUFF, 1 1/2SLIP X 1 1/4HOSE • F-09 B-10 6-32 X 1/2 PHXSS Q/C 1/4" PLUG BR SHUT OFF • F-11...
  • Page 15 SWITCH ASM, 100 PSI SH FL • L-22.65 CHECK VALVE ASM, 100 PSI SH FL L-24.12 HEAD, PUMP DIAPHRAGM • L-22.8 VALVE ASM, BYPASS SH FL L-22.9 DIAPHRAGM, SOLID DRIVE ASM SL-22.4 MOTOR,100 PSI 120V SH FL PLG • RECOMMENDED STOCK ITEMS 36408D-E3 (09-04)

  • Page 16: Options

    OPTIONS 20258 ECONO FLOOR TOOL PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. • B-24.1 10-32 X 3/4 PHXZINC F-09 Q/C 1/4" PLUG BR SHUT OFF B-26.57 10-32 X 1 3/8 PHX ZINC G-23 VALVE, KNGSTN STD S BND • B-28.03 NUT, 10-32 NYLOK ZINK H-37...
  • Page 17 "U"CLAMP,SUPP HOE HNDL EC D-41 NIPPLE, 1/4 NPT CLOSE BR M-20 WAND,"S"BND FLTL COM W/HD • F-09 Q/C 1/4" PLUG BR SHUT OFF SC-82 TRIGGER,COMP KNGSTN VALVE G-23 VALVE,KNGSTN STD "S" BEND SE-06.7/39.2 HOSE,1/4"SOL BLU X39.25DB • RECOMMENDED STOCK ITEMS 36408D-E3 (09-04)
  • Page 18 OPTIONS 20078A HAND TOOL PART # Description QTY. PART # Description QTY. B-05.5 4-40 X 7/8 PHXZINC GR-2-006N70 O-RING,2-006 BUNA 70DR B-07.5 NUT, 4-40 HEX ZINC NYLOK GR-2-011N70 O-RING,2-011 BUNA 70DR B-11.5 6-32 X 1 PHXZINC GR-2-013N70 O-RING,2-013 BUNA 70DR B-14.6 NUT, 6-32 HEX ZINC NYLOK H-03.5...

  • Page 19: Warranty Policy

    Kleenrite can inspect the part that is suspected to be faulty or have a chance to repair it, Kleenrite will ship the requested part on a COD basis (part plus freight) or if credit has been established prior to the request the part will be shipped on an Open Account basis (part plus freight).
  • Page 20 Kleenrite’s control. In no event shall Kleenrite be liable for loss of use, incidental or consequential damages or any damages to persons or property.
  • Page 21 Kleenrite’s control. In no event shall Kleenrite be liable for loss of use, incidental or consequential damages or any damages to persons or property.
