Tighten all wheel bolts to 120nm after the first 2 hours of driving.
Transport
* Only use stable loading surfaces with sufficient loading capacity (see section 2.2).
* Secure the MULTI-MOVER M against tilting or sliding.
* It is prohibited to;
-
get under the MULTI-MOVER M while lifting
-
remain within the tilting range of the MULTI-MOVER M during unloading

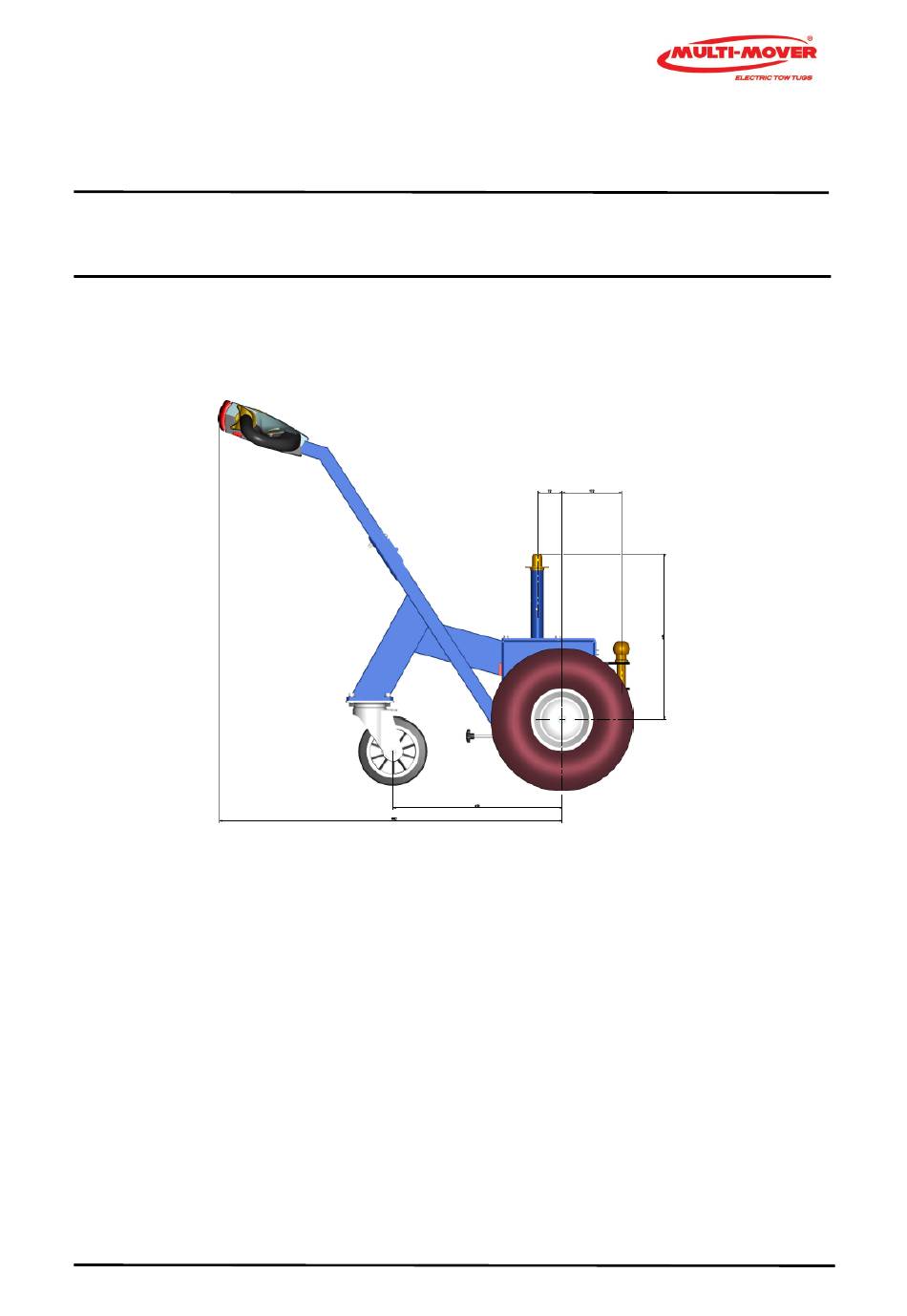

MULTI-MOVER M18SV
USER MANUAL and PARTS LIST
MULTI MOVER M18SV
Type 24Volt / DC 900 Watt
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M18SV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Multi-Mover M18SV

Summary of Contents for Multi-Mover M18SV

  • Page 1 * Only use stable loading surfaces with sufficient loading capacity (see section 2.2). * Secure the MULTI-MOVER M against tilting or sliding. * It is prohibited to; get under the MULTI-MOVER M while lifting remain within the tilting range of the MULTI-MOVER M during unloading MULTI-MOVER M18SV...

  • Page 2: Table Of Contents

    User manual battery charger Multi-Mover Europe BV NL - 5431 NN Cuijk T +31 24 744 00 70 F +31 24 890 17 90 Büro Deutschland Moers T +49 2842 909 2005 Multi-Mover. eu info @ Multi-Mover. Eu MULTI-MOVER M18SV...

  • Page 3: Safety Symbols

    The user manual should be made available to the user of the Multi-Mover M and must be present at the Multi-Mover M when it is being used. The user manual must have been read by anyone working with/at the Multi-Mover M, and the instructions must be observed.

  • Page 4: Chapter 2 Technical Description

    On various places on the Multi-Mover M you will find standardized safety symbol stickers as displayed to the right. The upper part warns against a general or particular hazard. The lower part indicates what type of hazard is being warned against and will explain what you must do.

  • Page 5: Packaging, Loading / Unloading, Towing, Recycling

    Avoid injury and damage as a result of incorrect placement of the lift truck's lift forks. Loading and unloading If the Multi-Mover M has to be moved by means of a lift truck, the lift forks must be placed at the heaviest part at the rear of the Multi-Mover M, between the 2 large wheels.

  • Page 6: Chapter 3 Safety Regulations

    Never drive onto a slope at an angle or crosswise. Only ever drive on and off a slope at a right angle. The Multi-Mover M with trailer(s) may also tip over if the bends are taken at a speed that is too high.
  • Page 7 Make sure the trailer(s) has/have been loaded evenly and safely. 3.11 Caution! Wear clothing that allows you to move freely and does not hinder your view on the Multi-Mover M plus trailer(s). Observe your company's safety regulations. 3.12 Caution! Hazard of injury. In case of an unusual noise;...
  • Page 8 Multi-Mover M, temporary personnel for instance. The MULTI-MOVER M may only be operated after the operator has thoroughly studied the user manual and after the owner of the Multi-Mover M has provided a full training / instruction concerning the operation and the safety regulations.

  • Page 9: Chapter 4 Preparation

    For other applications, the CE mark does not apply. The electric components and wiring have been made drip-proof IP55. Therefore, the Multi-Mover M must be covered in case of sprinkling or spraying plants. The Multi-Mover M must also be stored on a dry location.

  • Page 10: Responsibility Operator

    - check the jam safety on the steering handle by pressing the safety switch (2, fig. 2), the Multi-Mover M should not start in that case. If you establish a fault, or if you have any doubts concerning the operation of the Multi-Mover M you must immediately report this to your supervisor or the maintenance personnel.
  • Page 11 Avoid bends if necessary and be careful on small hills, thresholds, etc. Reduce speed in case of sharp bends. The Multi-Mover M may only be driven at speeds that allow you to stop in time, e.g. if an obstacle is standing in or entering the driving area.

  • Page 12: Operation

    Button electro magnetic brake, black (4) The wheels (1.8) are coupled to/disconnected from the motor by means of the handbrake button. If the button is pulled out it is in the free position, the Multi-Mover M can now be freely manoeuvred by hand.
  • Page 13 Battery indicator Potentio meter Steering handles (1) The steering handle (1) with bar is a fixed part of the Multi-Mover M, moving to the left means driving to the left, and vice versa. Safety stop switch (2) When pressing the safety switch (risk of getting jammed), the Multi-Mover M will stop immediately.

  • Page 14: 5.4 Batteries

    For a longer life span, it is better not to allow the battery to get completely empty. It is also not good to continue charging a battery that is almost full. If the Multi-Mover M is out of operation (for a longer period), we recommend keeping the battery charger connected, it will automatically keep the battery in a charged condition.
  • Page 15 We therefore recommend recharging the stored Multi-Mover M every 2 months. It is also possible, that there are still standby consumers in a switched off Multi-Mover M (key ignition etc.), which will mean that the batteries will discharge more quickly.

  • Page 16: Coupling Trailer(S)

    5.5 Coupling trailer(s) The Multi-Mover M is made with a standard tow eye with tow pin or a ball coupling point in the middle of the Multi-Mover M, to which the pole of a trailer can be coupled.

  • Page 17: Cleaning

    Taking out of operation If the Multi-Mover M is not used for a longer period, you will have to; connect the battery charger place the Multi-Mover M on blocks, so that the tyres do not touch the ground Have maintenance and repairs performed by persons authorized by Multi-Mover Europe BV.

  • Page 18: Chapter 7 Environment

    Consequences for the environment Life span The expected life span of the Multi-Mover M depend on maintenance, operating hours and ambient conditions (dust, contamination, humidity etc.). Good maintenance will be beneficial to the life span.

  • Page 19: Chapter 8 Failures

    FAILURES When removing a failure, ALWAYS switch off the Multi-Mover M and remove the ignition key. If a defect is established at the Multi-Mover M, do not use it until the repair has been completed. Failure Solution The Multi-Mover M does not drive.

  • Page 20: Chapter 10 Declaration Of Conformity

    We, Multi-Mover Europe BV, Boomsestraat 38, 6613 AH Balgoij, Netherlands declare at our own full responsibility, that the Multi-Mover M18SV with serial number MM M18SV to which this declaration applies, is in conformity with the provisions of the following directive(s):...
