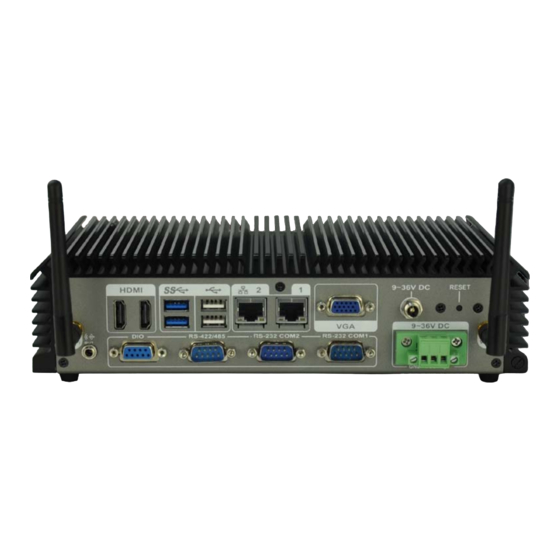

ECN-360A-HM65 Em b e d d e d S ys te m
,
IEI Te c h n o lo g y Co rp .
MODEL:
ECN-360A-HM65
Em b e d d e d S ys te m with In te l® Ce le ro n ® d u a l c o re 847E P ro c e s s o r,
Du a l HDMI, VGA, Gb E, Two US B 3.0, Two US B 2.0,
Re v. 1.00 – 25 J u n e 2013
Th re e COM a n d Ro HS Co m p lia n t
Us e r Ma n u a l
P a g e i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECN-360A-HM65 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IEI Technology ECN-360A-HM65

Summary of Contents for IEI Technology ECN-360A-HM65

  • Page 1 ECN-360A-HM65 Em b e d d e d S ys te m IEI Te c h n o lo g y Co rp . MODEL: ECN-360A-HM65 Em b e d d e d S ys te m with In te l® Ce le ro n ® d u a l c o re 847E P ro c e s s o r, Du a l HDMI, VGA, Gb E, Two US B 3.0, Two US B 2.0,...
  • Page 2 ECN-360A-HM65 Em b e d d e d S ys te m Re vis io n Date Version Changes 25 June 2013 1.00 Initial release P a g e ii...
  • Page 3 ECN-360A-HM65 Em b e d d e d S ys te m Co p yrig h t COP YRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer.

  • Page 4: Table Of Contents

    ECN-360A-HM65 Em b e d d e d S ys te m Ta b le o f Co n te n ts 1 INTRODUCTION ......................1 1.1 O ........................2 VERVIEW 1.2 M ....................2 ODEL ARIATIONS 1.3 F ........................2 EATURES 1.4 T...
  • Page 5 ECN-360A-HM65 Em b e d d e d S ys te m 4.1.2 Internal Peripheral Connectors ............... 26 4.1.3 External Interface Panel Connectors ............... 27 4.2 I ..............27 NTERNAL ERIPHERAL ONNECTORS 4.2.1 Audio Connector ....................27 4.2.2 Battery Connector .................... 28 4.2.3 Digital Input/Output (DIO) Connector ............
  • Page 6 ECN-360A-HM65 Em b e d d e d S ys te m 5 BIOS ..........................55 5.1 I ......................56 NTRODUCTION 5.1.1 Starting Setup ....................56 5.1.2 Using Setup ...................... 56 5.1.3 Getting Help ..................... 57 5.1.4 Unable to Reboot After Configuration Changes ..........57 5.1.5 BIOS Menu Bar ....................
  • Page 7 ECN-360A-HM65 Em b e d d e d S ys te m A.2.1 Maintenance and Cleaning ................89 A.2.2 Cleaning Tools ....................90 B BIOS MENU OPTIONS ..................... 91 C ONE KEY RECOVERY ..................... 94 C.1 O ..............95 ECOVERY NTRODUCTION C.1.1 System Requirement ..................
  • Page 8 ECN-360A-HM65 Em b e d d e d S ys te m HS C 2002/95/EC W ........139 OMPLIANT NDER ITHOUT ERCURY P a g e viii...
  • Page 9 ECN-360A-HM65 Em b e d d e d S ys te m Lis t o f Fig u re s Figure 1-1: ECN-360A-HM65 ......................2 Figure 1-2: ECN-360A-HM65 Front Panel ..................5 Figure 1-3: ECN-360A-HM65 Rear Panel ..................6 Figure 1-4: Physical Dimensions (mm) ..................7 Figure 3-1: Retention Screws Removal ..................14...
  • Page 10 ECN-360A-HM65 Em b e d d e d S ys te m Figure 4-16: COM Connector Locations ..................41 Figure 4-17: Serial Port Connector Location ................42 Figure 4-18: SMBus Connector Location ...................43 Figure 4-19: SPI Flash Connector Location ................44 Figure 4-20: External Peripheral Interface Connectors ............44 Figure 4-21: RJ-45 Ethernet Connector ..................45...
  • Page 11 ECN-360A-HM65 Em b e d d e d S ys te m Figure C-22: Auto Recovery Utility ...................112 Figure C-23: Launching the Recovery Tool ................112 Figure C-24: Auto Recovery Environment for Windows ............112 Figure C-25: Building the Auto Recovery Partition ..............113 Figure C-26: Factory Default Image Confirmation ..............113...
  • Page 12 ECN-360A-HM65 Em b e d d e d S ys te m Lis t o f Ta b le s Table 1-1: Model Variations ......................2 Table 1-2: Technical Specifications ....................4 Table 2-1: Package List Contents ....................11 Table 4-1: Peripheral Interface Connectors ................26 Table 4-2: Rear Panel Connectors ....................27...
  • Page 13 ECN-360A-HM65 Em b e d d e d S ys te m Table 4-28: Jumpers ........................49 Table 4-29: AT/ATX Power Mode Jumper Settings ..............50 Table 4-30: Clear CMOS Jumper Settings ..................51 Table 4-31: LVDS Voltage Selection Jumper Settings ..............52 Table 4-32: LVDS Screen Resolution Jumper Settings ............53 Table 4-33: TPM Setting Jumper Settings ..................53...

  • Page 14: Introduction

    ECN-360A-HM65 Em b e d d e d S ys te m Ch a p te r In tro d u c tio n P a g e 1...

  • Page 15: Overview

    204-pin DDR3 SDRAM SO-DIMM modules up to 8 GB (4GB memory preinstalled). The ECN-360A-HM65 supports a 2.5” SATA HDD with up to 6 Gb/s data transfer rate. Three serial ports, two USB 3.0 ports and two USB 2.0 ports ensure simplified connectivity to a variety of external peripheral devices.

  • Page 16: Technical Specifications

    ECN-360A-HM65 Em b e d d e d S ys te m 1.4 Te c h n ic a l Sp e c ific a tio n s The ECN-360A-HM65 technical specifications are listed in Table 1-1. Ch a s s is...

  • Page 17: Front Panel

    ECN-360A-HM65 Em b e d d e d S ys te m 1 x Line-out Au d io 1 x 802.11 b/g/n ( optional) Wire le s s Expansions 1 x Full size ( reserved for Wi-Fi ) P CIe Min i...

  • Page 18: Rear Panel

    ECN-360A-HM65 Em b e d d e d S ys te m Figure 1-2: ECN-360A-HM65 Front Panel 1.6 Re a r P a n e l The rear panel of the ECN-360A-HM65 has the following features (Figure 1-3):  1 x DIO connector ...

  • Page 19: Figure 1-3: Ecn-360A-Hm65 Rear Panel

    ECN-360A-HM65 Em b e d d e d S ys te m Figure 1-3: ECN-360A-HM65 Rear Panel P a g e 6...

  • Page 20: Dimensions

    ECN-360A-HM65 Em b e d d e d S ys te m 1.7 Dim e n s io n s The physical dimensions are shown below: Figure 1-4: Physical Dimensions (mm) P a g e 7...

  • Page 21: Unpacking

    ECN-360A-HM65 Em b e d d e d S ys te m Ch a p te r Un p a c kin g P a g e 8...

  • Page 22: Anti - Static Precautions

    ECN-360A-HM65 Em b e d d e d S ys te m 2.1 An ti-s ta tic P re c a u tio n s WARNING: Failure to take ESD precautions during installation may result in permanent damage to the ECN-360A-HM65 and severe injury to the user.

  • Page 23: Unpacking Checklist

    ECN-360A-HM65 Em b e d d e d S ys te m 2.3 Un pa c kin g Ch e c klis t NOTE: If some of the components listed in the checklist below are missing, please do not proceed with the installation. Contact the IEI reseller or vendor you purchased the ECN-360A-HM65 from or contact an IEI sales representative directly.

  • Page 24: Table 2-1: Package List Contents

    ECN-360A-HM65 Em b e d d e d S ys te m Qu a n tity Ite m a n d P a rt Nu m b e r Im a g e Utility CD One Key Recovery CD Table 2-1: Package List Contents...

  • Page 25: Installation

    ECN-360A-HM65 Em b e d d e d S ys te m Ch a p te r In s ta lla tio n P a g e 12...

  • Page 26: Installation Precautions

    Electric shock and personal injury might occur if the rear panel of the ECN-360A-HM65 is opened while the power cord is still connected to an electrical outlet.

  • Page 27: Figure 3-1: Retention Screws Removal

    ECN-360A-HM65 Em b e d d e d S ys te m Remove six retention screws from the bottom panel (Figure 3-1). S te p 1: Figure 3-1: Retention Screws Removal Open the bottom panel and locate the HDD bracket (Figure 3-2).

  • Page 28: W I -F I Antenna Installation (Wireless Model Only )

    3.4 Wi-Fi An te n n a In s ta lla tio n (Wire le s s Mo d e l On ly) To install the Wi-Fi antennas to the ECN-360A-HM65 series for efficient wireless network transmission, follow the steps below.

  • Page 29: Mounting Bracket Installation

    ECN-360A-HM65 Em b e d d e d S ys te m Figure 3-4: Wi-Fi Antenna Installation 3.5 Mo u n tin g Bra c ke t In s ta lla tio n To mount the embedded system onto a wall or some other surface using the two mounting brackets, please follow the steps below.

  • Page 30: External Peripheral Interface Connectors

    3.6.1 Au d io Co n n e c tio n The audio jack on the external audio connector enables the ECN-360A-HM65 to be connected to a stereo sound setup. To install the audio devices, follow the steps below.

  • Page 31: Hdmi Device Connection

    3.6.2 HDMI De vic e Co n n e c tio n The HDMI connector transmits a digital signal to compatible HDMI display devices such as a TV or computer screen. To connect the HDMI cable to the ECN-360A-HM65, follow the steps below.

  • Page 32: Lan Connection

    ECN-360A-HM65 Em b e d d e d S ys te m Figure 3-7: HDMI Connection S te p 3: Insert the HDMI connector. Gently insert the HDMI connector. The connector should engage with a gentle push. If the connector does not insert easily, check again that the connector is aligned correctly, and that the connector is being inserted with the right way up.

  • Page 33: Serial Port Connection

    3.6.4 DB-9 S e ria l P o rt Co n n e c tio n There are two RS-232 DB-9 connectors and one RS-422/485 DB-9 connector of the ECN-360A-HM65 for serial device connection. Follow the steps below to connect a serial device to the DB-9 connector of the ECN-360A-HM65.

  • Page 34: Usb Device Connection

    There are four USB 3.0 connectors and two USB 2.0 connectors on the ECN-360A-HM65. To connect a USB device, please follow the instructions below. Locate the USB connectors. The locations of the USB connectors are shown S te p 1: in Chapter 1.

  • Page 35: Vga Monitor Connection

    ECN-360A-HM65 Em b e d d e d S ys te m Figure 3-10: USB Device Connection Insert the device connector. Once aligned, gently insert the USB device S te p 3: connector into the onboard connector. 3.6.6 VGA Mo n ito r Co n n e c tio n The ECN-360A-HM65 has a single female DB-15 connector on the external peripheral interface panel.

  • Page 36: Figure 3-11: Vga Connector

    ECN-360A-HM65 Em b e d d e d S ys te m Figure 3-11: VGA Connector Secure the connector. Secure the DB-15 VGA connector from the VGA S te p 4: monitor to the external interface by tightening the two retention screws on either side of the connector.

  • Page 37: System Motherboard

    ECN-360A-HM65 Em b e d d e d S ys te m Ch a p te r S ys te m Mo th e rb o a rd P a g e 24...

  • Page 38: Peripheral Interface Connectors

    ECN-360A-HM65 Em b e d d e d S ys te m 4.1 P e rip h e ra l In te rfa c e Co n n e c to rs The ECN-360A-HM651 embedded system motherboard comes with a number of peripheral interface connectors and configuration jumpers.

  • Page 39: Internal Peripheral Connectors

    ECN-360A-HM65 Em b e d d e d S ys te m 4.1.2 In te rn a l P e rip h e ra l Co n n e c to rs Table 4-1 shows a list of the internal peripheral connectors on the motherboard. Detailed descriptions of these connectors can be found below.

  • Page 40: External Interface Panel Connectors

    ECN-360A-HM65 Em b e d d e d S ys te m 4.1.3 Exte rn a l In te rfa c e P a n e l Co n n e c to rs Table 4-2 lists the rear panel connectors on the motherboard. Detailed descriptions of these connectors can be found in Section 4.3.

  • Page 41: Battery Connector

    ECN-360A-HM65 Em b e d d e d S ys te m Figure 4-2: Audio Connector Location Description Description LFRONT-R LLINE-R LFRONT-L LLINE-L LMIC1-CONN-R LMIC1-CONN-L Table 4-3: Audio Connector Pinouts 4.2.2 Ba tte ry Co n n e c to r...

  • Page 42: Digital Input/Output (Dio) Connector

    ECN-360A-HM65 Em b e d d e d S ys te m Description Battery+ Ground Table 4-4: Battery Connector Pinouts 4.2.3 Dig ita l In p u t/Ou tp u t (DIO) Co n n e c to r CN La b e l:...

  • Page 43: Debug Connector

    ECN-360A-HM65 Em b e d d e d S ys te m 4.2.4 De b u g Co n n e c to r CN La b e l: DBG_P ORT1 12-pin connector (1x12) CN Typ e : CN Lo c a tio n :...

  • Page 44: Fan Connector (Cpu)

    ECN-360A-HM65 Em b e d d e d S ys te m 4.2.5 Fa n Co n n e c to r (CP U) CN La b e l: CP U_FAN1 4-pin wafer (1x4) CN Typ e : CN Lo c a tio n :...

  • Page 45: Front Panel Connector

    ECN-360A-HM65 Em b e d d e d S ys te m CN Lo c a tio n : See Figure 4-7 CN P in o u ts : See Table 4-8 The cooling fan connector provides a 12V, 500mA current to the cooling fan. The connector has a "rotation"...

  • Page 46: Lvds Backlight Inverter Connector

    ECN-360A-HM65 Em b e d d e d S ys te m  Reset Figure 4-8: Front Panel Connector Location FUNCTION P IN DES CRIP TION FUNCTION P IN DES CRIP TION Power LED PWR_LED+ Power Button PWR_BTN+ PWR_LED+ PWR_BTN-...

  • Page 47: Keyboard/Mouse Connector

    ECN-360A-HM65 Em b e d d e d S ys te m Figure 4-9: Backlight Inverter Connector Location Description BACKLIGHT ADJUST GROUND +12 V GROUND BACKLIGHT ENABLE Table 4-10: Backlight Inverter Connector Pinouts 4.2.9 Ke yb o a rd /Mo u s e Co n n e c to r...

  • Page 48: Lvds Lcd Connector

    ECN-360A-HM65 Em b e d d e d S ys te m Figure 4-10: Keyboard/Mouse Connector Location Description VCC5_KBMS MS DATA MS CLK KB DATA KB CLK GROUND Table 4-11: Keyboard/Mouse Connector Pinouts 4.2.10 LVDS LCD Co n n e c to r...

  • Page 49: Pcie Mini Card Slot

    ECN-360A-HM65 Em b e d d e d S ys te m Figure 4-11: LVDS Connector Location Description Description A_Y0 A_Y0# A_Y1 A_Y1# A_Y2 A_Y2# A_CK A_CK# A_Y3 A_Y3# B_Y0 B_Y0# B_Y1 B_Y1# B_Y2 B_Y2# B_CK B_CK# B_Y3 B_Y3# VCC/VCC3...

  • Page 50: Figure 4-12: Pcie Mini Card Slot Location

    ECN-360A-HM65 Em b e d d e d S ys te m CN P in o u ts : See Table 4-4 The PCIe Mini card slot enables a PCIe Mini card expansion module to be connected to the board. Cards supported include among others wireless LAN (WLAN) cards and mSATA cards.

  • Page 51: Power Connector

    ECN-360A-HM65 Em b e d d e d S ys te m Description Description USBD+ 1.5V VCC3 Table 4-13: PCIe Mini Card Slot Pinouts 4.2.12 P owe r Co n n e c to r CN La b e l:...

  • Page 52: Sata 6Gb/S Connector

    ECN-360A-HM65 Em b e d d e d S ys te m Description Description +12 V +12 V Table 4-14: CPU Power Connector Pinouts 4.2.13 S ATA 6Gb /s Co n n e c to r CN La b e l:...

  • Page 53: Sata Power Connectors

    ECN-360A-HM65 Em b e d d e d S ys te m 4.2.14 S ATA P o we r Co n n e c to rs CN La b e l: CN1, CN2 2-pin wafer CN Typ e : CN Lo c a tio n :...

  • Page 54: Serial Port Connector (Com3)

    ECN-360A-HM65 Em b e d d e d S ys te m Figure 4-16: COM Connector Locations Description Description -NDCD -NCTS -NDSR -NDTR NSIN -XRI -NRTS NSOUT Table 4-17: COM Connector Pinouts 4.2.16 RS -422/485 S e ria l P ort Co n n e c to r (COM3)

  • Page 55: Smbus Connector

    ECN-360A-HM65 Em b e d d e d S ys te m Figure 4-17: Serial Port Connector Location Description RXD422- RXD422+ TXD422+/TXD485+ TXD422-/TXD485- Table 4-18: Serial Port Connector Pinouts Use the optional RS-422/485 cable to connect to a serial device. The pinouts of the DB-9 connector are listed below.

  • Page 56: Spi Flash Connector

    ECN-360A-HM65 Em b e d d e d S ys te m The SMBus Connector provides a connection to a SMBus (System Management Bus) device. Figure 4-18: SMBus Connector Location Description SMB_DATA SMB_CLK +V5S Table 4-20: SMBus Connector Pinouts 4.2.18 S P I Fla s h Co n n e c to r...

  • Page 57: External Peripheral Interface Connector Panel

    ECN-360A-HM65 Em b e d d e d S ys te m Figure 4-19: SPI Flash Connector Location Description Description +V3.3M_SPI_CON SPI_SI_SW SPI_CS SPI_SO_SW SPI_CLK_SW Table 4-21: SPI Flash Connector 4.3 Exte rn a l P e rip h e ra l In te rfa c e Co n n e c to r P a n e l Figure 4-20 shows the motherboard external peripheral interface connector (EPIC) panel.

  • Page 58: Ethernet Connectors

    ECN-360A-HM65 Em b e d d e d S ys te m 4.3.1 Eth e rn e t Co n n e c to rs CN La b e l: LAN1 a n d LAN2 RJ-45 CN Typ e :...

  • Page 59: Hdmi Connectors

    ECN-360A-HM65 Em b e d d e d S ys te m 4.3.2 HDMI Co n n e c to rs CN La b e l: HDMI1, HDMI2 HDMI connector CN Typ e : CN Lo c a tio n :...

  • Page 60: Usb 3.0 Connectors

    ECN-360A-HM65 Em b e d d e d S ys te m CN Lo c a tio n : See Figure 4-20 CN P in o u ts : See Table 4-25 The motherboard has two external USB 2.0 ports. The ports connect to both USB 2.0 and USB 1.1 devices.

  • Page 61: Vga Connector

    ECN-360A-HM65 Em b e d d e d S ys te m 4.3.5 VGA Co n n e c to r CN La b e l: VGA1 15-pin Female CN Typ e : CN Lo c a tio n :...

  • Page 62: Jumper Settings

    ECN-360A-HM65 Em b e d d e d S ys te m 4.4 J u m p e r S e ttin g s NOTE: A jumper is a metal bridge used to close an electrical circuit. It consists of two or three...

  • Page 63: Clear Cmos Jumper

    J u m p e r Lo c a tio n : See Figure 4-25 If the ECN-360A-HM65 fails to boot due to improper BIOS settings, the clear CMOS jumper clears the CMOS data and resets the system BIOS information. To do this, use the jumper cap to close pins 2 and 3 for a few seconds then reinstall the jumper clip back to pins 1 and 2.

  • Page 64: Lvds Voltage Selection Jumper

    ECN-360A-HM65 Em b e d d e d S ys te m After having done one of the above, save the changes and exit the CMOS Setup menu. The clear CMOS jumper settings are shown in Table 4-30. Setting Description...

  • Page 65: Lvds Panel Resolution Selection Jumper

    ECN-360A-HM65 Em b e d d e d S ys te m Setting Description Short 1-2 +3.3 V (Default) Short 2-3 +5.0 V Table 4-31: LVDS Voltage Selection Jumper Settings Figure 4-26: LVDS Voltage Selection Jumper Location 4.4.4 LVDS P a n e l Re s o lu tio n S e le c tio n J u m p e r...

  • Page 66: Tpm Setting Jumper

    ECN-360A-HM65 Em b e d d e d S ys te m Description 1-2 and 7-8 1366 X 768 (24bit) 3-4 and 7-8 1440 X 900 (48bit) 1-2 and 3-4 and 7-8 1600 X 900 (48bit) 5-6 and 7-8 1680 X 1050 (48bit)

  • Page 67: Flash Descriptor Security Override Jumper

    ECN-360A-HM65 Em b e d d e d S ys te m Figure 4-28: TPM Setting Jumper Location 4.4.6 Fla s h De s c rip to r S e c u rity Ove rrid e J u m p e r...

  • Page 68: Bios

    ECN-360A-HM65 Em b e d d e d S ys te m Ch a p te r BIOS P a g e 55...

  • Page 69: Introduction

    ECN-360A-HM65 Em b e d d e d S ys te m 5.1 In tro d u c tio n The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to certain system settings. This chapter outlines the options that can be changed.

  • Page 70: Getting Help

    ECN-360A-HM65 Em b e d d e d S ys te m Ke y Fu n c tio n F4 key Save all the CMOS changes Esc key Main Menu – Quit and not save changes into CMOS Status Page Setup Menu and Option Page Setup Menu --...

  • Page 71: Main

    ECN-360A-HM65 Em b e d d e d S ys te m 5.2 Ma in The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information.

  • Page 72: Advanced

    ECN-360A-HM65 Em b e d d e d S ys te m  S ys te m Tim e [xx:xx:xx] Use the System Time option to set the system time. Manually enter the hours, minutes and seconds. 5.3 Ad va n c e d...

  • Page 73: Rtc Wake Settings

    ECN-360A-HM65 Em b e d d e d S ys te m Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced ACPI Settings Select the highest ACPI sleep state the system ACPI Sleep State [S1 (CPU Stop Clock)]...
  • Page 74 ECN-360A-HM65 Em b e d d e d S ys te m Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced Wake system with Fixed Time [Disabled] Enable or disable System wake on alarm event. When enabled, System will...

  • Page 75: Cpu Configuration

    ECN-360A-HM65 Em b e d d e d S ys te m 5.3.3 CP U Co n fig u ra tio n Use the CPU Configuration menu (BIOS Menu 5) to enter the CPU Information submenu or enable Intel Virtualization Technology.

  • Page 76: Sata Configuration

    ECN-360A-HM65 Em b e d d e d S ys te m  In te l Virtu a liza tio n Te c h n o lo g y [Dis a b le d ] Use the Intel Virtualization Technology option to enable or disable virtualization on the system.

  • Page 77: Usb Configuration

    ECN-360A-HM65 Em b e d d e d S ys te m  Configures SATA devices as AHCI device. AHCI 5.3.5 US B Co n fig u ra tio n Use the USB Configuration menu (BIOS Menu 7) to read USB configuration information and configure the USB settings.

  • Page 78: Super Io Configuration

    ECN-360A-HM65 Em b e d d e d S ys te m 5.3.6 S u pe r IO Co n fig u ra tio n Use the Super IO Configuration menu (BIOS Menu 8) to set or change the configurations for the FDD controllers, parallel ports and serial ports.
  • Page 79 ECN-360A-HM65 Em b e d d e d S ys te m 5.3.6.1.1 S e ria l P o rt 1 Co n fig u ra tio n  S e ria l P o rt [En a b le d ] Use the Serial Port option to enable or disable the serial port.
  • Page 80 ECN-360A-HM65 Em b e d d e d S ys te m  Ch a n g e S e ttin g s [Au to ] Use the Change Settings option to change the serial port IO port address and interrupt address.

  • Page 81: H/W Monitor

    ECN-360A-HM65 Em b e d d e d S ys te m  Serial Port I/O port address is 3E8h and the interrupt IO=3E8h; IRQ=10 address is IRQ10  IO=3F8h; Serial Port I/O port address is 3F8h and the interrupt...

  • Page 82: Smart Fan Mode Configuration

    ECN-360A-HM65 Em b e d d e d S ys te m  P C He a lth Sta tu s The following system parameters and values are shown. The system parameters that are monitored are:  System Temperatures: CPU Temperature System Temperature ...

  • Page 83: Serial Port Console Redirection

    ECN-360A-HM65 Em b e d d e d S ys te m  CP U Fa n S m a rt Fa n Co n tro l [Au to Du ty-Cyc le Mo d e ] Use the CPU Smart Fan control option to configure the CPU Smart Fan.

  • Page 84: Console Redirection Settings

    ECN-360A-HM65 Em b e d d e d S ys te m Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced COM1 Console Redirection Console Redirection [Disabled] Enable or Disable > Console Redirection Settings COM2 Console Redirection [Disabled] >...
  • Page 85 ECN-360A-HM65 Em b e d d e d S ys te m Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced COM1 Emulation: ANSI: Console Redirection Settings Extended ASCII char set. VT100: ASCII char set. Terminal Type [ANSI]...
  • Page 86 ECN-360A-HM65 Em b e d d e d S ys te m  The transmission speed is 57600 57600  115200 The transmission speed is 115200 EFAULT  Da ta Bits [8] Use the Data Bits option to specify the number of data bits.

  • Page 87: I E I Feature

    ECN-360A-HM65 Em b e d d e d S ys te m 5.4 iEi Fe a tu re Use the iEi Feature menu (BIOS Menu 14) to configure the auto recovery function. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc.
  • Page 88 ECN-360A-HM65 Em b e d d e d S ys te m WARNING! Setting the wrong values for the Chipset BIOS selections in the Chipset BIOS menu may cause the system to malfunction. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc.

  • Page 89: Northbridge Configuration

    ECN-360A-HM65 Em b e d d e d S ys te m 5.5.1 No rth Brid g e Co n fig u ra tio n Use the NorthBridge Configuration menu (BIOS Menu 16) to configure the Northbridge chipset. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc.

  • Page 90: Graphics Configuration

    ECN-360A-HM65 Em b e d d e d S ys te m 5.5.1.1 Gra p h ic s Co n fig u ra tio n Use the Graphics Configuration menu to configure the video device connected to the system. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc.
  • Page 91 ECN-360A-HM65 Em b e d d e d S ys te m  DVMT To ta l Gfx Me m [MAX] Use the DVMT Total Gfx Mem option to specify the total amount of memory that can be allocated as graphics memory. Configuration options are listed below.

  • Page 92: Southbridge Configuration

    ECN-360A-HM65 Em b e d d e d S ys te m  1920x1080 (48bit)  1920x1200 (48bit)  2048x1536 (48bit)  Ba c klig h t Co n tro l [No rm a l] Use the Backlight Control option to select backlight control mode.
  • Page 93 ECN-360A-HM65 Em b e d d e d S ys te m  The system turns on Power On  Last State The system returns to its previous state. If it was on, it EFAULT turns itself on. If it was off, it remains off.

  • Page 94: Boot

    ECN-360A-HM65 Em b e d d e d S ys te m 5.6 Bo o t Use the Boot menu (BIOS Menu 19) to configure system boot options. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Main Advanced...
  • Page 95 ECN-360A-HM65 Em b e d d e d S ys te m  Qu ie t Bo o t [En a b le d ] Use the Quiet Boot BIOS option to select the screen display when the system boots.

  • Page 96: Security

    ECN-360A-HM65 Em b e d d e d S ys te m 5.7 S e c u rity Use the Security menu (BIOS Menu 20) to set system and user passwords. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc.

  • Page 97: Exit

    ECN-360A-HM65 Em b e d d e d S ys te m 5.8 Exit Use the Exit menu (BIOS Menu 21) to load default BIOS values, optimal failsafe values and to save configuration changes. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc.
  • Page 98 ECN-360A-HM65 Em b e d d e d S ys te m  S a ve a s Us e r De fa u lts Use the Save as User Defaults option to save the changes done so far as user defaults.

  • Page 99: A Safety Precautions

    ECN-360A-HM65 Em b e d d e d S ys te m Appendix S a fe ty P re c a u tio n s P a g e 86...

  • Page 100: Safety Precautions

    ECN-360A-HM65 Em b e d d e d S ys te m WARNING: The precautions outlined in this chapter should be strictly followed. Failure to follow these precautions may result in permanent damage to the ECN-360A-HM65. A.1 S a fe ty P re c a u tio n s Please follow the safety precautions outlined in the sections that follow: A.1.1 Ge n e ra l S a fe ty P re c a u tio n s...

  • Page 101: Anti-Static Precautions

    Electrostatic discharge (ESD) can cause serious damage to electronic components, including the ECN-360A-HM65. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the ECN-360A-HM65 is opened and any of the electrical components are handled, the following anti-static precautions are strictly adhered to.

  • Page 102: Product Disposal

    When maintaining or cleaning the ECN-360A-HM65, please follow the guidelines below. A.2.1 Ma in te n a n c e a n d Cle a n in g Prior to cleaning any part or component of the ECN-360A-HM65, please read the details below.

  • Page 103: Cleaning Tools

    Some components in the ECN-360A-HM65 may only be cleaned using a product specifically designed for the purpose. In such case, the product will be explicitly mentioned in the cleaning tips. Below is a list of items to use when cleaning the ECN-360A-HM65. ...

  • Page 104: B Bios Menu Options

    ECN-360A-HM65 Em b e d d e d S ys te m Appendix BIOS Me n u Op tio n s P a g e 91...
  • Page 105 ECN-360A-HM65 Em b e d d e d S ys te m  System Overview .........................58  System Date [xx/xx/xx] ......................58  System Time [xx:xx:xx] .......................59  ACPI Sleep State [S1 (CPU Stop Clock)] ................60  Wake system with Fixed Time [Disabled] ................61 ...
  • Page 106 ECN-360A-HM65 Em b e d d e d S ys te m  Restore on AC Power Loss [Last State] ................79  Azalia [Enabled] ........................80  Azalia internal HDMI codec [Enabled] ................80  Bootup NumLock State [On] ....................81  Quiet Boot [Enabled] ......................82 ...

  • Page 107: C One Key Recovery

    ECN-360A-HM65 Em b e d d e d S ys te m Ap p e n d ix On e Ke y Re c o ve ry P a g e 94...

  • Page 108: One Key Recovery Introduction

    ECN-360A-HM65 Em b e d d e d S ys te m C.1 On e Ke y Re c o ve ry In tro d u c tio n The IEI one key recovery is an easy-to-use front end for the Norton Ghost system backup and recovery tool.

  • Page 109: System Requirement

    ECN-360A-HM65 Em b e d d e d S ys te m After completing the five initial setup procedures as described above, users can access the recovery tool by pressing <F3> while booting up the system. The detailed information of each function is described in Section C.5.

  • Page 110: Supported Operating System

    ECN-360A-HM65 Em b e d d e d S ys te m partitions. Please take the following table as a reference when calculating the size of the partition. OS Image after Ghost Compression Ratio Windows® 7 7 GB 5 GB Windows®...

  • Page 111: Setup Procedure For Windows

    ECN-360A-HM65 Em b e d d e d S ys te m Ubuntu 8.10 (Intrepid) Ubuntu 7.10 (Gutsy) Ubuntu 6.10 (Edgy) Debian 5.0 (Lenny) Debian 4.0 (Etch) SuSe 11.2 SuSe 10.3 NOTE: Installing unsupported OS versions may cause the recovery tool to fail.

  • Page 112: Hardware And Bios Setup

    ECN-360A-HM65 Em b e d d e d S ys te m C.2.1 Ha rdwa re a n d BIOS S e tu p Make sure the system is powered off and unplugged. S te p 1: Install a hard drive or SSD in the system. An unformatted and unpartitioned disk S te p 2: is recommended.

  • Page 113: Figure C-2: Launching The Recovery Tool

    ECN-360A-HM65 Em b e d d e d S ys te m Figure C-2: Launching the Recovery Tool S te p 3: The recovery tool setup menu is shown as below. Figure C-3: Recovery Tool Setup Menu S te p 4: Press <6>...

  • Page 114: Figure C-4: Command Prompt

    ECN-360A-HM65 Em b e d d e d S ys te m Figure C-4: Command Prompt S te p 5: The command prompt window appears. Type the following commands (marked in red) to create two partitions. One is for the OS installation; the other is for saving recovery files and images which will be an invisible partition.

  • Page 115: Figure C-5: Partition Creation Commands

    ECN-360A-HM65 Em b e d d e d S ys te m Figure C-5: Partition Creation Commands P a g e 102...

  • Page 116: Install Operating System, Drivers And Applications

    ECN-360A-HM65 Em b e d d e d S ys te m NOTE: Use the following commands to check if the partitions were created successfully. S te p 6: Press any key to exit the recovery tool and automatically reboot the system.

  • Page 117: Building The Recovery Partition

    ECN-360A-HM65 Em b e d d e d S ys te m C.2.4 Bu ild in g th e Re c o ve ry P a rtitio n Put the recover CD in the optical drive. S te p 1: Start the system.

  • Page 118: Figure C-8: Building The Recovery Partition

    ECN-360A-HM65 Em b e d d e d S ys te m S te p 5: The Symantec Ghost window appears and starts configuring the system to build a recovery partition. In this process the partition created for recovery files in Section C.2.2 is hidden and the recovery tool is saved in this partition.

  • Page 119: Create Factory Default Image

    ECN-360A-HM65 Em b e d d e d S ys te m C.2.5 Cre a te Fa c to ry De fa u lt Im a g e NOTE: Before creating the factory default image, please configure the system to a factory default environment, including driver and application installations.

  • Page 120: Figure C-12: About Symantec Ghost Window

    ECN-360A-HM65 Em b e d d e d S ys te m Figure C-12: About Symantec Ghost Window Use mouse to navigate to the option shown below (Figure C-13). S te p 4: Figure C-13: Symantec Ghost Path S te p 5: Select the local source drive (Drive 1) as shown in Figure C-14.

  • Page 121: Figure C-14: Select A Local Source Drive

    ECN-360A-HM65 Em b e d d e d S ys te m Figure C-14: Select a Local Source Drive S te p 6: Select a source partition (Part 1) from basic drive as shown in Figure C-15. Then click OK.

  • Page 122: Figure C-16: File Name To Copy Image To

    ECN-360A-HM65 Em b e d d e d S ys te m Figure C-16: File Name to Copy Image to When the Compress Image screen in Figure C-17 prompts, click High to make S te p 8: the image file smaller.

  • Page 123: Figure C-18: Image Creation Confirmation

    ECN-360A-HM65 Em b e d d e d S ys te m The Proceed with partition image creation window appears, click Yes to S te p 9: continue. Figure C-18: Image Creation Confirmation The Symantec Ghost starts to create the factory default image (Figure C-19).

  • Page 124: Auto Recovery Setup Procedure

    ECN-360A-HM65 Em b e d d e d S ys te m S te p 12: The recovery tool main menu window is shown as below. Press any key to reboot the system. S t e p 0 : Figure C-21: Press Any Key to Continue C.3 Au to Re c o ve ry S e tu p P ro c e d u re...

  • Page 125: Figure C-22: Auto Recovery Utility

    ECN-360A-HM65 Em b e d d e d S ys te m Figure C-22: Auto Recovery Utility Reboot the system from the recovery CD. When prompted, press any key to S te p 3: boot from the recovery CD. It will take a while to launch the recovery tool. Please...

  • Page 126: Figure C-25: Building The Auto Recovery Partition

    ECN-360A-HM65 Em b e d d e d S ys te m S te p 5: The Symantec Ghost window appears and starts configuring the system to build an auto recovery partition. In this process the partition created for recovery files in Section C.2.2 is hidden and the auto recovery tool is saved in this partition.

  • Page 127: Figure C-27: Image Creation Complete

    ECN-360A-HM65 Em b e d d e d S ys te m The Symantec Ghost starts to create the factory default image (Figure C-27). S te p 7: Figure C-27: Image Creation Complete S te p 8: After completing the system configuration, press any key in the following window to restart the system.

  • Page 128: Setup Procedure For Linux

    ECN-360A-HM65 Em b e d d e d S ys te m Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced iEi Feature Auto Recovery Function Reboot and recover Auto Recovery Function [Disabled] system automatically within 10 min, when OS crashes.

  • Page 129: Figure C-29: Partitions For Linux

    ECN-360A-HM65 Em b e d d e d S ys te m Hardware and BIOS setup. Refer to Section C.2.1. S te p 1: Install Linux operating system. Make sure to install GRUB (v0.97 or earlier) S te p 2: MBR type and Ext3 partition type.

  • Page 130: Figure C-30: Manual Recovery Environment For Linux

    ECN-360A-HM65 Em b e d d e d S ys te m DISKPART>sel disk 0 DISKPART>create part pri size= DISKPART>assign letter=N DISKPART>exit system32>format N: /fs:ntfs /q /v:Recovery /y system32>exit S te p 4: Build the recovery partition. Press any key to boot from the recovery CD. It will take a while to launch the recovery tool.

  • Page 131: Figure C-31: Access Menu.lst In Linux (Text Mode)

    ECN-360A-HM65 Em b e d d e d S ys te m Figure C-31: Access menu.lst in Linux (Text Mode) Modify the menu.lst as shown below. S te p 6: The recovery tool menu appears. (Figure C-32) S te p 7: Figure C-32: Recovery Tool Menu Create a factory default image.

  • Page 132: Recovery Tool Functions

    ECN-360A-HM65 Em b e d d e d S ys te m C.5 Re c o ve ry To o l Fu n c tio n s After completing the initial setup procedures as described above, users can access the recovery tool by pressing <F3>...

  • Page 133: Factory Restore

    ECN-360A-HM65 Em b e d d e d S ys te m WARNING: All data in the system will be deleted during the system recovery. Please backup the system files before restoring the system (either Factory Restore or Restore Backup).

  • Page 134: Backup System

    ECN-360A-HM65 Em b e d d e d S ys te m Figure C-35: Recovery Complete Window C.5.2 Ba c ku p S ys te m To backup the system, please follow the steps below. Type <2> and press <Enter> in the main menu.

  • Page 135: Restore Your Last Backup

    ECN-360A-HM65 Em b e d d e d S ys te m Figure C-37: System Backup Complete Window C.5.3 Re s to re Yo u r La s t Ba c ku p To restore the last system backup, please follow the steps below.

  • Page 136: Manual

    ECN-360A-HM65 Em b e d d e d S ys te m Figure C-39: Restore System Backup Complete Window C.5.4 Ma n u a l To restore the last system backup, please follow the steps below. Type <4> and press <Enter> in the main menu.

  • Page 137: Restore Systems From A Linux Server Through Lan

    ECN-360A-HM65 Em b e d d e d S ys te m C.6 Re s to re S ys te m s fro m a Lin u x S e rve r thro u g h LAN The One Key Recovery allows a client system to automatically restore to a factory default image saved in a Linux system (the server) through LAN connectivity after encountering a Blue Screen of Death (BSoD) or a hang for around 10 minutes.

  • Page 138: Configure Dhcp Server Settings

    ECN-360A-HM65 Em b e d d e d S ys te m C.6.1 Co n fig u re DHCP S e rve r S e ttin g s Install the DHCP S te p 1: #yum install dhcp (CentOS, commands marked in red)

  • Page 139: Configure Tftp Settings

    ECN-360A-HM65 Em b e d d e d S ys te m filename “pxelinux.0”; C.6.2 Co n fig u re TFTP S e ttin g s S te p 1: Install the tftp, httpd and syslinux. #yum install tftp-server httpd syslinux...

  • Page 140: Configure One Key Recovery Server Settings

    ECN-360A-HM65 Em b e d d e d S ys te m Debian Replace the TFTP settings from “inetd” to “xinetd” and annotate the “inetd” by adding “#”. #vi /etc/inetd.conf Modify: #tftp dgram udp wait root /usr/sbin..(as shown below) #vi /etc/xinetd.d/tftp...

  • Page 141: Start The Dhcp, Tftp And Http

    ECN-360A-HM65 Em b e d d e d S ys te m C.6.4 Sta rt th e DHCP, TFTP a n d HTTP Start the DHCP, TFTP and HTTP. For example: CentOS #service xinetd restart #service httpd restart #service dhcpd restart Debian #/etc/init.d/xinetd reload...

  • Page 142: Setup A Client System For Auto Recovery

    ECN-360A-HM65 Em b e d d e d S ys te m Modify: [image] comment = One Key Recovery path = /share/image browseable = yes writable = yes public = yes create mask = 0644 directory mask = 0755 S te p 4: Edit “/etc/samba/smb.conf”...
  • Page 143 ECN-360A-HM65 Em b e d d e d S ys te m Continue to configure the Boot Option Priorities BIOS option of the client S te p 2: system: Boot Option #1  remain the default setting to boot from the original OS.
  • Page 144 ECN-360A-HM65 Em b e d d e d S ys te m NOTE: A firewall or a SELinux is not in use in the whole setup process. If there is a firewall or a SELinux protecting the system, modify the configuration information to accommodate them.

  • Page 145: Other Information

    ECN-360A-HM65 Em b e d d e d S ys te m C.7 Oth e r In fo rm a tio n C.7.1 Us in g AHCI Mo d e o r ALi M5283 / VIA VT6421A Co n tro lle r...
  • Page 146 ECN-360A-HM65 Em b e d d e d S ys te m When the following window appears, press <S> to select “Specify Additional S te p 5: Device”. In the following window, select a SATA controller mode used in the system. Then S te p 6: press <Enter>.

  • Page 147: System Memory Requirement

    ECN-360A-HM65 Em b e d d e d S ys te m S te p 7: After pressing <Enter>, the system will get into the recovery tool setup menu. Continue to follow the setup procedure from Step 4 in Section C.2.2 Create Partitions to finish the whole setup process.

  • Page 148: D Watchdog Timer

    ECN-360A-HM65 Em b e d d e d S ys te m Appendix Wa tc h d o g Tim e r P a g e 135...
  • Page 149 ECN-360A-HM65 Em b e d d e d S ys te m NOTE: The following discussion applies to DOS environment. IEI support is contacted or the IEI website visited for specific drivers for more sophisticated operating systems, e.g., Windows and Linux.
  • Page 150 ECN-360A-HM65 Em b e d d e d S ys te m NOTE: When exiting a program it is necessary to disable the Watchdog Timer, otherwise the system resets. Example program: ; INITIAL TIMER PERIOD COUNTER W_LOOP: AX, 6F02H ;setting the time-out value BL, 05 ;time-out value is 5 seconds...

  • Page 151: E Hazardous Materials Disclosure

    ECN-360A-HM65 Em b e d d e d S ys te m Ap p e n d ix Ha za rd o u s Ma te ria ls Dis c lo s u re P a g e 138...

  • Page 152: Hazardous Materials Disclosure Table For Ipb Products Certified As

    ECN-360A-HM65 Em b e d d e d S ys te m E.1 Ha za rd o u s Ma te ria ls Dis c lo s u re Ta ble for IP B P ro d u c ts...
  • Page 153 ECN-360A-HM65 Em b e d d e d S ys te m P a rt Na m e To xic o r Ha za rd o u s S u b s ta n c e s a n d Ele m e n ts...
  • Page 154 ECN-360A-HM65 Em b e d d e d S ys te m 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本 产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些元 件将会单独标示出来。 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯 醚 (P b ) (Hg ) (Cd ) (CR(VI)) (P BB) (P BDE) 壳体...

This manual is also suitable for:

Ecn-360a-hm65/4g-r10Ecn-360aw-hm65/4g-r10

Table of Contents
