Louroe Electronics LE-367 Installation And Operating Instructions

®
ASK-4 # 101-DP (LE-367)

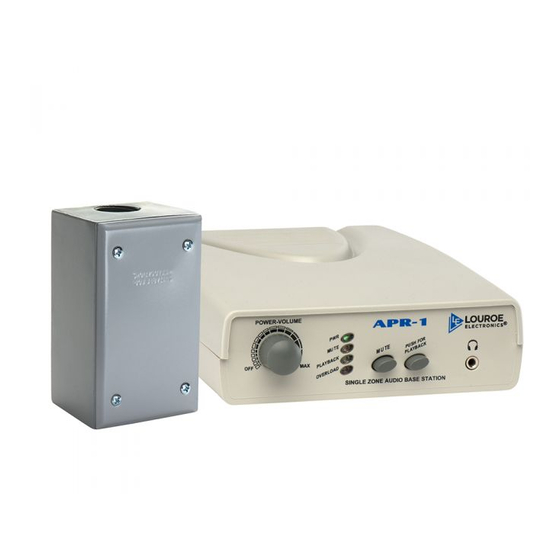

The ASK-4® #101-DP is a single zone audio monitoring system designed to interface with a DVR, VCR or other recording devices that accept line
level input. The APR-1 Audio Base Station contains a built-in 3" speaker and volume control for producing live audio and audio playback. The
microphone is mounted in the back of the face plastic plate that can used on a single gang electrical box for flush mounting.

KIT CONTENT

PRODUCT NAME DESCRIPTION
APR-1
listed Audio Base Station. Used for listening to live audio from microphone, as well as
(LE-146)
audio playback from DVR's, VCR's or other audio devices.
Verifact™ "DP" Mic Microphone Electret condenser microphone with preamp. Picks up normal sounds 15' away (wall mounted) or within a
30' diameter (ceiling mounted). May be located Up to 1000' from APR-1 Base Station.
(LE-003)
AD-1
listed AC ADAPTER. Supplies 12 Vdc to APR-1 and Microphone.
Dual RCA Cable RCA cable for connection to a DVR/VCR or other Audio devices that accept line level input

PART DESCRIPTION

[1] Power-Volume Turns "ON" power to the unit and controls the audio
volume through the Speaker[9].
[2] Power Indicator
Lights (green) when the power is present to the unit.
[3] Mute Indicator Lights (orange) when Mute Switch[6] is pushed in.
Audio is muted.
[4] Playback Lights (yellow) when Push for Playback[7] is
pushed in to "ON" position.
Indicator
[5] Overload
Flashes (red) when there is a short in the power
Indicator supply.
[6] Mute Switch Used to mute the audio on both live and playback
mode.
Used for DVR/VCR playback. May also be used
[7] Push for play-
to listen to audio from an external source. Press
back
switch to listen to playback. Switch must be "OUT"
or "OFF" when monitoring and recording, otherwise
live audio is muted
[8] Headphone Used for private listening. Any 3.5mm stereo
headphone with 8Ω to 600Ω impedance can be
Jack
used.
Provides live audio. Muted when a headphone is
[9] Speaker (3")
connected to Headphone Jack [8].
Accepts 12Vdc power from Model AD-1 Power Sup-
[10] Power Jack
ply (included with APR-1 Audio Base Station). AD-1
has a 90° 2.1mm female plug.
Accepts audio playback from an external source
[11] Audio in Jack
(RCA)
(DVR/VCR). Audio playback is produced through
the speaker. The Push for Playback[7] must be "IN"
during audio playback and "OUT" when not used for
playback.
Provides audio output and connection to a DVR,
[12] Audio Out Jack
VCR, etc.
(RCA)
A 3-pin terminal block marked A, B, C. Accepts
[13] Audio Terminal
Block
wiring from the remote Louroe™ Microphone.
• A is 12Vdc
• B is Audio
• C is Ground
6955 VALJEAN AVE. VAN NUYS, CA 91406 PH: 818-994-6489 | FAX: 818-994-6485 | TECHSUPPORT@LOUROE.COM | WWW.LOUROE.COM
ASK-4
AUDIO MONITORING SYSTEM
INSTALLATION AND OPERATING INSTRUCTIONS
[1] Power-Volume
[2] Power Indicator
[3] Mute
[4] Playback Indicator
[6] Mute Switch
[7] Push for Playback
[5] Overload Indicator
+12Vdc INPUT
[10] Power Jack
[11] Audio In Jack
®
# 101-DP
APR-1
(LE-146)
[9] Speaker
[8] Headphone Jack
MIC INPUT
A B C
MIC INPUT
OUTPUT
[12] Audio Out Jack (RCA)
[13] Audio Terminal Block
Page 1
