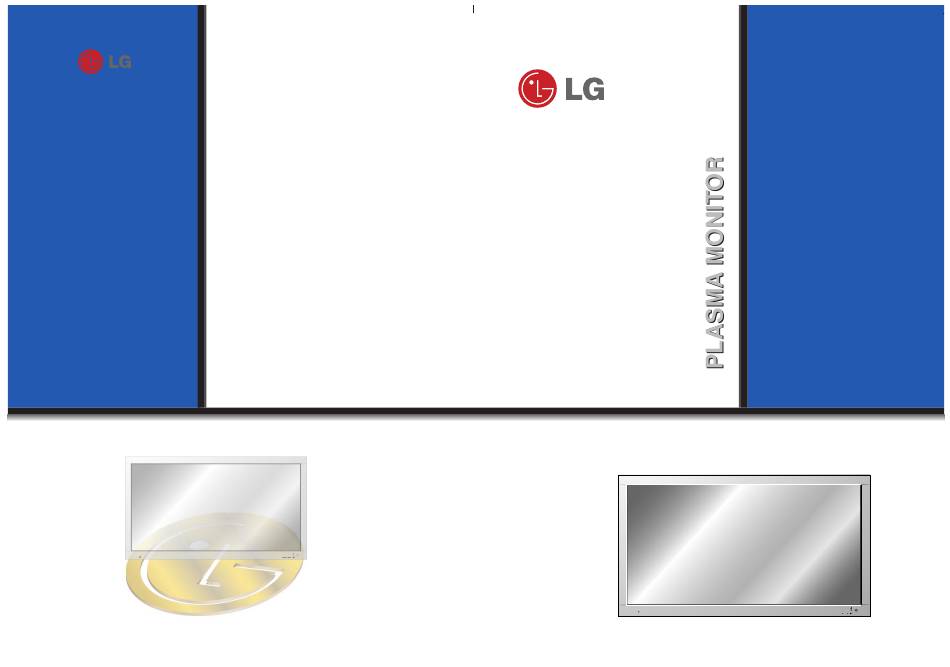

P/NO : 3828VA0277W
(NP00KB)
Please read this owner's manual carefully before
operating the Monitor.
Retain it for future reference.
Record model number and serial number of the
Monitor.
See the label attached on the back of the Monitor
and quote this information to your dealer when you
require service.
Model number :
Serial number :
ON/OFF
MU-60PZ12V
MU-60PZ12VA
MU-60PZ12VB
MU-60PZ12VK
MU-60PZ12VS
OWNER'S MANUAL
INPUT
SELECT
VOLUME
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LG MU-60PZ12V
Summary of Contents for LG MU-60PZ12V
- Page 1 MU-60PZ12V MU-60PZ12VA Please read this owner’s manual carefully before MU-60PZ12VB operating the Monitor. Retain it for future reference. Record model number and serial number of the MU-60PZ12VK Monitor. See the label attached on the back of the Monitor MU-60PZ12VS and quote this information to your dealer when you require service.
- Page 2 FCC NOTICE • MU-60PZ12V/VA/VB/VK/VS : A Class B digital device This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 3: Table Of Contents
Table of Contents First step WARNINGS ..............4 SAFETY INSTRUCTIONS........5 Monitor Overview Front Panel Controls ..........8 Connection Panel Overview ........9 Remote Control Key Functions/Accessories ..10 Monitor Installation ..........12 Equipment Connections and Setup VCR Setup..............14 Cable TV Setup ............16 External AV Source Setup ........17 DVD Setup..............18 DTV Setup ..............19 PC Setup ..............20... -
Page 4: Warnings
WARNINGS WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”... -
Page 5: Safety Instructions
SAFETY INSTRUCTIONS Important safeguards for you and your new product Your product has been manufactured and tested with your safety in mind. However, improper use can result in potential electrical shock or fire hazards. To avoid defeating the safeguards that have been built into your new product, please read and observe the following safety points when installing and using your new product, and save them for future reference. - Page 6 SAFETY INSTRUCTIONS (Continued from previous page) The openings should never be blocked by supporting structure, grounding of the lead- placing the product on a bed, sofa, rug, or in wire to an antenna discharge unit, size of other similar surface. This product should grounding conductors, location of antenna- not be placed in a built-in installation such discharge unit, connection to grounding...
- Page 7 product through openings as they may 22. Safety Check touch dangerous voltage points or short-out Upon completion of any service or repairs to parts that could result in a fire or electric this product, ask the service technician to shock. Never spill liquid of any kind on the perform safety checks to determine that the product.
-
Page 8: Front Panel Controls
Front Panel Controls <Front Panel Controls> ON/OFF INPUT ON/OFF SELECT VOLUME Main power button Power standby indicator Illuminates red in standby INPUT mode. Illuminates green SELECT VOLUME when the Monitor is turned INPUT SELECT button Sub power button VOLUME ( ) buttons Remote control sensor... -
Page 9: Connection Panel Overview
Connection Panel Overview <Back Panel> AUDIO VIDEO (MONO) AUDIO RGB-PC INPUT COMPONENT (VGA/SVGA/XGA/SXGA) CONTROL REMOTE AV INPUT S-VIDEO RGB-DTV INPUT AUDIO INPUT RS-232C EXTERNAL SPEAKER (8Ω) LOCK CONTROL AC INPUT (480i/480p/720p/1080i) (480p/720p/1080i) (DVD/DTV INPUT) VIDEO AUDIO (MONO) AUDIO RGB-PC INPUT REMOTE CONTROL COMPONENT... -
Page 10: Remote Control Key Functions/Accessories
APC (Refer to p.36) STILL ARC (Refer to p.46) / TWIN PICTURE PIP (Refer to p.26) PIP INPUT POSITION PIP INPUT (Refer to p.27, 30) MENU MUTE MENU VOLUME ( POWER STOP P/STILL VCR BUTTONS PLAY controls a LG video cassette recorder. - Page 11 INPUT SELECT video/pc button on the remote control DASP (Refer to p.40) Each press of this button changes the mode as STILL (Refer to p.42) shown below. TWIN PICTURE (Refer to p.29) VIDEO S-VIDEO POSITION (Refer to p.27) MUTE switches the sound on or off. COMPONENT selects a menu item.
-
Page 12: Monitor Installation
(2000m) to get the best quality picture and sound. - Your MU-60PZ12V series models (Monitor) can be installed on a wall as shown below. Wall mount is optional, and is not supplied with the monitor. - This plasma display is designed to be mounted horizontally or vertically. - Page 13 Wall Mount Installation vertically • The monitor can be installed vertically on the wall as shown above. (For further information, refer to the optional ‘Wall mounting bracket Installation and Setup Guide’.) •...
-
Page 14: Vcr Setup
VCR Setup - As shown below, when connecting the Monitor to a VCR, match the colors of AV input jacks on the Monitor with the output jacks on the VCR: Video = yellow, Audio (Left) = white, Audio (Right) = red. - If you have a mono VCR, connect the audio cable from the VCR to the AUDIO(L/MONO) input of the Plasma Monitor. - Page 15 AUDIO (MONO) VIDEO AUDIO RGB-PC INPUT (VGA/SVGA/XGA/SXGA) CONTROL REMOTE AV INPUT S-VIDEO COMPONENT AUDIO INPUT RS-232C EXTERNAL SPEAKER (8Ω) AC INPUT (480i/480p/720p/1080i) RGB-DTV INPUT LOCK CONTROL (480p/720p/1080i) (DVD/DTV INPUT) AUDIO VIDEO (MONO) AUDIO RGB-PC INPUT REMOTE CONTROL COMPONENT (VGA/SVGA/XGA/SXGA) AV INPUT S-VIDEO AUDIO INPUT RS-232C...
-
Page 16: Cable Tv Setup
Cable TV Setup - After subscribing to a cable TV service from a local provider and installing a converter, you can watch cable TV programming. This monitor cannot display TV programming without a TV tuner or cable TV converter box. Speakers shown for illustration only. -
Page 17: External Av Source Setup
External AV Source Setup - As shown below, when connecting the Monitor to an external source, match the colors of AV input jacks on the Monitor with the output jacks on the audio/video equipment: Video = yel- low, Audio (Left) = white, Audio (Right) = red. AUDIO (MONO) VIDEO... -
Page 18: Dvd Setup
DVD Setup How to connect a DVD (digital video disk player) • Connect DVD video inputs to Y, P of COMPONENT (480i/480p/720p/1080i) (DVD/DTV INPUT) and audio inputs to Audio jacks of AV INPUT. AUDIO (MONO) VIDEO AUDIO RGB-PC INPUT COMPONENT (VGA/SVGA/XGA/SXGA) CONTROL REMOTE... -
Page 19: Dtv Setup
DTV Setup - To watch digitally broadcast programs, purchase/connect a digital SET-TOP BOX. - You can select only the 16:9 picture format in DTV 720p/1080i mode. How to connect a user-supplied Digital Set-top Box • You can use either the Monitor’s COMPONENT (Y, P inputs or the single RGB-DTV INPUT for video connections, depending on your Set Top Box connectors. -
Page 20: Pc Setup
PC Setup - You can easily connect the Plasma Display to your PC for outstanding image and sound. - Use the Monitor to display images and sound from a PC Computer source. Setup Instructions to Connect a PC to your Monitor •... - Page 21 Monitor Image Display Specifications Horizontal Vertical Resolution Frequency (KHz) Frequency (Hz) 31.468 70.09 640x350 37.861 85.08 31.469 70.08 720x400 37.927 85.03 31.469 59.94 66.66 35.000 37.861 72.80 37.500 75.00 640x480 43.269 85.00 45.913 90.03 53.011 100.04 64.062 120.00 35.156 56.25 37.879 60.31 72.18...
-
Page 22: Pc Mode Feature Check(Overview)
PC Mode Feature Check (Overview) - Select first, see page 11. - Make sure the PC and monitor are both turned on. - Use the monitor’s remote control to make adjustments. Press the MENU button to show a menu on screen. MENU Press the button to select a menu. -
Page 23: Pc Mode Adjustments
PC Mode Adjustments Auto adjustment - Automatically adjusts picture position and eliminates any image shaking. Press the MENU button and then press the button to select menu. Press the button. MENU Press the button to select SCREEN then press the button. - Page 24 PC Mode Adjustments Adjusting horizontal / vertical position manually - Only adjust in DTV or component 480p/720p/1080i. V-POSITION H-POSITION Press the MENU button and then press the button to select menu. Press the button. MENU Press the button to select SCREEN then press the button.
- Page 25 Picture Phase Adjustments • If the picture isn’t clear after auto adjustment and especially if the characters are still trembling, then adjust the picture phase manually. • When watching PIP/TWIN PICTURE, the SCREEN menu option is not available. Press the MENU button and then press the button to select menu.
-
Page 26: Picture In Picture (Pip) Function
Picture In Picture (PIP) function - PIP lets you view 2 different inputs (sources) on your monitor screen at the same time. One source will be large, and the other source will show a smaller inset image. - Select RGB input source before pressing PIP. - This function works only in the following resolutions;... - Page 27 Selecting the source input signal Press the PIP INPUT button in PIP mode. PIP INPUT • Each time you press PIP INPUT button, you toggle VIDEO S-VIDEO COMPONENT VIDEO S-VIDEO COMPONENT COMPONENT source only works in 480i mode. PIP INPUT VIDEO Moving the Sub (inset) picture POSITION...
- Page 28 Picture In Picture (PIP) function Selecting PIP sound options - To select main or sub (inset) sound - This function only works with the following resolutions; 640x480, 800x600, 1024x768 (only in Vertical frequency 60 Hz) - To use this function, connect PC/DTV video output to RGB-PC INPUT/RGB-DTV INPUT and connect PC/DTV audio outputs to AUDIO INPUT.
-
Page 29: Twin Picture Function
Twin picture mode - As the name suggests, this mode splits the screen into 2, allowing 2 sources to be shown on the monitor screen at the same time. Each source is given half the screen. - Select input source. - This function works only in the following resolutions;... - Page 30 Twin picture mode Selecting a source for the Twin picture PIP INPUT Press the PIP INPUT button in TWIN PICTURE mode. • Each time you press PIP INPUT button, you toggle VIDEO S-VIDEO COMPONENT VIDEO S-VIDEO COMPONENT COMPONENT source only works in 480i input signal. PIP INPUT VIDEO...
