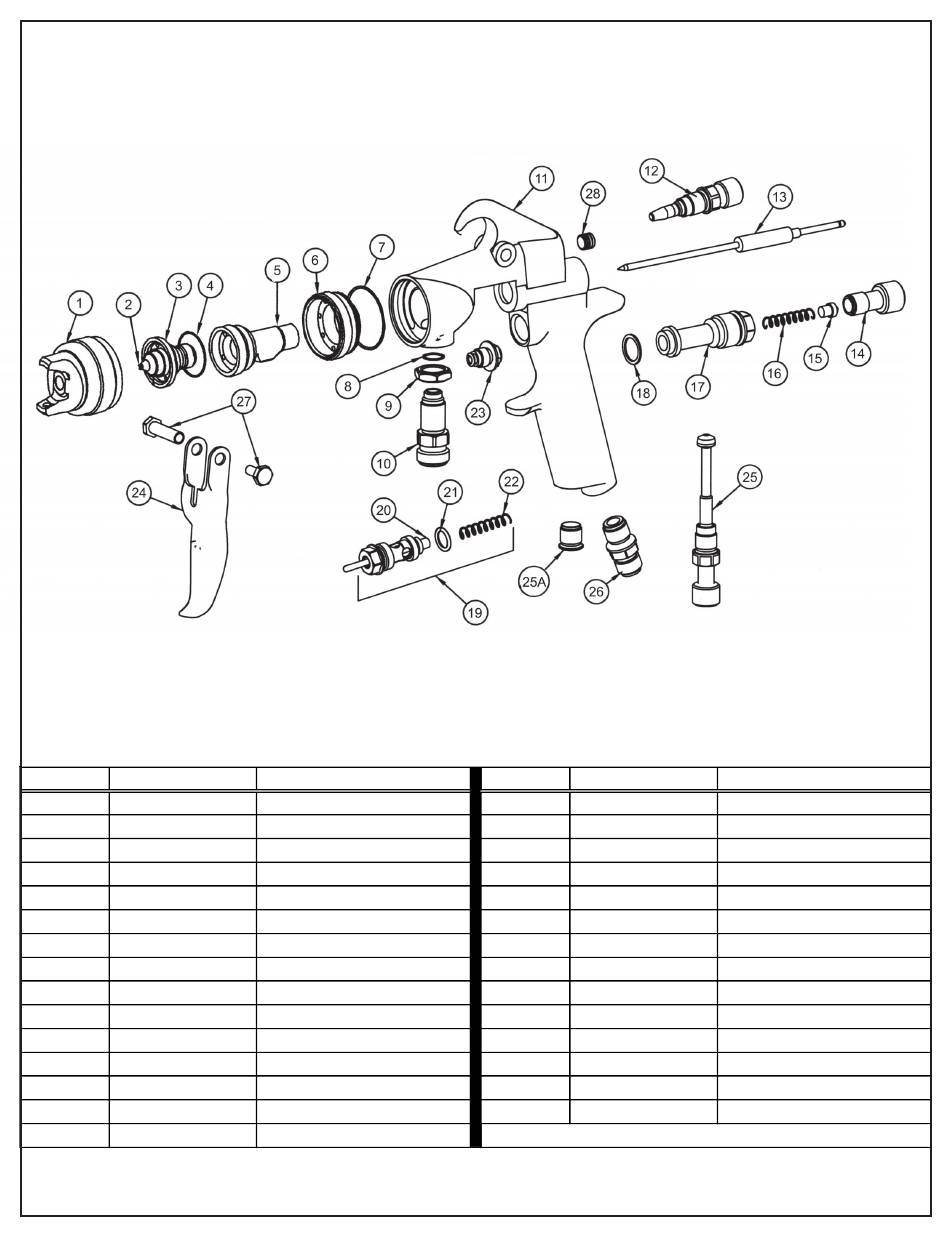

C.A. Technologies Lynx L200C Quick Start Manual page 3

ITEM NO. PART NO.
1 See Air Cap Chart
2 See Air Cap Chart
3 32-2201
4 98-8020
5 60-L21C
6 60-22
7 60-131
8 60-124
9 60-128
10 60-126
11 60-1124
12 See Air Cap Chart
13 See Air Cap Chart
14 60-202
15 60-205
**See air cap selection chart on page 1
*Indicates part included in repair kit # 10-106
*
*
*
DESCRIPTION
Air Cap**
Fluid Nozzle Tip**
Fluid Nozzle Body
Gasket*
Nozzle Carrier
Air Cap Adapter
O-Ring*
Fluid Inlet Seal
Locknut
Fluid Inlet Fitting
Lynx Gun Body Conventional
Fan Control Assembly**
Fluid Needle**
Fluid Control Knob
Spring Seat*
*
*
*
ITEM NO. PART NO.
16 60-204
17 60-201
18 60-119
19 60-1520
20 60-302
21 60-125
22 61-1003
23 60-1400
24 60-2101
25 60-1510
25A 60-122
26 60-104
27 60-1033
28 98-0109
*
*
*
DESCRIPTION
Needle Return Spring*
Rear Bushing
Seal*
Air Valve Assembly
Air Valve Poppet
O-Ring*
Air Valve Spring*
Needle Seal Cartridge*
Trigger
Air Control
Plug (optional)
Air Inlet Fitting
Trigger Pivot Set
Allen Plug
