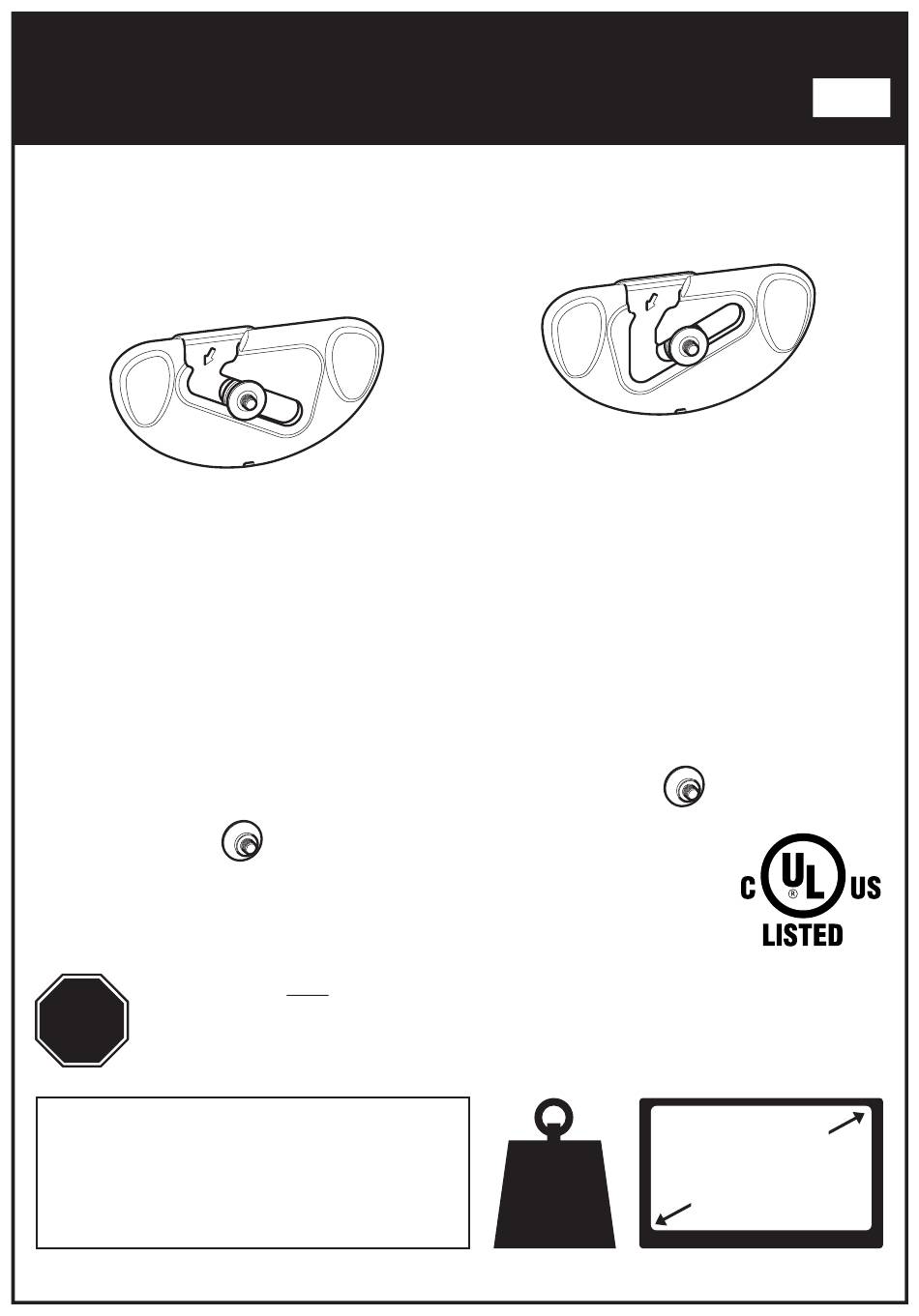

CML8350-E
##
Leaflet No. 464397
rev00
Read through ALL instructions before commencing installation.
If you have any questions about this product or issues with installation
STOP
contact the customer services help line before returning this product to
the store. See www.cus.avfgroup.com/p/CML8350-A
80"
CUSTOMER SERVICES HELP LINE NUMBER:
121lbs
1-800 667 0808 (USA)
203cm
55kg
AVF Incorporated. 3187, Cornerstone Drive, Eastvale, CA 91752, USA

Advertisement

loading
Need help?

Need help?

Do you have a question about the CML8350-E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AVF CML8350-E

  • Page 1 If you have any questions about this product or issues with installation STOP contact the customer services help line before returning this product to the store. See www.cus.avfgroup.com/p/CML8350-A 80" CUSTOMER SERVICES HELP LINE NUMBER: 121lbs 1-800 667 0808 (USA) 203cm 55kg AVF Incorporated. 3187, Cornerstone Drive, Eastvale, CA 91752, USA...
  • Page 2: Assembly Overview

    Assembly Overview Fit Screen Hangers to TV Fitting the Wall Bracket Hanging the TV...
  • Page 3 It is the responsibility of the installer to ensure that the mounting wall is of a suitable standard and void of any services (eg gas, electricity, water etc). AVF accept no responsibility for any damage or loss caused by installing this product in a sub standard wall.
  • Page 4: Tools Recommended

    Tools Recommended Ø5.5mm (7/32") Masonry Ø10mm (25/64") Masonry Stud Finder Ø3.5mm (9/64") Metal Ø3mm (1/8") Wood Boxed Parts...
  • Page 5 TV Screws, Reducers and Spacers...
  • Page 6 Remove the Wall Bracket Covers and keep for step 7 Wall bracket covers A1 & B1 are removed in the same way. Take Care...
  • Page 7 Measure the TV fixing holes Width and Height TV Fixing Holes 200mm to infinity 100mm to infinity If width X is less than 200mm or height Y is less than 100mm STOP installation now and contact the customer help line You are provided with 4 diameters of TV fixing screws, M4, M5, M6 and M8.
  • Page 8 Fit Screen Hangers to TV Once you have established which screw diameter you need for your TV you will need to choose which wall spacing you require. Check the back of your TV and use the OPTION that fits your TV. Please see page opposite for more details.
  • Page 9 OPTION 1 12mm Wall Space Top Fixings Bottom Fixings OPTION 2 20mm Wall Space. Not applicable for M4 fixings G1 TopFixings Bottom Fixings OPTION 3 40mm Wall Space. Not applicable for M4 fixings G1 Top Fixings Bottom Fixings...
  • Page 10 Assemble Positioning Template Determine Bracket Hole Centers Lay the template on the back of the TV and follow the instructions below. Place the top row of holes on template U1 over hangers C. Mark off the top fixing centres The center line of the template represents Top row holes...
  • Page 11 Marking Wall For Drill Points Before marking the wall, Represents the determine the wall type that top of your TV. you have (i.e. Solid Wall/ Dot & Dab/ Plasterboard/ Wood Stud/Metal Stud). Ensure the drilling area is free from mains services (Gas/Electric/Water).
  • Page 12: Fitting The Wall Bracket

    Fitting the Wall Bracket Use the correct fixings for your wall type. Mixing fixing screws may be required for installations that span different wall types. DO NOT OVER TIGHTEN SCREWS. Drywall Solid Wall Min supporting surface specification:- ½” thick drywall, mounted on 1½” x 3½” wood stud at 10mm (25/64") 16"...
  • Page 13 Metal Stud Wood Stud Min supporting surface specification:- Min supporting surface specification:- ½” thick drywall ½” thick drywall 18mm (3/4") 18mm (3/4") 3.5mm (1/8") Ensure hole is (9/64") in the middle of the wood stud 75mm (3") 0.6mm (0.025") MIN stud thickness Use Drywall Fixing H Use Drywall Fixing H Self...
  • Page 14 Fitting the Wall Bracket Covers On wall bracket covers A1 & B1 are 3 retaining tabs. These locate onto 3 retaining lips on wall brackets A & B and lock the wall bracket covers in position. Retaining lip Retaining lip Retaining tab Retaining tab Retaining lip...
  • Page 15 Hanging the TV Hanging the TV is a two person job. Present hangers (on the back of the TV) to the opening on brackets A & B. Slide down and across into place. Ensure both hangers are fully engaged. If cables from the TV prevent the TV resting against the wall then an alternative hanger configuration will be required (see section 2).
  • Page 16 Removing the Wall Bracket Covers Should you want to remove the wall bracket covers please follow the steps below. Take Care Keep screwdriver level as you pull downwards...
