10 Dismantling and fitting with removed air inlet and gas outlet / 10.2
Removing the gas outlet casing

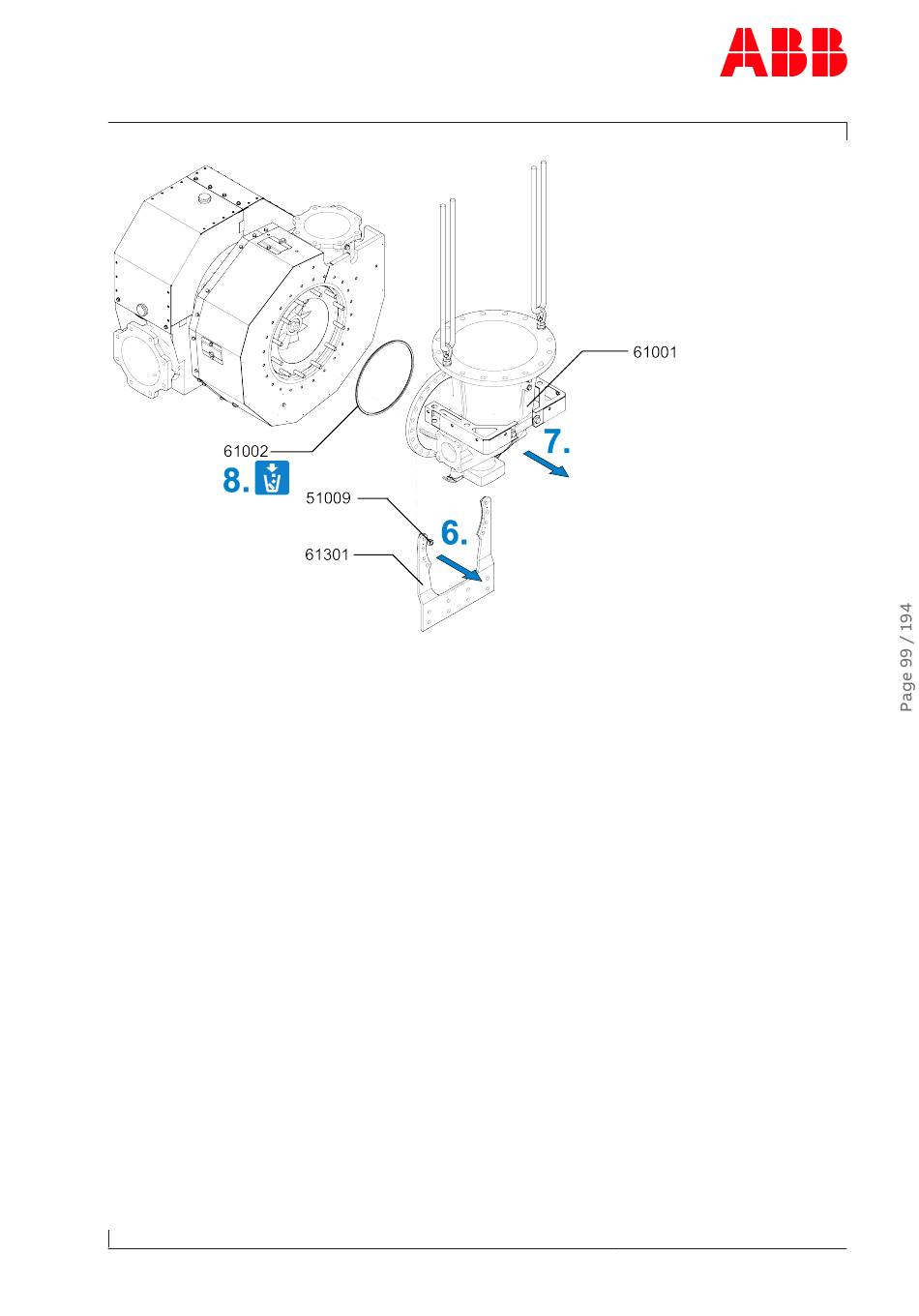

Fig. 50: Removing gas outlet casing with support 1
6. Loosen nuts (51009) and remove together with support (61301).
7. Remove the gas outlet casing (61001), set it down properly in an appropriate place and
secure it.
8. Remove and dispose of the gasket (61002).
