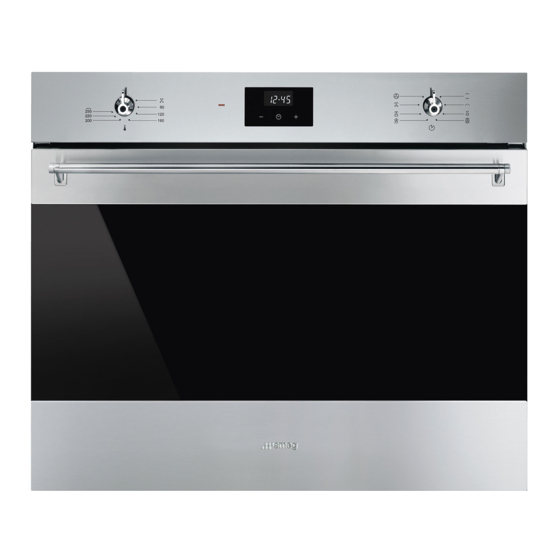

Smeg Classic SFA7300TVX Manual
  1. Manuals
  2. Brands
  3. Smeg Manuals
  4. Oven
  5. Classic SFA7300TVX
  6. Manual

Smeg Classic SFA7300TVX Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

1.4 Manufacturer liability
We advise you to read this manual carefully, which contains all the instructions for
maintaining the appliance's aesthetic and functional qualities.
For further information on the product: www.smeg.com
Contents
ORIGINAL INSTRUCTIONS
4
4
7
7
7
7
7
8
8
9
9
10
10
11
12
12
12
13
13
15
17
22
22
22
23
25
28
29
29
30
3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Classic SFA7300TVX and is the answer not in the manual?

Questions and answers

frieda
March 30, 2025

is the manual for sfa7300tvx the same for sfa7300tx

0

Subscribe to Our Youtube Channel

Related Manuals for Smeg Classic SFA7300TVX

Summary of Contents for Smeg Classic SFA7300TVX

  • Page 1: Table Of Contents

    4.5 Extraordinary maintenance 5 Installation 5.1 Electrical connection 5.2 Positioning ORIGINAL INSTRUCTIONS We advise you to read this manual carefully, which contains all the instructions for maintaining the appliance’s aesthetic and functional qualities. For further information on the product: www.smeg.com...

  • Page 2: Instructions

    Instructions 1 Instructions not constantly supervised. • Do not allow children younger 1.1 General safety instructions than 8 years old to come near the appliance when in operation. Risk of personal injury • The appliance must never be • During use the appliance cleaned by unsupervised children.
  • Page 3 Instructions • DO NOT SPRAY AEROSOLS IN Risk of damaging the appliance THE VICINITY OF THIS • Do not use harsh abrasive APPLIANCE WHILE IT IS IN cleaners or sharp metal scrapers OPERATION. to clean the oven glass door since •...
  • Page 4 Instructions • Do not place pans or trays • When positioning the appliance directly on the bottom of the oven during installation, do not use the cavity. door handle to lift up or move this appliance. • If you wish to use greaseproof paper, place it so that it will not •...

  • Page 5: Appliance Purpose

    Instructions • If the electrical supply is restricted, 1.4 Manufacturer liability means of all pole disconnection The manufacturer declines all liability must be accessible and for damage to persons or property incorporated in the fixed wiring in caused by: accordance to the wiring rules. •...

  • Page 6: Disposal

    Instructions 1.7 Disposal 1.8 How to read the user manual This user manual uses the following reading To dispose of the appliance: conventions: • Cut the power supply cable and remove it along with the plug. Instructions General information on this user Power voltage manual, on safety and final Danger of electrocution...

  • Page 7: Description

    Description 2 Description 2.1 General Description 1 Control panel 5 Fan 2 Oven light 6 Rack/tray support frames 3 Seal Frame shelf 4 Door...

  • Page 8: Control Panel

    2.2 Control panel 2.3 Other parts 1 Temperature knob This knob allows you to select the cooking Shelves temperature. The appliance features shelves for Turn the knob clockwise to the required positioning trays and racks at different value, between the minimum and maximum heights.

  • Page 9: Available Accessories

    2.4 Available accessories Oven tray Some models are not provided with all accessories. Rack Useful for collecting fat from foods placed on the rack above. The oven accessories intended to come into contact with food are made of materials that comply with Useful for supporting containers with food the provisions of current legislation.

  • Page 10: Use

    3 Use Improper use Risk of damage to enamelled 3.1 Instructions surfaces High temperature inside the oven • Do not cover the bottom of the oven during use cavity with aluminium or tin foil sheets. Danger of burns • If you wish to use greaseproof paper, place it so that it will not interfere with the •...

  • Page 11: Using The Accessories

    3.3 Using the accessories Tray rack The tray rack has to be inserted into the tray. Racks and trays In this way fat can be collected separately Racks and trays have to be inserted into the from the food which is being cooked. side guides until they come to a complete stop.
  • Page 12 Functions list Convection Supercook As the heat comes from above and The combination of fan assisted below at the same time, this system cooking and traditional cooking is particularly suitable for certain allows different foods to be cooked types of food. Traditional cooking, on several levels extremely quickly also known as static cooking, is and efficiently, without odours and...

  • Page 13: Cooking Advice

    3.5 Cooking advice General advice Fan assisted The operation of the fan, combined • Use a fan assisted function to achieve with traditional cooking, ensures consistent cooking at several levels. consistent cooking even with complex • It is not possible to shorten cooking times recipes.
  • Page 14 Advice for cooking desserts/pastries and To save energy biscuits • Stop cooking a few minutes before the • Use dark metal moulds: They help to time normally used. Cooking will absorb the heat better. continue for the remaining minutes with the heat which has accumulated inside •...

  • Page 15: Touch" Programmer Clock

    3.6 “Touch” Programmer clock Setting the time If the time is not set, the oven will not switch on. On the first use, or after a power failure, the digits will be flashing on the appliance’s display. 1. Hold down the clock key for two seconds.
  • Page 16 Timed cooking At the end of cooking the heating elements will be deactivated. On the display, the Timed cooking is the function symbol turns off, the symbol which allows a cooking operation flashes and the buzzer sounds. to be started and then ended after 5.
  • Page 17 Programmed cooking 7. Wait approx. 7 seconds without pressing any key in order for the function to Programmed cooking is the activate. The current time will appear on function which allows a cooking the display, and the symbols operation to be started at a set time and then ended after a will turn off while the indicator...
  • Page 18 Modifying the set data Minute minder timer 1. Press the clock key The minute minder timer does not stop the cooking operation but 2. Use the value increase and value rather informs the user when the set time has run out. decrease keys to set the number of minutes required.
  • Page 19 Cooking information table Weight Temperature Time Food Function Shelf (minutes) (Kg) (°C) Lasagne 3 - 4 Convection 220 - 230 50 - 60 Pasta bake Convection 220 - 230 Roast veal Supercook/Fan assisted 180 - 190 70 - 80 Pork loin Supercook/Fan assisted 180 - 190 70 - 80...

  • Page 20: Cleaning And Maintenance

    Cleaning and maintenance 4 Cleaning and maintenance Ordinary daily cleaning Always use only specific products that do 4.1 Instructions not contain abrasives or chlorine-based acids. Improper use Pour the product onto a damp cloth and Risk of damage to surfaces wipe the surface, rinse thoroughly and dry with a soft cloth or a microfibre cloth.

  • Page 21: Cleaning The Door

    Cleaning and maintenance 4.3 Cleaning the door 3. To reassemble the door, put the hinges in the relevant slots in the oven, making sure Removing the door that grooved sections A are resting completely in the slots. Lower the door For easier cleaning, the door can be and once it is in place remove the pins removed and placed on a canvas.
  • Page 22 Cleaning and maintenance Removing the internal glass panes 4. Clean the external glass pane and the panes removed previously. Use For easier cleaning the internal glass panes absorbent kitchen roll. In case of of the door can be removed. stubborn dirt, wash with a damp sponge 1.

  • Page 23: Cleaning The Inside Of The Oven

    Cleaning and maintenance 4.4 Cleaning the inside of the oven Removing racks/trays support frames Removing the rack/tray support frames Advice for cleaning the oven cavity enables the sides to be cleaned more In order to keep your oven in the best easily.
  • Page 24 Cleaning and maintenance Vapour Clean: Assisted oven cleaning • Spray a water and washing up liquid solution inside the oven using a spray Vapour Clean is an assisted nozzle. Direct the spray against the side cleaning procedure which walls, upwards, downwards and facilitates the removal of dirt.
  • Page 25 Cleaning and maintenance Vapour Clean setting End of the Vapour Clean cycle 1. Set a cooking time of 18 minutes using 1. Open the door and wipe away the less the programmer clock. stubborn dirt with a microfibre cloth. 2. Use an anti-scratch sponge with brass 2.

  • Page 26: Extraordinary Maintenance

    Cleaning and maintenance 4.5 Extraordinary maintenance Installing and removing the seal To remove the seal: Live parts • Unhook the clips located in the 4 corners Danger of electrocution and in the centre, then pull the seal outwards. • Unplug the appliance from the power supply.

  • Page 27: Installation

    Installation 5 Installation Fixed connection Fit the power line with an omnipolar circuit 5.1 Electrical connection breaker in compliance with installation regulations. Power voltage The circuit breaker should be located near Danger of electrocution the appliance and in an easily reachable position.

  • Page 28: Positioning

    Installation 5.2 Positioning Front panel seal Glue the seal provided to the rear of the Heavy appliance front panel to prevent water or other liquids Danger of crush injuries from leaking in. • Place the appliance into the piece of furniture with the aid of a second person.
  • Page 29 Installation Appliance overall dimensions (mm) (side view) (front view) (top view) (side view) Mounting under worktops (mm) (side view)
  • Page 30 Installation Mounting into a column (mm) Make sure that the piece of furniture rear/bottom part has an opening of approx. 60 mm. Make sure that the piece of furniture top/rear part has an opening approx. 35-40 mm deep.
