RMQ9190
User Manual
All rights reserved. Product description and product specifications are subject to change without notice.
For latest product information, please visit Acnodes' website at www.acnodes.com
14628 Central Ave. Chino, CA 91710
© Copyright 2020 Acnodes Corp.

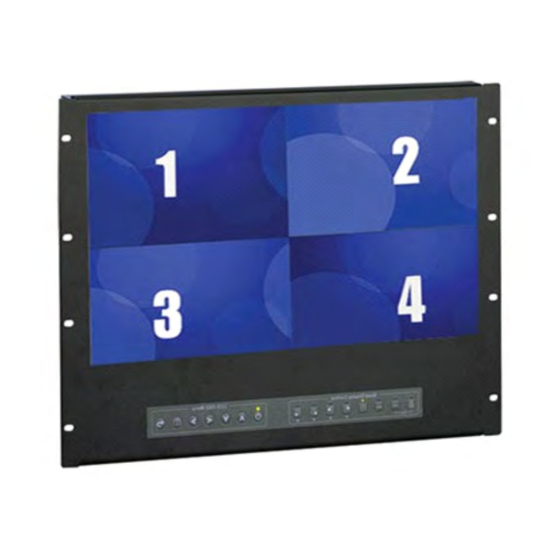

9U Rackmount CCTV Monitor
19" 1280 x 1024 LCD Display
Supports Quad Display
Tel: 909.597.7588
Fax: 909.597.1939
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Acnodes RMQ9190
Summary of Contents for Acnodes RMQ9190
- Page 1 19" 1280 x 1024 LCD Display Supports Quad Display User Manual All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ website at www.acnodes.com 14628 Central Ave. Chino, CA 91710 Tel: 909.597.7588 Fax: 909.597.1939...
- Page 2 Legal Information First English printing, May 2020 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
- Page 3 Contents Contents < Part. 1 > RMQ9190 Package Content Structure Diagram & Dimension P.1 - 2 Installation < Part. 2 > Specifications / OSD Product Specifi cations P.4 - 5 On-screen Display Operation ( OSD ) < Part. 3 >...
- Page 4 < Part 1 > < 1.1 > Package Content RMQ9190 unit X 1 - 6ft VGA cable X 1 - Power adapter X 1 - Power cord X 1 < 1.2 > Structure Diagram Front view Power adapter Rear view...
- Page 5 (W x D x H) (W x D x H) Weight 480 x 68.5 x 399 mm 583 x 124 x 529 mm 9.5 kg 12.5 kg RMQ9190 18.9 x 2.7 x 15.7 inch 23 x 4.9 x 20.8 inch 20.9 lb 27.5 lb...
- Page 6 < 1.3 > Installation Step ■ Mount the display panel with M6 screw set. ■ M6 screw x 8 pcs required ( Left & right side ). M6 screw sets are not provided. M en tr ol > C on <...
- Page 7 < Part 2 > < 2.1 > Product Specifi cations Manufacturer Panel Panel Size ( diagonal ) 19-inch TFT color LCD Display pixel ( dots x lines ) 1280 x 1024 Brightness ( typ. ) Contrast Ratio ( typ. ) 1000:1 Color 16.7 M...
- Page 8 Physical Product ( W x D x H ) 480 x 68.5 x 399 mm Specifi cation 18.9 x 2.7 x 15.7 inch Packing ( W x D x H ) 583 x 124 x 529 mm 23 x 4.9 x 20.8 inch Net Weight 9.5 kg / 20.9 lb Gross Weight...
- Page 9 < 2.2 > On-screen Display Operation ( OSD ) LCD OSD Menu Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen...
- Page 10 < Part 3 > < 3.1 > Options : DC Power Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA...
