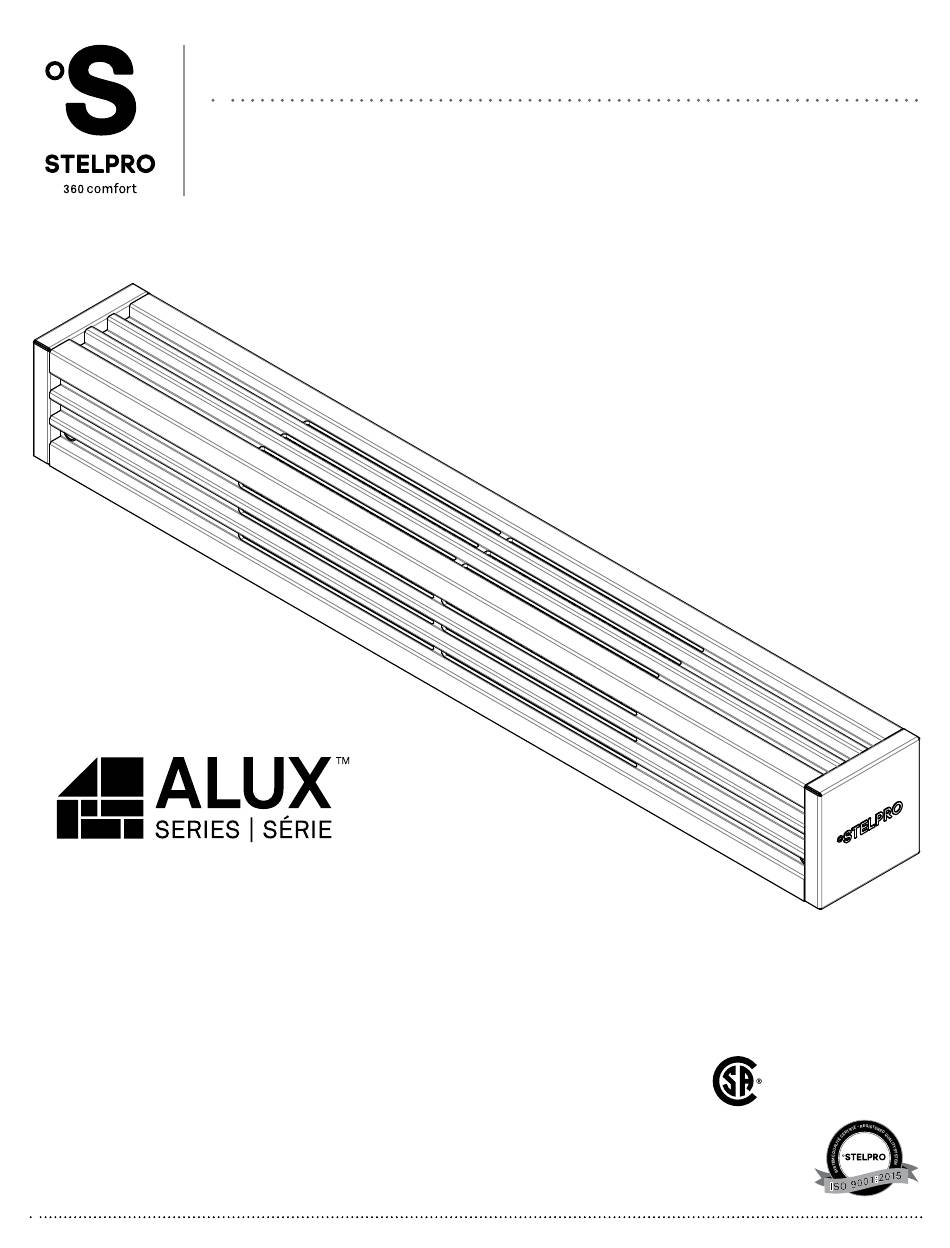

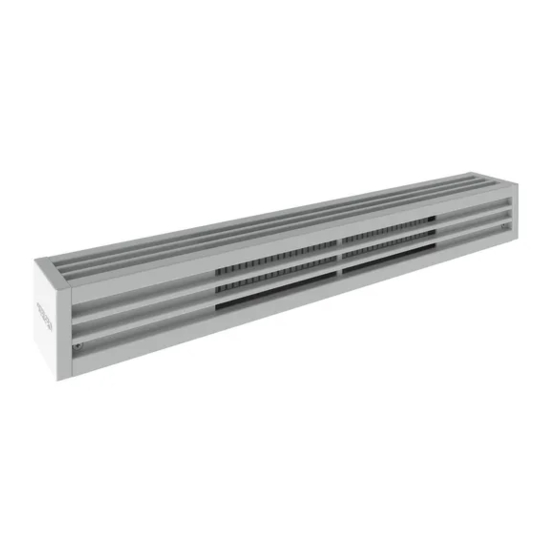

USER'S GUIDE
ALUX2 SERIES
ALUMINUM MINI ARCHITECTURAL BASEBOARD
For further information or to consult this guide online, please visit our website at www.stelpro.com
REPLACEMENT COMPONENT LIST INCLUDED
ALUX2 MODELS
This unit
complies with
the CSA
standards
INSALUX20319

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALUX2 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Stelpro ALUX2 Series

Summary of Contents for Stelpro ALUX2 Series

  • Page 1 USER’S GUIDE ALUX2 SERIES ALUMINUM MINI ARCHITECTURAL BASEBOARD REPLACEMENT COMPONENT LIST INCLUDED ALUX2 MODELS This unit complies with the CSA standards For further information or to consult this guide online, please visit our website at www.stelpro.com INSALUX20319...

  • Page 2: Important Instructions

    If needed, refer to a specialist (industrial and commercial buildings) who will be able to calculate these heat losses and optimize the required capacity or consult the “Online heating calculation” section of the Stelpro website (residential buildings).

  • Page 3: Specifications

    SPECIFICATIONS, TECHNICAL DRAWINGS & INSTALLATION SPECIFICATIONS DENSITY 150 W DENSITY 100 W VOLTAGE LENGHT WEIGHT PER LINEAR FOOT PER LINEAR FOOT CODE WATTS CODE WATTS VOLTS ALUX20603x – – 23 5/8 ALUX20904x ALUX20903x 35 7/16 ALUX21206x ALUX21204x 1200 47 1/4 11.1 ALUX21507x ALUX21505x...

  • Page 4: Electrical Diagram

    OPERATION, MAINTENANCE & TROUBLESHOOTING ELECTRICAL WIRING • This unit must be connected to an electrical power source according to the voltage of the unit chosen. • To ground the heater, you must connect the green wire coming from the circuit breaker panel to the green screw located inside the junction box of the heater. ELECTRICAL DIAGRAM Thermal Element...
  • Page 5 REPLACEMENT COMPONENT LIST REPLACEMENT COMPONENT LIST REF. # PART # DESCRIPTION REF. # PART # DESCRIPTION PROT-YYY LINEAR THERMAL M-ALUX20611A ALMOND GRILLE COVER (300 W) PROTECTION (AUTO.) M-ALUX20611W WHITE GRILLE COVER (300 W) EA0300-06-*** ELEMENT 300 W (600 mm) M-ALUX20611CA ANODIZED GRILLE COVER (300 W) EA0450-09-*** ELEMENT 450 W (900 mm)

  • Page 6: Limited Warranty

    . Stelpro reserves the right to examine or to ask one of its representatives to examine the product itself or any part of it before honoring the warranty. Stelpro reserves the right to replace the entire unit, refund its purchase price or repair a defective part.
