KTI-63095

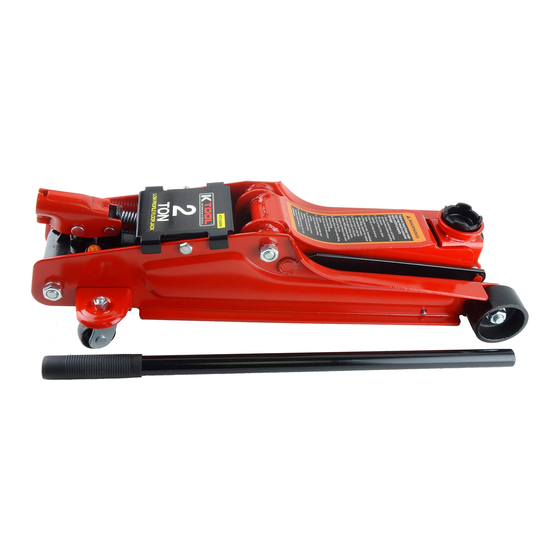

2 TON LOW PROFILE FLOOR JACK
OWNERS MANUAL
SPECIFICATIONS
Low Height ................................................................. 3.35"
High Height ...............................................................14.96"
Handle Length ......................................................... 5.43"
Overall Length ............................................................ 22.24"
Overall Width .............................................................. 8.31"
Saddle Diameter
............................................................
Front Wheel Size
...........................................................
Rear Caster Wheel Size
........................................................
Shipping Weight .....................................................33.5 lbs.
1.8"
2.6"
1.6"
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for K Tool International KTI-63095
Summary of Contents for K Tool International KTI-63095
- Page 1 KTI-63095 2 TON LOW PROFILE FLOOR JACK OWNERS MANUAL SPECIFICATIONS Low Height ..............3.35" High Height ...............14.96" Handle Length ............5.43" Overall Length ............22.24" Overall Width .............. 8.31" Saddle Diameter ............1.8" Front Wheel Size ............2.6" Rear Caster Wheel Size ............
-
Page 2: Warning Information
WARNING INFORMATION This is the safety alert symbol. It is used to alert you to WARNING: Indicates a hazardous situation WARNING potential personal injury hazards. Obey all safety messages which, if not avoided, could result in death that follow this symbol to avoid possible injury or death. or serious injury. -
Page 3: Operation
SETUP PLEASE REFER TO THE EXPLODED VIEW DRAWING IN THIS MANUAL IN ORDER TO IDENTIFY PARTS. Spread the arms of the carry handle so the holes in the arms tightly over the lift arm pivot nuts. (#38) In most cases the jack should work normally right out of the box, but it is not unusual for air to get trapped in the jack's hydraulic system during shipping and handling. -
Page 4: Troubleshooting
TROUBLESHOOTING Important: Service jacks are self-contained devices used for lifting, but not sustaining, a partial vehicular load. In accordance with ASME-PALD Load Sustaining Test: “A load not less than the rated capacity…shall not lower more than 1/8" (3.18mm) in the minute, nor a total of .1875"... - Page 5 KTI-63095 2 TON LOW PROFILE FLOOR JACK PARTS LIST AND DRAWING ITEM PART QUANTITY ITEM QUANTITY PART DESCRIPTION DESCRIPTION NUMBER NUMBER REQUIRED NUMBER REQUIRED NUMBER 0001 Spindle 3023 O-ring Seal 0005 Spring Tension 3011 Vent Plug 3000 Hydraulic Unit Assembly...
