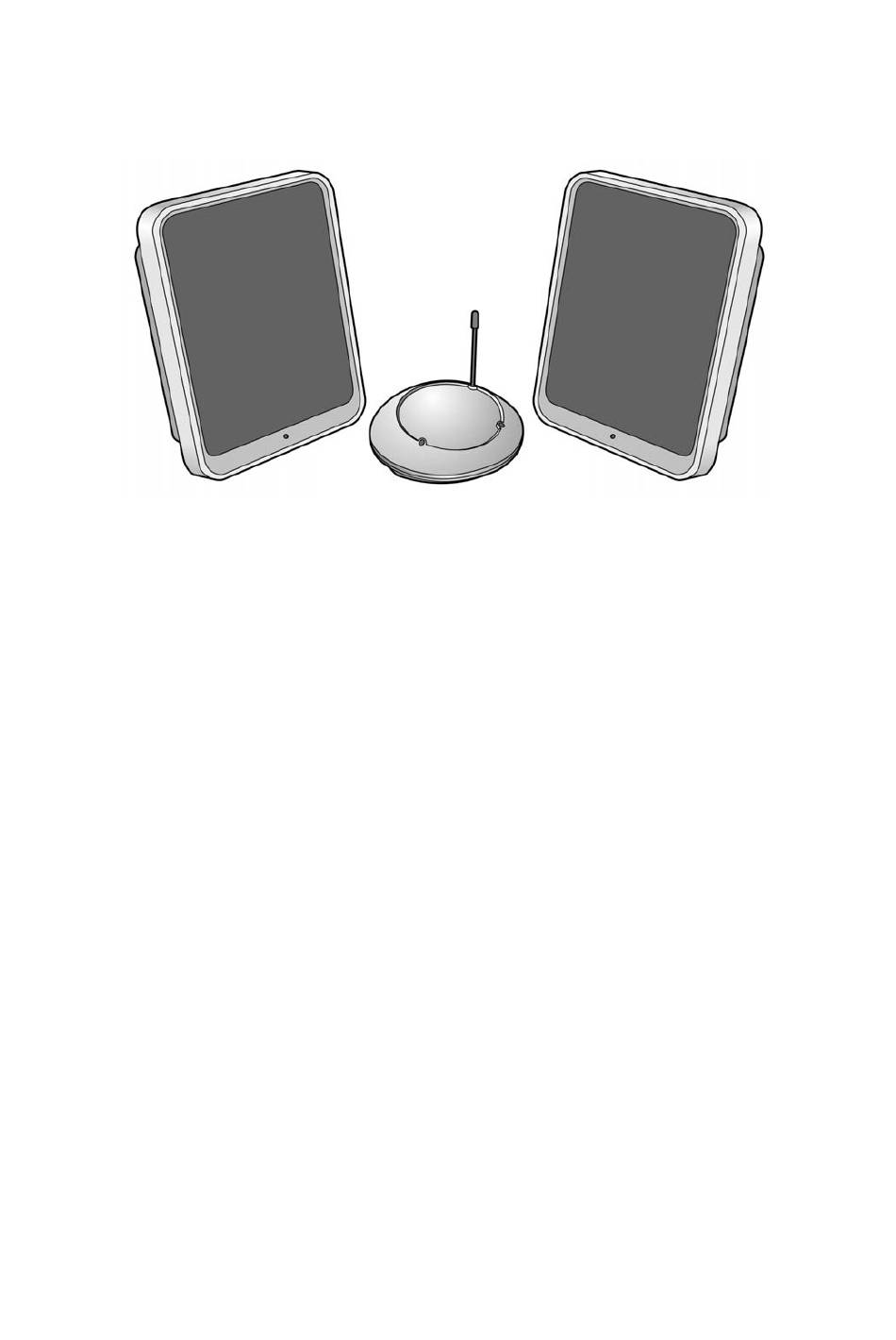

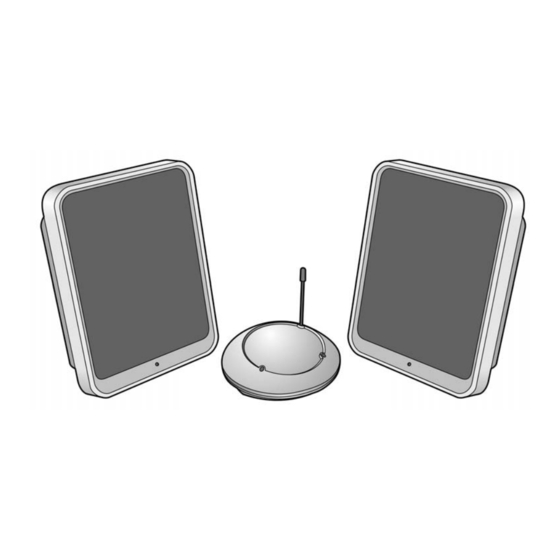

- Page 1 WIRELESS STEREO PANEL SPEAKER SYSTEM ARKON SP2690 Owner’s Manual (Preliminary)
- Page 2 INTRODUCTION The 900 MHz stereo wireless speaker system uses latest wireless technology that enables you to enjoy music and TV sound anywhere inside or outside your home. You can simply connect the system to any audio source such as Radio, TV, VCR, Hi-Fi and CD/MP3/VCD/DVD player. Without complicated wiring and installation with your Audio/Video equipments and rear channel amplifier, the system enables you to enjoy thrilling, lifelike sound stereo in minutes.
-
Page 3: Installation
INSTALLATION TRANSMITTER Insert the antenna tube into the antenna wire. Connect the supplied AC power adaptor to an electrical wall outlet. Plug the AC power adaptor in the DC jack located on the rear of the transmitter. - Page 4 The rear of the transmitter has one audio cord that can be connected to audio output jack of TV, Monitor, VCR, Radio recorder, CD/MP3/VCD/DVD players or to headphone/earphone jack with the connector provided. Plug the adaptor in the AC source and connect the audio plug to the audio source. As soon as the transmitter is receiving the audio signal, it will automatically switch on and the red LED will illuminate...
- Page 5 SPEAKER RECEIVER Insert 6 pieces ‘AA’ size ALKALINE battery into the battery compartment with correct polarity at the rear of the speaker or connect the 12V power adaptor to the DC input jack on the rear of each speaker, then plug it to the wall AC outlet. Switch on the speaker by turning up the VOLUME ON/OFF knob towards ON direction.
-
Page 6: Operation
OPERATION Turn on the audio source (TV or audio component) to which the transmitter is connected with. The LED on transmitter will light up. Select the channel 1 or 2 of the transmitter for best performance in your location. Turn on the ON/OFF VOLUME knob on the speaker and adjust the volume to the desired listening level. - Page 7 When the button is pressed, frequency tuning starts automatically and it stops when a signal is detected. The POWER/STEREO LED will change from red to green. A). Keep a distance of the speaker up to 7 meters apart from transmitter, and then press “SCAN” auto-tuning button for best tuning reception.
- Page 8 Note You should now be able to place the speakers freely from room to room without disruption. If disruption should occur (signal breaks up), press the speaker’s “SCAN” auto-tuning button to maximize best reception. If you hear interference from other components, switch the channel control of transmitter, and then move the speakers to other free location.
-
Page 9: Troubleshooting
Switching off Turn the VOLUME ON/OFF knob until the click sound is heard to turn off the speaker and the LED light goes off For protection of the transmitter and power saving, the transmitter will cut off automatically if there is no/weak operation input signal from audio source for 4 minutes. -
Page 10: Specifications
SPECIFICATIONS Transmission Mode UHF stereo Carrier Frequency 900 MHz Operation Voltage Transmitter, DC 12V 200mA Speaker, 6 X ‘AA’ size Alkaline batteries or DC 12V 600mA adaptor Frequency Response 20Mz - 13KHz Distortion 1.5% S/N Ratio 50dB Channel Separation 30dB Operation Distance Up to 50M (Open Area) Warning :...
