Panasonic 4541OLOA Service Manual page 7

Procedure 1A → 1B → 1C → 1D → 1E
Ref. No. 1E

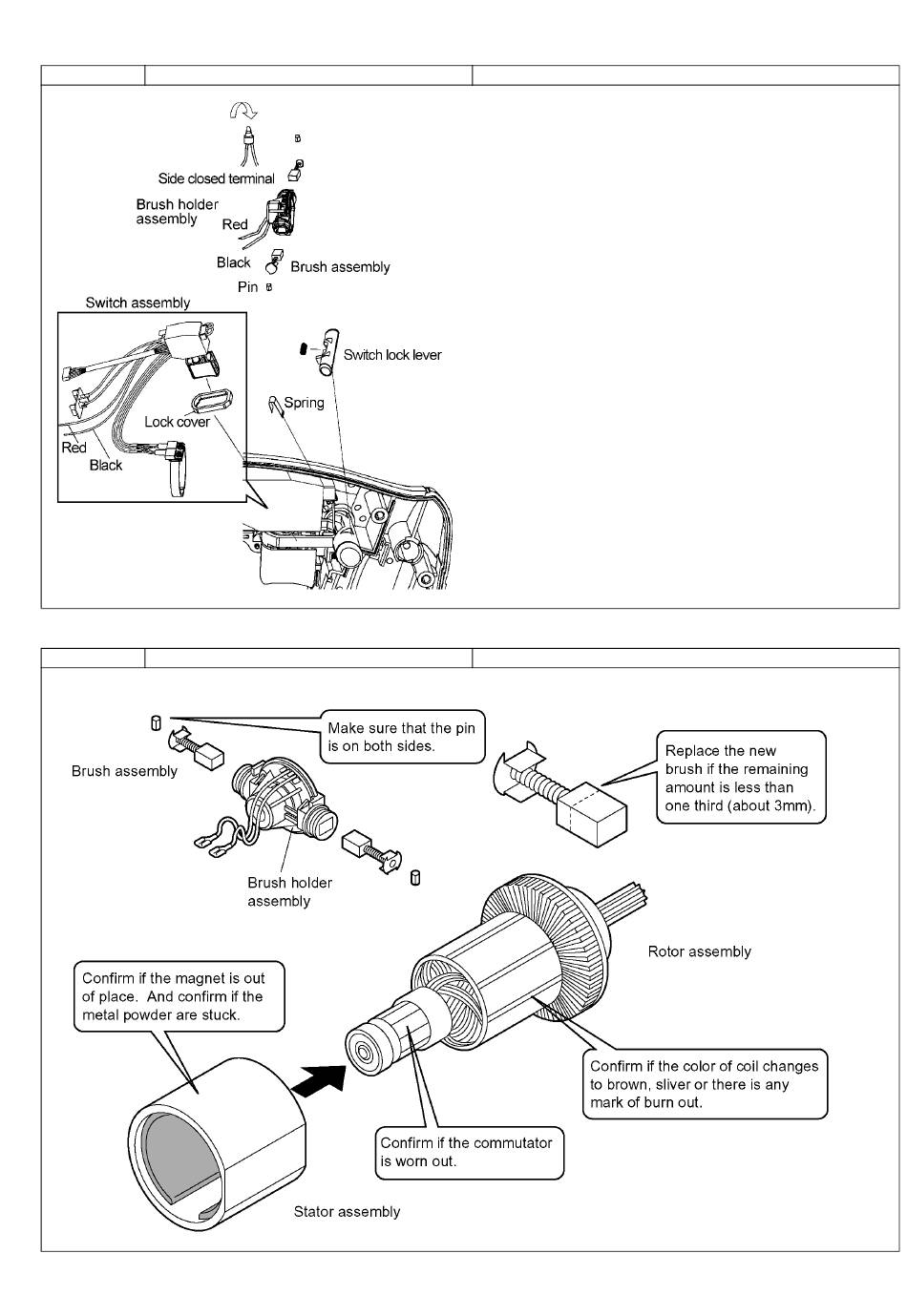

Procedure 1A → 1B → 1C → 1D → 1E → 1F Removal of the brush assembly.
Ref. No. 1F
Removal of the switch.
1. Pull out the lead wires from the side closed terminal.
(for reassembly)
1. Connect the same color of lead wires (black or red) from switch and
brush assembly with the side closed terminals.
1. Remove the motor assembly from the housing.
2. Take out the rotor assembly from the stator.
7
