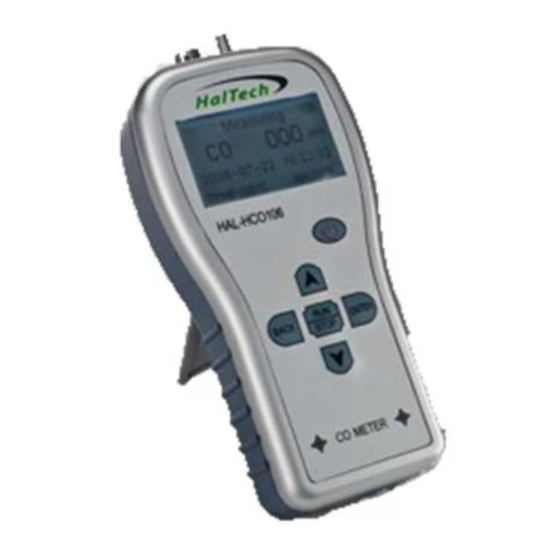

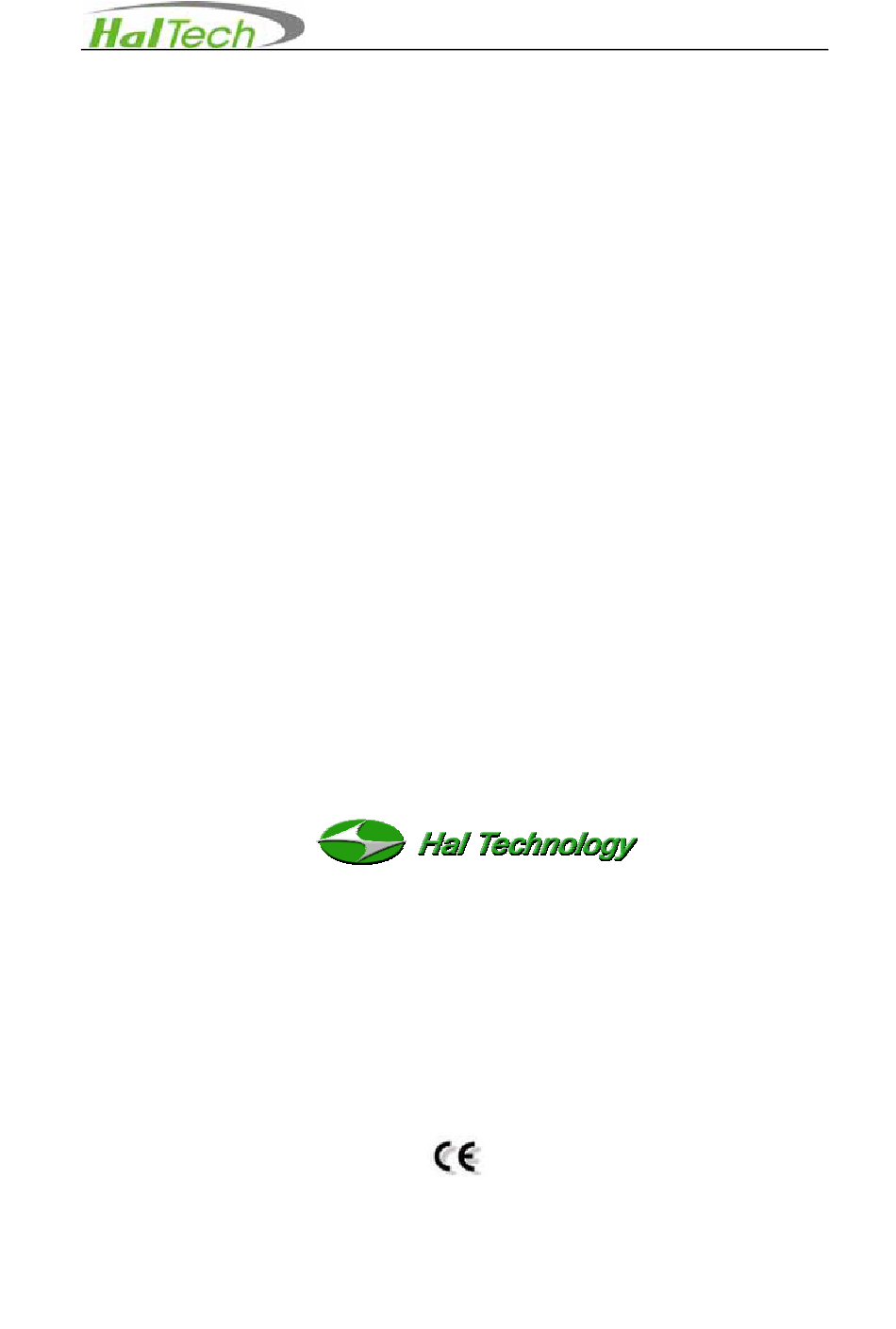

- Page 1 HAL-HCO106 Handheld Carbon Monoxide Meter/Monitor Operational Manual 625 E Carroll Avenue Glendora, CA 91741 USA Phone: (510) 579-8540 Fax: (626) 236-9246 Info@haltechnologies.com http://haltechnologies.com Page 1 of 1...
- Page 2 This Page intentionally left as blank Page 2 of 2...
-
Page 3: Table Of Contents
Table of Contents Important Messages ............... 4 ． Introduction ................6 1.1 Features ................7 1.2 Specifications ................ 7 II. Basic Operation ................9 2.1 Measuring Screen ..............9 2.2 Browsing Screen ..............11 2.3 Setting Screen..............13 2.4 Calibration ................15 III. -
Page 4: Important Messages
Important Messages The information in this manual is believed to be accurate to date. However, Hal Technology assumes no responsibility for any inaccuracies that may be contained in this manual. In no event will Hal Technology be liable for direct, indirect, special, incidental, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. - Page 5 It is strongly recommended that the instrument should be calibrated semi-annually or annually at most. Please contact Hal Technology to schedule your calibration or any services needed. The HAL-HCO106 can only be serviced at Hal Technology or by Hal Technology’s authorizing trained professionals.
-
Page 6: I ． Introduction
In other words, breathing carbon monoxide can lead to asphyxiation - unconsciousness and even death. The HAL-HCO106 handheld Carbon Monoxide meter is a compact personal monitor that can provide a rapid indication of hazardous airborne carbon monoxide levels at simple touch of a button. -
Page 7: Features
combustionable gas is possible. 1.1 Features • Easy to use - minimal operator training required • Wide measuring range • Rapid response time • No warm-up time • Direct real time readings allow immediate response to results • Reliable electrochemical sensor •... - Page 8 • Interface: USB • Power: Rechargeable Lithium ion battery (3.7V/900mAh); AC adapter 100~ 240VAC to 5VDC/1A • Dimension: 80 (W) × 150 (H) × 36 (D) mm • Weight About 200 grams • Environmental Condition: Operating: 5~ 40°C, <90%RH; Storage: -20~ 50°C, <90%RH •...
-
Page 9: Basic Operation
II. Basic Operation Six control keypads are used to operate the instrument: , RUN/STOP, ENTER, BACK, • Power button : Push and hold it for about 2 seconds to turn on the instrument. After turned on, keep pushing on for about 2 seconds to turn off the instrument. The instrument will shut off automatically to save the power after about 8 minutes standby or no operation, •... - Page 10 Measuring 2008-09-06 08:40:25 Temp: 23°C RH:60% Figure 1 Measuring Screen Battery Indicator The battery indicator displays the battery strength graphically. Four bars represent 100% of charge in the battery; three bars 75%; two bars 50%; one bar 25%. No bars signify a low battery status and simultaneously the alarm will buzz as a warning.
-
Page 11: Browsing Screen
• The instrument will automatically turn off the power in 8 minutes or so if no keypad action was received. However, the power will not be automatically turned off as long as a sampling (with a running pump) is in process. Pressure When it is applicable, the current pressure value will be displayed in Pa when an external pressure sensor is attached. - Page 12 • Use BACK keypad to return to the main Browsing window. BACK keypad is effective only after entering into the data record. Browsing 028/028 2008-07-06 08:47:25 Temp:24°C RH:66% Figure 3 An example of the Browsing Screen Record Record format as current number of saved data/total number of stored data. (e.g., 028/028).
-
Page 13: Setting Screen
2.3 Setting Screen The Setting screen allows users to set or change Date, Time, and warning limit. Use an arrow and ENTER keypads to enter into the Setting screen. Then press the ENTER keypad to highlight the parameter that needs to be changed / set. The chosen parameter will be at the bottom of the window. - Page 14 Effects of Exposure to Carbon Monoxide Source/comment Exposure at this level effects, this No carbon monoxide should be detected in normal level 0 ppm residential properties. Possible brief properly-operating heating technical exceptions occur. appliance Maximum allowable short 9 ppm ASHRAE term exposure Investigation needed to find 10 - 24 ppm...
-
Page 15: Calibration
2.4 Calibration After turning on the instrument, use up or down keypad to go to the Calibration Screen (Figure 6). Users may calibrate the instrument at his/her own wish after using for a certain time of period or suspect degradation of sensor performance. Calibration 0040 + 208... - Page 16 3) Press RUN/STOP keypad to start a sampling. Wait for right bottom number stable and then press STOP key. 4) Connect the inlet to a glass container that is connected a standard CO gas cylinder (e.g., 100ppm standard carbon monoxide gas cylinder). 5) Move the cursor to the second row (Refer to Figure 8) and then press the ENTER keypad.
-
Page 17: Warrantee
III. Warrantee Hal Technology provides a one-year limited warranty of the Model HCO106 Handheld Carbon Monoxide meter, but not including necessary calibration service. • Warranty begins from shipping date. • The user is responsible for the cost of shipping in the case of any service or repair needed. - Page 18 including, but not limited to accident, misuse, unforeseeable use, neglect, alteration, improper installation, improper adjustment, improper repair, or improper testing, Hal Technology shall, at its option, repair or replace the equipment, shipment to Buyer prepaid. Hal Technology shall have reasonable time to make such repairs or to replace such equipment.
-
Page 19: Contact
return shipping costs during the warranty period. Buyers may select a faster method of shipment at their own expense. Contact HAL TECHNOLOGY, LLC 625 E Carroll Avenue Glendora, CA 91741 USA Phone: (510) 579-8540 Fax: (626) 963-7302 Info@haltechnologies.com http://haltechnologies.com Information Record Model Serial No. -
Page 20: User Registration Form
Please fill out the Registration form below and send to: HAL TECHNOLOGY, LLC 625 E Carroll Avenue Glendora, CA 91741 USA Phone: (510) 579-8540 Or send relevant registration information to the email address below: info@haltechnologies.com User Registration Form Company _____ Contact Person ______________ Address...
