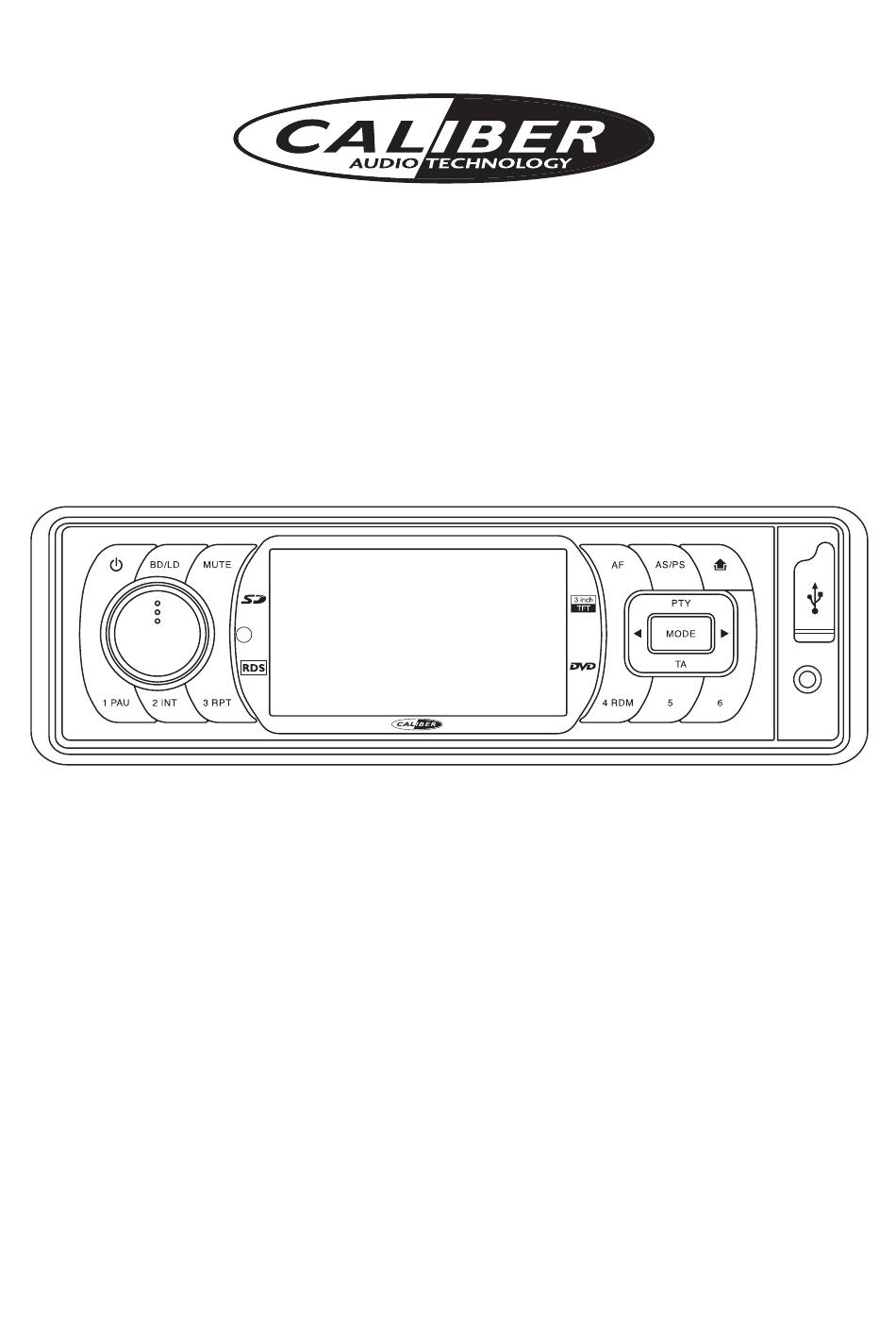

INSTRUCTION MANUAL
1
2
7
9
12
DVD/MPEG4/SVCD/VCD/CD/MP3/WMA Player
with PLL FM Stereo Radio
USB / SD/MMC Card Input
Flip Down/Detachable Front Panel
17
18
19
3
(1-3)
MCD 710
MCD 710
Car Stereo
Radio Data System
3 Inch TFT-LCD Display
MCD 710
Front AUX IN
14
4x 75WATT
11 10
4
16
4x 75WATT
8
20
3
AUX IN
13
6
25
AUX IN
21
5
26
(4-6)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MCD 710 and is the answer not in the manual?

Questions and answers

Related Manuals for Caliber MCD 710

Summary of Contents for Caliber MCD 710

  • Page 1 MCD 710 INSTRUCTION MANUAL AUX IN MCD 710 4x 75WATT 11 10 Car Stereo DVD/MPEG4/SVCD/VCD/CD/MP3/WMA Player with PLL FM Stereo Radio Radio Data System AUX IN 3 Inch TFT-LCD Display USB / SD/MMC Card Input MCD 710 4x 75WATT Front AUX IN...

  • Page 2: Before You Begin

    BEFORE YOU BEGIN PRECAUTIONS: CAUTION: USE OF CONTROLS OR ADJUSTMENT OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. THE USE OF OPTICAL INSTRUMENTS WITH THIS PRODUCT WILL INCREASE EYE HAZARD. • Keep this manual handy as a reference for operating procedures and precautions. • Always keep the volume low enough so you can hear sounds outside of the car. • Protect this product from moisture.

  • Page 3: Installation

    INSTALLATION PRECAUTIONS • Choose the mounting location carefully so that the unit will not interfere with the normal driving functions of the driver. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight or hot air from the heater, or where it would be subject to dust, dirt or excessive vibration. • Use only the supplied mounting hardware for a safe and secure installation. • Be sure to remove the front panel before installing the unit. NOTE : Inclination angle for car radio installation must not exceed 30˚ otherwise the front panel will not open. Release screw and bracket 18mm mm Bend these claws, if necessay NOTE: Keep the release key in the safe place as you may need it in future to remove the unit from the car. Detaching and attaching the front panel The front panel of this unit can be detached in order to prevent the unit from being stolen.

  • Page 4: To Support The Unit

    TO SUPPORT THE UNIT 1. UNIT . RELEASE CASE 3. DASH BOARD Dashboard . HEX NUT 5. LOCK WASHER 6. PLAIN WASHER 7. CAR BODY 8. REAR SUPPORT STRAP 9. TAPPING SCREW 10. M5 X 15 HEX BOLT WIRE CONNECTION IN / OUT CONNECTOR 2 Video Outputs: Yellow Audio Out: White (L) Red (R) Connect to external A/V system to display Connect this wire to rear seat A/V monitor system to enjoy DVD movie...

  • Page 5: Maintenance

    DRIVING WITH VIDEO DISPLAY By following the installation below, video will always be shown on LCD screen no matter the car is in motion or not. Steps: Connect the GRAY wire to the WHITE wire. INSTALLING REAR CAMERA FOR PARKING/REVERSE MOTION You can install an separate camera at the car rear end so when doing parking or reverse motion, the unit will automatically switch the video to the rear camera to guide the driver. CAMERA IN AUDIO OUT CAMERA IN AUDIO OUT ISO CONNECTOR VIDEO OUT 1 REAR CAMERA IN LINE OUT ISO CONNECTOR ANTENNA VIDEO OUT 1 CAMERA IN REAR CONNECTOR...

  • Page 6: Locations Of Parts (Main Unit)

    MCD 710 4x 75WATT MCD 710 4x 75WATT LOCATIONS OF PARTS (MAIN UNIT) 11 10 11 10 MCD 710 AUX IN MCD 710 4x 75WATT MCD 710 4x 75WATT MCD 710 4x 75WATT 11 10 (1-3) (4-6) (1-3) (4-6) 1. POWER ON/OFF ( 2.

  • Page 7: Locations Of Parts (Remote Control)

    LOCATIONS OF PARTS (REMOTE CONTROL) 1. POWER ON/OFF 2. MODE . PLAY/PAUSE 4. TITLE / PLAYBACK CONTROL . SELECT 6. SEEK+/SEEK- / CD TRACK/SEARCH Mode 7. VOL +/VOL- 8. GOTO GOTO Dual STEP 9. AUDIO Title 10. ENTER 11. NAVIGATION Sub-T Setup Menu 12.

  • Page 8: General Operations

    GENERAL OPERATIONS Turning the unit ON/OFF ( Press “ ” button to turn on unit. To turn off, press and hold the button again. Selecting a source (MODE) Press MODE repeatedly to switch between TUNER, CD/DVD, AUX IN, USB or SD/MMC mode. Loading a Disc 1. Press REL to open the front panel . Insert a disc into the disc loading slot Ejecting a Disc Press button to eject disc Adjusting Volume • Head Unit: Rotate VOL knob right or left to increase or decrease volume. • Remote Control: Press VOL+ or VOL- to increase or decrease volume. Mute Button • Head Unit: Press MUTE button to mute the sound at once. Press again to return to previous volume level. • Remote Control: Press button.

  • Page 9: Using The Rds Function

    Auto Seek/Preset scan (AS/PS) Currently Tuned Station Preset Scan (PS) - By pressing shortly, the radio plays each preset station for  seconds. Auto Seek (AS) - By pressing longer than 1 sec, auto seek is activated. The 6 strongest stations are preset and stored in the corresponding preset number. When Auto Seek operation is finished, the radio executes the preset scan.

  • Page 10: Listening To Cd/Mp3/Wma

    Fast Forward / Fast Reverse Note: on remote control is the same function as on head unit. 1. During playback, press and hold unit scans at the speed of x - x - x8 - x16 - x0 . To resume normal playback at a desired point, press Note: No sound is played during fast forward / fast reverse. Finding the Beginning of Tracks During playback, press : Press to start playback from the beginning of the previous chapter or track. : Press to start playback from the beginning of the following chapter or track. Pause Playback During playback, press . Press again to resume playback.

  • Page 11: Playing Dvd/Video Cd/Mp4

    Front USB Port USB PORT U sing USB cable to connect Your Portable MP Player. * IMPORTANT INFORMATION: BECAUSE OF THE GREAT VARIETY OF PRODUCTS WITH USB, SD AND MMC CARD PORTS AND THEIR SOMETIMES QUITE MANUFACTURER-SPECIFIC FUNCTIONS WE CAN NEITHER GUARANTEE THAT ALL DEVICES WILL BE RECOGNIZED NOR THAT ALL OPERATING OPTIONS THAT ARE POSSIBLE IN THEORY WILL ACTUALLY WORK Front Aux In AUX IN...

  • Page 12: Customizing Audio / Video Settings

    Changing audio language during playback (Multi-audio) DVDs can provide audio playback with different languages and different systems (Dolby Digital, DTS etc.). With DVDs featuring multi-audio recordings, you can switch between languages/audio systems during playback. VCD can provide different audio languages usually divided into left and right channels. 1. To choose different audio, simply press Audio on the remote control repeatedly during playback. Note: With some DVDs, switching between languages/audio systems may only be possible using a menu display. You can also switch between languages/audio systems using SET-UP MENU. Changing the subtitle language during playback (Multi-subtitle) –...

  • Page 13: Setting Up The Dvd Player

    SETTING UP THE DVD PLAYER You can flexibly customize the unit to suit your preference. You can set the language and other video and audio settings so when playback starts it will always use your preferred settings. Important: 1. Load any disc into the unit before you can access the setup. . Press Setup on the remote control. Settings Category Options TV System NTSC, PAL, AUTO Auto Play ON, OFF TV Type :PS, :LB, 16:9 System Setup...

  • Page 14: Technical Specifications

    TECHNICAL SPECIFICATIONS CD/MP3/WMA PLAYER SECTION Signal to Noise Ratio > 60 dB Channel Separation > 50 dB (1kHz) Frequency Response 20 Hz - 20 kHz TUNER (FM) Frequency Range 87.5-108 MHz Channel Step 50 kHz Sensitivity .8 µV Stereo Separation 0 dB Signal to Noise Ratio 0 dB LINE-OUT Output 1300 mV (max.) Impedance 10k Ohm GENERAL...
