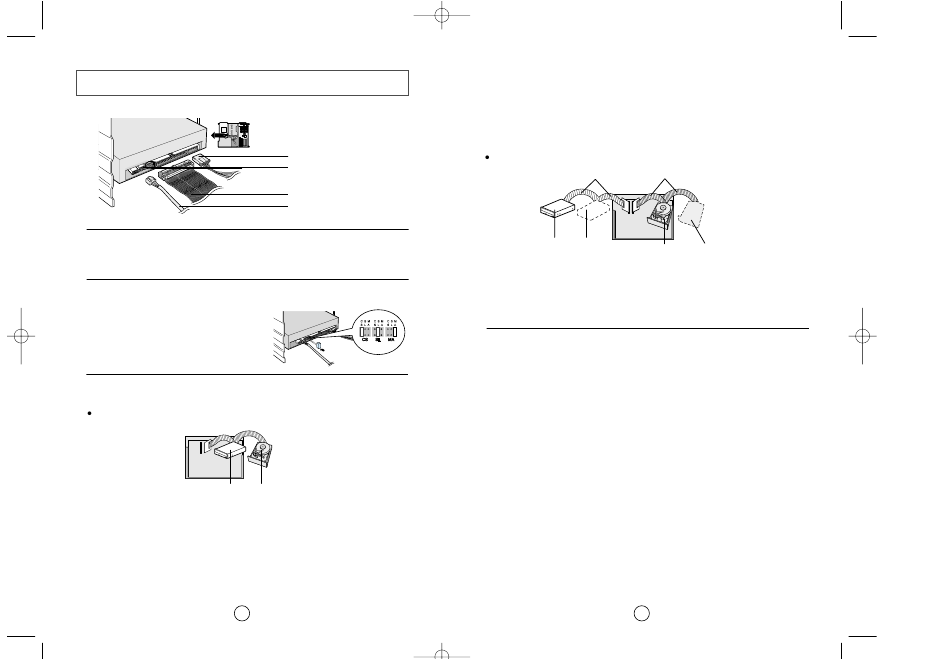

Connecting the Cables

1
Connecting the power cable
The 4-pin power cable from the internal power unit of your computer must be
connected to the power terminal on the rear of the COMBO drive.
2
Installing a jumper on the master/slave select terminal
Install the jumper in the correct position on the terminal:
MA to use the device in the master mode
SL to use the device in the slave mode
CS to control the device via a CSEL
host interface signal
See Step 3 for further details.
3
Connecting the IDE cable
Two configurations are possible.
The COMBO drive is the only IDE device in addition to the hard disc.
IDE port
Mother board
COMBO
(SL)
Install the jumper in the SL position (Slave).
Connect the 40-pin flat IDE cable from the IDE port on the mother board, first to
the COMBO drive and then to the ha
Page 6
1. Power cable
2. Master/slave select terminal
3. IDE cable
4. Audio cable
Hard disc
(MA)
r d disc .
6
You already have an additional IDE device installed in your computer.
Second IDE cable First IDE cable
Mother
board
COMBO CD-ROM
Hard disc
(MA) (SL)
Install the jumper in the MA position (Master).
Connect the 40-pin flat IDE cable from a second IDE port on the mother
board directly to the COMBO drive or first to another additional IDE drive and
then to the COMBO drive.
4
Connecting the audio cable from a sound card
Connect the 4-pin audio cable between the sound output terminal on the COMBO
drive and the audio input terminal on the sound card.
7
Hard disc
(SL) (MA)
