Home Styles 88 5300 006 Assembly Instructions Manual

Premium buffet of buffet large buffet base
Hide thumbs

Advertisement

Quick Links

Download this manual
88 5300 006
Premium Buffet of Buffet
Large Buffet Base
Oak Finish
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the wood parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.

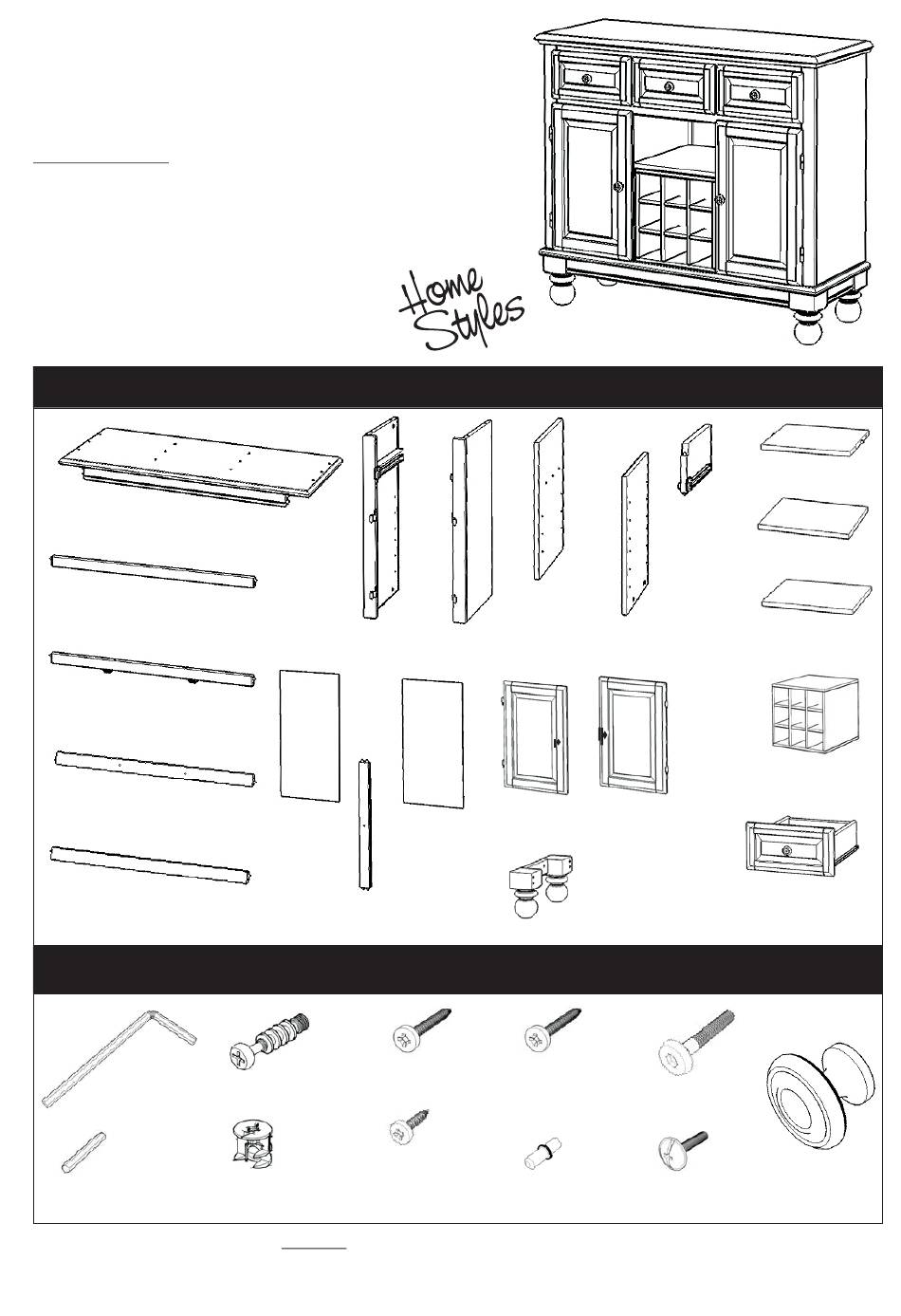

Part List
A.
Bottom
1 pc.
J.
Front Rail
1 pc.
K.
Front Rail
1 pc.
L.
Back Rail
1 pc.
M.
Back Rail
1 pc.
Hardware List
Hex Wrench
1 pc.
Small
Hex Wrench
1 pc.
Tools required for assembly : Phillips screwdriver
Home Styles Consumer Assistance Line 888-680-7460 and 877-831-0319
B.
Side Panel
1 pc.
P.
N.
Back Panel
Back Panel
1 pc.
2 pcs.
O.
Back Piece
2 pcs.
Wood Screw (short)
for Back Rail
Cam Lock Screw
6 pcs. (+1 extra)
24 pcs.(+1 extra)
Wood Screw (short)
for Drawer Base Part
Cam Lock
and Wine Rack
24 pcs.(+1 extra)
20 pcs. (+1 extra)
servicedesk@homestyles-furniture.com
D.
Middle Panel
C.
1 pc.
E.
Side Panel
Middle Panel
1 pc.
1 pc.
Q.
S.
Door
Door
1 pc.
1 pc.
R.
Leg
2 pcs.
Wood Screw (long)
for Drawer Side Part
and Wine Rack
32 pcs. (+1 extra)
Adjustable Pin
20 pcs.(+2 extra)
G.
Shelf
F.
1 pc.
Divider
H.
2 pcs.
Shelf
4 pcs.
I.
Shelf
1 pc.
T.
Wine Rack
1 pc.
(Knock-Down Construction, please refer
to the last page of these instructions for
wine rack assembly steps)
U.
Drawer
3 pcs.
(Knock-Down Construction, please refer
to the last page of these instructions for
drawer assembly steps)
Head Cap Bolt
4 pcs. (+1 extra)
Pull Handle
5 pcs.
Machine Screw
5 pcs.
