StarTech.com C15012-USB-EXTENDER Quick Start Manual

1-Port USB 2.0 Over Cat5/Cat6 Extender - 490 ft. (150 m)
Product ID
C15012-USB-EXTENDER

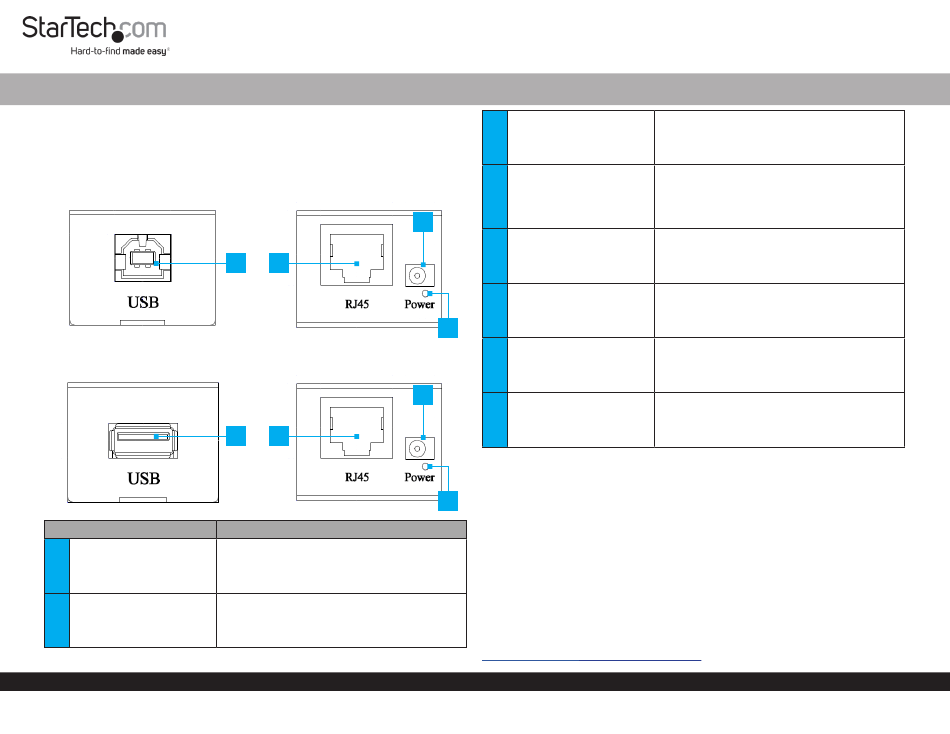

Product Diagram

Transmitter
Side A
Receiver
Side A
Component
•
USB-B Host Port
1
(Transmitter)
•
RJ-45 Output
•
2
(Transmitter)
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
Side B
1 2
Side B
5 6
Function
Connect to a USB-A Port on a Host
Computer
USB 2.0 (480 Mbps)
Connect the Transmitter to the Receiver
using a Cat5e/Cat6 Cable
DC 5V Power Port
3 (Transmitter)
*NOT REQUIRED
Power LED
4
(Transmitter)
3
USB-A Peripheral Port
5
(Receiver)
RJ-45 Input
6
(Receiver)
4
DC 5V Power Port
7
(Receiver)
7
Power LED
8
(Receiver)

Package Contents

USB Over Cat5/Cat6 Transmitter x 1
•
USB Over Cat5/Cat6 Receiver x 1
•
8
2 ft (61 cm) USB-A to USB-B Host Cable x 1
•
Universal Power Adapter (North America) x 1
•

Requirements

Computer (local) with a USB-A Port
•
USB peripheral device (remote) with Required Cabling
•
Cat5/Cat6 Cabling. Up to 490 ft (150 m)
•
For the latest drivers, manuals, product information, technical specifications, and
declarations of conformance, please visit:
www.StarTech.com/C15012-USB-EXTENDER
Quick-Start Guide
Used to connect the Transmitter to a Power
•
Source. A local power source is not required,
as the Transmitter is powered by the USB
Host Computer
Indicates if the Transmitter is receiving
•
power
Solid Green = Receiving Power
•
Off = Not Receiving Power
•
Connect a Remote USB-A Peripheral
•
USB 2.0 (480Mbps)
•
Supports up to 5 V/0.5 A (2.5 W) Power
•
Connect the Receiver to the Transmitter
•
using a Cat5e/Cat6 Cable
Connect the Receiver to a Power Source,
•
using the Universal Power Adapter
Indicates if the Receiver is receiving power
•
Solid Green = Receiving Power
•
Off = Not Receiving Power
•
Manual Revision: April 21, 2022 2:00 PM
