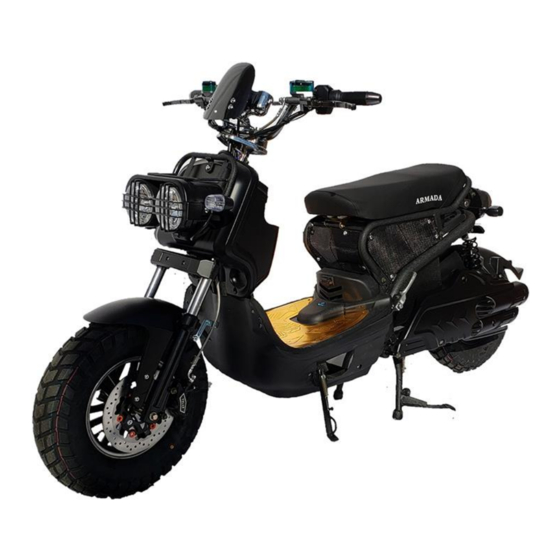

Armada Recon 2020 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

ELECTRIC BIKE
OWNER'S MANUAL
Ltd.
E-BIKE MODEL/COLOR:
Armada Recon/
SERIAL NUMBER:
PURCHASE DATE:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Recon 2020 and is the answer not in the manual?

Questions and answers

Related Manuals for Armada Recon 2020

Summary of Contents for Armada Recon 2020

  • Page 1 ELECTRIC BIKE OWNER’S MANUAL Ltd. E-BIKE MODEL/COLOR: Armada Recon/ SERIAL NUMBER: PURCHASE DATE:...

  • Page 2: Table Of Contents

    OWNER’S MANUAL TABLE OF CONTENTS 1. E-Bike Parts Diagram 2. Essentials of Safely Driving an E-Bike Battery Helmet Lights Brakes Tires Carrying Capacity Appropriate Riding Gear Electrical Care Security 3. Operational Instruction Start Up Parking Charging Hazards Lights 4 Maintenance and Care Battery type and care Handling the battery Distance and power...

  • Page 3: E-Bike Parts Diagram

    OWNER’S MANUAL 1. E-BIKE PARTS DIAGRAMS: LED Digital Display Brake Oil Throttle Brake Oil Rt Brake lever Lt Brake lever 3 speed switch Horn High beam/low beam Light switch Horn Reverse Speed Lt/Rt Turn Signal Key Ignition Under Seat Lock Charger Port Pedal and crank shaft Middle Kickstand...

  • Page 4: Essentials Of Safely Driving An E-Bike

    Most ARMADA ELECTRONIC VEHICLES have tubeless tires. 2.6 CARRYING CAPACITY: Typical carrying capacity for most E-Bike is 330lbs. Do not over-load max carrying weight of the E-Bike.

  • Page 5: Operational Instruction

    OWNER’S MANUAL 3. OPERATION INSTRUCTION: 3.1 STARTING UP: Drive in ideal conditions for optimal E-Bike performance. a. Make all safety checks on battery level, both break levers, both right and left turn signals, horn, and headlight. Check and tighten any bolts and nuts. Adjust mirrors for proper visibility. b.

  • Page 6: Hazards Lights

    Contact your local ARMADA Scooter shop to purchase a new battery. Replace battery with an identical or similar battery. When replacing your battery, dispose of it at a proper battery recycling facility or return to an ARMADA Scooter Shop.

  • Page 7: Distance And Power

    OWNER’S MANUAL 4.3 DISTANCE AND POWER: The e-bike can go up to a distance of 35 to 50km before it must be recharged. The ability of your battery to power your e-bike depends on many variables. These variables include the weight of the rider and cargo, the prevailing wind resistance, steep hills and inclines, and tire pressure.

  • Page 8: Regular Maintenance Time Table

    OWNER’S MANUAL 4.8 REGULAR MAINTENANCE TIME TABLE: A-check, adjust, replace when necessary, L-Lubricate, C-Clean Items Travel Mileage (KM) 200km 1000km 3000km 5000km 8000km 10,000km 12,000km All bolts & nuts Tires Wheel bearing Lubrication of all position Motor bearing Ft & Bk braking block Ft &...
  • Page 9 OWNER’S MANUAL 5. GENERAL TECHNICAL INFO – TROUBLE SHOOTING: Q. Why won't my Electronic Vehicle turn on? There is no lights or power when I turn the key switch? • Check the main power switch also known as circuit breaker or main breaker. •...
  • Page 10 You should keep a tire plug kit handy to plug the hole once you find it. Inner tire coating also known as "slime" also works. If you have a tire with an inner tube in it, you need to either repair the tube with a patch kit or better yet, replace it. Most Armada electric vehicles have tubeless tires.
