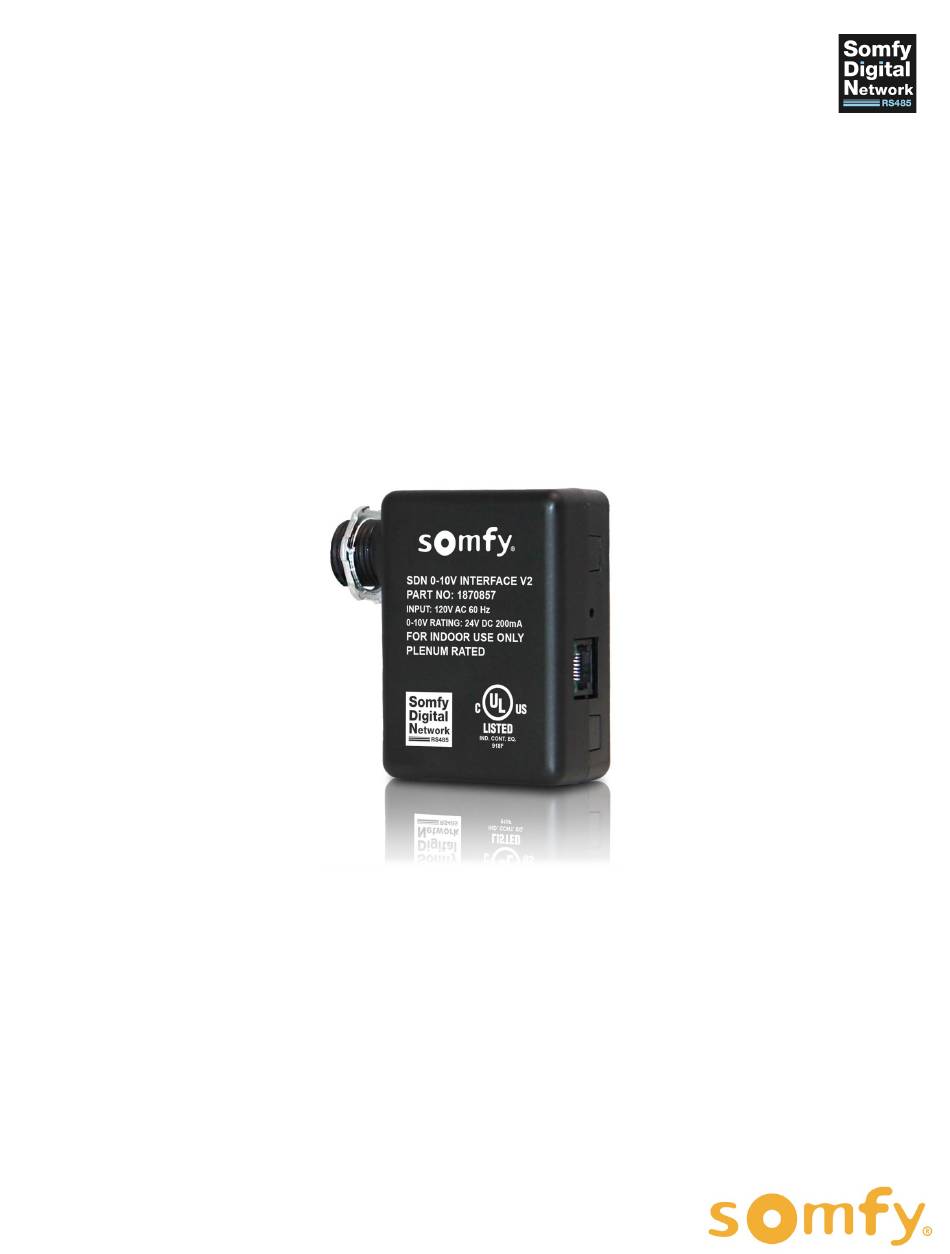

- Page 1 PROGRAMMING GUIDE SOMFY DIGITAL NETWORK™(SDN) 0-10V INTERFACE V2...
-
Page 2: Table Of Contents
II. INSTALLATION -------------------------------------------------------- 4 MOUNTING & POWER WIRING TO SYSTEM FOR OPERATION III. SET UP --------------------------------------------------------------- 5 SOMFY DIGITAL NETWORK™ (SDN) MODE ANIMEO® IP MODE APPENDIX --------------------------------------------------------------- 8 BANK A - FUNCTION DIP SWITCHES BANK B - SPECIFIC GROUP ADDRESS DIP SWITCHES INPUT LEVELS &... -
Page 3: Overview
I. OVERVIEW The SDN 0-10V Interface V2 is a device which accepts the lighting industry standard 0-10V analog dimming signal and converts it to a Somfy Digital Network™ (SDN) or animeo® IP command. This device receives a 0- 10V input from a third-party lighting control system and drives a motor in 10% increments (0%-100%). -
Page 4: Installation

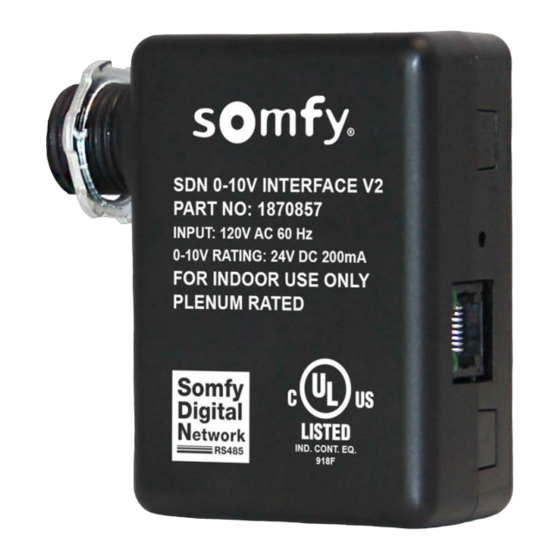

M O U N T I N G & P O W E R The SDN 0-10V Interface V2 utilizes a junction-box-mountable, plenum-rated enclosure and is powered by line voltage. It is also connected to a standard 0-10V input signal inside the junction box via 2 wires. There is a single RJ45 port on the control which provides the connection to the SDN Bus via a standard CAT-5e or higher cable. -
Page 5: Set Up
S O M F Y D I G I T A L N E T W O R K ™ ( S D N ) M O D E The SDN 0-10V Interface V2 operates in 2 different modes: SDN Mode (standalone) and animeo IP mode. These modes are accessible by the setting of DIP switches. - Page 6 Refer to the Somfy Connect UAI Plus Integration Report to identify the specific group address required, or use the SDN Motor Configuration software to assign the specific group address to each motor to be controlled. Refer to Appendix A to enable the Bank A DIP switches before setting a specific SDN group address.
- Page 7 A N I M E O ® I P M O D E The SDN 0-10V Interface V2 integrates with animeo IP using the animeo IP Visual Configuration software. The control is discovered and configured as a 6-Button Non-Eco Mode keypad and will move motors on the SDN bus to the full UP, full DOWN, 25%, 50%, and 75% positions depending on the 0-10V input.
-
Page 8: Animeo Ip Mode
B A N K A - F U N C T I O N D I P S W I T C H E S The SDN 0-10V Interface V2 operates in 2 different modes: SDN Mode and Animeo IP Mode. These modes are accessible by the setting of DIP ↑... -
Page 9: Bank B - Specific Group Address Dip Switches
B A N K B - S P E C I F I C G R O U P A D D R E S S D I P S W I T C H E S The SDN 0-10V Interface V2 can reside on the standalone SDN bus with a Somfy Connect UAI Plus. The Bank B DIP switches allow setting a specific SDN address for this device to control. - Page 10 DIP SWITCH ADDRESS INVERTED DIP SWITCH ADDRESS INVERTED SETTING ID (HEX) ID (HEX) SETTING ID (HEX) ID (HEX) 1 2 3 4 5 6 1 2 3 4 5 6 ↑ ↓ ↑ ↓ ↓ ↓ 01 01 27 D8 FE FE ↑...
-
Page 11: Input Levels & Sdn Output
I N P U T L E V E L S & S D N O U T P U T When the SDN 0-10V Interface V2 is properly connected and powered, it will accept an analog voltage in the range of 0-10V and convert that voltage to a corresponding SDN command. - Page 12 Over 270 million users worldwide enjoy the more than 170 million motors produced by Somfy. During the past 50 years, Somfy engineers have designed products for both the commercial and residential markets to motorize window coverings such as interior shades, wood blinds, draperies, awnings, rolling shutters, exterior solar screens and projection screens.
