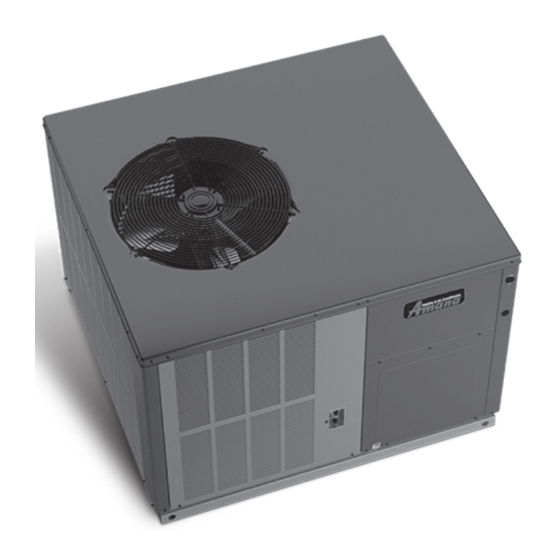

Amana APG14M Manual

Standard Features
• Heavy-duty Million-Air® stainless-
steel heat exchanger
• Energy-efficient compressor
• Aluminum tube/aluminum fin coil
• Flowrater expansion device on 2- to 4-ton units;
TXV expansion device on 5-ton units
• X-13 type recirculating blower motor
• Fully charged R-410A system
• Redundant gas valve with easy
conversion to propane
• Power-assisted combustion
• Direct spark ignition system includes a microprocessor-based control for the entire ignition
sequence, all blower operation, and all safety circuits complete with self-diagnostics
• All models comply with California Low NOx standards
• AHRI Certified; ETL Listed
SS-APG14M
Amana® is a trademark of Maytag Corporation or its related companies and used under license to Goodman Company, L.P., Houston, Texas.
C
h
eating
Cabinet Features
• High-quality UV-resistant powder-paint finish
• Horizontal or downflow application
• Convenient access panels
• One roof curb fits all units
• Fully insulated cabinet
• Bottom, 2" high base rails for easier handling
• When properly anchored, meets 2010 Florida Build-
ing Code unit integrity requirements for hurricane-
type winds (Anchor bracket kits available.)
www.amana-hac.com
apg14M
p g
aCkaged
14 seer / 81% aFUe
23,000 - 57,500 BtU/
C :
ooling apaCity
40,000 - 120,000 BtU/
C :
apaCity
Contents
Nomenclature ....................................... 2
Product Specifications .......................... 3
Expanded Cooling Data ........................ 7
Airflow Data ........................................ 19
Dimensions ......................................... 24
Wiring Diagrams ................................ 25
Accessories .......................................... 28
®
* Complete warranty details available from your local dealer or at
www.amana-hac.com. To receive the Lifetime Heat Exchanger
Limited Warranty (good for as long as you own your home) plus
the 10-Year Parts Limited Warranty, online registration must be
completed within 60 days of installation. Online registration is
not required in California or Québec.
/e
as leCtriC
h
h
11/14
