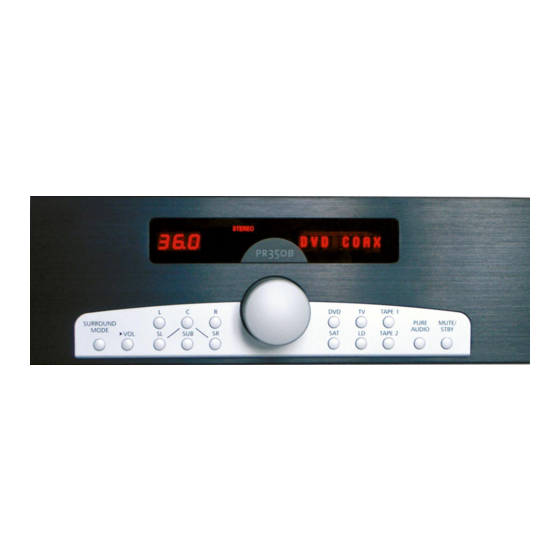

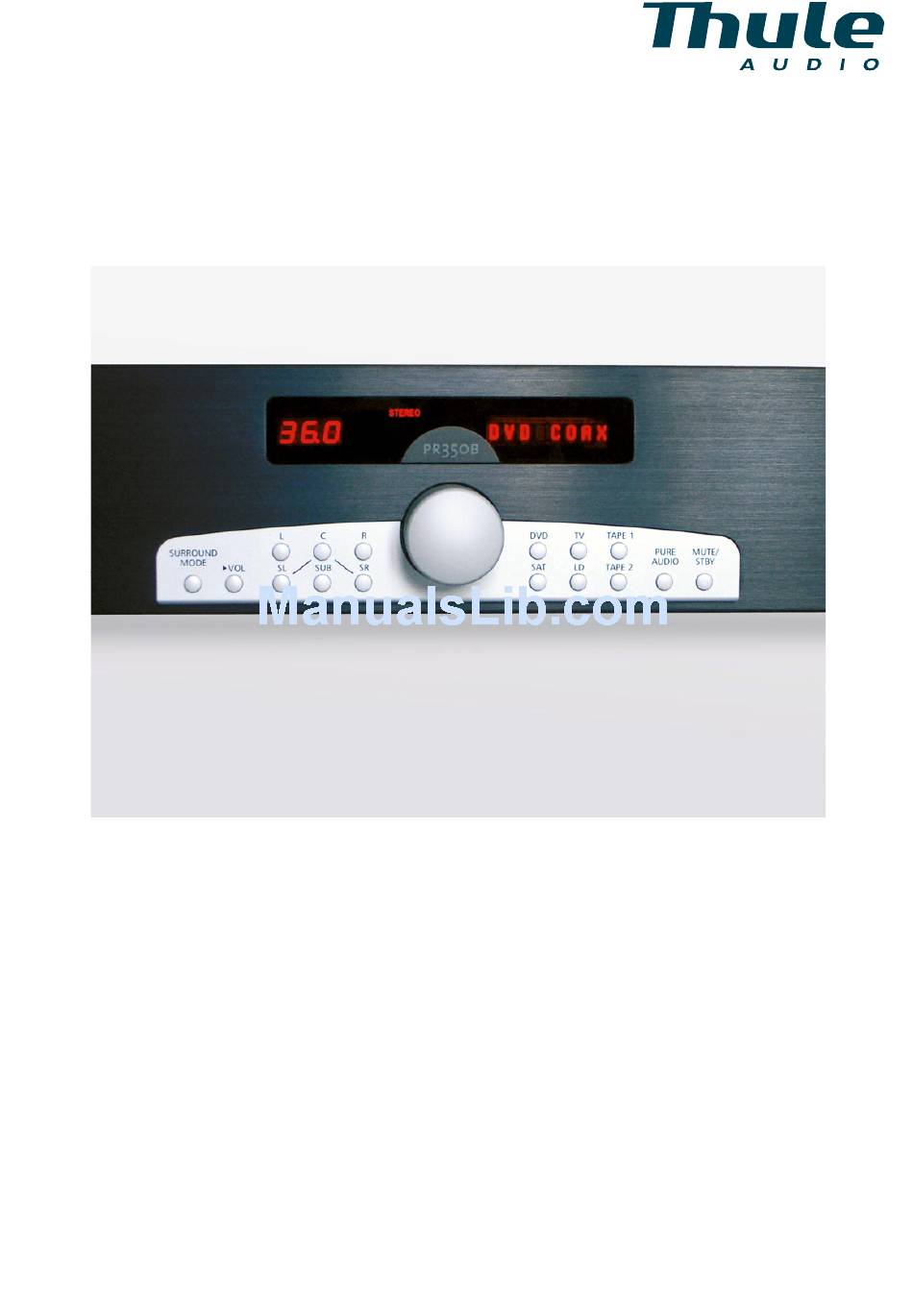

Page 1: Owners Manual
Manufactured under license from Digital Theater Systems, Inc. US Pat. No. 5,451,942, 5,956,674, 5,974,380, 5,978,762 and other world-wide patents issued and pending. "DTS", "DTS-ES Extended Surround" and "Neo:6" are trademarks of Digital Theater Systems, Inc. Copyright 1996, 2000 Digital Theater Systems, Inc. All Rights Reserved. Thule Audio ApS has the right to make changes without prior notice... -
Page 3: Table Of Contents
OVERVIEW OF REMOTE CONTROL... 4 OVERVIEW OF REAR AND FRONT PANEL ... 5 OVERVIEW OF CONTROL PANEL AND DISPLAY ... 6 CONGRATULATIONS WITH YOUR NEW PREAMPLIFIER/PROCESSOR SPACE PR350 B..7 0. INSTALLATION ... 9 1. INPUT SELECTION ... 9 2. -
Page 4: Overview Of Remote Control
REMOTE CONTROL STBY channel balance double push: delay input selection received input status [STATUS] change surround mode [MODE] standby | mute -20dB | increase volume MUTE change light | return to master volume | decrease volume left | center | right surround left | subwoofer | surround right DVD player | sattelite receiver | TV-set laser disc | audio/video tape1 | audio/video tape2... -
Page 5: Overview Of Rear And Front Panel
Manufactured under license from Digital Theater Systems, Inc. US Pat. No. 5,451,942, 5,956,674, 5,974,380, 5,978,762 and other world-wide patents issued and pending. “DTS”, “DTS-ES Extended Surround” and “Neo:6” are trademarks of Digital Theater Systems, Inc. Copyright 1996, 2000 Digital Theater Systems, Inc. All Rights Reserved. 50-60 220-230 S-VIDEO... -
Page 7: Congratulations With Your New Preamplifier/Processor Space Pr350 B
Congratulations with your new Preamplifier/Processor SPACE PR350 B. The SPACE PR350 B contains advanced technology for an outstanding range of features and sound performance. We are sure that the PR350 B will give you long lasting pleasure. To give you full benefit from this advanced product, please read this manual carefully before you proceed. - Page 8 Following formats are used: Cursive text indicates display readout, e.g.: CONFIG Key type is indicated with “”, e.g.: “ENTER” key. Stereo speakers: “L” : left speaker “R” : right speaker Surround speakers: “C” : center speaker placed in front of the listening position “SL”...
-
Page 9: Installation
0. Installation Place the amplifier on a hard and flat surface. The ventilation holes should not be covered. There has to be at least 5 cm (2 inches) free air on top of the amplifier. To ensure long and trouble free operation we recommend: - Do not expose the amplifier to direct sunlight. -
Page 10: Volume Controls
However, each surround mode may lead to a different setting of volume trims based on individual requirements. At Thule Audio’s experience in Dolby Digital and ProLogic II mode, the gain can be increased 3 – 6 dB in the surround speakers than “measured”... -
Page 11: Zone 2
3. Zone 2 With zone 2 it is possible to redirect the sound to other audio systems, e.g. placed in kitchen or bedrooms. The zone 2 has separate volume control and input selector. Adjustments for zone 2 are achieved by holding down the same input knob as currently selected. - Page 12 (see section 5). However, at Thule Audio’s experience the delay could be further increased about 0 – 3 milliseconds in the surround speakers from the above calculations, to obtain a more realistic surround sound image.
-
Page 13: Surround Modes
The user may still prefer to change delays during playback of a movie, based on subjective preference in a specific movie. Hence the delay can also be set “on the fly”. The intermediate delay settings will return to the default settings stored in the memory banks when the PR350 B is set into standby or powered off. -
Page 14: Dolby Digital 5.2 Dts
And the transmission bit rate of the received bitstream: 32 kbit/sec. 448k 448 kbit/sec. 768k 768 kbit/sec. 1411k 1411 kbit/sec. (only DTS) 1532k 1532 kbit/sec. (only DTS) If only two audio channels are active in the received Dolby Digital bitstream (2/0), the input is assumed to be Dolby ProLogic II, if indicated in the bitstream, otherwise as two channel stereo. -
Page 15: Dolby Pro Logic Ii
L & R speakers. Thule Audio finds the music mode very useful especially for some live recordings, but it is also a matter of taste, if it is used. -
Page 16: Side Channels
”>VOL” key. 5.5 Side Channels Thule Audio offers a unique 8.1 channel extension setup for large rooms: Side channels. By blending the sound from the front speakers and the rear speakers into to new channels called SSL and SSR, it is possible to create a more continuous sound sweep for sound effects moving from one end of the room to the other. -
Page 17: Speakers
6.1 Speakers The SPACE PR350 B contains extensive bass management adjustments, so that the bass signal can be re-routed to those loudspeakers capable of handling the low frequency information. The following selections can be made in the config.speaker menu by using naviga- tion keys described above: Left speaker (L): Right speaker (R):... -
Page 18: Inputs
The b) situation can be useful in situations, where the L, R speakers can handle deep bass information and extra bass is required. If the L and R speakers are not so well suited for the lowest frequencies, then chose a), eventually with lowest 60Hz cross over frequency. -
Page 19: Volume Scale
The following settings are possible: DYNAMIC HI (DTS + Dolby Digital) High level limit: 0.0 (disable high level limit function) 1.0 (maximise high level limit function) DYNAMIC LO (Dolby Digital) Low level boost: 0.0 (disable low level boost) 1.0 (maximise low level boost) 6.7 Volume scale It is possible to select two volume level settings: a progressive step size, where step size is large at low levels for rapid setting and small at normal listening levels, or a... -
Page 20: Return To Factory Setting
The receiver should be able to handle the different sample rates. 6.12 Power Amp control The PR350B can control an external Thule Audio amplifier via the rear RJ45 connector i.e. Space PA350B. When using IA350, PA350 or PA250 MKII for L & R power amplification (see “Side Channels”... -
Page 21: Video Input Output
Tape1 Composite out Scart RGB activator signal (tape 1 composite in) Now choose RGB out in the video-input-output menu. Thule Audio can supply a high-quality 5-pole RCA Phono-to-Scart cable. Normally, the RGB output signal is without sync included, and the Composite sync can therefore be taken from the Tape1 out. -
Page 22: Technical Specifications
Frequency response, 20 – 20k Hz: Size (W x D x H), weight Configuration DATA I/O + STBY, pin: Configuration DATA I/O + RS232, pin: Thule Audio reserve the right to alter specifications and design without notice. ___________________________________________________________________________ TECHNICAL SPECIFICATIONS 8V phono/ 16V XLR 0.002%... -
Page 23: Your Notes
7.0 Your notes In this section you can fill in your own settings for the Space PR350 B, so you always have them, if you by mistake erase them. Stereo L (left main) R (Right main) ProLogic II L (left main) R (Right main) C (Center) SL (Surround left) -
Page 24: Appendix A: Special Functions
APPENDIX A: Special Functions A.1 Communication between PR350 B and IA/PA350 B/PA250 B It is possible to remote control the functions in the IA250 B or the PA250 B, so that the operational mode of PA/IA250 B always will follow the operational mode of the PR350 B. -
Page 25: Overview : Communication Between Pr350 Band Pa350 B
Manufactured under license from Digital Theater Systems, Inc. US Pat. No. 5,451,942, 5,956,674, 5,974,380, 5,978,762 and other world-wide patents issued and pending. “DTS”, “DTS-ES Extended Surround” and “Neo:6” are trademarks of Digital Theater Systems, Inc. Copyright 1996, 2000 Digital Theater Systems, Inc. All Rights Reserved. 50-60 220-230 S-VIDEO... -
Page 26: A/Dlevel
A.2 A/D level Except for the Pure Audio inputs, all other analogue inputs will be converted to digital samples (A/D conversion) by the built-in 24 bit 96kHz high quality A/D converter. The digital audio samples are then used in the DSP circuit e.g. for further processing, e.g.
