OWNER'S MANUAL
Used on
Qty
4
4
165620
1
165621
2
2
4
165620
2
165620
10
165621
8
4
165620
8
165621
6
165620
2
165621
165620
2
165621
2

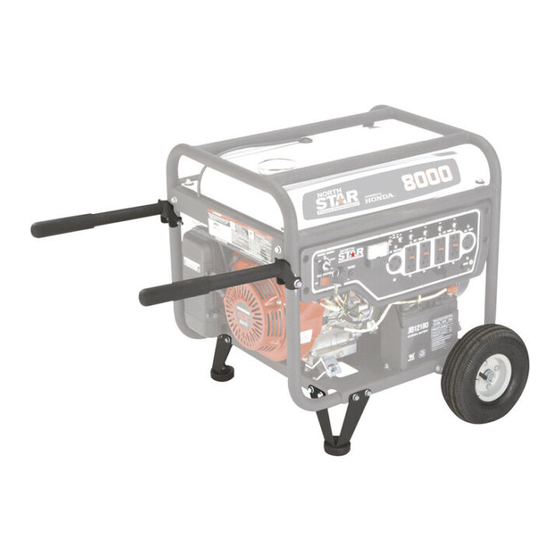

Generator Wheel Kit
Item # 165620, 165621
For use on: 165601, 165603, 165604,
165605, 165606, 165607
Ref.
Part #
Description
13
15431
Large rubber foot
14
786756
Lanyard
3/8" nyloc nut
15
82027
16
785459
Handle
17
30747
Grip
3/8" x 2-1/2" bolt
18
82106
19
2215
Small rubber bumper
1/4" x 3/4" self-tapper
20
82232
3/8" x 2-1/2"
21
38070
cotterless pin
22
82021
Flat washer
23
791782
Axle Washer
24
797115
Spacer
M165620E.4
Used On
Qty
All
2
All
2
2
All
All
2
All
2
All
2
All
2
All
2
All
2
All
All
10
All
165620
2
165621
2
Advertisement
Related Manuals for North Star 165620
Summary of Contents for North Star 165620

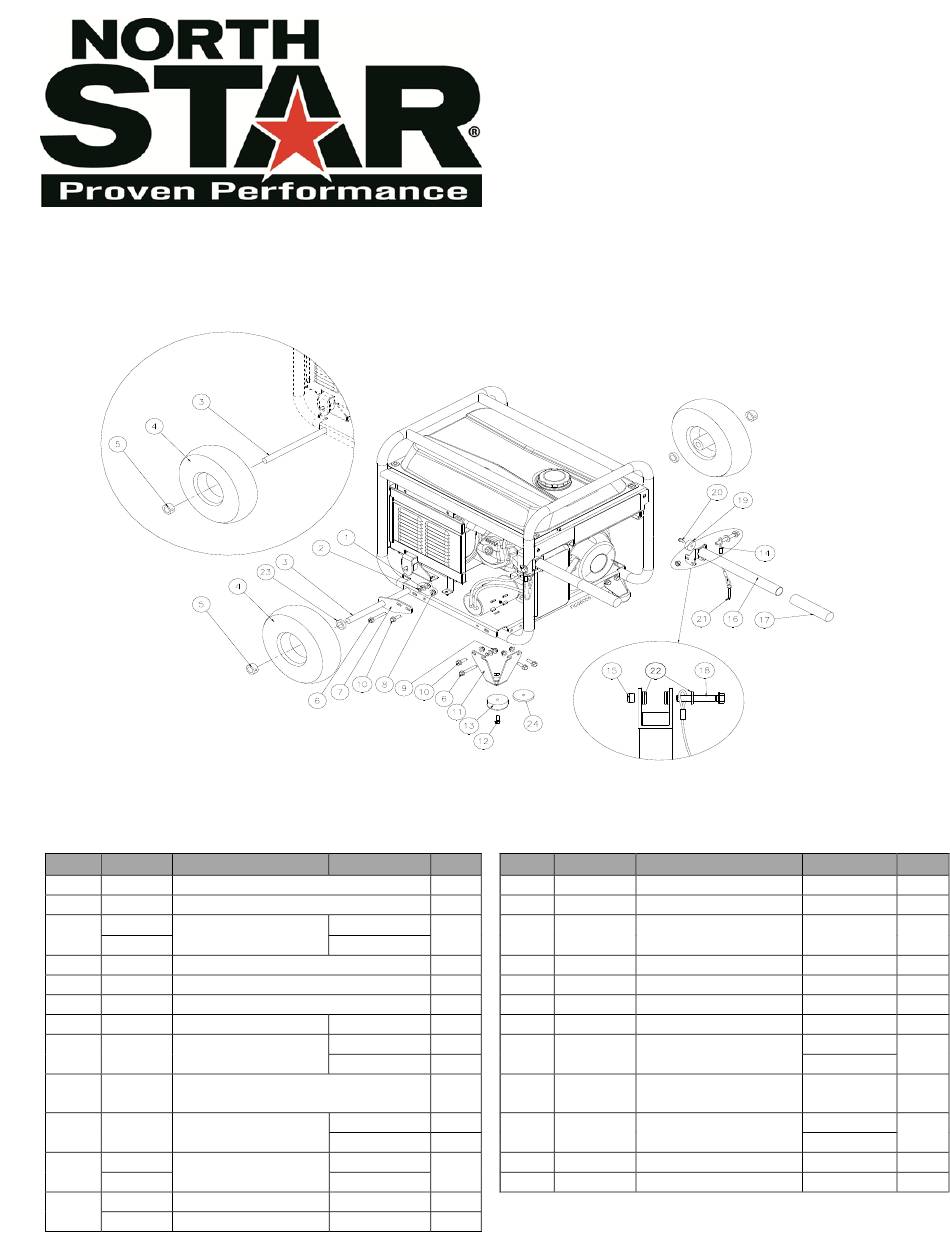

- Page 1 Generator Wheel Kit Item # 165620, 165621 For use on: 165601, 165603, 165604, 165605, 165606, 165607 M165620E.4 OWNER’S MANUAL 165621 165620 Ref. Part # Description Used on Ref. Part # Description Used On 5/16” washer (reuse from gen.) 82021 15431...
- Page 2 STEP 1 • Open hardware bag and separate the components...
- Page 3 Make sure the space between the holes for the axle is not obstructed. STEP 3a Item # 165620 only 1. Remove 5/16” x 2” bolt, star washer, flat washer and 5/16” nut from generator base. 2. Attach axle mount to frame reusing 5/16” x 2”...
- Page 4 5/16” washer (reuse from gen.) 82021 82301 Star washer (reuse from gen.) 5/16” x 2” bolt (reuse from gen.) 82018 5/16” flange nut (reuse from gen.) 82019 5/16” x 3/4” bolt 82015 785423 15431 Large rubber foot 5/16” x 1” bolt (165620) 82016...
- Page 5 STEP 4b Item 165621 only Serial Number Decal 1. Attach the large rubber foot to the leg using 5/16” x 1-1/2” bolt and 5/16” flange nut. If installing a 165621 on a 165605, 165606, 165607 Rev V or later, place the spacer between the rubber foot and the leg.
- Page 6 STEP 5 1. Install grip onto handle. 2. Attach small bumper to handle with 1/4” x 3/4” self-tapper. 3. Insert (1) 3/8” x 2-1/2” bolt through (1) flat washer and through one end of lanyard as shown. Attach 3/8” cotterless pin to other end of lanyard. 4.
-
