Robin R 1700I Parts Catalog

Subaru robin power products automobile parts - car parts user manual
Hide thumbs Also See for R 1700I:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual, Instructions for Use Manual

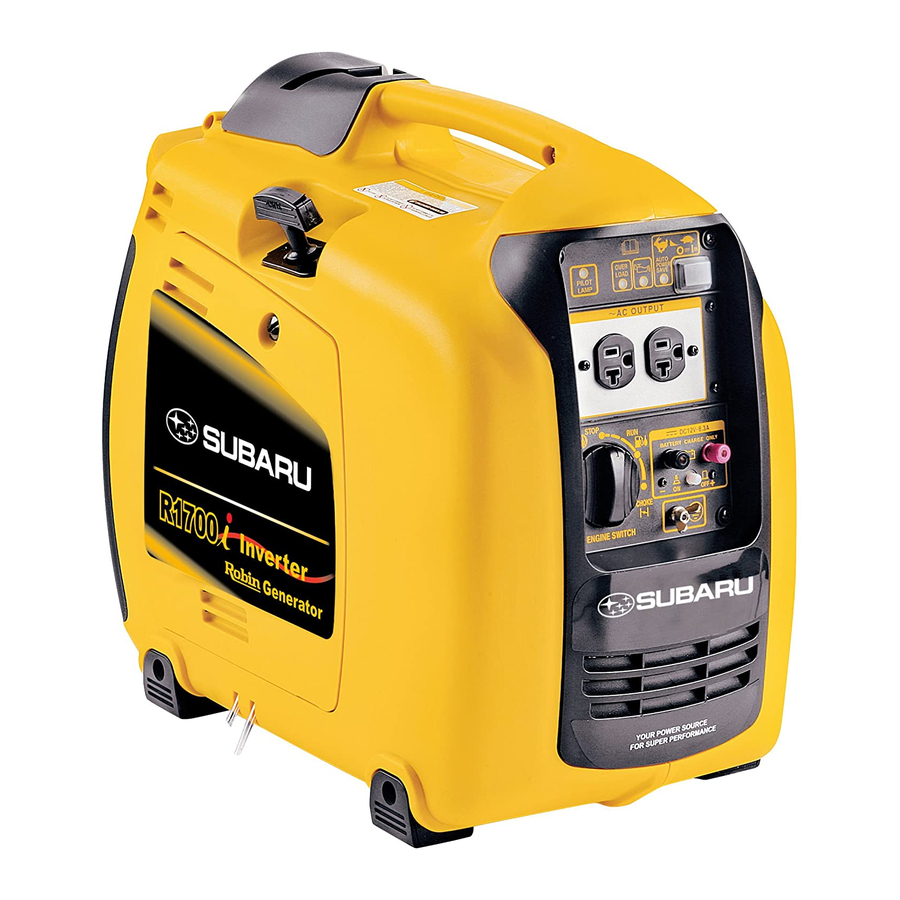

R 1700i
Model
for C A NA DA
S pec . No. R A S 17023091
(E H092DN8521)
IS S UE E MD-G P 6345
IS S UE DAT E 2006.10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R 1700I and is the answer not in the manual?

Questions and answers

graham pember
March 10, 2025

where is the sparked plug positioned

0
1 comments:
Mr. Anderson
May 14, 2025

The spark plug on the Robin R 1700i is located inside the SIDE PANEL (R).

This answer is automatically generated

0
Glenn William Horsey
March 6, 2025

Fuel Tank 33K6110112 Avaibility and Price

0

Related Manuals for Robin R 1700I

Summary of Contents for Robin R 1700I

  • Page 1 R 1700i Model for C A NA DA S pec . No. R A S 17023091 (E H092DN8521) IS S UE E MD-G P 6345 IS S UE DAT E 2006.10...
  • Page 2 Table of abbreviations/略語一覧 ABBREVIATIONS/略語 Ａ ＡＭＰＥＲＥ ＡＣ ＡＩＲ ＣＬＥＡＮＥＲ ＡＹ ＡＳＳＥＭＢＬＹ Ｂ ＢＲＥＡＤＴＨ ＢＢ ＢＡＬＬ ＢＥＡＲＩＮＧ ＣＤ ＣＥＮＴＥＲ ＤＩＳＴＡＮＣＥ ＣＰ ＣＯＭＰＬＥＴＥ Ｄ ＤＩＡＭＥＴＥＲ ＥＸ ＥＸＰＯＲＴ ＥＸ ＥＸＨＡＵＳＴ ＦＩＧ ＦＩＧＵＲＥ ＦＲ ＦＲＯＮＴ Ｈ ＨＥＩＧＨＴ ＨＺ ＨＥＲＴＺ ＩＮ ＩＮＣＨ ＩＮ ＩＮＴＡＫＥ Ｌ ＬＩＴＥＲ...

  • Page 3: Engine Parts

    ENGINE PARTS CRANKCASE CRANKSHAFT, PISTON INTAKE, EXHAUST GOVERNOR, OPERATION COOLING, STARTING FUEL, LUBRICANT ELECTRIC DEVICE GENERATOR PARTS GENERATOR BASE FRAME CONTROL COVER FUEL TANK ACCESSORIES LABEL CONTENTS FIG. 300,315 500,520 600,642 700,770 2200 2300 2400 2500 2600 2900...
  • Page 4 FIG. 100 EH092 26 20 40 50 960-GASKET SET 2840100104...

  • Page 5: Crankcase Group

    1 CRANKCASE GROUP REF. PART NUMBER PART NAME 10 284-10103-11 CRANKCASE CP 20 237-14202-03 VALVE GUIDE 26 277-16010-01 STEM SEAL 30 044-02000-70 OIL SEAL 40 060-02001-40 BALL BEARING 50 031-00600-20 DOWEL PIN 51 277-15011-03 PIPE KNOCK 70 010-50604-20 STUD 75 044-00600-20 OIL SEAL 80 040-11400-30 PLUG...
  • Page 6 FIG. 200 EH092 2840200005...

  • Page 7: Crankshaft Piston

    2 CRANKSHAFT PISTON REF. PART NUMBER PART NAME 10 284-20601-01 CRANKSHAFT CP 40 023-02001-00 SPACER 41 023-02001-10 SPACER 42 023-02001-20 SPACER 50 002-18140-00 70 005-32031-01 WOODRUFF KEY 90 020-01500-40 WASHER 310 284-22501-30 CONNECTING ROD AY 320 284-23001-03 CONNECTING ROD BOLT 350 230-23301-03 PISTON PIN 360 284-23401-H3...
  • Page 8 FIG. 300 317 315 EH092 37 35 34 38 36 2840300105...

  • Page 9: Intake Exhaust

    3 INTAKE EXHAUST REF. PART NUMBER PART NAME 10 284-31701-21 CAMSHAFT CP 34 227-38601-23 PIN(SPRING) 35 284-36401-03 RELEASE LEVER 36 005-19041-00 SPRING PIN 37 003-15170-00 SNAP RING OUTER 38 274-38701-23 RETURN SPRING 50 274-33301-03 TAPPET 60 274-33601-03 VALVE SPRING 70 274-33702-03 SPRING RETAINER 80 284-33401-H3 INTAKE VALVE...
  • Page 10 FIG. 315 -520 EH092 2840315104...
  • Page 11 3 INTAKE EXHAUST REF. PART NUMBER PART NAME 510 284-32630-00 AIR CLEANER AY - 2 227-36004-13 GASKET(AIR CLEANER) -520 284-32631-08 ELEMENT R E M A R K S CODE NO. UNIT P FIG. INTERCHANGE P/NO.
  • Page 12 FIG. 400 EH092 2840400008...

  • Page 13: Governor Operation

    4 GOVERNOR OPERATION REF. PART NUMBER PART NAME 10 284-42305-03 GOVERNOR LEVER 20 230-42201-13 GOVERNOR SHAFT 230-42201-03 GOVERNOR SHAFT 50 003-13050-00 CLIP 60 001-14062-50 BOLT AND WASHER AY 70 018-60600-20 200 284-46003-03 CONTROL BRACKET 207 011-00600-10 FLANGE BOLT R E M A R K S CODE NO.
  • Page 14 FIG. 500 2840500103 EH092...
  • Page 15 5 COOLING STARTING REF. PART NUMBER PART NAME 10 284-51201-03 BLOWER HOUSING 37 284-55501-03 GROMMET 40 011-00801-60 FLANGE BOLT 41 011-00803-02 FLANGE BOLT 60 284-53601-01 CYLINDER BAFFLE CP 61 284-53603-03 CYLINDER BAFFLE(E/G) 80 011-00600-20 FLANGE BOLT 81 011-00801-50 FLANGE BOLT 110 284-54201-13 COOLING FAN 130 056-60002-60...
  • Page 16 FIG. 520 2840520102 EH092...
  • Page 17 5 COOLING STARTING REF. PART NUMBER PART NAME 210 284-50221-10 RECOIL AY - 1 284-50224-08 SPIRAL SPRING - 2 284-50222-08 REEL - 3 284-50233-08 STARTER ROPE - 4 530-50021-10 STARTER KNOBE CP - 5 284-50223-08 RACHET - 6 284-50226-08 FRICTION SPRING - 7 284-50227-08 RETURN SPRING - 8 284-50225-18...
  • Page 18 FIG. 600 EH092 2840600104...
  • Page 19 6 FUEL LUBRICANT REF. PART NUMBER PART NAME 220 085-00300-40 VINYL PIPE 221 085-00300-50 VINYL PIPE 222 085-00300-60 VINYL PIPE 223 284-67101-03 Y CONNECTOR 225 056-90000-20 PURSE LOCK R E M A R K S CODE NO. 1 3.5DX5.5DX175L 1 3.5DX5.5DX210L 1 3.5DX5.5DX140L UNIT P FIG.
  • Page 20 FIG. 642 -410 -109 -102 EH092 -414 -412 -406 -400 -402 -103 -420 -155 -151 -152 -408 -117 2840642103...
  • Page 21 6 FUEL LUBRICANT REF. PART NUMBER PART NAME 210 284-62302-30 CARBURETOR AY - 1 284-62535-08 THROTTLE VALVE - 2 284-62455-08 SCREW - 3 284-62527-08 VALVE CHOKE - 5 284-62420-08 SLOW JET - 8 284-62520-08 SHAFT AY CHOKE - 11 284-62531-18 SHAFT SUB AY - 12 284-62355-08 SCREW...
  • Page 22 FIG. 700 EH092 2840700104...

  • Page 23: Electric Device

    7 ELECTRIC DEVICE REF. PART NUMBER PART NAME 10 284-79350-31 FLYWHEEL 11 284-79530-01 IGNITION COIL CP 17 284-79540-01 PULSER COIL CP 25 284-79561-01 IGCOIL BRACKET CP 30 011-00600-30 FLANGE BOLT 32 002-38080-00 FLANGE NUT 35 011-00600-10 FLANGE BOLT 100 065-01403-80 SPARK PLUG 112 284-75501-03 GROMMET...
  • Page 24 FIG. 770 EH092 2840770102...
  • Page 25 7 ELECTRIC DEVICE REF. PART NUMBER PART NAME 700 230-76301-11 OIL SENSOR CP 730 230-75801-03 SENSOR RETAINER 740 004-35061-00 SCREW AND WASHER AY 770 226-75101-03 CLAMP R E M A R K S CODE NO. 2 M6X1.0X10L W/SW 1 6.5DX10BX55LX0.7T UNIT P FIG.
  • Page 26 FIG. 2200 34K2200003 RAS17...

  • Page 27: Generator Group

    22 GENERATOR GROUP REF. PART NUMBER PART NAME 210 34K-20052-01 STATOR CP 214 34K-20902-08 FLANGE BOLT 220 34K-20061-01 ROTOR CP 225 001-04061-20 FLANGE BOLT 260 34K-20901-08 REAR COVER 264 011-00601-01 FLANGE BOLT 302 KU5-12002-01 INV&E/G C/U CP (P2) 310 011-00601-40 FLANGE BOLT 360 34K-20903-08 RECTIFIER...
  • Page 28 FIG. 2300 RAS17 34K2300010...
  • Page 29 23 BASE,FRAME GROUP REF. PART NUMBER PART NAME 10 33K-37101-03 FRONT FRAME(R) 11 33K-37201-03 FRONT FRAME(L) 12 33K-37301-03 REAR FRAME(R) 13 33K-37401-03 REAR FRAME(L) 80 33K-58413-03 SPONGE R-FRAME 81 33K-58414-03 SPONGE R-FRAME 2 110 34K-30602-03 BASE INV 130 33K-58310-03 SPONGE BASE 131 33K-58311-03 SPONGE BASE 2 132 33K-58320-03...
  • Page 30 FIG. 2400 RAS17 535 545 510 34K2400101...

  • Page 31: Control Group

    24 CONTROL GROUP REF. PART NUMBER PART NAME 480 014-00501-00 SCREW 500 34K-40111-10 CONTROL PANEL AY 505 33K-40101-03 FRONT PANEL 510 34K-41160-13 FILM CONCENT 523 34K-41812-03 ROCKER SWITCH 528 34K-41813-03 SWITCH COVER 530 388-85003-01 AC RECEPTACLE 535 351-49920-08 SCREW & WASHER AY 537 002-17040-00 545 33K-40706-13 CONSENT BRACKET...
  • Page 32 24 CONTROL GROUP REF. PART NUMBER PART NAME 692 34K-41817-13 PANEL HARNESS 693 34K-42001-01 CONCENT HARNESS CP 694 34K-42002-01 DC OUT HARNESS 695 33K-41834-01 NEUTRAL HARNESS 1 CP 710 33K-42060-21 CHOKE WIRE CP 767 056-30000-20 WIRE BAND 780 33K-58411-03 SEAL SPONGE F 902 34K-92115-03 LABEL(FRONT) INV 903 34K-95101-03...
  • Page 33 FIG. 2500 383 380 RAS17 396 391 395 91 1 3 341 903 398 399 34K2500101...
  • Page 34 25 COVER GROUP REF. PART NUMBER PART NAME 230 33K-50201-03 REAR COVER 260 013-10600-30 SCREW AND WASHER AY 266 33K-50205-01 NUT CP 280 33K-58318-13 R-COVER SPONGE 1 281 33K-58319-13 R-COVER SPONGE 2 282 33K-58322-03 R-COVER SPONGE 3 283 33K-58324-03 R-COVER SPONGE 4 311 33K-50301-13 CASE BODY L 321 33K-50311-03...
  • Page 35 25 COVER GROUP REF. PART NUMBER PART NAME 625 33K-53002-03 SCREW GROMMET 902 34K-91204-03 LABEL(MODEL)L 903 34K-91203-03 LABEL(MODEL)R 904 34K-91617-03 LABEL,SPEC 912 33K-94002-03 LABEL(CAUTION) 913 377-92500-03 LABEL(CAUTION) 914 377-92502-03 LABEL(CAUTION) 942 073-20045-20 LABEL(OIL CAUTION) 950 31G-81027-03 LABEL(NOISE) 956 073-20045-00 LABEL (HOT&GAS) R E M A R K S CODE NO.
  • Page 36 FIG. 2600 RAS17 34K2600101...

  • Page 37: Fuel Tank Group

    26 FUEL TANK GROUP REF. PART NUMBER PART NAME 10 33K-61101-12 FUEL TANK UN 30 33K-65010-00 FUEL TANK CAP AY 34 021-02600-50 GASKET(TANK CAP) 35 023-24200-12 PARTITION PLATE 40 33K-61201-J1 FUEL FILTER CP 50 33K-63001-10 FUEL COCK AY 55 33K-61402-01 FUEL STRAINER 57 004-36051-20 SCREW AND WASHER AY...
  • Page 38 FIG. 2900 RAS17 34K0900003...
  • Page 39 29 ACCESSORIES LABEL GR REF. PART NUMBER PART NAME R E M A R K S CODE NO. UNIT P FIG. INTERCHANGE P/NO. 10 33K-99001-00 ACCESSORY TOOL KIT 2900...
