Ben Nevis
Page 1
Installation Instructions
Maintenance Instructions EN 1176-1

General

The operations described are to be carried out by a specialist.
The rope netting pyramid should be fixed on foundations in accordance with the Technical Information.

Dimensions

Effective space 8.20 x 8.20 m
Drop
Minimum space 11.20 x 11.20 m
Height
Age group
5 years upwards
Number of users
46 children
Maximum free drop height
2.40 m

Ground quality

With regard to the type of ground in the play area,
please refer to EN 1176-1. According to this, sand,
wood chips, gravel
protective surfaces are permitted. We recommend a
covering of gravel at least 400 mm thick (grain size
2–8 mm) or sand (grain size 0.2–2 mm). If you use a
synthetic protective surfaces it must be sure that all
relevant parts for the maintenance (see maintenance
instruction on page 5 and 6) are every time
accessibly. If necessary consult SMB.
Assembly tools
Tools supplied:
1 size 46 open-jawed spanner with extension
Additional tools required:
1 cable pulley (10 kN tensile force)
1 hemp rope, minimum D = 20 mm, length
according to requirements
1 crowbar
usual tools (hammer, pliers, screwdriver etc.)
EN 1176-1
02.06.14
1.50 m
5.80 m
and HIC-tested synthetic

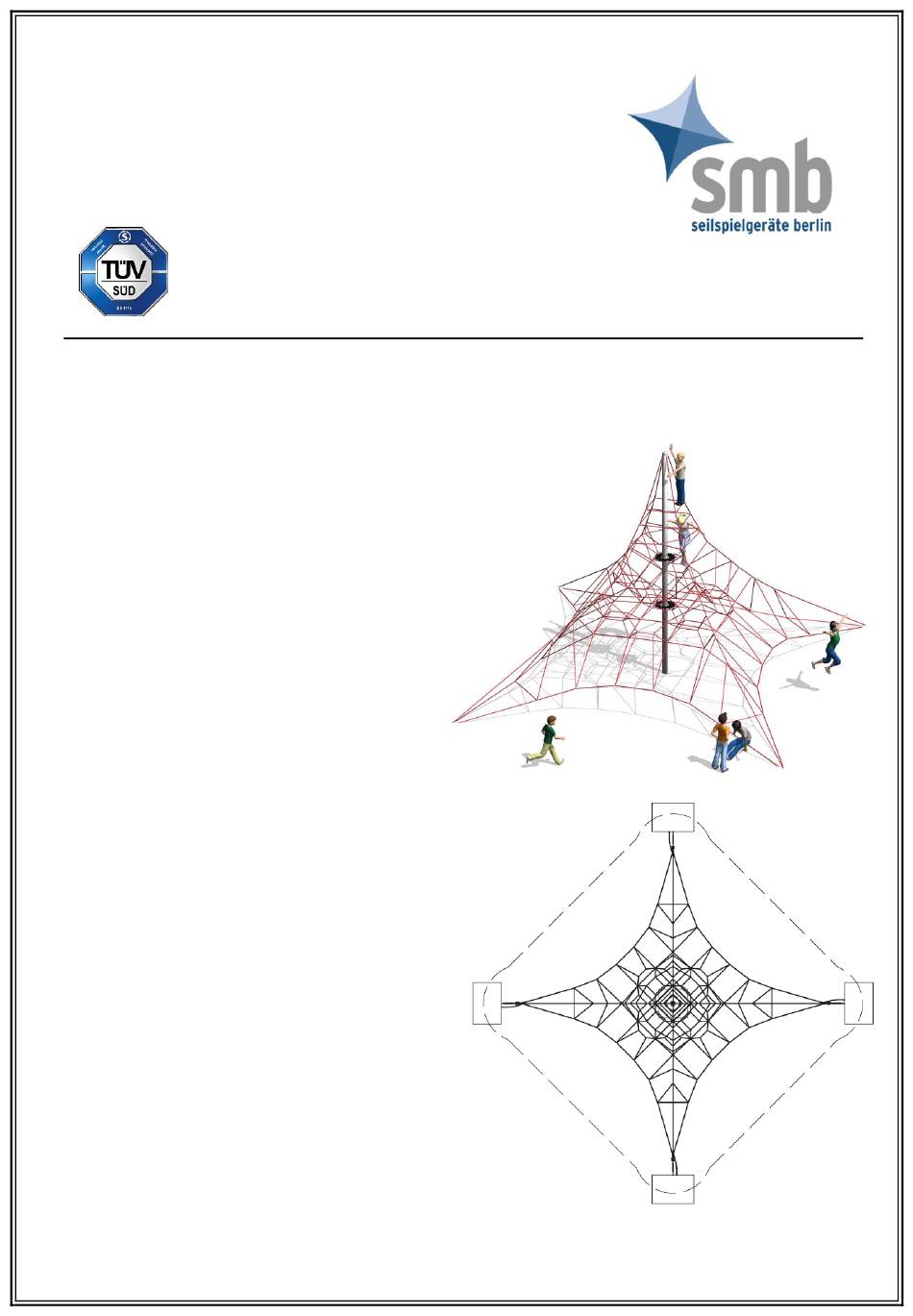

Figure 1 Ben Nevis
Figure 2 View from above with safety area
