popstrukt LD04 Assembly Instructions

A S S E M B L Y I N S T R U C T I O N S

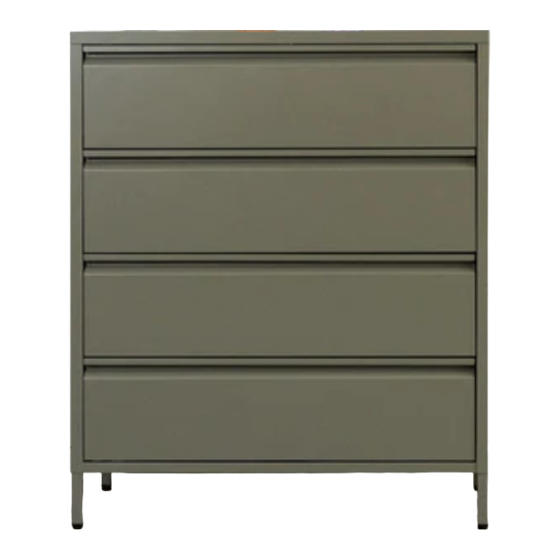

B O N B O N C H E S T O F D R A W E R S
C O D E | L D 0 4
Please visit www.popstrukt.com/instructions section for more information
WARNING
SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM FURNITURE TIP-OVER. TO
PREVENT THIS FURNITURE FROM TIPPING OVER IT MUST BE PERMANENTLY FIXED TO THE
WALL. BASIC FIXING DEVICES FOR BRICK WALLS ARE INCLUDED. HOWEVER SINCE DIFFERENT
WALL MATERIALS REQUIRE DIFFERENT TYPES OF FIXING DEVICES USE FIXING DEVICES SUITABLE
FOR THE WALLS IN YOUR HOME. FOR ADVICE ON SUITABLE FIXING SYSTEMS, CONTACT
YOUR LOCAL SPECIALIZED HARDWARE DEALER
LEFT SIDE PLATE: RIGHT SIDE PLATE:
1PC 1PC
FRONT
TOP PLATE:
LEFT BACK PLATE:
1PC
1PC
BRACE BASE: DRAWER BOX:
1PC 4PCS
TAILSCREW(4*10): PLASTICRIVET:
20PCS 4PCS
FRONT PANEL:
4PCS
Please visit www.popstrukt.com/instructions section for more information
FRONT
BACK
FRONT AND BACK BASE:
2PCS
RIGHT BACK PLATE:
1PC
BACK DRAWER SEAL :
4PCS
WALL FIXTURE
SELF TAPPING WALL PLUG
SCREW 1PC
1PC
SCREW(M4*6)
FOR FRONT PANEL:
16PCS
WALL FIX
WALL SCREW STRIP
1PC
1PC
