- Page 1 SAFEONE DNSR-2R Time Delay Relay Hardware Safety switching device for enabling and time delayed enabling of control circuits dina.de...
- Page 2 Mail info@dina.de www.dina.de © Copyright by DINA Elektronik GmbH 2021 All parts of this documentation are protected by copyright. Any use beyond that permitted under copyright law is not permitted without express written con- sent from the publisher. This applies in particular to the reproduction, distribution and translation of this documentation or parts thereof, as well as the storage and processing of this content using electronic data processing systems.
-
Page 3: Table Of Contents
3 EC declaration of conformity 4 Product description Pin assignment Functional specification for 33SR10 to 33SR14 4.2.1 33SR10 und 33SR12 4.2.2 33SR11 4.2.3 33SR13 4.2.4 33SR14 5 Diagnostics and switching status displays LED indicators 6 Order information Hardware Manual SAFEONE DNSR-2R Time Delay Relay... - Page 4 Connection data Environmental conditions Dimensions Safety technical data 7.10 Safety-related parameters in accordance with DIN EN ISO 13849-1:2016-06 7.11 Contact life 8 Installation and removal Installing a module 8.1.1 Overview Removing a module Hardware Manual SAFEONE DNSR-2R Time Delay Relay...
-
Page 5: Structure Of The Document
Indicates an item in a list. 1.1.3 Emphasizing words using typography The following typography is used to emphasize words with special functions: Represents a numbered item in a figure. Indicates a cross-reference to another page, figure or document. Hardware Manual SAFEONE DNSR-2R Time Delay Relay... - Page 6 We do all we can to provide complete, accurate documentation for the product. If you have any suggestions for improvement or advice for us, please share your thoughts with us. Send us your comments by e-mail to the following address. E-Mail: info@dina.de Hardware Manual SAFEONE DNSR-2R Time Delay Relay...
-
Page 7: Safety
For a potentially hazardous situation that could result in injuries. CAUTION For a potentially harmful situation in which the product or an item near it could be damaged. CAUTION For a hazard that could cause environmental damage. Hardware Manual SAFEONE DNSR-2R Time Delay Relay... -
Page 8: Hazard Symbols
Electric shock – dangerous voltage! Qualification of personnel DINA Elektronik GmbH distinguishes between specialist staff with different qualifications when it comes to carrying out work on the product. The minimum required qualifications are specified for each task and are defined as follows: 2.2.1... -
Page 9: Intended Use And Improper Use
• CNL, USL File E227037 • QM system certified as per Certified by: DIN EN ISO 9001:2015 DQS GmbH 60433 Frankfurt am Main, Germany NOTE You can download the certificates from our website: https://www.dina.de/downloads Hardware Manual SAFEONE DNSR-2R Time Delay Relay... -
Page 10: Documentation
Safety regulations The safety regulations listed below must always be complied with. In the event that these safety regulations are not complied with or the device is used improperly, DINA Elektronik GmbH accepts no liability for any resulting injury or damage. -
Page 11: Retrofitting And Conversion
Basic safety regulations The safety regulations listed below must always be complied with. In the event that these safety regulations are not complied with or the device is used improperly, DINA Elektronik GmbH accepts no liability for any resulting injury or damage. -
Page 12: Working On Live Parts
Safety • DINA Elektronik GmbH is not able to make any guarantees regarding the properties of an overall system not designed by the company. • DINA Elektronik GmbH accepts no liability for any recommendations given or implied in the following description. -
Page 13: Ec Declaration Of Conformity
D-50968 Köln Kenn-Nr.: 0340 Bevollmächtigter für die Zusammenstellung der technischen Unterlagen/ Authorized representative for the compilation of the technical documents DINA Elektronik GmbH Esslinger Str. 84 72649 Wolfschlugen Deutschland Stefan Najib Geschäftsführer/CEO Wolfschlugen, 01.10.2021 Hardware Manual SAFEONE DNSR-2R Time Delay Relay... -

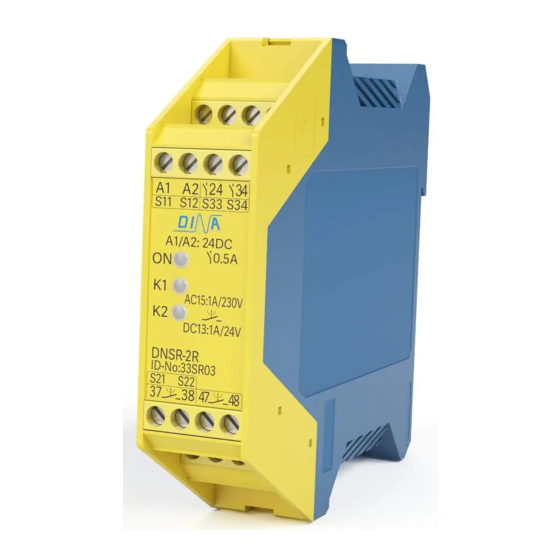

Page 14: Product Description
• The start buttons must be connected between S11 and S12 (starting circuit 1) and between S21 and S22 (starting circuit 2). • Diagnostic contacts 14 and 24 close when the device is ready for operation and open if there is a fault. Hardware Manual SAFEONE DNSR-2R Time Delay Relay... -
Page 15: 33Sr10 Und 33Sr12
Close starting circuit 2 (S21–S22) Delay times Enabling contact 47/48 closes without delay. 33SR11 37/38 15 s off delay Open starting circuit 2 (S21–S22) 47/48 15 s Enabling contact 47/48 opens with a delay. off delay Hardware Manual SAFEONE DNSR-2R Time Delay Relay... -
Page 16: 33Sr13
Delay times Enabling contact 47/48 closes without delay. 33SR14 37/38 30 s off delay Open starting circuit 2 (S21–S22) 47/48 600 s Enabling contact 47/48 opens with a delay. off delay Inputs Outputs Hardware Manual SAFEONE DNSR-2R Time Delay Relay... -
Page 17: Diagnostics And Switching Status Displays
The module has an LED display indicating • Operational readiness • Enabling contact status LED indicators LED on LED off LED flashing – Contact our support team at support@dina.de SAFEONE DNSR-2R State PWR off PWR on Enabling circuit 37/38 open... -
Page 18: Order Information
Digital inputs Inputs Input voltage range 15 V DC ± 0.5 V 12 V DC ± 0.5 V Voltage outputs Outputs Voltage 15 V DC ± 0.5 V 12 V DC ± 0.5 V Hardware Manual SAFEONE DNSR-2R Time Delay Relay... -
Page 19: Contact Outputs
DIN EN 50178 between circuits 37/38, 47/48 14,24 Rated insulation voltage 250 V AC 30 V AC Rated surge voltage/insulation 4 kV Degree of contamination Overvoltage category Housing material Polyamide (PA), not reinforced Hardware Manual SAFEONE DNSR-2R Time Delay Relay... -
Page 20: Connection Data
W x H x D 22.5 x 114 x 99 mm (0.886 x 4.488 x 3.897 in) Size of DIN rail 35.0 mm (1.378 in) Weight 130 g Safety technical data Stop category in accordance with IEC 60204 Hardware Manual SAFEONE DNSR-2R Time Delay Relay... -
Page 21: Safety-Related Parameters In Accordance With Din En Iso 13849-1:2016-06
240 months 7.11 Contact life Electrical service life of the output contacts in accordance with DIN EN 60947-5-1/Annex C.3 AC1: 230 V DC1: 24 V AC15: 230 V DC13: 24 V Switching cycles Hardware Manual SAFEONE DNSR-2R Time Delay Relay... -
Page 22: Installation And Removal
The locking slider engages under the top hat rail. Removing a module Procedure Use a screwdriver to move the locking slider away from the module. Move the module upward and remove it from the rail. Hardware Manual SAFEONE DNSR-2R Time Delay Relay...
