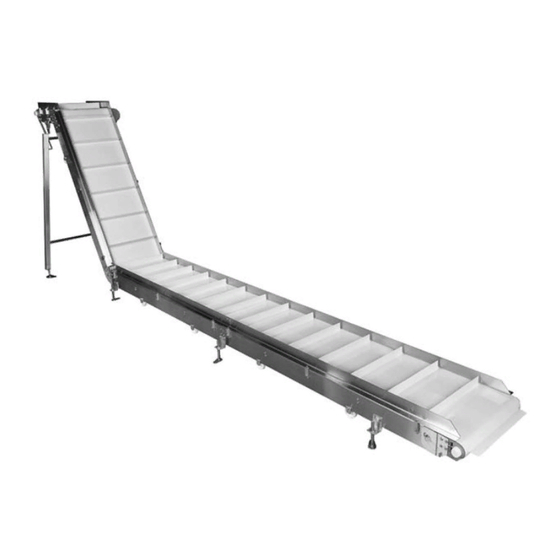

7350 Series End Drive Curved
Installation, Maintenance and Parts Manual
DORNER MFG. CORP.
P.O. Box 20 • 975 Cottonwood Ave.
Hartland, WI 53029-0020 USA
851-678 Rev. C
Conveyors
For other service manuals visit our website at:
www.dorner.com/service_manuals.asp
INSIDE THE USA
TEL: 1-800-397-8664
FAX: 1-800-369-2440
OUTSIDE THE USA
TEL: 262-367-7600
FAX: 262-367-5827

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AquaGard 7350 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dorner AquaGard 7350 Series

Summary of Contents for Dorner AquaGard 7350 Series

  • Page 1 7350 Series End Drive Curved Conveyors Installation, Maintenance and Parts Manual DORNER MFG. CORP. INSIDE THE USA OUTSIDE THE USA P.O. Box 20 • 975 Cottonwood Ave. TEL: 1-800-397-8664 TEL: 262-367-7600 Hartland, WI 53029-0020 USA FAX: 1-800-369-2440 FAX: 262-367-5827 For other service manuals visit our website at: www.dorner.com/service_manuals.asp...

  • Page 2: Table Of Contents

    The Dorner Limited Warranty applies. CAUTION Dorner 7350 Series conveyors have patents pending. Some illustrations may show guards Dorner reserves the right to make changes at any time removed. DO NOT operate equipment without without notice or obligation. guards. Dorner has convenient, pre-configured kits of Key Service Parts for all conveyor products.

  • Page 3: Warnings - General Safety

    Loose garments can become caught up in the conveyor. • Failure to comply could result in serious injury. SEVERE HAZARD! • Dorner cannot control the physical WARNING installation and application of conveyors. Taking protective measures is the responsibility of the user.

  • Page 4: Product Description

    • Non-accumulating product • Product moving toward gearmotor • Conveyor being mounted horizontally • Conveyor being located in a dry environment • Conveyor equipped with standard belt only 7350 Series End Drive Curved Conveyors Dorner Mfg. Corp. 851-678 Rev. C...

  • Page 5: 7350 Series Curve Conveyor Modules

    Profile A Side Profile D Side Drive Position Profile A Side Drive Shaft Position Pulley Type Degree of Turn Conveyor Length Conveyor Width Conveyor Width Document Language Document Language 7350 Series End Drive Curved Conveyors 851-678 Rev. C Dorner Mfg. Corp.

  • Page 6: Conveyor Supports

    (See Figure 3) 8" 10" 12" 14" 16" 18" 20" 22" 24" 26" 28" 30" 32" 34" 36" Degree/ Width 4" 6" 45˚ 90˚ 135˚ 180˚ Figure 3 7350 Series End Drive Curved Conveyors Dorner Mfg. Corp. 851-678 Rev. C...

  • Page 7: Installation

    Attach the stands. Refer to “Stand Installation” on page 9. Install the belt. Refer to “Belt Installation” on page 10. Install the gearmotor. Refer to “Drive Package Installation” on page 13. 7350 Series End Drive Curved Conveyors 851-678 Rev. C Dorner Mfg. Corp.

  • Page 8: All Conveyors

    (Figure 10, item 2) is to the outside of straight section. Figure 10 Figure 7 Ensure that the offset of connecting plates is to the inside of curved section (Figure 7, item 3). Figure 10 7350 Series End Drive Curved Conveyors Dorner Mfg. Corp. 851-678 Rev. C...

  • Page 9: Stand Installation

    (see figure 9) Figure 13 Figure 12 Position the stands on a flat, level surface. Attach the stands to the frame (Figure 14, item 1). Figure 14 Figure 14 7350 Series End Drive Curved Conveyors 851-678 Rev. C Dorner Mfg. Corp.

  • Page 10: Belt Installation

    (Figure 20, item 1). Figure 20 Figure 16 Position the belt on the conveyor frame (Figure 17). Figure 17 Figure 20 Figure 17 Wrap belt around idler tail. 7350 Series End Drive Curved Conveyors Dorner Mfg. Corp. 851-678 Rev. C...
  • Page 11 Insert the belt rod (Figure 23, item 1). Figure 23 Figure 25 NOTE Top wear strips are left loose to facilitate ease of belt installation and/or removal. Figure 23 7350 Series End Drive Curved Conveyors 851-678 Rev. C Dorner Mfg. Corp.

  • Page 12: Belt Returns

    Ensure that nose of bracket slips under the lip of guide Guide Installation (Figure 30, item 3). Insert carriage bolts with spacers (Figure 28, item 1) into slotted holes in conveyor side. Figure 28 Figure 28 7350 Series End Drive Curved Conveyors Dorner Mfg. Corp. 851-678 Rev. C...

  • Page 13: Drive Package Installation

    • 851-682 Bottom Mount Parallel Shaft Drive Package Attach the motor (Figure 32, item 1) to the gear reducer (Figure 32, item 2). Figure 32 Figure 31 Tighten all mounting hardware. Figure 32 7350 Series End Drive Curved Conveyors 851-678 Rev. C Dorner Mfg. Corp.

  • Page 14: Preventive Maintenance And Adjustment

    Troubleshooting • 5 mm hex wrench • 6 mm hex wrench NOTE • 8 mm hex wrench Visit www.dorner.com for complete list of • Punch and hammer (to remove belt rod) troubleshooting solutions. Checklist Inspect conveyor belt for: • Surface cuts or wear •...

  • Page 15: Conveyor Belt Replacement

    Replace the old belt with a new one. Refer to “Belt Installation” on page 10. CAUTION DO NOT reuse belt rods that are damaged or show signs of wear. 7350 Series End Drive Curved Conveyors 851-678 Rev. C Dorner Mfg. Corp.

  • Page 16: Wear Strips

    Remove worn bar cap (Figure 37, item 1) by lifting off of conveyor side rail. Figure 37 Figure 39 Replace with new wear strips. Figure 37 Replace with new bar cap. 7350 Series End Drive Curved Conveyors Dorner Mfg. Corp. 851-678 Rev. C...

  • Page 17: Belt Guides

    Remove hex head bolt (Figure 42, item 1) holding straight section frame to conveyor stand (Figure 42, item 2). Repeat on opposite side. Figure 44 Replace with new belt guides. 7350 Series End Drive Curved Conveyors 851-678 Rev. C Dorner Mfg. Corp.

  • Page 18: Drive Sprocket And Spindle Replacement

    Remove the four head plate bolts (Figure 46, item 1) on Figure 48 both sides of the conveyor. Slide off drive sprocket spacer (Figure 49, item 1). Figure 46 Figure 49 Figure 49 Figure 46 Remove tail assembly. 7350 Series End Drive Curved Conveyors Dorner Mfg. Corp. 851-678 Rev. C...

  • Page 19: Idler Puck And Spindle Replacement

    NOTE Idler tails are equipped with plain bushing pucks, replace when worn. Open conveyor belt. See “Conveyor Belt Replacement” on page 15. Figure 53 7350 Series End Drive Curved Conveyors 851-678 Rev. C Dorner Mfg. Corp.

  • Page 20: Bearing Replacement

    Slide off puck and replace (Figure 54, item 2). Repeat as needed. Bearing Replacement WARNING Exposed moving parts can cause severe injury. LOCK OUT POWER before removing Figure 55 guards or performing maintenance. Replace bearing. 7350 Series End Drive Curved Conveyors Dorner Mfg. Corp. 851-678 Rev. C...

  • Page 21: Notes

    Notes 7350 Series End Drive Curved Conveyors 851-678 Rev. C Dorner Mfg. Corp.

  • Page 22: Service Parts

    Service Parts NOTE For replacement parts other than those shown in this section, contact an authorized Dorner Service Center or the factory. Key Service Parts and Kits are identified by the Performance Parts Kits logo . Dorner recommends keeping these parts on hand.
  • Page 23 532291-03377 532113-03129 532291-03533 28" 532113-03170 532291-03574 532113-03326 532291-03730 30" 532113-03364 532291-03768 532113-03520 532291-03924 32" 532113-03561 532291-03965 532113-03717 532291-04121 34" 532113-03757 532291-04161 532113-03913 532291-04317 36" 532113-03954 532291-04358 532113-04110 532291-04514 7350 Series End Drive Curved Conveyors 851-678 Rev. C Dorner Mfg. Corp.

  • Page 24: Idler End Components

    LLLLL = Part length in inches with 2 decimal places. 22" 532118-02262 Example: Part Length = 95.25" LLLLL = 09525 24" 532118-02459 26" 532118-02652 28" 532118-02849 30" 532118-03043 32" 532118-03240 34" 532118-03436 36" 532118-03633 7350 Series End Drive Curved Conveyors Dorner Mfg. Corp. 851-678 Rev. C...

  • Page 25: Frame Assembly

    Consult Factory for Frame Part Number 532223-LLLLL Wear Strip 532225-LLLLL Bar Cap LLLLL = Length in inches with 2 decimal places. Length Example: Length = 95.25" LLLLL = 09525 7350 Series End Drive Curved Conveyors 851-678 Rev. C Dorner Mfg. Corp.

  • Page 26: Curve Conveyor Frame And Wear Strips

    961012MSS Hex Head Cap Screw M10-1.50 x 12mm 532162-LLLLL Wear Strip LLLLL = Length in inches with 2 decimal places. Length Example: Length = 95.25" LLLLL = 09525 7350 Series End Drive Curved Conveyors Dorner Mfg. Corp. 851-678 Rev. C...

  • Page 27: Connecting Assembly

    Service Parts Connecting Assembly Item Part Number Description 532157 Connector Plate 961012MSS Hex Head Cap Screw M10-1.50 x 12mm 7350 Series End Drive Curved Conveyors 851-678 Rev. C Dorner Mfg. Corp.

  • Page 28: Fully Adjustable Round Guides

    532300 Post Guide LLLLL = Length in inches with 2 decimal places. 960812MSS Hex Head Cap Screw M8-1.25 x 12mm Length Example: Length = 95.25" LLLLL = 09525 7350 Series End Drive Curved Conveyors Dorner Mfg. Corp. 851-678 Rev. C...

  • Page 29: Tool-Less Fully Adjustable Round Guides

    532300 Post Guide LLLLL = Length in inches with 2 decimal places. 960812MSS Hex Head Cap Screw M8-1.25 x 12mm Length Example: Length = 95.25" LLLLL = 09525 7350 Series End Drive Curved Conveyors 851-678 Rev. C Dorner Mfg. Corp.

  • Page 30: Twin Rail Adjustable Round Guides

    532300 Post Guide LLLLL = Length in inches with 2 decimal places. 960812MSS Hex Head Cap Screw M8-1.25 x 12mm Length Example: Length = 95.25" LLLLL = 09525 7350 Series End Drive Curved Conveyors Dorner Mfg. Corp. 851-678 Rev. C...

  • Page 31: Tool-Less Twin Rail Adjustable Round Guides

    532300 Post Guide LLLLL = Length in inches with 2 decimal places. 960812MSS Hex Head Cap Screw M8-1.25 x 12mm Length Example: Length = 95.25" LLLLL = 09525 7350 Series End Drive Curved Conveyors 851-678 Rev. C Dorner Mfg. Corp.

  • Page 32: Fully Adjustable 1" (25 Mm) Flat Guides

    LLLLL = Length in inches with 2 decimal places. 960812MSS Hex Head Cap Screw M8-1.25 x 12mm Length Example: Length = 95.25" LLLLL = 09525 990801MSS Hex Nut 7350 Series End Drive Curved Conveyors Dorner Mfg. Corp. 851-678 Rev. C...

  • Page 33: Tool-Less Fully Adjustable 1" (25 Mm) Flat Guides

    LLLLL = Length in inches with 2 decimal places. 960812MSS Hex Head Cap Screw M8-1.25 x 12mm Length Example: Length = 95.25" LLLLL = 09525 990801MSS Hex Nut 7350 Series End Drive Curved Conveyors 851-678 Rev. C Dorner Mfg. Corp.

  • Page 34: Belt Returns

    Determine the length of chain required for the conveyor and round up to the nearest foot length. Order the proper number of chain repair kits (1' long each) for your conveyor. Dorner will ship chain kits that are of a reasonable length fully...

  • Page 35: Notes

    Notes 7350 Series End Drive Curved Conveyors 851-678 Rev. C Dorner Mfg. Corp.

  • Page 36: Return Policy

    RMA will automatically close 30 days after being issued. To get credit, items must be new and undamaged. There will be a return charge on all items returned for credit, where Dorner was not at fault. It is the customer’s responsibility to prevent damage during return shipping.
