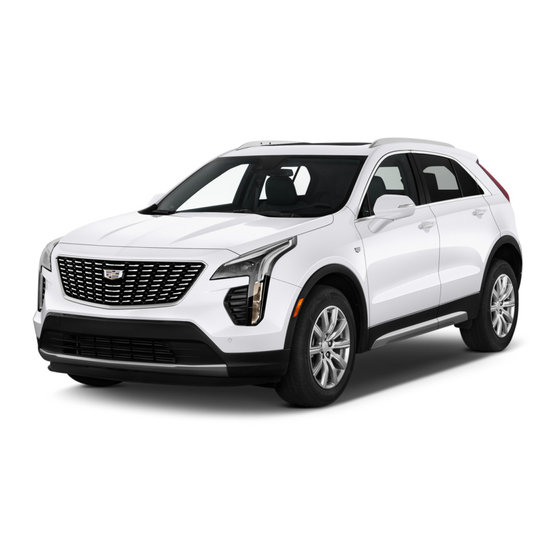

Cadillac XT4 2023 Owner's Manual

Cadillac XT4 2023 Owner's Manual

Hide thumbs Also See for XT4 2023:

Owner's manual (362 pages)

,

Convenience/personalization manual (21 pages)

,

Quick start manual

page of 476

/ 476
Contents
Table of Contents
Bookmarks

Table of Contents

Advertisement

Quick Links

X T 4

O W N E R ' S

M A N U A L

2 0 2 3

Table of Contents

Advertisement

Chapters

Table of Contents

Need help?

Need help?

Do you have a question about the XT4 2023 and is the answer not in the manual?

Questions and answers

Summary of Contents for Cadillac XT4 2023

Page 1 X T 4 O W N E R ’ S M A N U A L 2 0 2 3...
Page 2: Table Of Contents
Contents Introduction California Proposition 65 Warning Introduction ......Keys, Doors, and Windows ..Seats and Restraints .
Page 3 GM, the GM logo, CADILLAC, Keep this manual in the vehicle the CADILLAC Emblem, and for quick reference. About Driving the...
Page 4 Introduction Danger, Warning, and : Shown when there is more information on another page Caution see page. Warning messages found on Vehicle Symbol Chart vehicle labels and in this Here are some additional manual describe hazards and symbols that may be found on what to do to avoid or A circle with a slash through it the vehicle and what they...
Page 5: Introduction
Introduction : Flammable : Remote Vehicle Start : Forward Collision Alert : Risk of Electrical Fire : Fuse Block Cover Lock : Seat Belt Reminders Location : Side Blind Zone Alert : Fuses : Stop/Start : ISOFIX/LATCH System : Tire Pressure Monitor Child Restraints : Traction Control/ : Keep Fuse Block Covers...
Page 6 Introduction Instrument Panel Overview...
Page 7 Introduction 1. Air Vents 0 225. 8. Home Button. See 20. Park Assist Button. See Overview 0 157. Assistance Systems for 2. Exterior Lamp Controls Parking or Backing 0 286. 0 148. 9. Dual Automatic Climate Control System 0 221. Automatic Parking Assist Turn Signal Lever.
Page 8 Introduction 25. Head-Up Display (HUD) 0 139 (Out of View) (If Equipped). 26. Data Link Connector. See Malfunction Indicator Lamp (Check Engine Light) 0 126 (Out of View). 27. Instrument Panel Illumination Control 0 153. 28. Hood Release. See Hood 0 329 (Out of View).
Page 9: Keys, Doors, And Windows
Keys, Doors, and Windows Keys, Doors, and Automatic Dimming Keys and Locks Mirror ......36 Windows Reverse Tilt Mirrors .
Page 10: Remote Key
Keys, Doors, and Windows Check the distance. The To remove the key, press the remote key may be too far button on the side of the from the vehicle. remote key, near the bottom, and pull the key out. Never pull Check the location.
Page 11 Keys, Doors, and Windows Other conditions can impact display the list of available settings for this feature, touch the performance of the options and select Remote the Settings icon on the remote key. See Remote Key Lock, Unlock, Start . infotainment home page.
Page 12 Keys, Doors, and Windows this feature, touch the Press once to stop the liftgate If equipped with memory Settings icon on the from moving. seats, remote keys 1 and 2 are linked to seating positions of infotainment home page. Keyless Access Operation memory 1 or 2.
Page 13 Keys, Doors, and Windows Keyless Unlocking/Locking four times quickly to indicate from Passenger Doors access is disabled. Using any exterior handle to unlock the When the doors are locked doors or open the liftgate will and the remote key is within cause the turn signal lamps to 1 m (3 ft) of the door handle, flash four times quickly,...
Page 14 Keys, Doors, and Windows If other electronic devices interior door is pressed, This occurs only once each interfere with the remote key or until the vehicle is time the vehicle is driven. signal, the vehicle may not turned on. To view available settings for detect the remote key inside Remote Left in Vehicle Alert this feature, touch the...
Page 15 Keys, Doors, and Windows The vehicle can be cylinder on the driver door 6. Remove the remote key reprogrammed so that lost or and turn the key from the front cupholder. stolen remote keys no longer counterclockwise, to the and press the remote key work.
Page 16 Keys, Doors, and Windows complete. The vehicle must be 4. Repeat Step 2 two 6. Press ENGINE START/ off and all of the remote keys additional times. After the STOP. When the remote you wish to program must be third time all previously key is learned the DIC with you.
Page 17 Keys, Doors, and Windows Starting the Vehicle with a To start the vehicle: Battery Replacement Low remote key Battery Warning When starting the vehicle, Never allow children to play if the remote key battery is depleted, there is signal with the remote key. The interference, or the remote remote key contains a small key has been idle for a while,...
Page 18 Keys, Doors, and Windows Caution Caution When replacing the battery, If the remote key is not do not touch any of the reassembled properly, circuitry on the remote key. liquids could enter the Static from your body could housing and damage the damage the remote key.
Page 19: Remote Vehicle Start
Keys, Doors, and Windows Remote Vehicle Start This feature allows the engine to be started from outside of the vehicle. : This button is on the remote key for remote start. The climate control system will determine the best mode and temperature setting for operation during the remote start.
Page 20 Keys, Doors, and Windows Laws in some local During the remote start When the remote start is communities may restrict the the doors will be locked extended, the second use of remote starters. For and the parking lamps will 15-minute period is added on example, some laws may remain on as long as the to the first 15 minutes for a...
Page 21: Door Locks
Keys, Doors, and Windows The remote key is in the To lock/unlock the doors from Warning (Continued) vehicle. outside the vehicle: moving. The chance of The vehicle is not off. Press on the remote being thrown out of the The hood is not closed. key.
Page 22 Keys, Doors, and Windows Keyless Access Driver Door Key Lock To replace the cap: Cylinder Access (In Case of 1. Pull the door handle (1) to Dead Battery) the open position and hold it open until the cap installation is complete. The remote key must be within 1 m (3 ft) of the door or liftgate being opened.
Page 23: Power Door Locks
Keys, Doors, and Windows 5. Check that the cap is Power Door Locks secure. Free-Turning Locks The door key lock cylinder turns freely when either the wrong key is used, or the correct key is not fully inserted. The free-turning door lock feature prevents the lock cylinder from being forced open.
Page 24: Automatic Door Locks
Keys, Doors, and Windows Automatic Door Select Vehicle to display the When is pressed on the list of available options and power door lock switch while Locks select Power Door Locks . the door is open, a chime will The doors will lock sound three times indicating Lockout Protection automatically when all doors...
Page 25: Safety Locks
Keys, Doors, and Windows Open Door Anti-Lockout 2. Open the door from the outside. If Open Door Anti-Lockout is turned on and the vehicle is When the safety lock is off, the driver door is open, enabled, adults and older and locking is requested, all children will not be able to the doors will lock and the...
Page 26 Keys, Doors, and Windows Caution Warning (Continued) Warning (Continued) Driving with an open and trunk/hatch or liftgate. If the vehicle is equipped unsecured liftgate may Engine exhaust contains with a power liftgate, result in damage to the carbon monoxide (CO) which disable the power liftgate power liftgate components.
Page 27 Keys, Doors, and Windows prevent the liftgate from Caution opening into overhead Manually forcing the liftgate obstructions such as a garage to open or close during a door or roof-mounted cargo. power cycle can damage the The liftgate can be manually opened all the way.
Page 28 Keys, Doors, and Windows Falling Liftgate Detection Obstacle Detection Setting the 3/4 Mode Features If the power liftgate To change the position the automatically closes after a liftgate stops at when If the liftgate encounters an power opening cycle, it opening: obstacle during a power open indicates that the system is...
Page 29 Keys, Doors, and Windows Manual Operation The hands-free feature will not work while the liftgate is Select OFF to manually moving. To stop the liftgate operate the liftgate. while in motion use one of the liftgate switches. Caution Attempting to move the liftgate too quickly and with excessive force may result in damage to the vehicle.
Page 30 Keys, Doors, and Windows This feature may be Projected Logo The projected logo shows temporarily disabled under where the kicking motion is to If equipped with this feature, a some conditions. If the take place. vehicle logo will be projected liftgate does not respond to The projected logo will only be for one minute onto the...
Page 31 Keys, Doors, and Windows the list of available options The projected logo will not Lens Cleaning and select Comfort and work for a single remote key Convenience . when a transmitter: The power liftgate is Has been left within turned off. approximately 5 m (15 ft) of the liftgate for several The vehicle remains parked...
Page 32 Keys, Doors, and Windows Hands-Free Liftgate and Projected Logo Availability Action Hands-Free Liftgate Projected Logo Remote key entering projected Operative On for one minute logo detection zone Remote key left inside Operative Off until remote key button projected logo detection zone press or a door is opened and for minimum of 10 minutes closed...
Page 33: Vehicle Security
Keys, Doors, and Windows Vehicle Security On Solid : Vehicle is secured 30-second delay and during the delay to arm the immediately arm the alarm This vehicle has system. system. theft-deterrent features; Fast Flash : Vehicle is The vehicle alarm system will however, they do not make unsecured.
Page 34: Immobilizer
Keys, Doors, and Windows Disarming the Alarm How to Detect a Tamper The immobilization system is disarmed when the ignition is System Condition on or in accessory mode and a To disarm the alarm system or is pressed and the horn valid remote key is present in turn off the alarm if it has chirps and the lights flash...
Page 35: Exterior Mirrors
Keys, Doors, and Windows If the engine does not start keys. Up to eight remote keys The passenger side mirror is and the security light stays on, can be programmed for the convex shaped. A convex there is a problem with the vehicle.
Page 36: Folding Mirrors
Keys, Doors, and Windows 3. Adjust each outside mirror Folding Mirrors Resetting the Power so that a little of the Folding Mirrors Manual Folding Mirrors vehicle and the area Reset the power folding behind it can be seen. If equipped, manually fold the mirrors if: 4.
Page 37: Heated Mirrors
Keys, Doors, and Windows approximately one second to Reverse Tilt Mirrors Interior Mirrors unfold. See Remote Key If equipped with reverse tilt Operation 0 9. Interior Rearview mirrors and memory seats, the This feature is turned on or off Mirrors passenger and/or driver through vehicle settings.
Page 38: Rear Camera Mirror
Keys, Doors, and Windows Rear Camera Mirror The adjustment options are: If equipped, this automatic dimming mirror provides a wide angle camera view of the area behind the vehicle. Press to scroll through the adjustment options. Brightness Press to adjust the settings using the indicators on the mirror.
Page 39 Keys, Doors, and Windows Troubleshooting Warning The Rear Camera Mirror (RCM) has a limited view. Portions of the road, vehicles, and other objects may not be seen. Do not drive or park the vehicle using only this camera. Objects may appear closer than they are.
Page 40: Windows
Keys, Doors, and Windows Dirt, snow, or other debris Windows may result in a pulsing sound blocks the camera lens. when either rear window is Clean the lens with a soft down and the front windows Warning damp cloth, or if equipped, are up.
Page 41 Keys, Doors, and Windows Window Lockout Window Express Movement All windows can be opened without holding the window switch. Press the switch down fully and quickly release to express open the window. If equipped, pull the window switch up fully and release to express close the window.
Page 42: Sun Visors
Keys, Doors, and Windows Automatic Reversal If the window is unable to If equipped, all windows can express-close, program each also be closed using the System Override express-close window: remote key. To close, double press and hold on the Warning 1.
Page 43: Roof
Keys, Doors, and Windows Roof Sunroof Express Operation : stop movement. Press and Press and release (1) to release (2) to Sunroof vent. Press and release again express-close the sunshade. to move to the partially Press and release (2) at If equipped, the ignition must opened comfort stop position.
Page 44 Keys, Doors, and Windows If an object is in the path while Periodically open the sunroof express-closing, the reversal and remove any obstacles or system will detect an object, loose debris. Wipe the sunroof stop, and open the sunroof or seal and roof sealing area power sunshade slightly.
Page 45: Seats And Restraints
Seats and Restraints Seats and Replacing Seat Belt Infants and Young System Parts after a Children ..... . 80 Restraints Crash .
Page 46: Head Restraints
Seats and Restraints Head Restraints Front Seats Warning With head restraints that are not installed and adjusted properly, there is a greater chance that occupants will suffer a neck/ spinal injury in a crash. Do not drive until the head Adjust the head restraint so To raise or lower the head restraints for all occupants...
Page 47 Seats and Restraints Rear Seats push the head restraint down. Try to move the head restraint Adjusting the Rear Head after the button is released to Restraint make sure that it is locked in The vehicle's rear seats have place. adjustable head restraints in Folding the Rear Head the outboard seating...
Page 48: Front Seats Power Seat Adjustment
Seats and Restraints Raise or lower the entire If you are installing a child Warning (Continued) seat by moving the rear of restraint in the rear seat, see the control up or down. Securing a Child Restraint seats and be injured. Never Designed for the LATCH leave children alone in the Reclining Seatbacks...
Page 49: Lumbar Adjustment
Seats and Restraints Lumbar Adjustment Warning (Continued) Lumbar and Bolster For proper protection when Support the vehicle is in motion, have the seatback upright. Then sit well back in the seat and wear the seat belt properly. To adjust a seatback: Tilt the top of the control rearward to recline.
Page 50: Massage
Seats and Restraints Massage Uplevel Seat Adjustment Uplevel Seat Adjustment Press and release or hold To adjust lumbar support, If equipped, the ignition must Feature Select (1) to scroll to if equipped: be on to use the massage bolster support on the Press and release or hold feature.
Page 51: Memory Seats
Seats and Restraints 4. To turn massage off or to and a shared exit position. See welcome message, You are activate massage at last Saving Seating Positions driver x for memory recalls. massage type and later in this section. The saved This message is displayed the intensity settings, press positions can be recalled...
Page 52 Seats and Restraints 3. Start the vehicle with the 2 matching the current Manually Recalling Seating initial key or remote key. Driver s remote key Positions The DIC welcome message number until two beeps Press and hold 1, 2, or should display the driver sound.
Page 53 Seats and Restraints Select Settings > Vehicle > Seat Entry Memory Recall will Auto Seat Exit Memory Seating Position > Seat Exit continue if the vehicle is Recall Memory > ON or OFF. See shifted out of P (Park) prior to Seat Exit Memory will begin Auto Seat Exit Memory reaching the saved memory...
Page 54: Heated And Ventilated
Seats and Restraints Cancel Memory Seating Heated and Recalls Ventilated Front During any memory recall: Seats Press a power seat control Press SET memory button Warning During Manual memory If temperature change or recall: pain to the skin cannot be Release 1, 2, or memory felt, the seat heater may...
Page 55 Seats and Restraints setting, and then to the off the manual heated and seats will turn on automatically setting. The indicator lights ventilated seat buttons on the if it is hot outside. If equipped, above the buttons indicate center stack. Use the manual the heated steering wheel will three for the highest setting heated and ventilated seat...
Page 56: Rear Seats
Seats and Restraints Remote Start Auto Cool Seats The feature is active only once 1. Place the front seatbacks > ON or OFF. See Remote each time the vehicle is turned in the upright position. See Vehicle Start 0 18. on and off, and will require Reclining Seatbacks 0 47.
Page 57: Heated Rear Seats
Seats and Restraints Raising the Seatbacks To raise the seatback: 1. Push the seatback Warning rearward until it locks in the upright position. If either seatback is not For outboard seats, a tab locked, it could move near the seatback lever forward in a sudden stop or retracts when the crash.
Page 58: Seat Belts
Seats and Restraints If the heated rear seats are on Why Seat Belts Work Warning (Continued) the highest setting, the level may automatically be lowered It is extremely dangerous to after approximately ride in a cargo area, inside or 30 minutes. outside of a vehicle.
Page 59: How To Wear Seat Belts
Seats and Restraints the seat belts. That is why Also, in nearly all states and wearing seat belts makes such in all Canadian provinces, good sense. the law requires wearing seat belts. Questions and Answers How to Wear Seat About Seat Belts Belts Properly Q: Will I be trapped in the vehicle after a crash if I am...
Page 60: Properly
Seats and Restraints body are best able to take belt restraining forces. The shoulder belt locks if there is a sudden stop or crash. Warning You can be seriously injured, or even killed, by not wearing your seat belt properly. Never allow the lap or Never wear the shoulder belt shoulder belt to become loose...
Page 61: Lap-Shoulder Belt
Seats and Restraints Always use the correct buckle Lap-Shoulder Belt Warning (Continued) for your seating position. All seating positions in the protection. Never allow seat vehicle have a belts to be routed under lap-shoulder belt. plastic trim pieces. The following instructions explain how to wear a lap-shoulder belt properly.
Page 62 Seats and Restraints The lap-shoulder belt may instructions on use and lock if you pull the belt important safety across you very quickly. information. If this happens, let the belt go back slightly to unlock it. Then pull the belt across you more slowly.
Page 63 Seats and Restraints Before a door is closed, be sure the seat belt is out of the way. If a door is slammed against a seat belt, damage can occur to both the seat belt and the vehicle. Shoulder Belt Height Adjuster The vehicle has a shoulder belt height adjuster for the...
Page 64: Seat Belt Use During
Seats and Restraints They can help tighten the seat Rear Seat Belt Comfort belts during the early stages Guides of a moderate to severe Rear seat belt comfort guides frontal, near frontal, or rear may provide added seat belt crash if the threshold comfort for older children who conditions for pretensioner have outgrown booster seats...
Page 65: Seat Belt Extender
Seats and Restraints Seat Belt Extender height adjusters (if equipped), Seat belts should be properly and seat belt anchorages to cared for and maintained. If the vehicle's seat belt will make sure they are all in Seat belt hardware should be fasten around you, you should working order.
Page 66: Replacing Seat Belt
Seats and Restraints A roof-rail airbag for the Replacing Seat Belt New parts and repairs may be driver and the passenger necessary even if the seat belt System Parts after a seated directly behind the system was not being used at Crash driver the time of the crash.
Page 67 Seats and Restraints For roof-rail airbags, the word Warning (Continued) Warning (Continued) AIRBAG is on the ceiling or trim. belts are the only restraint. airbag, as you would be if See When Should an Airbag sitting on the edge of the Airbags are designed to Inflate? 0 69.
Page 68: Where Are The Airbags
Seats and Restraints Where Are the Warning Airbags? Children who are up against, or very close to, any airbag when it inflates can be seriously injured or killed. Always secure children properly in the vehicle. To read how, see Older Children 0 79 or Infants and Young Children 0 80.
Page 69 Seats and Restraints Warning (Continued) causing severe injury or even death. The path of an inflating airbag must be kept clear. Do not put anything between an occupant and an airbag, and do not attach or put anything on the steering wheel hub or on or near any other airbag covering.
Page 70: Inflate
Seats and Restraints When Should an Whether the frontal airbags are not designed to inflate will or should inflate is not during vehicle rollovers, in rear Airbag Inflate? based primarily on how fast impacts, or in many side the vehicle is traveling. impacts.
Page 71: When Should An Airbag
Seats and Restraints roof-rail airbags may inflate How Does an Airbag But airbags would not help in when either side of the vehicle many types of collisions, Restrain? is struck or if the sensing primarily because the system predicts that the occupant's motion is not In moderate to severe frontal toward those airbags.
Page 72 Seats and Restraints The parts of the airbag that Warning (Continued) Warning come into contact with you may be warm, but not too hot window or a door. If you A crash severe enough to to touch. There may be some experience breathing inflate the airbags may have smoke and dust coming from...
Page 73: Passenger Sensing
Seats and Restraints some new parts for the Passenger Sensing certain conditions. No other airbag system. If you do not airbag is affected by the System get them, the airbag system passenger sensing system. will not be there to help The vehicle has a passenger The passenger sensing protect you in another crash.
Page 74 Seats and Restraints The system determines an Never put a rear-facing child Warning (Continued) infant is present in a child seat in the front. This is restraint. because the risk to the airbag will not deploy under rear-facing child is so great, A front outboard passenger some unusual circumstance, if the airbag inflates.
Page 75 Seats and Restraints indicator will light and stay lit 4. Reinstall the child restraint Warning (Continued) as a reminder that the airbags following the directions are active. provided by the child away. See Airbag Readiness restraint manufacturer and Light 0 124 for more For some children, including refer to Securing Child information, including...
Page 76 Seats and Restraints seatback and adjust the If the Off Indicator Is Lit 1. Turn the vehicle off. seat cushion, if adjustable, for an Adult-Sized 2. Remove any additional to make sure that the Occupant material from the seat, vehicle seatback is not such as blankets, cushions, pushing the child restraint seat covers, seat heaters,...
Page 77: Servicing The Airbag-Equipped
Seats and Restraints 6. Restart the vehicle and and braking, which helps the put on an unoccupied seat. have the person remain in passenger sensing system If this is not desired, remove this position for two to maintain the passenger airbag the object from the seat.
Page 78: Vehicle
Seats and Restraints The operation of the airbag In addition, the vehicle has a Warning system can also be affected passenger sensing system for by changing, including the front outboard passenger For up to 10 seconds after improperly repairing or position, which includes the vehicle is turned off and replacing, any parts of the...
Page 79: Airbag System Check
Seats and Restraints If the vehicle has rollover Caution Warning (Continued) roof-rail airbags, see Different If an airbag covering is Size Tires and Wheels 0 385 resulting in serious injury or damaged, opened, or broken, for additional important even death. To help make the airbag may not work information.
Page 80: Child Restraints
Seats and Restraints Sit all the way back on the Child Restraints Q: What is the proper way to seat. Do the knees bend at wear seat belts? the seat edge? If yes, Older Children A: An older child should wear a continue.
Page 81: Infants And Young
Seats and Restraints the vehicle. Older children Warning need to use seat belts properly. Never allow a child to wear the seat belt shoulder belt Warning under both arms or behind their back. A child can be Never allow more than one seriously injured by not child to wear the same seat wearing the lap-shoulder...
Page 82 Seats and Restraints vehicle's seat belt system nor Warning its airbag system is designed for them. Children can be seriously injured or killed if the Children who are not shoulder belt is worn behind restrained properly can strike their back, under their legs, other people, or can be or wrapped around their thrown out of the vehicle.
Page 83 Seats and Restraints Belt-positioning booster Warning (Continued) Warning seats outboard seat, always move To reduce the risk of neck The proper child restraint for the front passenger seat as and head injury in a crash, your child depends on their far back as it will go.
Page 84: Child Restraint
Seats and Restraints The harness system holds the Warning (Continued) infant in place and, in a crash, acts to keep the infant young children should positioned in the restraint. always be secured in an appropriate child restraint. Child Restraint Systems Booster Seats A belt-positioning booster seat is used for children who...
Page 85 Seats and Restraints Securing an Add-On Child installing a child restraint. properly secure any child Never use non-regulated restraint in the vehicle even Restraint in the Vehicle aftermarket anchors or when no child is in it. attachments to secure a child Warning In some areas Certified Child restraint.
Page 86: Where To Put The Restraint
Seats and Restraints Warning (Continued) Warning (Continued) Warning properly following the A child in a rear-facing child Secure rear-facing child instructions that came with restraint can be seriously restraints in a rear seat, that child restraint. injured or killed if the front even if the airbag is off.
Page 87: Lower Anchors And Tethers For Children (Latch System)
Seats and Restraints Child restraints and booster Wherever a child restraint is In order to use the LATCH seats vary considerably in size, installed, be sure to follow the system in your vehicle, you and some may fit in certain instructions that came with need a child restraint that has seating positions better than...
Page 88 Seats and Restraints Make sure to follow the For a forward-facing 5-pt instructions that came with harness child restraint where the child restraint, and also the combined weight of the the instructions in this manual. child and restraint are up to 29.5 kg (65 lb), use either the When installing a child lower LATCH anchorages with...
Page 89 Seats and Restraints Recommended Methods for Attaching Child Restraints Restraint Combined Use Only Approved Attachment Methods Shown with an X Type Weight of the LATCH Seat Belt Only LATCH Seat Belt and Child + Child Lower Lower Top Tether Restraint Anchors Only Anchors and Anchor...
Page 90 Seats and Restraints be used (with top tether position that will rotation of the child restraint where available) to secure the accommodate a child restraint during driving or in the event child restraint. See Securing with lower attachments (2). of a crash. Child Restraints (With the The child restraint may have a Top Tether Anchor...
Page 91 Seats and Restraints Lower Anchor and Top labels, on the seatback near the crease between the Tether Anchor Locations seatback and the seat cushion. The top tether anchors for each rear seating position are located on the back of the : Seating positions with rear seatback.
Page 92 Seats and Restraints anchor directly behind the Securing a Child Restraint Warning (Continued) seating position where the Designed for the LATCH child restraint will be placed. even break during a crash. System A child or others could be Do not secure a child restraint injured.
Page 93 Seats and Restraints 1.2. Put the child restraint Caution (Continued) Warning (Continued) on the seat. damage the seat belt or the Buckle any unused seat For rear outboard seat. Unbuckle and return belts behind the child seating positions, if the the seat belt to its stowed restraint so children cannot head restraint...
Page 94 Seats and Restraints 2.2.Open the cover, using a single tether, If the position you are if equipped, to access route the tether over using has an adjustable the top tether anchors. the seatback. headrest or head restraint, adjust it 2.3.Remove the cargo accordingly to allow cover before installing proper fitment.
Page 95 Seats and Restraints route the tether Head Restraint Removal 2. Press both buttons on the around the headrest or head restraint posts at the and Reinstallation head restraint posts. same time, and pull up on The second row outboard the head restraint. If the child restraint is head restraints can be installed next to a...
Page 96: Replacing Latch System Parts After A Crash
Seats and Restraints To reinstall the head restraint: Replacing LATCH Securing Child System Parts After a Restraints (With the Crash Seat Belt in the Rear Seat) Warning When securing a child A crash can damage the restraint with the seat belts in LATCH system in the a rear seat position, study the vehicle.
Page 97 Seats and Restraints anchored, or if the instructions See "Head Restraint that come with the child Removal and restraint say that the top Reinstallation" under tether must be anchored. Lower Anchors and Tethers for Children In Canada, the law requires (LATCH System) 0 86.
Page 98 Seats and Restraints If the retractor is not locked, repeat Steps 4 and 5. 6. If the child restraint has a top tether, follow the child restraint manufacturer's instructions regarding the use of the top tether. See Lower Anchors and Tethers for Children (LATCH System) 0 86.
Page 99: Securing Child Restraints
Seats and Restraints If the head restraint was Passenger Airbag Status Warning (Continued) removed, reinstall it before the Indicator 0 125 for more seating position is used. See information, including Even if the passenger "Head Restraint Removal and important safety information. sensing system has turned Reinstallation"...
Page 100 Seats and Restraints If the child restraint uses a top upward or the seatback to as possible and is not tether, see Lower Anchors an upright position, caught on seat handles or and Tethers for Children if needed, to get a tight plastic trim.
Page 101 Seats and Restraints prior installation steps. Otherwise secure the child restraint in a rear seat. When installing a forward-facing child restraint, it may be helpful to use your knee to push down on the child restraint as you tighten the belt. Try to pull the belt out of the retractor to make sure the retractor is locked.
Page 102 Seats and Restraints If the airbags are off, the off indicator in the passenger airbag status indicator will come on and stay on when the vehicle is started. If a child restraint has been installed and the on indicator is lit, see If the On Indicator Is Lit for a Child Restraint under Passenger Sensing System 0 72.
Page 103: Compartments
Storage Storage Storage Lift the handle to open the glove box. Close until it Compartments latches. Use the vehicle key to Storage Compartments lock or unlock. See Keys 0 8. Storage Warning Cupholders Compartments ... . 102 Do not store heavy or sharp Glove Box .
Page 104: Front Storage
Storage Front Storage Sunglasses Storage Rear Storage To open the front storage If equipped, sunglasses There is storage in the floor of compartment, slide the cover storage is on the overhead the rear cargo area. Lift the forward. There are two USB console.
Page 105: Storage
Storage 2. Push down on the other Remove the load floor hook To install the load floor hook side of the load floor hook from the holder and hook to into the holder: to lock into place. the weatherstrip above. When done, return the load floor hook to the holder.
Page 106: Center Console
Storage Center Console Umbrella Storage Storage There is a wireless smartphone charger in the Slide a compact umbrella no front of the console storage. larger than 6 cm (2.36 in) in See Wireless Charging 0 115. Press the button to access diameter into the opening on the storage area in front of the driver or passenger door.
Page 107: Additional Storage Features
Storage Additional Storage Cargo Tie-Downs Features Cargo Cover Warning An unsecured cargo cover could strike people in a sudden stop or turn, or in a crash. Store the cargo cover securely or remove it from the vehicle. If equipped, the cargo cover can be used to cover items in The vehicle has four cargo the cargo area.
Page 108 Storage Cargo Weight Limits Warning (Continued) Warning Do not exceed the maximum Before driving and or abrupt maneuvers when cargo weight for the roof rack occasionally during a trip, carrying cargo on the system, including the weight check that cargo is securely roof rack.
Page 109: Instruments And Controls
Instruments and Controls Instruments and Engine Coolant StabiliTrak OFF Light ..132 Temperature Gauge ..123 Traction Control System Controls Seat Belt Reminders ..123 (TCS)/StabiliTrak Airbag Readiness Light .
Page 110: Steering Wheel
Instruments and Controls Universal Remote System Controls Do not adjust the steering wheel while driving. Universal Remote System ..... . 144 Steering Wheel Power Tilt and Telescoping Universal Remote System...
Page 111: Heated Steering
Instruments and Controls Heated Steering heated seats when it is cold Windshield Wiper/ outside. The heated steering Wheel Washer wheel indicator light may come on. If equipped with auto heated seats, the heated steering wheel will turn on when the auto heated seats are activated.
Page 112 Instruments and Controls With the ignition on or in wiper lever is released, accessory mode, move the additional wipes may occur windshield wiper lever to depending on how long the select the wiper speed. windshield washer has been activated. See Washer Fluid HI : Use for fast wipes.
Page 113 Instruments and Controls 10 minutes, the wipers will AUTO : Move the windshield Warning (Continued) restart and move to the base wiper lever to AUTO. Turn the of the windshield. band on the wiper lever to Reduced visibility from snow adjust the sensitivity.
Page 114: Rear Window Wiper
Instruments and Controls Wiper Arm Assembly Rear Window Wiper/ lens, if equipped. See Rear Protection Camera Mirror 0 37. The Washer wipers will clear the rear When using an automatic car window and either stop or wash, move the windshield return to your preset speed.
Page 115: Compass
Instruments and Controls The wiper operations return The windshield washer Compass to normal when the reservoir is used for the The vehicle may have a transmission is no longer in windshield, rear window, and compass display on the Driver N (Neutral) or the vehicle Rear Camera Mirror, Information Center (DIC).
Page 116: Clock
Instruments and Controls Clock console, one under the Always unplug electrical armrest, and one in the rear equipment when not in use Set the time and date using cargo area. and do not plug in equipment the infotainment system. See that exceeds the maximum Certain accessory power "Time/Date"...
Page 117 Instruments and Controls resume when a normal Warning (Continued) operating temperature is reached. to consult with your doctor before using the wireless Warning charging system. Remove all objects from the The vehicle must be on, in charger before charging accessory mode, or Retained your compatible Accessory Power (RAP) must smartphone.
Page 118 Instruments and Controls To maximize the charge and/or the smartphone is Software Acknowledgements rate, ensure the overheated. Remove the Certain Wireless Charging smartphone is fully seated smartphone and any Module product from LG and centered in the holder objects from the charger in Electronics, Inc.
Page 119: Warning Lights, Gauges, And Indicators Warning Lights, Gauges
Instruments and Controls offer is valid for three (3) 3. Neither the name of the DATA, OR PROFITS; OR years from the date on which copyright holder nor the BUSINESS INTERRUPTION) you purchased the product. names of its contributors HOWEVER CAUSED AND ON may be used to endorse or ANY THEORY OF LIABILITY, Freescale-WCT library...
Page 120: Instrument Cluster
Instruments and Controls Some warning lights come on Instrument Cluster briefly when the engine is started to indicate they are working. When one of the warning lights comes on and stays on while driving, or when one of the gauges shows there may be a problem, check the section that explains what to do.
Page 121 Instruments and Controls Use the right steering wheel control to open and scroll through the different items and displays. Press to access the English Uplevel Cluster Shown, Metric Similar cluster applications. Use the thumbwheel to scroll through 1. Tachometer 0 122 Cluster Menu the list of available features 2.
Page 122 Instruments and Controls Audio Options thumbwheel to adjust the value and press to set the Navigation Use the thumbwheel to scroll speed. Phone through items in the Options menu. Once the speed is set, this Options feature can be turned off by Audio Units : Choose English or pressing the thumbwheel...
Page 123: Speedometer
Instruments and Controls Software Information : Tachometer Fuel Gauge Displays open source software The tachometer displays the information. engine speed in revolutions Speedometer per minute (rpm). For vehicles with the Stop/ The speedometer shows the Start system, when the vehicle speed in either ignition is on, the tachometer kilometers per hour (km/h) or indicates the vehicle status.
Page 124: Temperature Gauge
Instruments and Controls The fuel gauge may: Engine Coolant This gauge measures the temperature of the vehicle's Take a little more, or less Temperature Gauge engine. fuel to fill up than it indicates. For example, the While driving under normal gauge may have indicated operating conditions, if the red the tank is half full, but it...
Page 125: Airbag Readiness
Instruments and Controls Then the light stays on solid Then the light stays on solid the pretensioners, the airbag until the belt is buckled. This until the belt is buckled. This modules, the wiring, and the cycle may continue several cycle continues several times crash sensing and diagnostic times if the driver remains or...
Page 126: Passenger Airbag Status
Instruments and Controls When the vehicle is started, If, after several seconds, both Warning (Continued) the passenger airbag status status indicator lights remain indicator will light ON and OFF, on, or if there are no lights at inflate without a crash. To and the symbols for on and all, there may be a problem help avoid injury, have the...
Page 127: Charging System Light
Instruments and Controls Charging System If a short distance must be Malfunctions are often driven with the light on, be indicated by the system Light sure to turn off all before any problem is accessories, such as the radio noticeable. Being aware of the and air conditioner.
Page 128 Instruments and Controls Poor fuel quality can cause least 10 seconds before Caution (Continued) inefficient engine operation restarting the engine. If the this light to come on. This and poor driveability, which light is still flashing, follow the could lead to costly repairs may go away once the previous guidelines and see engine is warmed up.
Page 129: Brake System Warning
Instruments and Controls The DLC is under the battery has recently been light may come on if the brake instrument panel to the left of replaced or run down, or if fluid is low. See Brake Fluid the steering wheel. the vehicle has been 0 345.
Page 130: Electric Parking Brake
Instruments and Controls the parking brake is released, Parking Brake (EPB). Take the Warning (Continued) or while driving, there is a vehicle to a dealer as soon as problem with the Electric possible. In addition to the been pulled off the road and Parking Brake system.
Page 131: Gear Shifting Light
Instruments and Controls If the ABS warning light stays If equipped, this light comes on the shifting of the gears on, or comes on again while when a gear shift is accordingly. See Driver Mode driving, the vehicle needs recommended for best fuel Control 0 269.
Page 132: Lane Keep Assist (Lka)
Instruments and Controls Lane Keep Assist unintentionally crossed. See Forward Collision Alert If the system detects you (FCA) System 0 297. (LKA) Light are steering intentionally (to Pedestrian Ahead pass or change lanes), the Indicator LDW alert may not display. LKA will not assist or alert if the turn signal is active in the direction of lane departure,...
Page 133: Stabilitrak Off Light
Instruments and Controls working. If it does not come on This light comes on briefly Traction Control then, have it fixed so it will be when the vehicle is turned on System (TCS)/ ready to warn you if there is a to show that the light is StabiliTrak Light problem.
Page 134: Light
Instruments and Controls The light flashes when the Driver Mode Control Caution TCS and/or the StabiliTrak/ Light The engine coolant ESC system is actively temperature warning light working. indicates that the vehicle See Traction Control/ has overheated. Driving with Electronic Stability Control this light on can damage the 0 267.
Page 135: Tire Pressure Light
Instruments and Controls See Driver Mode Control shown on the Tire and Caution (Continued) 0 269. Loading Information label. See 1. Stop in a safe location Tire Pressure 0 372. Tire Pressure Light and turn off the engine. When the Light Flashes First 2.
Page 136: Low Fuel Warning
Instruments and Controls remain illuminated. If it does It also comes on when the fuel High-Beam On Light not come on under either gauge indicator nears empty. condition, contact your dealer. The light turns off when fuel is added. If it does not, have the If the light comes on and stays vehicle serviced.
Page 137: Lamps On Reminder
Instruments and Controls Lamps On Reminder Adaptive Cruise Control Information Light Displays Driver Information Center (DIC) The DIC is displayed in the instrument cluster. It shows This light comes on when the the status of many vehicle This light is white when the exterior lamps are in use, systems.
Page 138 Instruments and Controls DIC Information Displays since the trip odometer was : Use the thumbwheel last reset. The trip odometer to scroll to the previous or The following is the list of all next selection. can be reset by pressing possible DIC information and selecting yes or no while displays.
Page 139 Instruments and Controls estimate is based on an reset accurately until the next next oil change. When the average of the vehicle's fuel oil change. To reset, see REPLACE SOON message economy over recent driving Engine Oil Life System 0 335. displays, the engine air filter history and the amount of fuel should be replaced at the...
Page 140: Head-Up Display (Hud)
Instruments and Controls Timer : This display can be Driver Assistance : Info Page Options : Scroll to used as a timer. To start the If equipped, shows information choose which info pages timer, press the thumbwheel for Lane Keep Assist (LKA) appear on the DIC.
Page 141: Vehicle Messages
Instruments and Controls information appears as an Some vehicle messages or image focused out toward the alerts displayed in the HUD front of the vehicle. may be cleared by using the steering wheel controls. See Caution Vehicle Messages 0 143. If you try to use the HUD image as a parking aid, you may misjudge the distance...
Page 142 Instruments and Controls to confirm and save the ahead, Lane Departure : Lift and hold to brighten setting. This feature may only Warning/Lane Keep Assist, the display. Press and hold to be available in P (Park). See and Adaptive Cruise Control dim the display.
Page 143 Instruments and Controls Audio/Phone View : This displays digital speed, indicators from speed view along with audio/phone information. The current radio station, media type, and incoming calls will be English English displayed. Navigation View : This Performance View : This All HUD views may briefly displays digital speed, displays digital speed,...
Page 144: Vehicle Messages
Instruments and Controls Driver Assistance Systems HUD Troubleshooting may be needed to correct a condition. Multiple messages Cruise Control If you cannot see the HUD may appear one after another. Lighting and Bulb image when the ignition is on, Replacement The messages that do not check that: require immediate action can...
Page 145: Vehicle Speed
Instruments and Controls the next time the vehicle is lubrication, thermal, brakes, This system can replace up to driven. The vehicle may be suspension, Teen Driver if three remote control driven while this message is equipped, or tires. transmitters used to activate on, but maximum acceleration devices such as garage door Universal Remote...
Page 146 Instruments and Controls door opener receiver. Clear all transmitter was supplied watching the indicator light people and objects near the by the manufacturer of the and garage door garage door. garage door opener activation. receiver. If the indicator light Make sure the hand-held stays on continuously or 2.
Page 147 Instruments and Controls If the garage door does two seconds and release. Universal Remote system to not move, continue with Repeat the press/hold/ pick up the signal during programming Steps 4 6. release sequence up to programming. three times to complete If the programming did not the training process.
Page 148 Instruments and Controls Universal Remote Reprogramming a Single Universal Remote System System Operation Button Using the Universal To reprogram any of the Remote System system buttons: Press and hold the 1. Press and hold any one of appropriate Universal Remote the buttons.
Page 149: Lighting
Lighting Lighting Lighting Features Exterior Lighting Entry Lighting ....154 Exit Lighting ....154 Exterior Lamp Exterior Lighting Battery Power...
Page 150 Lighting AUTO : Automatically turns Turning On and Enabling windshield clear of debris to the exterior lamps on and off, IntelliBeam allow for best system depending on outside lighting. performance. The high-beam headlamps : Turns on the parking remain on, under the lamps including all lamps, automatic control, until one of except the headlamps.
Page 151: Exterior Lamps Off
Lighting instrument cluster light will sensor to aim high and not come on to indicate the detect headlamps and IntelliBeam is reactivated. taillamps. The vehicle is being driven The high beams may not turn on winding or hilly roads. off automatically if the system cannot detect another The automatic high-beam vehicle's lamps because of any...
Page 152: Automatic Headlamp
Lighting The exterior lamp control is that delay, the instrument in AUTO. cluster may not be as bright as usual. Make sure the The light sensor determines instrument panel brightness it is daytime. control is in the full bright The parking brake is position.
Page 153: Hazard Warning
Lighting wipers are not operating, Turn and If after signaling a turn or lane these lamps turn off. Move the change, the arrow flashes Lane-Change Signals rapidly or does not come on, a exterior lamp control to signal bulb may be burned out. to disable this feature.
Page 154: Interior Lighting Instrument Panel Illumination Control
Lighting Interior Lighting The thumbwheel is functional To operate, press the at night, or when the following buttons: headlamps or parking lamps Instrument Panel OFF : Press to turn off are on. Illumination Control the dome lamps when any Courtesy Lamps door is opened, on the remote key is pressed,...
Page 155: Entry Lighting
Lighting Press the lamp lens to turn This feature can be changed. the rear reading lamps on On the infotainment home or off. page, select the Settings icon Vehicle Vehicle Locator Lighting Features Lights. Exit Lighting Entry Lighting Some exterior lamps and The interior lamps turn on interior lamps turn on when when pressing...
Page 156: Protection
Lighting Battery Power exterior lamp control to the position and then back to the Protection position. This feature helps prevent the To keep the lamps on for more battery from being drained, than 10 minutes, the vehicle if the interior courtesy lamps must be on or in or reading lamps are accessory mode.
Page 157: Introduction
Infotainment System Infotainment Navigation Symbols ..177 Introduction Destination ....178 System Read the following pages to Global Positioning become familiar with the System (GPS) .
Page 158: Infotainment System
Infotainment System features are also available properly. Deactivation is (Home Page) through the instrument cluster required by your dealer if Press to go to the and steering wheel controls. related aftermarket equipment Home Page. See Home is installed. Before driving: Page later in this section.
Page 159 Infotainment System Infotainment Controls on strongest previous Press and hold to fast station or channel. See seek the next strongest the Console with AM-FM Radio 0 163. station or channel. Navigation Shown, Radio USB/Bluetooth: Press USB/Bluetooth: Press without Navigation Similar to seek to the beginning to seek the next track.
Page 160: Steering Wheel
Infotainment System 2. Continue holding the icon (Phone) or and drag it to the desired (Home Page) position. For vehicles with 3. Release your finger to navigation, press drop the icon in the access the phone menu. desired position. For vehicles without 4.
Page 161: Using The System
Infotainment System go to the next or previous Phone Users track when listening to a Touch the Phone icon to If equipped, touch the Users media source. display the Phone main page. icon to sign in or create a new See Bluetooth (Pairing and user profile, and follow the : Press to move...
Page 162: Infotainment System
For more device is connected. See available. When a feature is information, see Apple CarPlay and Android unavailable, it may gray out. www.my.cadillac.com/learn. Auto 0 201. When a feature is touched, it OnStar Services may highlight. Apps...
Page 163 Infotainment System Touch/Tap Drag Nudge Touch/tap is used to select an Drag is used to move Nudge is used to move items a icon or option, activate an applications on the Home short distance on a list or a application, or change the Page, or to pan the map.
Page 164: Software Updates
Infotainment System by placing a finger on the Pinch is used to zoom out on a Software Updates display then moving it rapidly map, certain images, or a web Over-the-Air Software up and down or right and left. page. Place finger and thumb apart on the display, then Updates Spread...
Page 165 Infotainment System Infotainment System Rear: Adjusts the audio to Finding a Station provide the best sound for Sound Menu Seeking a Station the rear seat occupants. From any of the audio source Centerpoint: Turns on main pages, touch Sound to Bose Centerpoint display the following: surround technology.
Page 166 Infotainment System or channel displays on the The tune arrows on the right listen to. Touch to save the right side. This information will side of the Direct Tune display station or channel as a update with each new valid tune through the complete favorite.
Page 167: Hd Radio Technology
Infotainment System that category. Touching a Settings in the Apps tab under ...HD8), that may be station or channel from the list Audio and then Set Number of available. When the radio tunes the radio to that station Audio Favorites. successfully tunes to a HD or channel.
Page 168: Radio Data
Infotainment System Group stations by Category range, or the station may be Satellite Radio (i.e., Program Type) such as out of alignment. Verify proper SiriusXM Radio Service Rock, Jazz, Classical, etc. reception on another station. Display text from radio If the HD Radio signal weakens If equipped, vehicles with a stations that include station while listening to HD1, the...
Page 169: Radio Reception
Infotainment System recommendations toward automatically works to reduce may cause loss of the discovering more personalized interference, some static can SiriusXM signal for a period of content. occur, especially around tall time. Some cellular services buildings or hills, causing the may interfere with SXM To use the full SiriusXM 360L sound to fade in and out.
Page 170: Audio Players
Infotainment System Audio Players My Media Library Caution MyMedia is only available To avoid vehicle damage, Avoiding Untrusted when more than one indexed unplug all accessories and Media Devices device is connected. It allows disconnect all accessory access to content from all cables from the vehicle When using media devices indexed media sources.
Page 171 Infotainment System USB Browse Menu 2. Touch an artist name to : Touch to pause playback of view a list of all albums by the current media source. When a list of songs, albums, the artist. artists, or other types of 3.
Page 172 Infotainment System 3. Touch an artist to view Podcasts : Touch to view the Storing and Recalling albums by that artist. podcasts on the connected Media Favorites Apple device and get a list of 4. Touch an album to view To store media favorites, podcast episodes.
Page 173: Bluetooth Audio
Infotainment System Media Playback and Mute of the display or by touching Albums : Touch next to any the More option and then album to store the album as a USB playback will be paused if touching the Bluetooth device. favorite.
Page 174: Using The Navigation
Infotainment System All devices launch audio Navigation locations and navigation differently. When selecting history to personalize routes Bluetooth as a source, the and results. Using the Navigation radio may show as paused on System Predictive Navigation may the display. Press play on the learn elements such as: device or touch on the...
Page 175 Infotainment System Navigation Map View Destination Card profile, the current location Preferences symbol will show a customized icon. See Navigation Symbols From the Nav application, set 0 177. up Home and Work addresses to enable one-touch Map and Navigation Settings navigation.
Page 176 Infotainment System Alert Preferences 3D Landmark (Default is occurring shortly after, the On) : Touch On or Off. When Auto-Zoom will remain on until Fuel Grade Preferences turned on, the system will both turns are completed. Manage History display all 3D Landmarks on Route Preferences Predictive Navigation: See the map depending on the...
Page 177 Infotainment System Never Search for Better Navigation Voice Control Traffic Preferences (If Route The system will not Equipped) Touch to access the voice check for a better route until control setting display. While in Map View, touch one of the above options is Navigation Volume then Settings and then Map selected.
Page 178: Maps
Infotainment System Telenav Terms and The SD card has initialized Touch Confirm to resume Conditions for the first time: Once after the initialization error initialized, this SD card can message. For the other Telenav Privacy Statement only be used for navigation messages, touch OK to return Navigation Version in this vehicle.
Page 179: Destination
Infotainment System profile is created, the current If equipped, smart Points of centered on the map view, location icon can be Interest (POIs) are places of highlighting the current customized. interest for parking and gas location. stations. This icon indicates the Destination vehicle s current location and Receiving Destination...
Page 180 Infotainment System 1. From active guidance, automatically reroute back to the system will remove this waypoint. At the same the address from the touch time, it will show a Drive to destinations list. Touch 2. Search for the destination icon along with the next on the top right corner using One-Box, Voice waypoint address so the...
Page 181 Infotainment System police stations, gas stations, Map Gestures and Map Active Guidance View tourist attractions, and Scale When a destination is chosen historical monuments. and a navigation session is Use the following gestures on If the vehicle does not have an active, the navigation system the infotainment display to applicable service plan, the...
Page 182 Infotainment System 2D North Up: 2D map with Lane Guidance turn indicator. An audio North pointing up. In this prompt will announce the The map will display the lane mode, the current location quick turn. information for the upcoming icon will shift as the vehicle maneuver if it is available.
Page 183 Infotainment System Editing Directions Highway Exits List Next Maneuver Menu Directions can be edited by When in Active Guidance, the Next Maneuver Turn Arrow, choosing , which expands Street Name, and Maneuver the list to fill the display and Distance are shown in the enters the Edit Mode.
Page 184 Infotainment System This symbol indicates the next Resume Trip Saving Favorites guidance maneuver. Touch it The trip can be resumed if it Favorites can be added from a to repeat the last spoken was canceled by touching the number of the system s guidance instruction.
Page 185 Infotainment System Recenter Position Icon Smart POI Icons on Map (If Smart Parking Icons Equipped) Touch the Recenter Position When reaching a densely arrow in the middle of the map populated destination and the view to reset the map to the system determines that current location.
Page 186: Global Positioning
Infotainment System category icon shortcuts, Search While in Motion with Global Positioning recents icon, favorites icon, Front Seat Passenger System (GPS) and keyboard. Present If equipped, the position of the Auto Complete If the system detects that the vehicle is determined by using front seat passenger is Enter a partial location in the satellite signals, various...
Page 187: Vehicle Positioning
Infotainment System Satellites are being repaired The vehicle has been The 12-volt battery has been or improved. transferred by a vehicle disconnected for carrier or a ferry. several days. For more information if the The current position The vehicle is driving in GPS is not functioning calibration is set incorrectly.
Page 188: If The System Needs
Infotainment System It could take a long time to location that is safe and has a If the vehicle is equipped with operate automatic rerouting clear view of the sky and away Connected Navigation, which during high-speed driving. from large obstructions. is a subscription service that enables certain features of Automatic rerouting might...
Page 189: Voice Recognition
Infotainment System Voice Recognition two options, and are not along with the system s voice supported by voice recognition database. This If equipped, voice recognition commands. allows you to speak more allows for hands-free naturally when using voice In general there are flexible operation within the recognition.
Page 190 Infotainment System Once voice recognition is If a command is not spoken, or the session is terminated, started, both the infotainment the voice recognition system the voice recognition dialog display and instrument cluster says a help prompt. stops. show the selections and visual Prompts and Infotainment An example of this type of dialog content.
Page 191 Infotainment System For those languages, use A few examples are: I want If POI is asked for, say direct commands like the directions to an address, Change Location, then examples shown on the need to find a place of Change Country. display.
Page 192 Infotainment System Using Voice Recognition has timed out. The display Switch to AM : Switch returns to the display where bands to AM and tune to the for List Options voice recognition was initiated. last AM radio station. When a list is displayed, a The Back Command Switch to FM : Switch voice prompt will ask to...
Page 193 Infotainment System Tune to <FM frequency> FM Play Artist : Begin a dialog Play Playlist <playlist HD : Tune to the HD Radio to enter a specific artist name. name> : Begin playback of a station (if equipped) whose specific playlist. Play Artist <artist name>...
Page 194 Infotainment System Files including other Play Podcast : Begin a command like, Play <album individual files of all media dialog to enter a specific name>. The command Play types such as songs, podcast. Album must first be spoken; audiobook chapters, podcast the system will then ask for Play Podcast <podcast episodes, and videos.
Page 195 Infotainment System Voice recognition Place of Interest : Begin a Call <contact> At Home, performance will degrade to dialog to enter a destination At Work, On Mobile, or some extent based on many Place of Interest category or On Other : Initiate a call to a factors when adding large major brand name.
Page 196: Bluetooth (Overview)
Infotainment System Placement and receipt of correct, the command Delete phone calls. The infotainment calls in a hands-free mode. will remove the last group of system and voice recognition digits and allow them to be are used to control the Sharing of the device s re-entered.
Page 197: Using A Phone)
Infotainment System A Bluetooth smartphone Bluetooth (Pairing : Press to end a call, decline with music capability can be a call, or cancel an operation. and Using a Phone) paired to the vehicle as a Press to mute or unmute the smartphone and a music infotainment system when not Pairing...
Page 198 Infotainment System Pairing a Phone infotainment display will 9. If the cell phone prompts need to be acknowledged to accept connection or 1. Make sure Bluetooth has for a successful pair. allow phone book been enabled on the cell download, touch Always phone before the pairing 7.
Page 199 Infotainment System 4. Touch the information icon means the mobile device can 3. Touch the information icon or pencil icon to the right only receive calls. The Address or the pencil icon next to of the cell phone to open Book of a Secondary Phone the connected cell phone the cell phone s...
Page 200 Infotainment System 1. Touch the Phone icon on Making a Call Using the infotainment display to the Home Page or the scroll through the list of Contacts and Recent Calls phone icon on the shortcut names. Calls can be made through the tray near the bottom of Touch the name to call.
Page 201 Infotainment System Touch Answer on the Searching Contacts Using Switching Between Calls (Call infotainment display. Waiting Calls Only) the Keypad Declining a Call To switch between calls, touch To search for contacts using Phone on the Home Page to the keypad: There are two ways to decline display Call View.
Page 202: Apple Carplay And Android Auto
Infotainment System Ending a Call To use Android Auto and/or conditions on both the Apple CarPlay: infotainment system and Press on the steering the phone. For Wired Phone Projection wheel controls. 4. Follow the instructions on 1. Download the Android Touch on the infotainment the phone.
Page 203 Infotainment System Google Play store. There is 3. Make sure wireless is To disconnect the phones no app required for Apple turned on the phone for wireless projection: CarPlay. wireless projection 1. Select Settings from the to work. 2. For first time connection, Home Page.
Page 204: Settings
Infotainment System apply. For Android Auto Use the On/Off toggled to The settings menu may be support and to see if your turn off Apple CarPlay or organized into four categories. phone is compatible, see Android Auto. Select the desired category by https://support.google.com/ touching System, Apps, Settings...
Page 205 Infotainment System Language Wi-Fi Hotspot updates to be downloaded and installed. There is also an Sets the display language Allows adjustment of different option to check for updates used on the infotainment Wi-Fi features. manually. display. It may also use the Privacy To manually check for selected language for voice...
Page 206 Infotainment System Downloading Over-the-Air menu under Mobile Network Return to Factory Settings vehicle software updates Sharing, Personal Hotspot, Allows resetting the requires Internet connectivity, Mobile Hotspot, or similar. infotainment system settings which can be accessed Availability of Over-the-Air in the vehicle. through the vehicle s built-in software updates varies by 4G LTE connection,...
Page 207 Infotainment System Audio Rear Seat Reminder Seating Position Adjusts different audio Allows for a chime and a Adjusts different seat settings. message when the rear door settings. has been opened before or Climate Teen Driver during operation of the See Teen Driver 0 207. Adjusts different climate vehicle.
Page 208: Teen Driver
Infotainment System Personal Profile Picture Delete Profile Touch to choose or change Touch to remove the profile If equipped, this menu allows your profile picture. from the vehicle. adjustment of different user profile settings. See Users in Profile Identifiers Touch Remove or Cancel. Using the System 0 160 for Touch to have the vehicle Teen Driver...
Page 209 Infotainment System To access: For a pushbutton start 6. From the Teen Driver system: menu, touch Setup Keys or 1. Touch Settings on the Add/Remove Teen Home Page, then touch 1. Start the vehicle. Driver Keys. Vehicle, and then Teen 2.
Page 210 Infotainment System In vehicles with a pushbutton Manage Settings or Teen Set Audio Volume Limit : Use start system, if a Teen Driver Driver Settings the arrows to choose the and a non-Teen Driver key are maximum allowable level for Depending on the options of both present at start up, the the audio volume.
Page 211 Infotainment System An object placed on the systems, touch Set Teen indicating that Teen Driver is front passenger seat, such Driver Speed Warning to set active and the action is not as a briefcase, handbag, the warning speed. available. grocery bag, laptop, or other Super Cruise, if equipped, is Set Teen Driver Speed electronic device, could...
Page 212 Infotainment System The Report Card data is equipped) the number of Report Card Data collected from the time Teen times the vehicle detected Cumulative Data is saved for Driver is activated or the last that a forward collision was all trips until the Report Card time the Report Card was imminent and applied the is reset or until the maximum...
Page 213: Trademarks And License Agreements Trademarks And License
Infotainment System Trademarks and iPhone are trademarks of Subscriptions subject to Apple Inc., registered in the Customer Agreement available License U.S. and other countries. at www.siriusxm.com. SiriusXM service is only available in the Agreements 48 contiguous United States and Canada. FCC Information In Canada: Some deterioration See Radio Frequency...
Page 214 Infotainment System manipulate, or otherwise make separate agreement is Bluetooth available any technology or required with Canadian The Bluetooth word mark and software incorporated in Satellite Radio Inc. logos are owned by the receivers compatible with the (operating as SiriusXM Bluetooth SIG, Inc.
Page 215 Infotainment System PROVIDER LICENSED TO OTHER USE. ADDITIONAL license from Microsoft PROVIDE AVC VIDEO. NO INFORMATION MAY BE Corporation and/or Microsoft LICENSE IS GRANTED OR OBTAINED FROM MPEG LA, Licensing, GP as applicable. SHALL BE IMPLIED FOR ANY LLC. SEE HTTPS:// Map End User License WWW.MPEGLA.COM.
Page 216 Infotainment System HERE holds a nonexclusive to the extent permitted by without limitation, cellular license from the United States mandatory laws. You may phones, palmtop and handheld ® Postal Service to publish and transfer the Data and all computers, pagers, and ®...
Page 217 Infotainment System purpose, usefulness, use or CREATE A WARRANTY, AND CONSEQUENTIAL DAMAGES results to be obtained from YOU ARE NOT ENTITLED TO ARISING OUT OF YOUR USE this Data, or that the Data or RELY ON ANY SUCH ADVICE OF OR INABILITY TO USE server will be uninterrupted or OR INFORMATION.
Page 218 Infotainment System regulations. Entire Agreement: actions arising from or in These terms and conditions connection with the Data constitute the entire provided to you hereunder. agreement between HERE Government End Users (and its licensors, including If the Data is being acquired their licensors and suppliers) by or on behalf of the United and you pertaining to the...
Page 219 Infotainment System © 2014 HERE North America, Open Source SW Subject to the terms and LLC. All rights reserved. conditions of this License, Further information QSSC hereby grants you a If the Contracting Officer, concerning the OSS licenses is limited, non-exclusive, federal government agency, shown in the infotainment non-transferable license to...
Page 220 Infotainment System proprietary notices, labels or ARE OFFERED BY THE THE USE OR INABILITY TO marks in or on the Software, MANUFACTURER OR ITS USE THE PRODUCT and to ensure that all copies DISTRIBUTOR(S) ALONE AND (INCLUDING BUT NOT bear any notice contained on NOT BY QSSC, ITS LIMITED TO DAMAGES FOR AFFILIATES OR THEIR...
Page 221 Infotainment System Configuration indicated above, marks in this product does not please contact the imply any sponsorship, Manufacturer or contact approval, or endorsement by QSSC at 175 Terence such companies of this product. Matthews Crescent, Kanata, Ontario, Canada K2M 1W8 (licensing@qnx.com).
Page 222: Climate Controls
Climate Controls Climate Controls Climate Control Systems Dual Automatic Climate Control System Climate Control Systems Dual Automatic Climate The climate control buttons on the center stack and on the Control System ... 221 climate control display are used to adjust the heating, cooling, and ventilation.
Page 223 Climate Controls Climate Control Display The fan, air delivery mode, air The climate control status conditioning, driver and display appears briefly when passenger temperatures, and the climate controls are Sync settings can be adjusted. controlled by touching Automatic Operation CLIMATE on the infotainment The system automatically Home Page or the CLIMATE controls the fan speed, air...
Page 224 Climate Controls To improve fuel efficiency and appears on the main display. buttons cancels automatic air to cool the vehicle faster, Lifting or pressing either delivery control and the recirculation may be button cancels automatic fan direction of the airflow is automatically selected in warm control and the fan is controlled manually.
Page 225 Climate Controls A/C : Press to turn the air high humidity inside the Rear Window Defogger conditioning system on or off. vehicle. When high humidity is : Press to turn the rear If the climate control system is detected, the climate control window defogger on or off.
Page 226 Climate Controls fog or frost from the surface See Remote Vehicle Start 0 18, If the sensor is covered, the of the mirror. See Heated Heated and Ventilated Front automatic climate control Mirrors 0 36. Seats 0 53, and Heated system may not work properly.
Page 227 Climate Controls Adjustable air vents are in the Check with your dealer Service center and on the sides of the before adding equipment to All vehicles have a label instrument panel, and on the the outside of the vehicle. underhood that identifies the rear of the center console Do not attach any devices to refrigerant used in the vehicle.
Page 228: Driving And Operating
Driving and Operating Driving and Stop/Start System ..249 Hill Start Assist (HSA) ..266 Winter Cover ....251 Ride Control Systems Operating Engine Heater .
Page 229: Driving Information
Driving and Operating Assistance Systems for Trailer Towing ....318 Driving Driving ..... . . 297 Towing Equipment .
Page 230: Driving Environment
Driving and Operating Brake gradually and avoid and aggressive driving can A utility vehicle does not abrupt stops. help make trips safer and handle the same as a vehicle avoid the possibility of a crash. with a lower center of gravity, Avoid idling the engine for like a car, in similar situations.
Page 231: Defensive Driving
Driving and Operating governments have enacted information into any Defensive Driving laws regarding driver navigation device prior to Defensive driving means distraction. Become familiar driving. always expect the with the local laws in Wait until the vehicle is unexpected. The first step in your area.
Page 232: Control Of A Vehicle
Driving and Operating Braking stops, there will be some Warning power brake assist but it will Braking action involves be used when the brake is Drinking alcohol or taking perception time and reaction applied. Once the power assist drugs and then driving is time.
Page 233: Off-Road Recovery
Driving and Operating The Antilock Brake System far as it can turn and hold it (ABS) allows steering while there with force for an braking. extended period of time. See your dealer if there is a Off-Road Recovery problem. Curve Tips Take curves at a reasonable speed.
Page 234: Loss Of Control
Driving and Operating 2. Turn the steering wheel conditions, and by not reducing vehicle speed by about one-eighth of a turn, overdriving those conditions. shifting to a lower gear. Any until the right front tire But skids are always possible. sudden changes could cause contacts the the tires to slide.
Page 235 Driving and Operating To gain more ground Warning (Continued) Warning clearance if needed, it may be necessary to remove the front Keep cargo in the cargo When driving off-road, fascia lower air dam. However, area as far forward and as bouncing and quick changes driving without the air dam low as possible.
Page 236 Driving and Operating Do not damage shrubs, Never go downhill forward ahead cannot be seen, get out flowers, trees, or grasses or or backward with the of the vehicle and walk the hill disturb wildlife. transmission in N (Neutral). before driving further. The brakes could overheat Do not park over things that When driving on hills:...
Page 237 Driving and Operating the downhill wheels, which 2. Shift into P (Park) and then 3. If the vehicle cannot be could cause a downhill slide restart the engine. restarted after stalling, set or a rollover. the parking brake, shift If driving uphill when the into P (Park), and turn the Loose gravel, muddy spots, vehicle stalls, shift to...
Page 238 Driving and Operating Driving in Mud, Sand, Caution Warning (Continued) Snow, or Ice Do not drive through could fall through the ice; Use a low gear when driving in standing water if it is deep you and your passengers the deeper the mud, enough to cover the wheel could drown.
Page 239: Driving On Wet Roads
Driving and Operating or under the hood. These Hydroplaning Warning accumulations can be a fire Hydroplaning is dangerous. hazard. Wet brakes can cause Water can build up under the crashes. They might not After operation in mud or vehicle's tires so they actually work as well in a quick stop sand, have the brake linings ride on the water.
Page 240: Hill And Mountain
Driving and Operating Turn off cruise control. Pay attention to special road Warning (Continued) signs (e.g., falling rocks area, Activate All-Wheel Drive winding roads, long grades, (AWD) mode. See Driver braking. Shift the passing or no-passing zones) Mode Control 0 269. transmission to a lower gear and take appropriate action.
Page 241 Driving and Operating Avoid driving on wet ice or in are clear. Avoid sudden Roadside Assistance. See freezing rain until roads can be steering maneuvers and Roadside Assistance Program treated. braking while on ice. 0 439. To get help and keep everyone in the vehicle safe: Turn off cruise control.
Page 242: If The Vehicle Is Stuck
Driving and Operating runs faster than the idle Warning (Continued) Warning (Continued) speed. This keeps the battery charged to restart the vehicle Open a window about wheels as little as possible 5 cm (2 in) on the vehicle and to signal for help with the and avoid going above headlamps.
Page 243: Vehicle Load Limits
Driving and Operating the forward and reverse Tire and Loading Information Warning directions causes a rocking Label motion that could free the Do not load the vehicle vehicle. If that does not get any heavier than the the vehicle out after a few Gross Vehicle Weight tries, it might need to be Rating (GVWR), or either...
Page 244 Driving and Operating The Tire and Loading should never exceed Determine the combined Information label also XXX kg or XXX lbs." on weight of luggage and shows the size of the your vehicle s placard. cargo being loaded on original equipment tires (3) the vehicle.
Page 245 Driving and Operating Example 1 Example 2 Example 3 Vehicle Capacity Vehicle Capacity Vehicle Capacity Weight for Example 1 = Weight for Example 2 = Weight for Example 3 = 453 kg (1,000 lbs). 453 kg (1,000 lbs). 453 kg (1,000 lbs). Subtract Occupant Subtract Occupant Subtract Occupant...
Page 246 Driving and Operating and seating positions. The pressures needed to obtain Caution combined weight of the the gross weight capacity Overloading the vehicle may driver, passengers, and of the vehicle. The label cause damage. Repairs cargo should never exceed shows the gross weight would not be covered by the the vehicle's capacity capacity of the vehicle.
Page 247: Starting And Operating New Vehicle Break-In
Driving and Operating break-in period during the Caution (Continued) Warning (Continued) first 6 400 km (4,000 mi) of full-throttle starts. Avoid routine driving. As the vehicle Do not leave an downshifting to brake or is driven, the mechanical unsecured child slow the vehicle.
Page 248: Ignition Positions
Driving and Operating Ignition Positions Stopping the Engine/OFF Warning (No Indicator Light) : When the vehicle is stopped, press Turning off the vehicle while ENGINE START/STOP once to moving may cause loss of turn the engine off. power assist in the brake and steering systems and If the vehicle is in P (Park), the disable the airbags.
Page 249: Starting The Engine
Driving and Operating 4. Set the parking brake. See ON/RUN/START (Green systems will operate as they Electric Parking Brake Indicator Light) : This mode is do in ON/RUN, but the vehicle 0 264. Press ENGINE for driving and starting. With will not be able to be driven.
Page 250: Stop/Start System
Driving and Operating Center (DIC) message will the cranking motor to cool Caution display. See Remote Key down. When the engine If you add electrical parts or Operation 0 9. starts, let go of the button accessories, you could and the accelerator. If the Caution change the way the engine vehicle starts briefly but...
Page 251 Driving and Operating The climate control settings The driver door has been Warning (Continued) require the engine to be opened or the driver seat running to cool or heat the belt has been unbuckled. the vehicle before shifting to vehicle interior. The hood has been opened.
Page 252: Winter Cover
Driving and Operating Do not use the winter cover Installation Instructions When the indicator is if towing a trailer. The illuminated, the system is When first trying to fit the vehicle may overheat if the enabled. cover, it may appear to be radiator is covered while undersized but will stretch Winter Cover...
Page 253: Engine Heater
Driving and Operating 4. Make sure all clips remain Warning (Continued) engaged during installation. Cover should vehicle in a clear open area be stretched to a tight fit away from buildings or when properly installed. structures. Engine Heater To Use the Engine Heater The engine heater, if available, 1.
Page 254: Retained Accessory
Driving and Operating Check the heater cord for Warning (Continued) Warning (Continued) damage. If it is damaged, do not use it. See your Failure to use the the cord. Keep the cord dealer for a replacement. recommended extension away from any moving Inspect the cord for cord in good operating parts.
Page 255: Shifting Into Park
Driving and Operating features will also work when If the vehicle is shifted into Warning (Continued) the vehicle is on or in P (Park) on a hill, the accessory mode: Electric Parking Brake running, the vehicle can (EPB) may apply Infotainment System move suddenly.
Page 256: Parking Over Things
Driving and Operating designed to prevent when you are attempting to When less power is required, inadvertent shifting out of shift out of P (Park). If all of such as cruising at a constant P (Park). these are met but the vehicle vehicle speed, the system will will not shift out of P (Park), operate in reduced cylinder...
Page 257: Engine Exhaust
Driving and Operating If the vehicle is left parked and Warning (Continued) Warning (Continued) running with the remote key outside the vehicle, it will Exhaust may enter the If unusual fumes are continue to run for up to vehicle if: detected or if it is suspected 15 minutes.
Page 258: Automatic Transmission
Driving and Operating If parking on a hill and pulling a cold conditions, the indicator trailer, see Driving on the shift lever may flash Characteristics and Towing until it is fully engaged. Tips 0 314. The shift lever always starts from a center position, Automatic represented by an up/down...
Page 259 Driving and Operating The vehicle will not shift into Warning (Continued) P (Park) if it is moving too fast. Stop the vehicle and shift into Do not leave the vehicle P (Park). when the engine is running. If the engine has been left To shift in and out of P (Park), running, the vehicle can see Shifting Into Park 0 254...
Page 260 Driving and Operating If the vehicle is shifted from 3. After releasing the shift Caution either R (Reverse) to D (Drive) lever, it will return to the Shifting out of P (Park) or or M (Manual Mode), center position. N (Neutral) with the engine or M (Manual Mode) or At low vehicle speeds, running at high speed may...
Page 261 Driving and Operating lock release button while Car Wash Mode (Engine Off 4. Shift to N (Neutral). moving the shift lever Driver in Vehicle) 5. Turn off the engine and forward. release the brake pedal. To place the vehicle in N will illuminate in red.
Page 262 Driving and Operating D will illuminate in red. Car Wash Mode (Engine On Caution Driver out of Vehicle) After releasing the shift A transmission hot message lever, it will return to the To place the vehicle in may display if the automatic center position.
Page 263: Manual Mode
Driving and Operating 2. After releasing the shift Caution (Continued) lever, it will return to the When stopping on a hill, use center position. the brakes to hold the 3. Pull the control toward you vehicle in place. to shift. Pull the left control to downshift, and Engine speeds may be the right control to upshift.
Page 264: Drive Systems
Driving and Operating Temporary Tap Manual The transmission will only Mode engine power is Shift Mode allow shifting into gears transferred to the front appropriate for the vehicle wheels only, and the AWD To enter Temporary Tap speed and engine revolutions feature is off.
Page 265: Electric Brake Boost
Driving and Operating replace the compact spare Antilock Brake Using ABS with a full-size tire as soon as System (ABS) Do not pump the brakes. Just possible. See Compact Spare hold the brake pedal down Tire 0 404. The Antilock Brake System firmly.
Page 266 Driving and Operating The Electric Parking Brake 2. Press the EPB switch If the EPB is applied while the (EPB) can always be applied, momentarily. vehicle is moving, the vehicle even if the vehicle is off. In will decelerate as long as the The red parking brake status case of insufficient electrical switch is pressed.
Page 267: Brake Assist
Driving and Operating The EPB is released when the Automatic EPB Release Hill Start Assist (HSA) red parking brake status light The EPB will automatically is off. Warning release if the vehicle is If the amber service parking running, placed into gear, and Do not rely on the HSA brake warning light is on, an attempt is made to drive...
Page 268: Ride Control Systems
Driving and Operating release under other TCS activates if it senses that disengage. Cruise control may conditions. Do not rely on HSA any of the drive wheels are be turned back on when road to hold the vehicle. spinning or beginning to lose conditions allow.
Page 269 Driving and Operating 2. Turn the engine off and Caution wait 15 seconds. Do not repeatedly brake or 3. Start the engine. accelerate heavily when TCS Drive the vehicle. If comes is off. The vehicle driveline on and stays on, the vehicle could be damaged.
Page 270: Driver Mode Control
Driving and Operating If the vehicle is in Tour or AWD Tour Mode : Use for normal Off light come on and stay Mode, it will stay in that mode city and highway driving to on in the instrument cluster. through future ignition cycles.
Page 271: Cruise Control
Driving and Operating Sport Mode modifies steering off-road use. This mode Warning (Continued) efforts, transmission shifting, modifies pedal mapping, AWD, and AWD torque, if equipped. ESC, and TCS Performance. steady speed. Do not use cruise control on winding The Performance Algorithm Snow/Ice Mode : Snow/Ice roads or in heavy traffic.
Page 272 Driving and Operating If the Traction Control System on the speedometer, press the (TCS) or StabiliTrak/Electronic thumbwheel up to the second Stability Control (ESC) begins detent. to limit wheel spin while using SET : Move the thumbwheel cruise control, the cruise down briefly to set the speed control automatically and activate cruise control.
Page 273 Driving and Operating 2. Get up to the desired thumbwheel up toward RES+ The speedometer reading can speed. briefly. The vehicle returns to be displayed in either English the previous set speed. or metric units. See 3. Move the thumbwheel Instrument Cluster 0 119.
Page 274: Adaptive Cruise Control
Driving and Operating The cruise control system may the steepness of the hills. Adaptive Cruise automatically brake to slow When going up steep hills, you Control (Advanced) the vehicle down. might have to step on the accelerator pedal to maintain If equipped with Adaptive The speedometer reading can your speed.
Page 275 Driving and Operating Stability Control (ESC) system Warning Warning activates, the ACC may automatically disengage. See ACC has limited braking ACC will not detect or brake Traction Control/Electronic ability and may not have for children, pedestrians, Stability Control 0 267. When time to slow the vehicle animals, or other objects.
Page 276 Driving and Operating SET : Press briefly to set the speed and activate ACC or to decrease vehicle speed if ACC is already activated. To decrease speed by 1 km/h (1 mph), press SET to the first detent. To decrease speed to ACC Indicator Regular Cruise the next 5 km/h (5 mph) mark Control...
Page 277 Driving and Operating ACC will not set at a speed The ACC indicator displays on Warning less than 25 km/h (15 mph), the instrument cluster and although it can be resumed Head-Up Display (HUD), Always check the cruise when driving at lower speeds. if equipped.
Page 278 Driving and Operating If stopped with the brake brake pedal. ACC will hold cruise at the higher speed. applied, press RES+ until the the vehicle until RES+ or the When the accelerator pedal desired set speed is accelerator pedal is pressed. is pressed, ACC will not displayed.
Page 279 Driving and Operating If stopped with the brake Reducing Speed While ACC is faster the vehicle speed, the applied, press or hold SET at a Set Speed further back your vehicle will until the desired set speed is follow a vehicle detected If ACC is already activated, do displayed.
Page 280 Driving and Operating Approaching and Following a braking is active, the brake Vehicle lamps will come on. The automatic braking may feel or sound different than if the brakes were applied manually. This is normal. Without Head-Up Display Passing a Vehicle While Using ACC If ACC is engaged, driver If the set speed is high...
Page 281 Driving and Operating The Traction Control System Warning (Continued) Warning (Continued) (TCS) or StabiliTrak/ESC system has activated or change. Always be ready to required while driving and been disabled. manually accelerate or brake you should be ready to take There is a fault in the to complete the pass or lane action and apply the brakes.
Page 282 Driving and Operating Notification to Resume ACC more than two minutes or if Warning the driver door is opened and ACC will maintain a follow gap the driver seat belt is Leaving the vehicle without behind a detected vehicle and unbuckled, the ACC placing it in P (Park) can be slow your vehicle to a stop...
Page 283 Driving and Operating Warning (Continued) Warning on the accelerator pedal. On curves, ACC may You could crash into a respond to a vehicle in vehicle ahead of you. another lane, or may not have time to react to a Curves in the Road vehicle in your lane.
Page 284 Driving and Operating ACC may occasionally provide Objects Not Directly in Front Do not use ACC when driving an alert and/or braking that is of Your Vehicle on steep hills as ACC may not considered unnecessary. detect a vehicle ahead. The detection of objects in It could respond to vehicles in front of the vehicle may not be...
Page 285: Driver Assistance
Driving and Operating such as a canoe, kayak, For cleaning instructions, see Warning or other items that can be Washing the Vehicle under transported on a roof rack Exterior Care 0 412. Camera visibility may be system. See Roof Rack limited and the ACC system System 0 106.
Page 286 Driving and Operating display the list of available Warning (Continued) Warning (Continued) options and select Comfort and Convenience . Work if the detection Under many conditions, sensor viewing zone is these systems will not: If equipped with the Safety interrupted by an installed Alert Seat, the driver seat Detect children, accessory, such as a bike...
Page 287: Assistance Systems For Parking Or Backing
Driving and Operating Front camera lens in the (FRPA), Enhanced Automatic front grille or near the front Parking Assist (APA), Backing emblem Warning and Reverse Automatic Braking (RAB) Front side and rear side System, and Rear Cross panels Traffic Alert (RCTA) may help Outside of the windshield in the driver park or avoid front of the rearview mirror...
Page 288: Surround Vision
Driving and Operating Displayed images may be Warning (Continued) farther or closer than they appear. The area displayed is using only these camera(s). limited and objects that are Always check behind and close to either corner of the around the vehicle before bumper or under the bumper driving.
Page 289 Driving and Operating sooner, when not in Warning R (Reverse) press Home or Back on the infotainment The camera(s) do not display system, shift into P (Park), children, pedestrians, or reach a vehicle speed of bicyclists, crossing traffic, approximately 12 km/h (8 mph) animals, or any other object while in D (Drive).
Page 290: Park Assist
Driving and Operating Camera Views If equipped, the front view Top Down View : Displays an camera also displays when the image of the area surrounding Park Assist system detects an the vehicle, along with other object within 30 cm (12 in). views in the infotainment display.
Page 291 Driving and Operating behind and 1.2 m (4 ft) in front will sound from the front or Warning (Continued) of your vehicle that are taller rear (depending on the than 25 cm (10 in). object's location), or the than 9 km/h (6 mph). To driver's seat will pulse five prevent injury, death, Different environmental...
Page 292: Automatic Parking
Driving and Operating The Park Assist sensors may The bumper is damaged. button is used to turn be covered by frost or ice. Take the vehicle to your on or off the Park Assist, Frost or ice can form around dealer for repairs.
Page 293 Driving and Operating acceleration and gear shifting mode between parallel and Warning (Continued) as needed. The driver must perpendicular press and hold always be prepared to apply vehicle, or a person or while searching for a valid braking or additional object entering the parking parking spot or, if available, acceleration, as needed.
Page 294 Driving and Operating APA selects the nearest A progress arrow displays the empty parking spot behind the status of the parking vehicle, but under some maneuver. Once automatic conditions may select a space parking is finished and the vehicle has come to a full stop, that is further back.
Page 295: Reverse Automatic
Driving and Operating The maximum allowed speed Always detect short curbs. and RAB may automatically is exceeded. brake hard at speeds between Operate while towing any 1 32 km/h (0.5 20 mph). There is a failure with the trailer. APA system. Function the vehicle is raised The Backing Warning System Electronic stability control or...
Page 296 Driving and Operating Pressing the brake pedal after Warning (Continued) Warning the vehicle comes to a stop will release RAB. If the brake backing speeds, there may RAB may not avoid many pedal is not pressed soon not be enough time for the types of backing crashes.
Page 297: Rear Pedestrian Alert
Driving and Operating Unexpected braking events When a pedestrian is detected Warning (Continued) are possible with a static within the system s range installed accessory, such as a directly behind the vehicle, this The pedestrian is not bike rack or hitch-mounted symbol flashes amber on the directly behind the vehicle, cargo carrier.
Page 298: Rear Cross Traffic Alert (Rcta) System
Driving and Operating infotainment display to warn Assistance Systems Warning (Continued) of traffic coming from the left for Driving or right. This system detects apply the brakes. See objects coming from up to If equipped, when driving the Defensive Driving 0 230. 20 m (65 ft) from the left or vehicle in a forward gear, Keep the RVC, taillamps, and...
Page 299 Driving and Operating FCA detects vehicles within a display green. Vehicles may Warning (Continued) distance of approximately not be detected on curves, 60 m (197 ft) and operates at highway exit ramps, or hills, or other objects. Be ready to speeds above 8 km/h (5 mph).
Page 300 Driving and Operating Safety Alert Seat will pulse The Collision Alert control is Warning (Continued) five times. When this Collision on the steering wheel. Press Alert occurs, the brake system windshield, headlamps, and to set the FCA timing to may prepare for driver braking FCA sensors clean and in Far, Medium, or Near.
Page 301: Automatic Emergency
Driving and Operating Clean the outside of the Following Distance detected. Vehicle detection is windshield in front of the shown by the Forward Indicator rearview mirror. Collision Alert (FCA) vehicle The following distance to a ahead indicator being lit. See Clean the entire front of the moving vehicle ahead in your Forward Collision Alert (FCA)
Page 302 Driving and Operating AEB may slow the vehicle to a Minor brake pedal pulsations Warning (Continued) complete stop to try to avoid a or pedal movement during this potential crash. If this time is normal and the brake AEB may not: happens, AEB may engage the pedal should continue to be Electric Parking Brake (EPB)
Page 303: Front Pedestrian Braking (Fpb) System
Driving and Operating crashes with nearby 40 m (131 ft). During nighttime Warning pedestrians when driving in a driving, system performance is forward gear. FPB displays an very limited. Using AEB or IBA while amber indicator, , when a towing a trailer could cause Warning nearby pedestrian is detected you to lose control of the...
Page 304 Driving and Operating pedestrian. When a pedestrian will pulse five times. When this Warning (Continued) that may enter the vehicle s Pedestrian Alert occurs, the forward path is detected, the brake system may prepare for Be ready to take action and pedestrian ahead indicator will driver braking to occur more apply the brakes.
Page 305: Side Blind Zone
Driving and Operating If this happens, Automatic settings from the infotainment blind zone, or blind spot areas. Braking may engage the screen, touch Settings > When the vehicle is in a Electric Parking Brake (EPB) Vehicle > Collision/Detection forward gear, the left or right to hold the vehicle at a stop.
Page 306 Driving and Operating corresponding outside side LCA Detection Zones How the System Works mirror and will flash if the turn The LCA symbol lights up in signal is on. the side mirrors when the system detects a moving Warning vehicle in the next lane over LCA does not alert the that is in the side blind zone or driver to vehicles outside of...
Page 307 Driving and Operating light up if a moving vehicle is highway road with traffic and to guardrails, signs, trees, detected in the next lane over roadside objects (e.g., shrubs, and other non-moving in that blind zone or rapidly guardrails, barriers). objects.
Page 308: Lane Keep
Driving and Operating Lane Keep actively steering. LKA can be Warning (Continued) overridden by turning the Assist (LKA) steering wheel. If the system can occur if the windshield detects you are steering If equipped, LKA may help or headlamps are blocked intentionally across a lane avoid crashes due to by dirt, snow, or ice;...
Page 309 Driving and Operating LKA is on and turns off when Warning (Continued) Warning (Continued) LKA is disabled. In some vehicles a long press of over headlamps, and camera while towing to make sure it three seconds is required to sensors clean and in good is within the same lane as turn LKA off.
Page 310: Top Tier Fuel
Driving and Operating Take Steering If the LKA system is not This is normal system functioning properly when lane operation; the vehicle does not The LKA system does not markings are clearly visible, need service. Turn LKA off if continuously steer the vehicle. cleaning the windshield these conditions continue.
Page 311: Recommended Fuel
Driving and Operating 87 may be used, but will result Caution (Continued) in reduced performance and Fuel with any amount of driveability. If heavy knocking methanol, methylal, is heard when using gasoline ferrocene, and aniline. rated at 91 or greater, the These fuels can corrode engine needs service.
Page 312: Fuels In Foreign
Driving and Operating Fuels in Foreign Filling the Tank Warning (Continued) Countries An arrow on the fuel gauge Do not re-enter the indicates which side of the vehicle while pumping fuel. The U.S., Canada, and Mexico vehicle the fuel door is on. See post fuel octane ratings in Keep children away from Fuel Gauge 0 122.
Page 313 Driving and Operating Filling the Tank with a Warning (Continued) Portable Fuel Container Vehicle performance If the vehicle runs out of fuel issues, including engine and must be filled from a stalling and damage to the portable fuel container: fuel system. Fuel spills.
Page 314: Filling A Portable Fuel
Driving and Operating trailering dealer for assistance Warning (Continued) Warning (Continued) with preparing the vehicle to tow a trailer. Read the entire Do not fill a container others could be badly while it is inside a vehicle, section before towing a trailer. burned and the vehicle could in a vehicle's trunk, in a be damaged.
Page 315: Driving Characteristics And Towing Tips
Driving and Operating State laws may require the Driving Driving with a Trailer use of extended side view Characteristics and Trailering is different than just mirrors. If your visibility is driving the vehicle by itself. Towing Tips limited or restricted while Trailering means changes in towing, install extended side handling, acceleration, braking,...
Page 316 Driving and Operating If equipped, the following trailer is towed. Use caution Warning (Continued) driver assistance features while changing lanes when should be turned off when towing a trailer. Adjust the climate control towing a trailer: system to a setting that If equipped with Rear Cross brings in only outside air.
Page 317 Driving and Operating attachments, safety chains, without a trailer. This can help Making Turns electrical connectors, lamps, to avoid heavy braking and Caution tires, and mirrors. See Towing sudden turns. Equipment 0 322. If the trailer Turn more slowly and make Passing has electric brakes, start the wider arcs when towing a...
Page 318 Driving and Operating The vehicle can tow in Parking on Hills 5. Release the brake pedal. D (Drive). Shift the Leaving After Parking on transmission to a lower gear if Warning a Hill the transmission shifts too To prevent serious injury or often under heavy loads and/ 1.
Page 319 Driving and Operating cooling system, and brake Trailering is different than just Trailer Weight Ratings system before and during driving the vehicle by itself. When towing a trailer, the each trip. Trailering means changes in combined weight of the handling, acceleration, braking, Check periodically that all nuts vehicle, vehicle contents, durability, and fuel economy.
Page 320 Driving and Operating See Weight-Distributing Hitch Gross Vehicle Weight Warning (Continued) Adjustment under Towing Rating (GVWR) Equipment 0 322 to determine and the repairs would not be For information about the if equalizer bars are required covered by the vehicle vehicle's maximum load to obtain the maximum trailer warranty.
Page 321 Driving and Operating Maximum Trailer Maximum Vehicle Weight GCWR* Tongue Weight 2.0L L4 Gas Engine (LSY) 1 134 kg (2,500 lb) 3 150 kg (6,945 lb) 113 kg (250 lb) 2.0L L4 Gas Engine (LSY) with 1 588 kg (3,500 lb) 3 600 kg 159 kg (350 lb) Heavy Duty Cooling System (V08)
Page 322 Driving and Operating After loading the trailer, maximum allowable tongue separately weigh the trailer weight for the vehicle or and then the trailer tongue to 227 kg (500 lb), whichever see if the weights are is less. appropriate for your vehicle. Ask your dealer for trailering If the trailer weight is too high, information or assistance.
Page 323 Driving and Operating Towing Equipment Never attach rental hitches or To reinstall the hitch cover: other bumper-type hitches. 1. Hold cover at a 45 degree Hitches Only use frame-mounted angle to the vehicle and hitches that do not attach to push the upper tabs into Always use the correct hitch the bumper.
Page 324 Driving and Operating Tires must be properly brakes for each axle. Trailer vehicle's frame. The harness inflated to support loads braking equipment conforming connector can be plugged into while towing a trailer. See to Canadian Standards a trailer connector available Tires 0 364 for instructions Association (CSA) requirement through your dealer.
Page 325 Driving and Operating Control (TSC) feature. Trailer If trailer sway continues, Warning (Continued) sway is unintended StabiliTrak/ESC can reduce side-to-side motion of a trailer engine torque to help slow the or trailer tires. See Towing while towing. If the vehicle is vehicle.
Page 326 Driving and Operating manufacturers recommend Conversions and Caution replacing tires more than six Add-Ons Some electrical equipment years old. can damage the vehicle or Overloading is another leading Add-On Electrical cause components to not cause of trailer tire blow-outs. Equipment work and would not be Never load your trailer with covered by the vehicle...
Page 327: Vehicle Care
Vehicle Care Vehicle Care Battery - North Wheels and Tires America ..... 346 Tires ......364 All-Wheel Drive .
Page 328: General Information
Vehicle Care If a Tire Goes Flat ..389 General California Perchlorate Tire Sealant and Materials Information Compressor Kit ..390 Requirements Storing the Tire Sealant For service and parts needs, and Compressor Kit .
Page 329: Vehicle Checks
Vehicle Care traction control, and stability genuine GM Accessories If doing some of your own control. These accessories or installed by a dealer service work, use the proper modifications could even technician. service manual. It tells you cause malfunction or damage much more about how to Also, see Adding Equipment to not covered by the vehicle...
Page 330: Hood
Vehicle Care Caution Warning Even small amounts of Components under the hood contamination can cause can get hot from running the damage to vehicle systems. engine. To help avoid the Do not allow contaminants risk of burning unprotected to contact the fluids, skin, never touch these reservoir caps, or dipsticks.
Page 331 Vehicle Care To close the hood: Warning 1. Before closing the hood, Do not drive the vehicle if be sure all filler caps are on the hood is not latched properly, and all tools are completely. The hood could removed. open fully, block your vision, 2.
Page 332: Overview
Vehicle Care Engine Compartment Overview...
Page 333: Engine Compartment
Vehicle Care Always dispose of engine oil 1. Engine Air Cleaner/Filter 11. Remote Negative (-) properly. See What to Do 0 337. Battery Terminal. See with Used Oil in this section. Jump Starting - North 2. Engine Oil Fill Cap. See America 0 404.
Page 334 Vehicle Care been off for at least two When to Add Engine Oil Caution (Continued) hours. Checking the engine harmful to the engine. If the oil level on steep grades or oil level is above the too soon after engine operating range (i.e., the shutoff can result in incorrect readings.
Page 335 Vehicle Care Selecting the Right Engine oil system flushes are Caution not recommended and could Engine Oil Failure to use the cause engine damage not Selecting the right engine oil recommended engine oil or covered by the vehicle depends on both the proper equivalent can result in warranty.
Page 336: Engine Oil Life System
Vehicle Care bodies of water. Recycle it by SOON message comes on. How to Reset the Engine taking it to a place that Change the oil as soon as Oil Life System collects used oil. possible within the next Reset the system whenever 1 000 km (600 mi).
Page 337: Automatic Transmission
Vehicle Care It cannot be reset When to Change Engine Caution (Continued) accurately until the next oil Air Filter warranty. Always use the change. When the Driver Information correct automatic The system is reset when the Center (DIC) displays a transmission fluid.
Page 338: Engine Air Cleaner
Vehicle Care If driving in very dusty areas, To inspect or replace the 3. Press on the steering follow the engine air filter engine air cleaner/filter: wheel to move to the inspecting and changing Reset/Disable display area. intervals, see Maintenance Select Reset then press Schedule 0 425.
Page 339: Cooling System
Vehicle Care Warning (Continued) Warning (Continued) equivalent part. Use of a the vehicle with the air replacement part without cleaner/filter off, as flames the same fit, form, and may be present if the engine function may result in backfires. personal injury or damage to the vehicle.
Page 340 Vehicle Care Helps keep the proper What to Use Warning engine temperature. Do not touch heater or Warning Caution radiator hoses, or other Do not touch heater or Do not use anything other engine parts. They can be radiator hoses, or other than a mix of DEX-COOL very hot and can burn you.
Page 341 Vehicle Care Checking Coolant the cooling system is cool Warning (Continued) before this is done. See The vehicle must be on a level Engine Overheating 0 342. you could be burned. Never surface when checking the turn the cap when the The coolant surge tank is in coolant level.
Page 342 Vehicle Care 3. If topping off the level in To activate the fill and air the coolant surge tank, add removal process: the proper mixture until 1. With a cold system, add the level reaches the mark coolant to the indicated on the front of the tank mark on the surge tank.
Page 343: Engine Overheating
Vehicle Care Listen for pump activation and If the decision is made to lift Warning (Continued) movement of the control the hood, make sure the valves while watching the level vehicle is parked on a level little, can cause them to of the coolant in the surge surface.
Page 344: Washer Fluid
Vehicle Care If the overheat warning is If the warning continues, pull displayed with no sign of over, stop, and park the steam: vehicle right away. 1. Turn the air If there is no sign of steam, conditioning off. idle the engine for three minutes while parked.
Page 345: Brakes
Vehicle Care proper sequence to torque Caution (Continued) Warning specifications. See Capacities damage the washer fluid and Specifications 0 433. The brake wear warning tank and other parts of sound means that soon the Brake pads should be replaced the washer system. brakes will not work well.
Page 346: Brake Fluid
Vehicle Care A fluid leak in the brake Brake Fluid Warning (Continued) hydraulic system. Have the brake hydraulic system fixed. damaged. Add brake fluid With a leak, the brakes will only when work is done on not work well. the brake hydraulic system. Always clean the brake fluid When the brake fluid falls to a reservoir cap and the area...
Page 347: Battery - North
Vehicle Care Refer to the replacement Warning (Continued) Warning number on the original battery label when a new battery is The wrong or contaminated California to cause cancer needed. For replacement of brake fluid could result in and birth defects or other the battery, see your dealer.
Page 348: All-Wheel Drive
Vehicle Care Park Brake and Do this until the vehicle is Warning (Continued) held by the parking P (Park) Mechanism brake only. See Jump Starting - North Check America 0 404 for tips on To check the P (Park) mechanism's holding ability: working around a battery Warning With the engine running,...
Page 349 Vehicle Care Rear Wiper Blade Caution Replacement Allowing the wiper arm to To remove the wiper blade: touch the windshield when no wiper blade is installed could damage the windshield. Any damage that occurs would not be covered by the vehicle warranty.
Page 350: Replacement
Vehicle Care 5. Push the new blade systems to work properly. If it Warning (Continued) assembly securely on the is not, there may be wiper arm until the release unexpected behavior and/or could be seriously injured. lever clicks into place. messages from these Take the vehicle to your systems.
Page 351: Headlamp Aiming
Vehicle Care Bulb Replacement For the proper type of replacement bulbs, or any bulb changing procedure not listed in this section, contact your dealer. Caution Do not replace incandescent bulbs with aftermarket LED replacement bulbs. This can cause damage to the vehicle Hood Liftgate electrical system.
Page 352: Back-Up Lamps
Vehicle Care Base level 5. Replace the bulb and reverse Steps 1 4 to To replace one of these lamps: reinstall. 1. Turn steering wheel in Back-Up Lamps opposite direction as the bulb in need of replacing. 2. Remove fasteners retaining the front wheel liner.
Page 353: Electrical System Electrical System
Vehicle Care When the current electrical load is too heavy, the circuit breaker opens and closes, protecting the circuit until the current load returns to normal or the problem is fixed. This greatly reduces the chance of circuit overload and fire caused by electrical problems.
Page 354: Fuses And Circuit
Vehicle Care 2. Locate the fuse puller in 3. Use the fuse puller to Windshield Wipers the engine compartment remove the fuse from the If the wiper motor overheats fuse block. top or side, as shown due to heavy snow or ice, the above.
Page 355: Fuse Block
Vehicle Care Warning (Continued) Danger Fuses and circuit breakers or others could be injured or are marked with killed, and the vehicle could their ampere rating. Do not be damaged. exceed the See Accessories and specified amperage rating Modifications 0 327 and when replacing fuses and General Information 0 327.
Page 356 Vehicle Care To remove the fuse block cover, press the clips on the cover and lift it straight up. The vehicle may not be equipped with all of the fuses, relays, and features shown. Fuses Usage Fuses Usage EBCM Electronic Brake Control Module...
Page 357 Vehicle Care Fuses Usage Fuses Usage Fuses Usage TRLR ST/TRN LT OSRVM DEFOG Sunroof Power Left Trailer Outside Rear Sunroof View Mirrors Stop/Turn Lamp Defogger Memory Seat Module PEPS Passive TCM IGN Driver and Entry Passive Transmission Passenger Start Module Control Module FRT WIPERS Ignition...
Page 358 Vehicle Care Fuses Usage Fuses Usage Fuses Usage Rear Wipers HFCR MDL/LGM/ FRT 1/HTD/VENT Rear Wiper WNDW SW ST/RR HTD ST/ Handsfree Spare Front Closure Release Heated Seat Miscellaneous 2 Module/Liftgate Power Feed 1/ Fuel Tank Zone Module/Driver Front Vented Module Run/ and Passenger Seats/Rear...
Page 359 Vehicle Care Fuses Usage Fuses Usage Fuses Usage Spare Spare Horn Spare Spare WASH PUMPS Front and Rear Spare Washer Pumps STARTER TRLR PRK LAMP Engine MOTOR Starter TRAILER PARK Control Module Motor LAMPS Battery/Spare STRTR PINION IGNITION COILS STARTER HDLP HI BEAM Ignition Coils PINION...
Page 360 Vehicle Care Fuses Usage Fuses Usage Relays Usage Miscellaneous 3 REAR Canister Purge DEFOGGER Rear Defogger/ Solenoid/ AEROSHUTTER/ Step Cam Outside Rear Spare Exhaust Solenoid View Mirrors Aeroshutter Cylinder 2 and 3/ Defogger Step Cam Intake Front Wiper Cylinder Control Solenoids/Turbo Run/Crank Bypass Solenoid/...
Page 361: Block
Vehicle Care the steering wheel and the Relays Usage door. To access the fuses, remove the panel, starting at the top. Once clips are disengaged, the tabs along the bottom of the door can be Instrument Panel disengaged from the Fuse Block instrument panel to remove the door.
Page 362 Vehicle Care Fuses Usage HTD SEAT RR 2 Not Used BCM 3 Body Control Module 3 LED Headlamp Low Beam Right Control Signal, Right Front Turn Lamp Control Signal, Left Front Side Marker and Auxiliary Park, Left Rear Tail/Side Marker Control Signal, Left Daytime Running Lamps Control Signal...
Page 363 Vehicle Care Fuses Usage Fuses Usage Fuses Usage BCM 2 SS Body Amplifier BCM 4 Body Control Module 2 Control Module 4 LED Headlamp Low (Stop/Start) Interior Video Lamps Control Signal, Beam Left Control Processing Module Door Handle Puddle Signal, Right Front Lamp (LED), Left Side Marker and Cornering Lamp,...
Page 364 Vehicle Care Fuses Usage Fuses Usage Fuses Usage Data Link HVAC Heating OBS DET Long Connector Ventilation and Air Range Radar Sensor/ Conditioning Control Ultrasonic Park Module Assist Module/ Camera Module/ Central External Object Gateway Module Calculating Module/ BCM 8 Body HEATED SW Side Blind Zone Alert...
Page 365: Tires
Vehicle Care Wheels and Tires Fuses Usage Fuses Usage BCM 1 SS Body Radio Tires Control Module 1 APO CNSL Console (Stop/Start) Every new GM vehicle has Auxiliary Power Indicator Lighting high-quality tires made by a Outlet (Circuit Control, Accessory leading tire manufacturer.
Page 366: All-Season Tires
Vehicle Care All-Season Tires Warning (Continued) Warning (Continued) This vehicle may come with Underinflated tires Replace any tires that all-season tires. These tires pose the same danger have been damaged by are designed to provide good as overloaded tires. The impacts with potholes, overall performance on most resulting crash could...
Page 367: Winter Tires
Vehicle Care Use only radial ply tires of Winter Tires approximately 5 °C (40 °F) or the same size, load range, on ice or snow covered roads This vehicle was not originally and speed rating as the is expected. See Winter Tires equipped with winter tires.
Page 368: Tire Sidewall Labeling
Vehicle Care (1) Tire Size The tire size Department of Caution (Continued) is a combination of letters Transportation Motor on the tires. Always inspect and numbers used to Vehicle Safety Standards. tires before use. See Tire define a particular tire's DOT Tire Date of Inspection 0 380.
Page 369 Vehicle Care and date the tire was spare tire, see Compact manufactured. The TIN is Spare Tire 0 404 and molded onto both sides of If a Tire Goes Flat 0 389. the tire, although only one (3) Tire Identification side may have the date of Number (TIN) The letters...
Page 370: Tire Designations
Vehicle Care (5) Tire Inflation GM's TPC specifications (2) Tire Width The 3-digit temporary use tire or meet or exceed all federal number indicates the tire compact spare tire should safety guidelines. section width in millimeters be inflated to 420 kPa from sidewall to sidewall.
Page 371: Tire Terminology And Definitions
Vehicle Care (6) Service Description Belt A rubber coated layer DOT Markings A code These characters of cords that is located molded into the sidewall of represent the load index between the plies and the a tire signifying that the and speed rating of the tread.
Page 372 Vehicle Care Intended Outboard Maximum Load Rating Passenger (P-Metric) Sidewall The side of an The load rating for a tire at Tire A tire used on asymmetrical tire, that the maximum permissible passenger cars and some must always face outward inflation pressure for light duty trucks and when mounted on a vehicle.
Page 373: Tire Pressure
Vehicle Care Speed Rating temperature, and and the original equipment alphanumeric code treadwear. Ratings are tire size and recommended assigned to a tire indicating determined by tire inflation pressure. See Tire the maximum speed at manufacturers using and Loading Information which a tire can operate.
Page 374 Vehicle Care recommended pressure is How to Check Warning (Continued) the minimum air pressure Use a good quality Reduced fuel economy needed to support the pocket-type gauge to for internal combustion vehicle's maximum load check tire pressure. Proper engine vehicles carrying capacity.
Page 375: Tire Pressure For
Vehicle Care pressure is low, add air Vehicles with tire sizes listed Warning (Continued) in the High Speed Operation until the recommended Inflation Pressures table on tires. Sustained pressure is reached. If the require inflation pressure high-speed driving causes inflation pressure is high, adjustment when driving the excessive heat buildup and press on the metal stem in...
Page 376: System
Vehicle Care High Speed Operation Inflation Pressures Tire Size Cold Inflation Pressure kPa (psi) 235/55R18 260 kPa (38 psi) 245/45R20 260 kPa (38 psi) Return the tires to the and inflated to the inflation Accordingly, when the low tire recommended cold tire pressure recommended by the pressure telltale illuminates, inflation pressure when...
Page 377: Tire Pressure Monitor
Vehicle Care reached the level to trigger TPMS from functioning transmit the tire pressure illumination of the TPMS low properly. Always check the readings to a receiver located tire pressure telltale. TPMS malfunction telltale in the vehicle. after replacing one or more Your vehicle has also been tires or wheels on your vehicle equipped with a TPMS...
Page 378 Vehicle Care Using the DIC, tire pressure The TPMS can warn about a sensors. See Tire Sealant and levels can be viewed. For low tire pressure condition but Compressor Kit 0 390 for additional information and it does not replace normal tire information regarding the details about the DIC maintenance.
Page 379 Vehicle Care and DIC message should go those recommended could 2. Set the parking brake off after the road tire is prevent the TPMS from firmly. replaced and the sensor functioning properly. See 3. Place the vehicle in matching process is Buying New Tires 0 383.
Page 380 Vehicle Care The air pressure from the If the tire is overinflated by or more of the TPMS sensors. inflation device is not more than 35 kPa (5 psi), the The TPMS sensor matching sufficient to inflate the tire. horn will sound multiple times process should also be and the turn signal lamp will performed after replacing a...
Page 381: Tire Inspection
Vehicle Care wheel positions. If it takes The horn sounds twice to has been matched to the longer, the matching process signal the receiver is in driver side rear tire, and stops and must be restarted. relearn mode and the TIRE the TPMS sensor matching LEARNING ACTIVE process is no longer active.
Page 382: Tire Rotation
Vehicle Care There is cord or fabric Tires are rotated to showing through the achieve a more uniform tire's rubber. wear for all tires. The first rotation is the most The tread or sidewall is important. cracked, cut, or snagged deep enough to show Anytime unusual wear is cord or fabric.
Page 383: When It Is Time For New
Vehicle Care Reset the Tire Pressure When It Is Time for Warning (Continued) Monitor System. See Tire New Tires paper towel can be used; Pressure Monitor Factors, such as maintenance, however, use a scraper Operation 0 376. temperatures, driving speeds, or wire brush later to Check that all wheel nuts vehicle loading, and road...
Page 384: Buying New Tires
Vehicle Care The rubber in tires ages over Vehicle Storage Specification (TPC Spec) time. This also applies to the system rating. When Tires age when stored spare tire, if the vehicle has replacement tires are normally mounted on a parked one, even if it is never used.
Page 385 Vehicle Care GM recommends replacing Warning (Continued) Warning worn tires in complete sets cause injury or death. Using bias-ply tires on of four. Uniform tread Only your dealer or the vehicle may cause the depth on all tires will help authorized tire service wheel rim flanges to to maintain the...
Page 386: Different Size Tires And Wheels
Vehicle Care range, speed rating, and which grades tires by Warning construction (radial) as the treadwear, traction, and If different sized wheels are original tires. temperature performance. used, there may not be an This applies only to The Tire and Loading acceptable level of vehicles sold in the United Information label indicates...
Page 387 Vehicle Care Quality grades can be depends upon the actual cornering, hydroplaning, found where applicable on conditions of their use, or peak traction the tire sidewall between however, and may depart characteristics. tread shoulder and significantly from the norm Temperature maximum section width.
Page 388: Wheel Alignment And Tire
Vehicle Care represent higher levels of vehicle is significantly pulling offset, and be mounted the to one side or the other. Some same way as the one it performance on the slight pull to the left or right, replaces. laboratory test wheel than depending on the crown of the the minimum required by Replace wheels, wheel bolts,...
Page 389: Tire Chains
Vehicle Care Caution Warning (Continued) Warning (Continued) If the vehicle is equipped it has been driven may be not enough clearance. Tire with a tire size other than unknown. It could fail chains used on a vehicle 235/60R18 or 245/45R20, suddenly and cause a crash.
Page 390: If A Tire Goes Flat
Vehicle Care Stop pressing the accelerator Caution (Continued) Warning pedal and steer to straighten too fast or spinning the the vehicle. It may be very Lifting a vehicle and getting wheels with chains on will bumpy and noisy. Gently brake under it to do maintenance damage the vehicle.
Page 391: Tire Sealant And Compressor Kit
Vehicle Care environment (shoulder slope, Warning (Continued) road debris, etc.). Removal of some weight may improve the 5. Place wheel blocks, ability to fit the jack under the if equipped, on both sides vehicle at the correct jacking of the tire at the location.
Page 392 Vehicle Care sealant and compressor kit to Warning (Continued) Warning (Continued) be effective. See Roadside Assistance Program 0 439. unconsciousness and even compartment of the vehicle death. Never run the engine could cause injury. In a Read and follow all of the tire in an enclosed area that has sudden stop or collision, sealant and compressor kit...
Page 393 Vehicle Care 7. Pressure Deflation Button date. Replacement tire sealant Do not remove any objects canisters are available at your that have penetrated the tire. 8. Pressure Gauge local dealer. 1. Remove the tire sealant canister (4) and There is only enough sealant compressor from its to seal one tire.
Page 394 Vehicle Care 4. Attach the air only hose 6. Remove the valve stem If the vehicle has an (10) to the sealant canister cap from the flat tire by accessory power outlet, do inlet valve (1) by turning it turning it not use the cigarette clockwise until tight.
Page 395 Vehicle Care and start to rise again as 13. Unplug the power plug (9) Caution (Continued) the tire inflates with from the accessory power should not be driven farther. air only. outlet in the vehicle. The tire is too severely 11.
Page 396 Vehicle Care 23. Stop at a safe location and 24. Wipe off any sealant from check the tire pressure. the wheel, tire, or vehicle. Refer to Steps 1 10 under 25. Dispose of the used tire Using the Tire Sealant and sealant canister (4) at a Compressor Kit without local dealer or in...
Page 397 Vehicle Care Using the Tire Sealant and 2. Remove the air only hose (10) and the power plug (9) Compressor Kit without from the bottom of the Sealant to Inflate a Tire compressor. (Not Punctured) 3. Place the compressor on The kit includes: the ground near the flat tire.
Page 398 Vehicle Care If the vehicle only has a an accurate pressure 11. Unplug the power plug (9) cigarette lighter, use the reading. The compressor from the accessory power cigarette lighter. may be turned on/off until outlet in the vehicle. the correct pressure is Do not pinch the power 12.
Page 399: Storing The Tire Sealant And Compressor Kit
Vehicle Care Storing the Tire 4. Turn the retainer nut 2. Jack counterclockwise to 3. Strap Sealant and remove the tire sealant 4. Tow Hook (If Equipped) Compressor Kit and compressor kit bag. To access the spare tire and 5. Remove the tire sealant The tire sealant and tools: and compressor kit from...
Page 400 Vehicle Care Removing the Flat Tire and Installing the Spare Tire 1. Do a safety check before proceeding. See If a Tire Goes Flat 0 389. 2. For vehicles equipped with a wheel cover or center cap, pull the cover or center cap away from the wheel to remove it.
Page 401 Vehicle Care Warning (Continued) Warning (Continued) Never get under a vehicle designed only for changing a when it is supported only by flat tire. If it is used for a jack. anything else, you or others could be badly injured or killed if the vehicle slips off Warning the jack.
Page 402 Vehicle Care ground so there is enough Warning (Continued) room for the road tire to clear the ground. cause a crash. When changing a wheel, remove any rust or dirt from places where the wheel attaches to the vehicle. In an emergency, a cloth or paper towel can be used;...
Page 403 Vehicle Care 10. Remove any rust or dirt Caution (Continued) Warning (Continued) from the wheel bolts, torque specification. See mounting surfaces, and wheels to become loose or Capacities and spare wheel. come off. The wheel nuts Specifications 0 433 for the should be tightened with a 11.
Page 404 Vehicle Care When reinstalling the wheel Warning (Continued) cover or center cap on the full-size tire, tighten all five collision, loose equipment plastic caps hand snug with could strike someone. Store the aid of the wheel wrench all these in the proper place. and tighten them with the wheel wrench an additional To store the flat or spare tire...
Page 405: Compact Spare Tire
Vehicle Care Compact Spare Tire the tread of the spare tire, Do not mix the compact spare have the standard tire tire or wheel with other repaired or replaced as soon wheels or tires. They will not Warning as convenient and return the fit.
Page 406 Vehicle Care Caution (Continued) Warning (Continued) Warning cables in the correct order, WARNING: Battery posts, If you do not follow these making sure that the cables terminals and related steps exactly, some or all of do not touch each other or accessories can expose you these things can hurt you.
Page 407 Vehicle Care 4. Discharged Battery 4. Turn the ignition off. Turn Caution (Continued) Negative ( ) Terminal off all lights and 12-volt system with a accessories in both The discharged battery negative ground for jump vehicles, except the hazard positive (+) terminal and the starting.
Page 408: Towing The Vehicle
Vehicle Care 8. Connect the other end of Towing the Warning (Continued) the black negative ( ) cable Vehicle to the discharged battery eyes or on your skin, flush negative ( ) terminal on the the place with water and get Transporting a driver side shock tower.
Page 409 Vehicle Care The vehicle must be in Caution (Continued) Caution (Continued) N (Neutral) and the electric shifter. In the event of a loss surface, or to move the parking brake must be of 12-volt battery power, the vehicle a very short distance released when loading the electric parking brake at a walking pace.
Page 410: Recreational Vehicle
Vehicle Care Front Attachment Points recreational vehicle towing are additional advice and known as dinghy towing and equipment dolly towing. Dinghy towing is recommendations. towing the vehicle with all four If the vehicle is ready to be wheels on the ground. Dolly towed.
Page 411 Vehicle Care Dinghy Towing dolly should be used. See the the EPB amber telltale will following information on dolly begin flashing in the IP towing. cluster. 5. When the indicator flashes Dolly Towing amber, release the EPB within five seconds. Then, push and release the EPB switch and release the brake pedal.
Page 412 Vehicle Care 13. Disconnect the negative (-) 11. Push and hold the EPB terminal connector from switch for 5 seconds. the 12 volt battery. 12. The EPB amber telltale in 14. Close and latch the hood. the IP cluster will go out. 13.
Page 413: Appearance Care
Vehicle Care Appearance Care Remove any accessories that Caution (Continued) may be damaged or interfere products can be obtained with the car wash equipment. Exterior Care from your dealer. Follow all Rinse the vehicle well, before manufacturer directions Locks washing and after, to remove regarding correct product all cleaning agents completely.
Page 414 Vehicle Care Recommend water only. droppings, chemicals from Caution (Continued) industrial chimneys, etc., can A pressure washer may be polishes that are made for a damage the vehicle's finish if used, but care must be utilized. basecoat/clearcoat paint they remain on painted The following criteria must be finish on the vehicle.
Page 415 Vehicle Care Use only approved cleaning Lamp covers are made of Caution solutions for aluminum, plastic, and some have a UV Using wax on low gloss black chrome, or stainless steel. protective coating. Do not finish stripes can increase Some cleaners are highly clean or wipe them when dry.
Page 416 Vehicle Care The vehicle may have a extreme dusty conditions, Caution (Continued) shutter system designed to sand, salt, heat, sun, snow, When applying a tire help improve fuel economy. and ice. dressing, always wipe off Keep the shutter system clear Weatherstrips any overspray from all of debris, snow and ice.
Page 417 Vehicle Care Steering, Suspension, and Underbody Maintenance Caution Chassis Components At least twice a year, spring To avoid surface damage on and fall, use plain water to Visually inspect steering, wheels and wheel trim, do flush any corrosive materials suspension, and chassis not use strong soaps, from the underbody.
Page 418: Interior Care
Vehicle Care Original manufacturer cleaners, read and follow all When using liquid soap replacement parts will provide safety instructions on the cleaners, follow the directions the corrosion protection while label. While cleaning the on the specific cleaner or soap maintaining the vehicle interior, open the doors and solution for dilution warranty.
Page 419 Vehicle Care Interior Glass Coated Moldings Caution (Continued) To clean, use a microfiber Coated moldings should be Do not heavily saturate cloth fabric dampened with cleaned. the upholstery when water. Wipe droplets left cleaning. When lightly soiled, wipe behind with a clean dry cloth. with a sponge or soft, Do not use solvents or If necessary, use a commercial...
Page 420 Vehicle Care To clean: If the soil is not completely Warning (Continued) removed, it may be necessary 1. Saturate a clean, lint-free to use a commercial appearance and feel of the colorfast cloth with water. upholstery cleaner or spot vinyl/rubber and can make Microfiber cloth is lifter.
Page 421 Vehicle Care not use bleach or fabric visibility through the Caution softener. Rinse thoroughly and windshield under certain Soaking or saturating air dry before next use. conditions. leather, especially Caution Caution perforated leather, as well as other interior surfaces, Do not attach a device with Use of air fresheners may may cause permanent a suction cup to the display.
Page 422: Floor Mats
Vehicle Care Use the following guidelines Removing and Replacing Warning for proper floor mat use. the Floor Mats Do not bleach or dye seat The original equipment floor The driver and passenger side belt webbing. It may severely mats were designed for your floor mats are held in place by vehicle.
Page 423 Vehicle Care 3. Make sure the floor mat is properly secured in place. Verify the floor mat does not interfere with the pedals. Cleaning Rubber Floor Mats (All-Weather Mats and Floor Liners) See Vinyl/Rubber under Interior Care 0 417 for important cleaning information.
Page 424: Service And Maintenance
Service and Maintenance Service and General Your dealer recognizes the importance of providing Information Maintenance competitively priced maintenance and repair Your vehicle is an important services. With trained General Information investment. This section technicians, the dealer is the General Information ..423 describes the required place for routine maintenance maintenance for the vehicle.
Page 425 Service and Maintenance Carry passengers and cargo Refer to the information in the Caution (Continued) within recommended limits Maintenance Schedule on the vehicle. The use of on the Tire and Loading Additional Required Services - flushes, solvents, cleaners, Information label. See Severe Service.
Page 426 Service and Maintenance Maintenance Additional Required life system when the oil is changed. See Engine Oil Life Services Normal Schedule System 0 335. Service When the REPLACE AT Tire Rotation and Every 12 000 km (7,500 mi) NEXT OIL CHANGE Required Services Every Check engine oil level and oil message displays, the engine...
Page 427 Service and Maintenance may also be needed if you contaminate the transfer any vehicle that is notice reduced airflow, case fluid. Contaminated consistently used in towing windows fogging up, fluid will decrease the life of trailers or other loads. or odors. Your local GM the transfer case and/or High use commercial Service location can help you...
Page 428 Service and Maintenance For further assistance in the transfer case and/or Multi-Point Vehicle determining the most axles and should be Inspection (MPVI) suitable service maintenance replaced. intervals for your vehicle, A Multi Point Vehicle Owner Checks and please contact your Inspection (MPVI) completed Services authorized GM Dealer.
Page 429 Service and Maintenance Reset tire pressure monitor Starter switch Exterior Lights Check tire sealant expiration Evaporative control system Visual inspection date, if equipped Lubricate Windshield and Wipers Check spare tire, if equipped Chassis components Visual inspection Brakes Special Application Battery Check brake system Battery visual inspection Services...
Page 430 Service and Maintenance Recommended Fluids, Lubricants, and Parts Recommended Fluids and Lubricants Fluids and lubricants identified below by name or specification, including fluids or lubricants not listed here, can be obtained from your dealer. Usage Fluid/Lubricant Automatic Transmission DEXRON-VI Automatic Transmission Fluid. Engine Coolant 50/50 mixture of clean, drinkable water and use only DEX-COOL Coolant.
Page 431 Service and Maintenance Maintenance Replacement Parts Replacement parts identified below by name, part number, or specification can be obtained from your dealer. ACDelco Part GM Part Number Part Number Engine Air Cleaner/Filter 23430313 A3210C Engine Oil Filter 55495105 PF66 Passenger Compartment Air Filter 13508023 CF185 Spark Plugs...
Page 432 Service and Maintenance Maintenance Records After the scheduled services are performed, record the date, odometer reading, who performed the service, and the type of services performed in the boxes provided. Retain all maintenance receipts. Odometer Maintenance Date Serviced By Services Performed Reading Stamp...
Page 433: Technical Data
Technical Data Technical Data Vehicle Engine Specifications under Capacities and Specifications Identification 0 433 for the vehicle's Vehicle Identification engine code. Vehicle Identification Vehicle Identification Service Parts Number (VIN) ....432 Number (VIN) Service Parts Identification...
Page 434 Technical Data Vehicle Data Capacities and Specifications Capacities Application Metric English Air Conditioning Refrigerant For the air conditioning system refrigerant type and charge amount, see the refrigerant label under the hood. See your dealer for more information. Engine Cooling System* 9.4 L 10.0 qt Engine Oil with Filter...
Page 435 Technical Data Engine Specifications Engine VIN Code Transmission Spark Plug Gap 2.0L L4 Turbo Automatic 0.65 0.75 mm (0.026 Engine (LSY) 0.030 in) Spark plug gaps are preset by the manufacturer. Re-gapping the spark plug is not recommended and can damage the spark plug. Engine Drive Belt Routing 2.0L L4 Engine (LSY)
Page 436: Customer Information
Offices ..... . 437 are important to your dealer Customer Assistance for Vehicle Data Recording and to Cadillac. Normally, any Text Telephone (TTY) and Privacy concerns with the sales Users .
Page 437: Customer Information
U.S., call the Cadillac Customer dealer's facility. That is why we prior to filing a court action, Assistance Center at 1-800...
Page 438: Offices
Arbitration Plan (CAMVAP), Two, General Motors of call toll-free 1-800-207-0685, Need more help? Use the Canada Company wants you or call the Cadillac Customer phone numbers or mailing to be aware of its participation Care Centre, 1-888-446-2000, addresses below for additional...
Page 439: Users
Contact the local General to your vehicle. Motors Business Unit. Cadillac Customer Assistance Membership Benefits Center Customer Assistance Cadillac Motor Car Division : Download owner s for Text Telephone P.O. Box 33169 manuals and view Detroit, MI 48232-5169 (TTY) Users vehicle-specific how-to videos.
Page 440: Gm Mobility
View reimbursement, up to certain your GM Rewards Card Service is available 24 hours a limits, of eligible aftermarket earnings and My Cadillac day, 365 days a year. adaptive equipment required Rewards points. for the vehicle, such as hand...
Page 441 Emergency Tow from a Motors North America and vehicle being delivered back Public Road or Highway: Cadillac reserve the right to to the customer, up to Tow to the nearest Cadillac make any changes or 500 miles.
Page 442: Scheduling Service Appointments
Diesel fuel delivery service. You will receive vehicle complete with the may be restricted. Propane payment, up to $100, after necessary Cadillac parts and and other fuels are not sending the original receipt tools required to handle most provided through this to Roadside Assistance.
Page 443: Program
Customer Information If the vehicle cannot be Emission, Extended Shuttle Service scheduled into the service Powertrain or Electric specific This includes one-way or department immediately, keep warranties in both the U.S. and round-trip shuttle service driving it until it can be Canada.
Page 444: Repair
Customer Information vehicle or provide for Additional Program value, and safety performance reimbursement of a rental can be compromised in Information vehicle. Reimbursement is subsequent collisions. All program options, such as limited and must be supported Collision Parts shuttle service, may not be by original receipts as well as available at every dealer.
Page 445 Customer Information the vehicle's originally before you ever need collision equipment collision parts. designed appearance and repairs. Your dealer may have If such insurance coverage is safety performance; however, a collision repair center with not available from your the history of these parts is GM-trained technicians and current insurance carrier, consider switching to another...
Page 446: Information
Customer Information Give only the necessary If the airbag has inflated, see Genuine GM parts. Remember, information to police and other What Will You See after an if the vehicle is leased, you parties involved in the crash. Airbag Inflates? 0 70. may be obligated to have the vehicle repaired with Genuine For emergency towing, see...
Page 447: Radio Frequency
Customer Information suspension, brakes, electrical To order, call 1-800-551-4123 Economic Development (ISED) system, steering system, Monday Friday, 8:00 a.m. Canada's license-exempt body, etc. 6:00 p.m. Eastern Time RSS(s) / RSP-100 / ICES-GEN. For credit card orders only Operation is subject to the Customer Literature (VISA, MasterCard, following two conditions:...
Page 448: Reporting Safety Defects
Customer Information Reporting Safety individual problems Transport Canada between you, your dealer, immediately, and notify Defects or General Motors. General Motors of Canada Company. Call Transport Reporting Safety To contact NHTSA, you Canada at may call the Vehicle Safety Defects to the United 1-800-333-0510;...
Page 449: And Privacy
Cadillac Customer Assistance the vehicle uses computer provide, evaluate, improve, and Center modules to monitor and troubleshoot our products and Cadillac Motor Car Division control engine and services and to develop new P.O. Box 33169 transmission performance, to products and services. The...
Page 450: Event Data Recorders
Customer Information How various systems in your connect your vehicle to any personally identifying data vehicle were operating; unknown or untrusted routinely acquired during a networks (such as Bluetooth, crash investigation. Whether or not the driver WIFI or similar technology). In and passenger safety belts To read data recorded by an the event you suspect any...
Page 451: Onstar
Customer Information available to others for Infotainment System research purposes, where a If the vehicle is equipped with need is shown and the data is a navigation system as part of not tied to a specific vehicle or the infotainment system, use vehicle owner.
Page 452 OnStar OnStar OnStar Overview and your vehicle, including location information. See OnStar User Terms, Privacy OnStar Overview Statement, and Software OnStar Overview ..451 Terms for more details including system limitations at OnStar Services www.onstar.com (U.S.) or Emergency .
Page 453 For more direct them to your exact Advisor available 24/7 to: information, see location, and relay important Get help for an emergency. my.cadillac.com/learn or information. Be a Good Samaritan or press With OnStar Crisis Assist, respond to an AMBER Alert.
Page 454 OnStar With Roadside Assistance, If the vehicle is stolen, an Selling/Transferring the Advisors can locate a nearby OnStar Advisor can work with Vehicle service provider to help with a authorities to recover the Call 1-888-4ONSTAR flat tire, a battery jump, or an vehicle.
Page 455 OnStar vehicles. For more information, hardware. OnStar or Press to help: a full description of OnStar connected services may not Locate a gas station with an services, system limitations, work if the OnStar equipment attendant to pump gas. and OnStar User Terms, is not properly installed or it Find a hotel, restaurant, etc., has not been properly...
Page 456 OnStar OnStar Personal Potential Issues OnStar. However, OnStar could have difficulty Identification OnStar cannot perform identifying the exact Number (PIN) Remote Door Unlock or Stolen location. Vehicle Assistance after the A PIN is needed to access In emergency situations, vehicle has been off some OnStar services.
Page 457 OnStar Unable to Connect to equipment. See Add-On the OnStar privacy statement Electrical Equipment 0 325. or separately disclosed at the OnStar Message Added electrical equipment time of installation. These If there is limited cellular may interfere with the updates or changes may also coverage or the cellular cause a system to operation of the OnStar...
Page 458 OnStar Users of wireless *Provided through LG communications are cautioned Electronics Inc., who is solely that the privacy of any responsible for provisions of information sent via wireless related OSS compliance. cellular communications cannot be assured. Third parties may unlawfully intercept or access transmissions and private communications without...
Page 459: Connected Services
Connected Services Connected Connected by model. Map coverage is available in the United States Services Services and Canada. Turn-by-Turn Navigation Navigation Connected Services 1. Press to connect to an Navigation requires a specific Navigation ....458 Advisor.
Page 460 Connected Services Change the default name of if equipped. After the call and on some vehicles, the the SSID (Service Set ends, the navigation screen connection type (no Identifier). This is the will provide prompts to begin Internet connection, 3G, network name that is visible driving directions.
Page 461 These services vary by services from a smartphone: market. Connect with Cadillac on Remotely start/stop the social media. vehicle, if factory-equipped. Diagnostics Features are subject to...
Page 462: Index
INDEX Index Airbag System (cont'd) How Does an Airbag About Driving the Vehicle ..2 Restrain? ..... 70 Accessories and Passenger Sensing Modifications .
Page 463 INDEX Alert Automatic Brake (cont'd) Lane Change ....304 Dimming Mirrors ... . . 36 System Warning Light ..128 Brakes .
Page 464 INDEX California Child Restraints Connected Services (cont'd) Perchlorate Materials Infants and Young Navigation ....458 Connections Requirements ....327 Children .
Page 465 INDEX Cruise Control ....270 Daytime Running Driving Adaptive ..... . 273 Lamps (DRL) .
Page 466 INDEX Electrical Engine (cont'd) Fluid Equipment, Add-On ..325 Oil Life System ... . . 335 Automatic Oil Pressure Light ..134 System Overload .
Page 467 INDEX Fuel (cont'd) General Information Headlamps (cont'd) Management, Active ..255 Service and Flash-to-Pass ....150 Prohibited Fuels ... . 310 High-Beam On Light .
Page 468 INDEX Lamps (cont'd) On Reminder ....136 If the System Needs Jump Reading ..... . . 153 Service .
Page 469 INDEX Lights (cont'd) Lights (cont'd) Maps ......177 Charging System ... 126 Traction Off .
Page 470 INDEX Multi-Point Vehicle OnStar Security ... . . 453 Pedestrian Ahead Inspection (MPVI) ...427 Outlets Indicator ......131 Power .
Page 471 INDEX Privacy Rear (cont'd) Replacement Parts Vehicle Data Cross Traffic Alert Airbags ......78 (RCTA) System ... . 297 Recording .
Page 472 INDEX Routing, Engine Seats (cont'd) Service (cont'd) Drive Belt ..... 434 Heated and Ventilated, Parts Identification ..432 Front .
Page 473 INDEX Starting the Engine ..248 Surround Vision Tires (cont'd) Steering ......231 System .
Page 474 INDEX Tires (cont'd) Transmission (cont'd) Wheel Replacement ..387 Fluid, Automatic ... . 336 Vehicle When It Is Time for Transportation Ahead Indicator ... . . 131 New Tires .
Page 475 INDEX Winter Cover ......251 Warning Driving ......239 Brake System Light .
Page 476 Scan to Access • Owner’s Manuals • Warranty Information United States Canada • Connected Services • My Cadillac Rewards • myCadillac Mobile App • How-To Videos • Vehicle Diagnostics • Scheduled Maintenance • Vehicle Features • Many Additional Resources United States...

Save PDF
