Amino 7XC User Manual

Amigo 7XC User Guide
Contents
The Amigo 7XC is supplied with the correct power
adapter for your local system. The package may also
contain optional accessories shown below, depending
on your service provider.
The Amigo 7XC is protected with a clear plastic film.
This should be removed before use.

Optional accessories

HDMI cable
Ethernet cable
3.5 mm jack to
3 x RCA cable
Remote control and batteries

1. Connecting the Amigo 7XC to a TV

Warning! Before connecting or disconnecting any
cable, switch off all system devices (TV, A/V Amplifier,
etc.) and disconnect from the main electrical supply.
The Amigo 7XC provides options for connecting audio
and video to your TV:
HDMI (recommended): Best quality. Connect an HDMI
cable to the HDMI output of the Amigo 7XC and to the
HDMI input of your TV.
Analog A/V: Good quality. SD only composite with
analog audio left/right.
Connecting your television directly to the audio/video
output of your Set Top Box will assure a more vivid
picture and enhance your viewing enjoyment.
Connecting via Wi-Fi
Internal dual band Wi-Fi is a feature for the Amigo 7XC.
Please contact your service provider for detailed
instructions about the wireless network configuration.

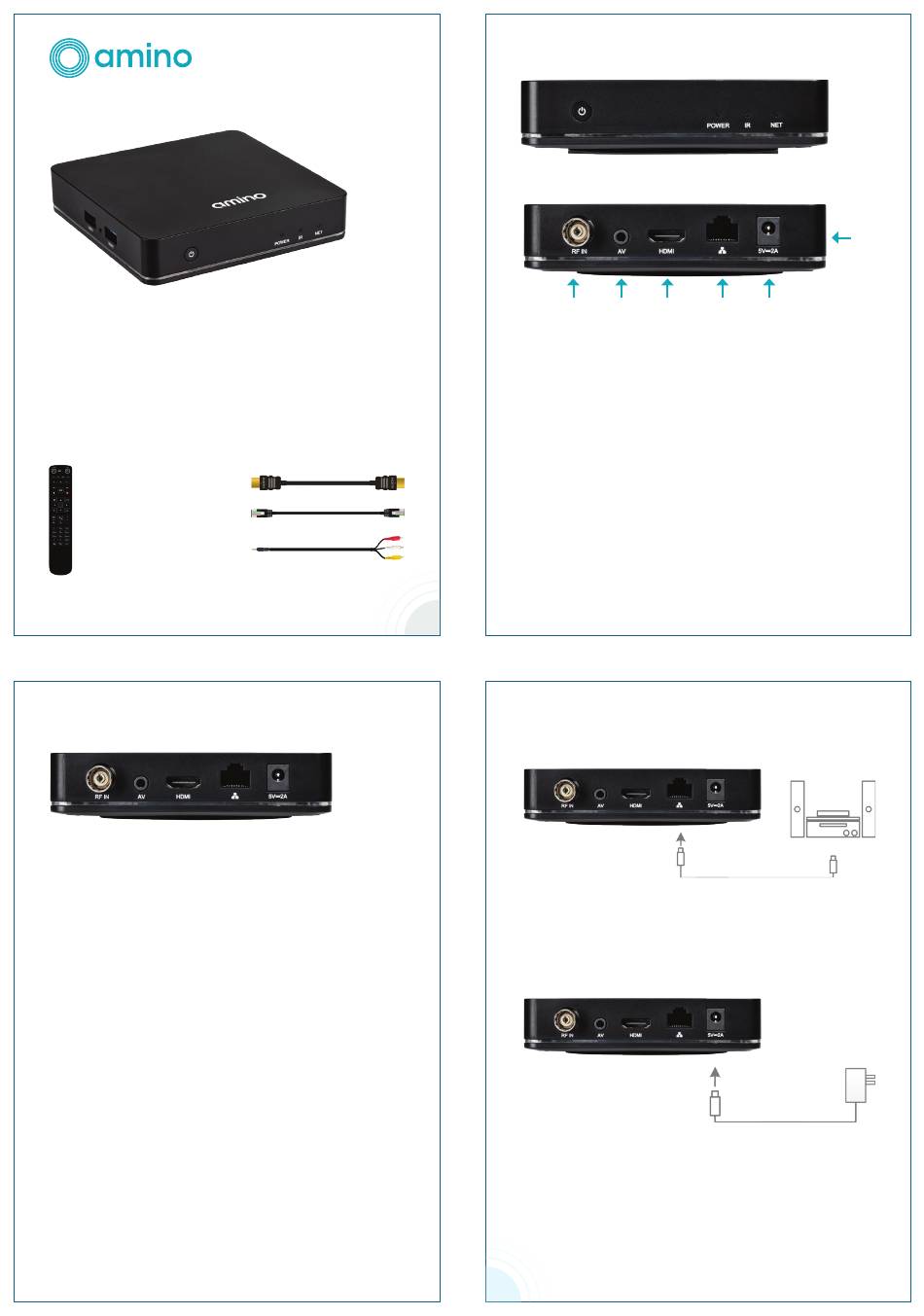

Overview of the Amigo 7XC

Power/Activity LED and IR receiver.
1.
1 2 3
1. RF antenna or cable input.
2. Analogue A/V output (adapter cable available).
3. HDMI port.
4. Ethernet port.
5. DC power input 5V 2A.
6. 2X USB port. DO NOT use this port for Powered USB.
Use for external storage media such USB flash
drive (external storage media must be formatted as
FAT32). You can also update software and program
lists using this connection.
2. Connecting the Amigo 7XC to an A/V
receiver
Connect an HDMI cable to the HDMI output of the
Amigo 7XC and to the HDMI input of your A/V receiver
or home cinema system.
3. Connecting the Amigo 7XC to the power
supply
Warning! The Amigo 7XC must only be used with the
supplied power adapter.
Connect the power adapter to the power input of the
Amigo 7XC, then connect the power adapter to the
mains supply. The power adapter provided will be
specific to your region. Ensure you have the correct
power adapter for your region. If you are unsure,
contact your service provider.
