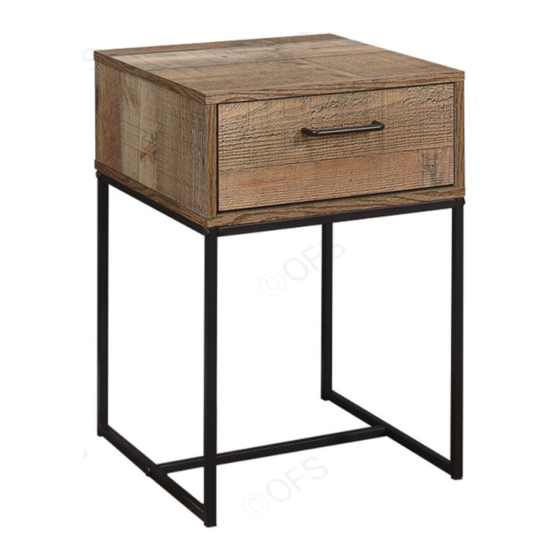

Summary of Contents for Birlea URBAN URB1NBSRUS
- Page 2 Periodically check all screws & fixings to ensure they are secure. DO NOT push the product as this will cause damage. Always lift the product with two people to reposition. Keep any sharp objects away from the product. Page of 6 www.birlea.com...
- Page 3 Vendor: S000350 Parts List Hardware List Part Descripion Qty Part Description Top panel Cam lock Bottom panel Minifix screw Side panel ( Left ) Plastic cap Side panel ( Right ) M6 x 30mm Wood Dowel Back Panel Allen key M4 Drawer Front M3.5 x 12mm C.B Screw Drawer Back...
- Page 4 Vendor: S000350 Step 1: Prepare these parts for assembly using hardware parts A1, A2, B, D, G, H and J1. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Page of 6...
- Page 5 Vendor: S000350 Step 2: Attach panel (3) and (4) to panel (1) using hardware A1, A2 and A3 with a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 3: Insert panel (5) along the slot.
- Page 6 Vendor: S000350 Step 4: Attach Metal Frame Side (10) to Metal Front & Back (11) and Metal Middle (12) using hardware D and I. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 5: Attach Metal Frame Front &...
- Page 7 · If you have any issues with your item please contact the retailer directly you purchased it from who will be able to resolve any issues with Birlea. · Why don't you send us photos of your assembled furniture to info@birlea.com to be shared in our #birleahome feature on instagram.
