Summary of Contents for EPOS ADAPT 360

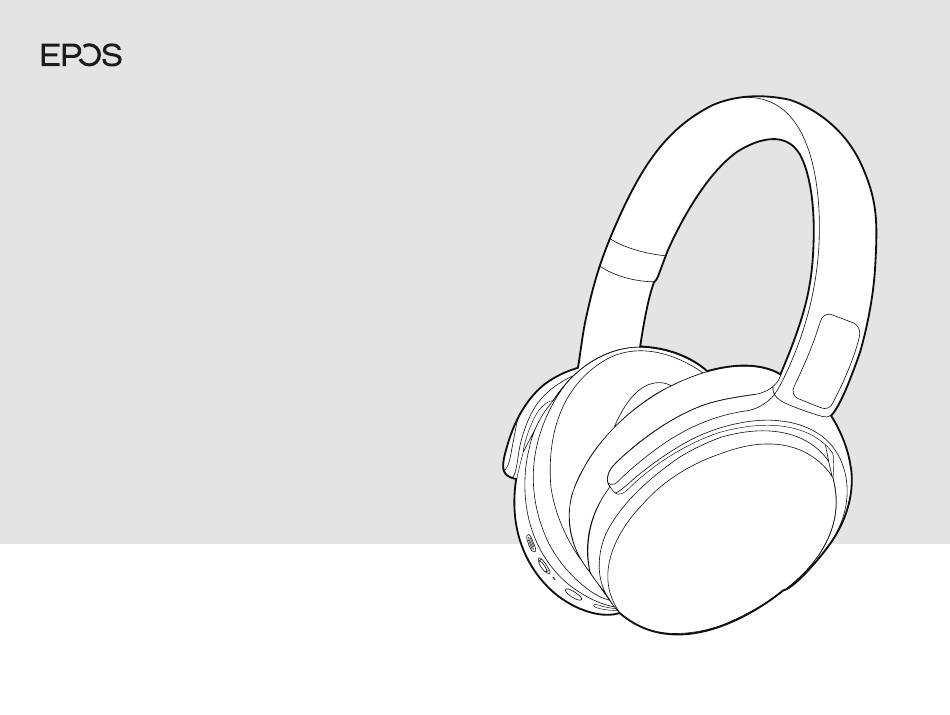

- Page 1 ADAPT 360 Battery Replacement Guide THE POWER OF AUDIO...
- Page 2 ADAPT 360 Battery Replacement Guide Take off ear-pad Screw all 4 screw out and baffle plate can be disassembled from cup. Be aware that cables don’t being stressed Disassembled baffle plate from cup. Be aware that cables don’t being stressed...
- Page 3 ADAPT 360 Battery Replacement Guide pull Unplug battery-connector by pull as shown at picture Disassembled the EVA and glue from cable Disassembled the cable from speaker back cover...
- Page 4 ADAPT 360 Battery Replacement Guide Use small screwdriver at the two battery corners to release battery from the cup Recommend that new battery has pre-attached sheet...
