FIEDLER H1 User Manual

Hydro logger. small telemetry station for water applications
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

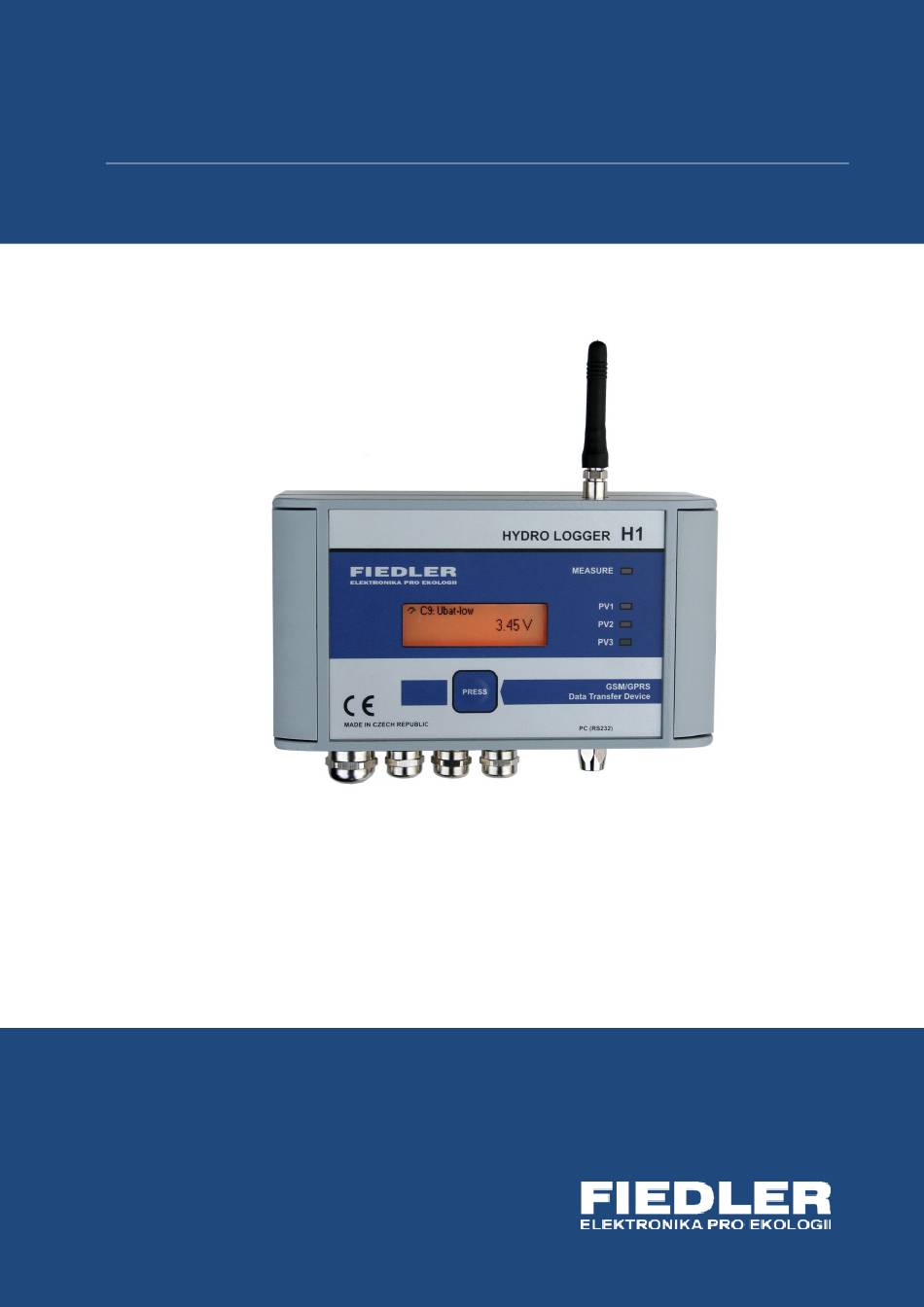

H1, H2 Hydro Logger
user manual version 1.10
Small telemetry station
for water applications

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H1 and is the answer not in the manual?

Questions and answers

Related Manuals for FIEDLER H1

Summary of Contents for FIEDLER H1

  • Page 1 H1, H2 Hydro Logger user manual version 1.10 Small telemetry station for water applications...
  • Page 2 Hydro Logger H1 User manual FIEDLER electronics for ecology...

  • Page 3: Table Of Contents

    Hydro Logger H1 User manual 1. SAFETY INSTRUCTIONS 2. USING LOGGERS H 1 , H2 3. BASIC DESCRIPTION 3.1. O VERVIEW OF PROGRAM FUNCTIONS AND PROCEDURES 3.2. M ECHANICAL DESIGN OF THE INSTRUMENT 3.3. C OMMUNICATION MODULE 3.4. A RCHITECTURE OF AUTOMATIC DATA COLLECTION VIA 3.5.

  • Page 4: Safety Instructions

    Hydro Logger H1 User manual Safety instructions • The installation of the device with external power supply must be carried out by a person with the necessary qualifications for the installation of electrical equipment. The installer must carry out the installation in accor- dance with all instructions, regulations and standards relating to safety and electromagnetic compatibility.

  • Page 5: Using Loggers

    User manual Using Loggers H 1 , H2 The Hydro Logger H1 is primarily designed for data collection in the water in- dustry. This requirement is met by a robust mechanical design with high IP67 protection, its own battery power supply rated for several years of operation,...

  • Page 6: Basic Description

    In the following, the description of the Hydro Logger H1 will also apply to the Level Logger H2. G r a p h i c d i s p l a y The display cyclically shows the measured values, the status of the power bat- tery, the number of data sessions, etc.

  • Page 7: Overview Of Program Functions And Procedures

    3.1. Overview of program functions and procedures The following overview briefly summarizes the program procedures and functi- ons contained in the H1 station FW, which are fully available to the station users during its parameterization and setup. Most of these functions will be described in detail in the "Setup"...
  • Page 8 Hydro Logger H1 User manual ▪ S t a t i s t i c a l For channels recording flow or rainfall, both daily and monthly total flow is c a l c u l a t i o n s calculated.

  • Page 9: Mechanical Design Of The Instrument

    M e t a l b o x The electronic part of the Hydro Logger H1 is housed in a 160 mm x 90 mm x 60 mm metal casting, which consists of two parts. Between the two parts there is a silicone sealing profile.

  • Page 10: Communication Module

    This concept allows the station to operate for many years without changing the power battery. In a practical test, it was tested that the H1 station is able to make up to 2,800 data sessions to the server (or send the same number of SMS alerts) without changing the battery.

  • Page 11: Architecture Of Automatic Data Collection Via

    Hydro Logger H1 User manual 3.4. Architecture of automatic data collection via The H1 telemetry station is equipped with a GSM/GPRS data module for auto- matic transfer of measured data from the device to the database on the server. ACTIVE STATIONS SYSTEM FIEDLER telemetry stations are characterized by long battery life and very low operating costs with regular data transmission to the server.
  • Page 12 Hydro Logger H1 User manual DATA SERVER SERVICES The data server is accessible via a standard web browser. After logging in, the user can use the services of the data server, which include: ▪ generation of graphs and tables of measured values ▪...
  • Page 13 Hydro Logger H1 User manual PARMATRIZATION OF THE STATION REMOTELY A special server service allows you to change the settings of the station parame- ters remotely over the Internet and GSM/GPRS network via the MOST program. All previous and current parameter files are stored in the server database, inc- luding the date and time of their change and the login name of the specific user who made the parameter change.

  • Page 14: Communication With The Device

    PC (laptop) C a b l e c o n n e c t i o n The local connection of the Hydro Logger H1 to a PC or laptop can be made using the KP232/M8 communication cable.

  • Page 15: Power Supply System

    8 to 15 VDC or a solar panel supplemented with a rechargeable maintenance- free 12 V battery and a rechargeable RS13 charge controller. The H1 station has a very low idle power consumption from the external power supply and there- fore two 12 V batteries can be used for external power supply and these can be changed and recharged regularly.
  • Page 16 Hydro Logger H1 User manual The external power supply of the H1 station is particularly suitable for use in cases where the sensor connected to the station has a high current consumption or where data transmissions to the server are to be made more frequently than once a day or in cases where warning or informative SMS are sent frequently.

  • Page 17: Installation

    Hydro Logger H1 User manual Installation The installation of the Hydro Logger H1 and the entire telemetry system can be divided into: • Mechanical placement of the instrument including sensor and transducer connections • To insert an unblocked SIM card •...
  • Page 18 There is no space for inserting a 12V/9Ah backup battery in this type of pro- net installed on tective enclosure. SR03 rainfall THALASSA-H1 cabinet dimensions (h x w x d): 241 x 194 x 87 mm gauge stand FIEDLER electronics for ecology...
  • Page 19 The substation is supplied in light grey (RAL 7035). ARIA-H1 protective cabinet with H1 unit installed When installing the cabinet outdoors, it is advisable to glue the supplied plastic canopy to the top edge of the cabinet on request.
  • Page 20 Hydro Logger H1 User manual DIMENSIONS OF THE ARIA-H1 CABINET Dimensions of the ARIA32 enclosure (h x w x d): 315 x 215 x 170 mm, pro- tection class: IP66 INSTALLATION METHODS The ARIA32 cabinet is installed on a wall, pillar or other larger substation using 4 reinforced through holes in the corners of the cabinet.
  • Page 21 Hydro Logger H1 User manual SCHNEIDER CABINET (-S, -S/Z) Schneider's universal polyester enclosure is suitable for applications where a larger power battery needs to be placed in the enclosure along with the H7 unit. The Schneider enclosure is designed for in- door and outdoor use (IP66 protection).
  • Page 22 Hydro Logger H1 User manual STAINLESS STEEL CABINET (-N, -N/Z) The robust stainless steel cabinet is particularly suitable for outdoor en- vironments. Unlike plastic enclo- sures, the stainless steel material does not show signs of ageing even after years of exposure to weather conditions.
  • Page 23 User manual STANDS AND POLES FOR ARIA CABINET PLACEMENT For installation of the ARIA-H1 in the field, a rack marked ST2 or a mast type STO-MET-02 can be used. These are sturdy weldments that are protected aga- inst weathering by hot-dip galvanizing.

  • Page 24: Insert Your Own Sim Card

    Hydro Logger H1 User manual 4.2. Insert your own SIM card The SIM card must be activated by the operator before use in the level meter. Some operators activate the SIM with the sale, others only on a specific date they set or when it is inserted into the mobile phone.

  • Page 25: Antenna And Its Location

    OVERVIEW OF GSM ANTENNAS Depending on the type of mechanical design of the H1 unit's housing, the station is supplied with one of the following list of available GSM antennas with SMA- M connector:...
  • Page 26 Hydro Logger H1 User manual S t a n d a r d r o d The basic and most common type of antenna supplied is AGSM-3dB-SMA. It is a A G S M - a n t e n n a...
  • Page 27 Hydro Logger H1 User manual ANTENNA INSTALLATION When installing the antenna, the current GSM signal strength at the antenna installation site can be displayed on the unit's display to optimize the final an- tenna placement. PROCEDURE FOR DETECTING THE GSM FIELD STRENGTH: •...

  • Page 28: Connecting Sensors And Transducers

    4.4. Connecting sensors and transducers RECORDING CHANNELS The H1 telemetry station has the ability to record up to 8 measured physical quantities in its data memory. Each measured quantity occupies one recording channel K1 to K8. Unoccupied recording channels are not allocated and do not take up space in the data memory (so-called dynamic channel occupation).
  • Page 29 4.4.2. Power supply for connected sensors and transducers In addition to the input terminals for connecting the measured signals, the Hydro Logger H1 also has 2 types of power terminals for powering the connec- ted sensors and probes. P o w e r t e r m i n a l...
  • Page 30 User manual 4.4.3. Pulse-binary inputs PV1 to PV4 HydroLogger H1 contains 2 fast pulse inputs labeled PV1, PV2 (terminals 16 and 19) and two slow pulse-binary inputs labeled PV3, PV4 (terminals 21 and 23). All pulse inputs are activated by their connection to the GND ground terminal and therefore the connected sensors must have either an open collector or a potential-free contact (relay contact) at the output.
  • Page 31 The number of pulses per archiving interval is stored along with the pulse weight in the instrument's data memory. From these stored partial flow volumes, the Hydro Logger H1 continuously calculates the total flow volume. The amount of leaked volume since the instrument was installed (or since the channel was initi- alized) is displayed in cyclic mode on the instrument display below the instanta- neous flow rate.
  • Page 32 Sensors and probes with current output include mainly strain gauge level sen- sors. However, many other measuring probes and sensors can be connected to the Hydro Logger H1 and H2 via these inputs, ranging from pressure sensors to ultrasonic or radar level gauges to inductive flow meters.
  • Page 33 C u r r e n t d r a w o f When powering a large number of sensors from the H1 unit, care must be taken s e n s o r s to ensure that the maximum current draw of 500 mA from the +Unap terminals is not exceeded.
  • Page 34 Hydro Logger H1 User manual 4.4.6. General rules for RS485 bus wiring Smooth use of the RS485 serial link requires compliance with established rules for this type of communication: SHIELDED TWISTED DATA CABLE Use a suitable shielded 4-core data cable with an impedance of 50 Ω, consisting of 2 pairs of twisted wires.
  • Page 35 Hydro Logger H1 User manual Incorrect RS485 bus wiring with signal ground connection via ground loop As the length of the data cable increases, the ground potential difference between the two sides of the cable can increase, especially in industrial envi- ronments.
  • Page 36 In the case of a long line, it is advisable to strengthen this internal terminating resistor on the H1 side with an additional external resistor of 150 to 330 Ω loca- ted between the RS485-A and 485-B terminals. The other end of the RS485 line should always be supplemented with a terminating resistor.

  • Page 37: Basic Control Of The Device

    User manual Basic control of the device The HydroLogger H1 is equipped with a graphic display and one button, which can be used to display some basic data such as measured values on individual channels, the status of the power battery or to monitor the status of GPRS data communication and test the GSM signal strength.
  • Page 38 Displaying the last set channel will automatically end the display cycle, turn off d i s p l a y the display and the HydroLogger H1 will enter power saving mode, which is its normal operating state. E x t e n d i n g t h e...

  • Page 39: Switching On The Internal Gsm/Gprs Module

    Analog recording channels can also be set up to measure flow via pulses fed from a suitable type of water meter to inputs PV1 to PV4 of HydroLogger H1. The following figure shows the window of channel C5 set up in this way.
  • Page 40 Hydro Logger H1 User manual sec.) at any time during the module switch-on. The two-minute counter will re- set and start from the beginning. Sending a request to log into the GSM network: The icon in the upper left corner of the display indicates that the GSM module has not yet acknowledged the request to log the module into the network.

  • Page 41: Extraordinary Data Upload To The Server

    Hydro Logger H1 at the end of the emergency data upload without having to upload this file to the instrument via the data cable and the MOST program.

  • Page 42: Parameter Settings

    Hydro Logger H1 User manual Parameter settings Using the MOST program, the parameters of the Hydro Logger H1 can be read from the connected instrument, modified and saved back to the instrument or to a backup parameter file with the *.PRM extension.

  • Page 43: Basic Parameters

    Hydro Logger H1 User manual When using a server, simply save the new parameter file to the server and the station will download the file at the next data communication. 6.2. Basic parameters A group of basic parameters for setting station identification, measurement frequency, supply voltage control, data archiving and station communication with sensors.
  • Page 44 Station H1 automatically sets the time of the first recording so that, regardless of the set archiving interval, the recording occurs at the full hour. For example, if the "Archiving Interval"...
  • Page 45 SMS messages sent. E n e r g y s a v i n g In the idle state between measurements, the Hydro Logger H1 operates in a so- m e a s u r e m e n t...
  • Page 46 The Signal ExtPwr drop parameter should not be checked if the Hydro Logger H1 is powered only from the internal lithium battery - a target would be perma- nently lit on the server next to the station name to warn of external power failure.
  • Page 47 W a r n i n g l e v e l o f The Hydro Logger H1 is equipped with circuitry to measure the current drawn c u r r e n t f r o m U n a p by connected sensors and transducers from the Unap terminals (terminals 6 and 10) on the connection board.

  • Page 48: Analog Channel Settings

    OPTO or REED sensor, select the "Pulse" measurement method. The measurement method called "Calculation Functions" has an important place in the Hydro Logger H1. With its help, it is easy to monitor the continuously calculated moving sum or moving average for a configurable time interval on a...
  • Page 49 BD Sensors s.r.o. equipped with RS485 interface. The measurement method "Intelligent probe via RS485/FINET" is set for FIEDLER probes and sensors equipped with RS485 interface. U n i t s Some quantities, such as pressure or flow, have a rich list of units in which the desired quantity can be measured, archived and displayed.
  • Page 50 This parameter determines which terminals (which input) will be used to con- nect the sensor. As mentioned in chapter. 4.4 on p. 28, the Hydro Logger H1 has four pulse inputs PV1 to PV4 and two current analog inputs AV1 and AV2.
  • Page 51 Hydro Logger H1 User manual Addresses and measurement Type Measured variable channels of sensors Sensors and transmitters with RS485 output Water level sensors ✓ ✓ Level ( 1 mm US1200 1200 mm from probe = 0 mm) Air temperature 0,1 °C...
  • Page 52 User manual 6.3.3. Alarms Hydro Logger H1 allows you to set limit and steep alarm parameters for each channel. After activating the alarm, it is possible, for example, to record mea- sured values more frequently (even on other channels) and to send warning SMS or to change the interval for sending data to the server.
  • Page 53 Hydro Logger H1 User manual A r c h i v i n g A zero value of the "Archiving interval" parameter will exclude the set channel s u p p r e s s i o n from archiving. This can be preferably used for those channels that are to be used only for activating SMS alerts.
  • Page 54 Hydro Logger H1 User manual Example 1: Only store values greater than 30 ºC when measuring temperature Basic archiving interval = 10 minutes (in the basic parameters window) Archiving interval = 0 (in the channel window) Limit alarm set (Lower limit = 0, Upper limit = 28, Hysteresis = 2)
  • Page 55 Hydro Logger H1 User manual EXAMPLE 1.: MEASURING THE LEVEL Most commonly, the level is measured with a pressure dipping probe or an ul- trasonic probe placed above the maximum level. O u t p u t s i g n a l s The output signal of the probes is either a 4-20 mA current output (0-20 mA, 1- 5 mA) or an RS485 serial interface.
  • Page 56 . In the case of more complex composite gutters, additional auxiliary coefficients A3 to A6 and the heights of the built-in gutters H1 and H2 are added to the above coeffi- cients (see figure on this page). Ta b l e...
  • Page 57 100 times to the correct value. EXAMPLE 3: RAINFALL MEASUREMENT - WARNING SYSTEM H1 supports the connection of a rain gauge (e.g. SR02 or SR03 rain gauges). The rain gauge can be connected to one of the slow pulse inputs PV3 or PV4.
  • Page 58 From the start of each rain (first pulse) H1 automatically calculates the amount of rainfall in mm into a sum called "SS" and if the preset limit is reached, the station can send a warning SMS.
  • Page 59 EXAMPLE 4: CALCULATING THE FLOW RATE FROM THE PULSES In practice, the leakage volume is very often measured by propeller flow meters equipped with speed sensors. Up to 4 such sensors can be connected to the H1 station. R E E D a n d O P T O...

  • Page 60: Control Channels

    User manual 6.4. Control channels The Hydro Logger H1 contains 9 control channels K9 to K17 that monitor instru- ment operating parameters such as the capacity of the power battery, tempe- rature and humidity inside the instrument, the magnitude of the external power supply voltage and the readings of connected sensors and probes.

  • Page 61: Binary Channel Settings

    The "Custom Inputs" mode, allows to select the binary input to which the mo- nitored signal is connected in the following parameter "Input". The H1 has a total of 4 inputs connected to the terminals of the connection board. The first...

  • Page 62: Gsm Parameters

    The list of codes used in the command line is given in the table on page 2. 65. Note: The Hydro Logger H1 will also respond to incoming SMS containing indivi- dual codes separated by commas after the password.

  • Page 63: Sms Communication

    Hydro Logger H1 User manual 6.7. SMS communication LIST OF AUTHORISED PERSONS The basic settings of the GSM parameters include the creation of a list of per- sons to whose mobile phones warning or informative messages should be sent. The window with the phone list opens after pressing the "Phone list" button in the "GSM"...
  • Page 64 From the point of view of saving battery power, it is advantageous to set the same time for GPRS communication and for periodic sending of informative SMS, because this way only one login of the Hydro Logger H1 to the GSM network takes place.
  • Page 65 PASSWORD. The device responds to the received INFO query with a message composed according to the codes contained in the control line. 6.8.3. List of query and control codes Hydro Logger H1 does not distinguish between upper and lower case Inquiry code Control...
  • Page 66 Inquiry SMS are received only after the device is logged into the GSM network, and therefore the response to the inquiry SMS may be significantly delayed. For the H1 station, it is assumed that the modem is switched on and data is sent to the server at an interval of once a day.
  • Page 67 User manual 6.8.5. Control SMS incoming The Hydro Logger H1 does not contain any relays and therefore, unlike the M4016-G3, the number of control SMS is severely limited. In fact, it is only a command to immediately send the measured data to a server on the Internet.

  • Page 68: Warning And Control Sms

    S t a r t i n g The Hydro Logger H1 continuously evaluates the current measured values on c o n d i t i o n s both analogue and binary channels. If the value exceeds the set limit or if a binary input is switched on or off, it sends a pre-prepared SMS to selected mobile pho- nes.
  • Page 69 Hydro Logger H1 User manual (overshoot, undershoot, binary state change, measurement error, alarm). ▪ Resending of the next warning message is activated only after the current value returns to the allowed area by at least the Hysteresis value and after the Limit value is exceeded again for the set Delay time.
  • Page 70 Precipitation This option applies only to the first channel set to monitor rainfall. The Hydro Logger H1 continuously calculates the rainfall sum alarm (called SS) during rain and a warning SMS is triggered if the SS sum exceeds the value of the Value parameter.
  • Page 71 Hydro Logger H1 User manual EXAMPLE 5: WARNING SYSTEM FOR MONITORING EXCESSIVE WATER CONSUMPTION Connection: the flowmeter with optical pulse sensor (OPTO or REED) is connected to the pulse input of the PV1 communicator. Task: Send a warning SMS if the amount of water continuously measured by...
  • Page 72 Hydro Logger H1 User manual The multiplicative coefficient A1 is set to 0.001 because the measuring channel K1 records the value of the instantaneous flow in litres and the sum channel K6 is set according to the specification in m3.
  • Page 73 Hydro Logger H1 User manual EXAMPLE 6: EXCEEDING THE LEAKAGE VOLUME IN AN OPEN PROFILE Wiring: flow meter consisting of a measuring spillway (trough) and ultra- sonic level sensor US1200 connected via RS485 serial interface. Task: Send a warning SMS message if the amount of water continuously mea-...
  • Page 74 Hydro Logger H1 User manual EXAMPLE 7: RAINFALL WARNING SYSTEM Wiring: boat rain gauge connected to PV3 input. Pulse weight 0.1 mm. Task: Send a warning text message if the amount of rainfall falling in 30 mi- nutes is greater than 40 mm or the amount of rainfall falling in 12 hours is gre- ater than 100 mm.

  • Page 75: Parameters For Sending Data Under Tcp/Ip Protocol

    Hydro Logger H1 User manual 6.10. Parameters for sending data under TCP/IP protocol The "GPRS" tab contains the parameters needed to set up periodic sending of archived data via GSM/GPRS network to a server in the Internet. Enabling GPRS data trans-...

  • Page 76: Service And Maintenance

    User manual Service and maintenance The installed Hydro Logger H1 requires an occasional check of the cable con- nection status of the measuring probes and the GSM antenna. Especially when installed in the field, the cabling is stressed by weather and sunlight. Suitable cable protectors and a well-done installation of the station can ensure trouble- free operation of the station throughout its lifetime.

  • Page 77: Procedure For Replacing The Power Supply Battery

    Hydro Logger H1 but also to all other parts of the instrument, including the connected sensors or GSM module.

  • Page 78: Technical Parameters

    Hydro Logger H1 User manual Technical parameters P a r a m e t e r s o f Number and distribution 1-8 recording measurement channels with 16-bit reso- r e c o r d i n g of channels...
  • Page 79 Notice Used lithium batteries can be returned to the manufacturer of the assembly (FIEDLER-MÁGR, Grünwaldova 18, 370 01 České Budějovice), who has a con- tract with the importer of the batteries for the take-back of used batteries. Im- proper disposal of used batteries could damage the environment.
  • Page 80 Hydro Logger H1 User manual N o t e s : FIEDLER electronics for ecology...
  • Page 81 Hydro Logger H1 User manual FIEDLER electronics for ecology...
  • Page 82 Hydro Logger H1 User manual TXP0220423.110E H1,2 Manufacturer: FIEDLER AMS s.r.o. Lipová 1789/9 370 05 České Budějovice www.fiedler.company FIEDLER Tel: +420 386 358 274 electronics for ecology...
