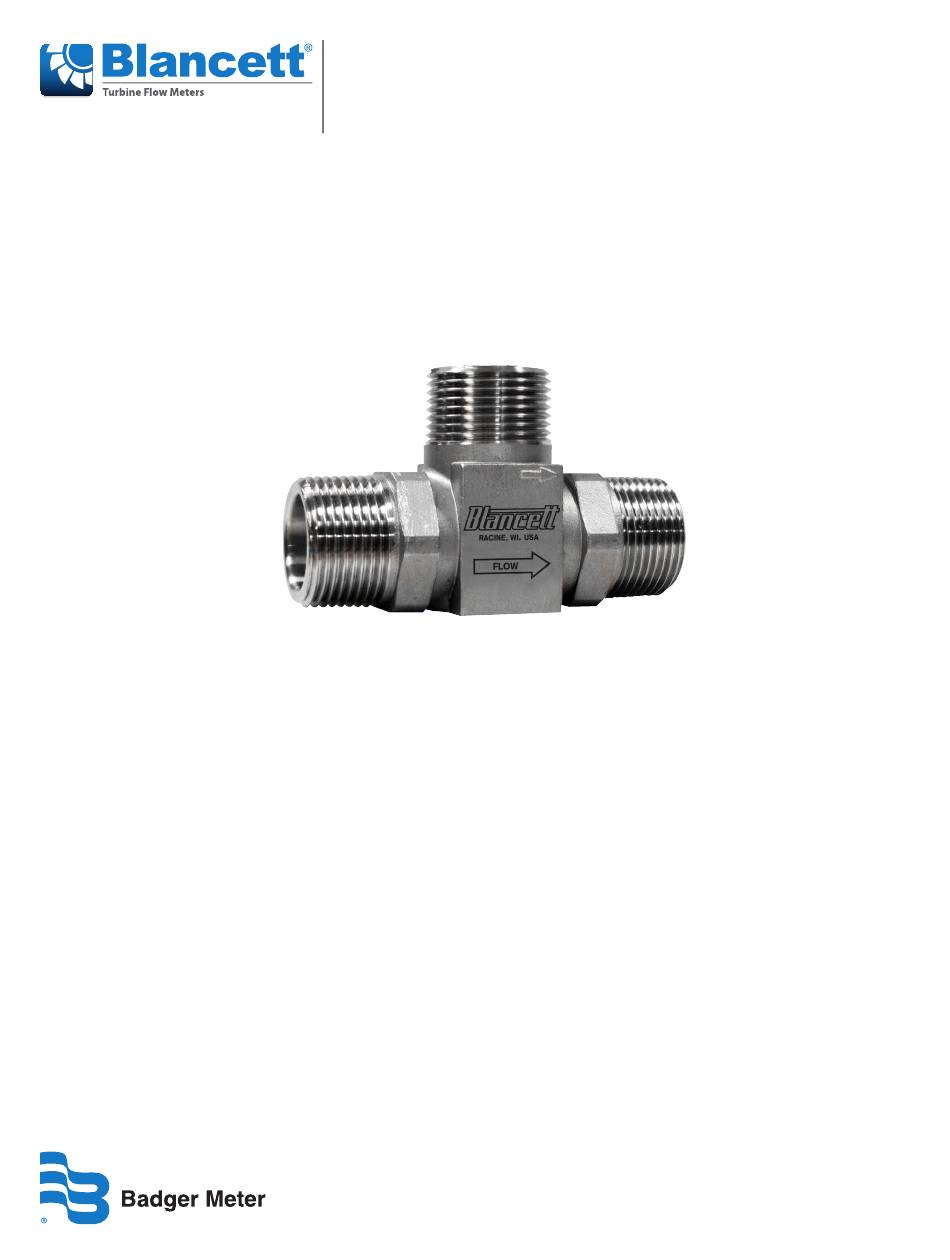

- Page 1 Turbine Flow Meter 1100 Series Explosion-proof Turbine Meter User Manual TUR-UM-00015-EN-05 (April 2021)
-
Page 2: Table Of Contents
1100 Series Explosion-proof Turbine Meter CONTENTS Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Operating Principle . -
Page 3: Introduction

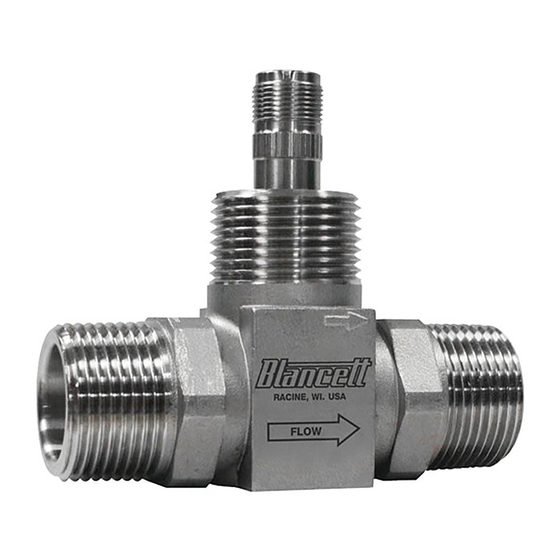

Introduction INTRODUCTION Designed to withstand the demands of the most rigorous flow measurement applications, the Model 1100 Explosion-proof turbine flow meter is reliable, rugged and cost effective . Originally developed for the secondary oil recovery market, the Model 1100 Explosion-proof meter is an ideal meter for liquid flow measurement on or off the oil field . The meter features a rugged 316 stainless steel housing and rotor support assemblies, CD4MCU stainless steel rotor, and abrasive-resistant tungsten carbide rotor, shaft, and journal bearings . -
Page 4: Specifications
Certifications MWP 5,000 PSI (34 .5 MPa), 350° F I .S . Entity Parameters with Badger Meter B111109 standard magnetic pickup installed: Vmax = 10V, Imax = 7mA, Ci = 0µF, Li = 0 .9H * Consult factory for pressure ratings for flanged meters . - Page 5 Severe pulsation and mechanical vibration affect accuracy and shorten the life of the meter . If this condition is present, consider using a flow meter possessing superior resistance to pulsation and vibration like the Badger Meter QuicSert . Do not locate the flow meter or connection cable close to electric motors, transformers, sparking devices, high voltage lines, or place connecting cable in conduit with wires furnishing power for such devices .
- Page 6 Installation Electronic Flow Monitor Isolation and Isolation Valve Flow Rate Control Valve 10 Pipe Turbine 5 Pipe Diameters Flow Meter Diameters Bypass Valve Figure 3: Meter installation with a bypass line Electronic Flow Monitor Control Valve 10 Pipe Turbine 5 Pipe Diameters Flow Meter Diameters...
-
Page 7: Pressure Drop In Water
Pressure Drop In Water PRESSURE DROP IN WATER Pressure Drop vs Flow Rate Pressure Drop vs Flow Rate 3/8” 3/4” 1” 2” 4” 8” 1/2” 7/8” 1-1/2” 3” 6” 10” 1/2” 7/8” 1-1/2” 3” 6” 10” 3/8” 2” 4” 3/4” 1”... -
Page 8: Turbine Replacement
Turbine Replacement TURBINE REPLACEMENT The Model 1100 Explosion-proof turbine flow meter uses wear-resistant moving parts to provide troublefree operation and long service life . Designed for easy field service of a damaged flow meter, Model 1100 Explosion-proof repair kits replace only the internal parts, rather than replacing the entire flow meter . -
Page 9: Disassembly
Turbine Replacement Disassembly 1 . Refer to Figure Figure 8 Figure 9 for relative positions of repair kit components . 2 . Remove the magnetic pickup from the meter body to avoid damage during repair . 3 . Remove the retaining ring from one end of the meter . 4 . -
Page 10: New Turbine Kit Installation
At this time, electronics require recalibration . Refer to the display's user manual . If there are any questions on recalibration, contact Badger Meter, Inc . or the manufacturer of the associated electronics . 6 . Install the magnetic pickup . -
Page 11: Part Number Information
Part Number Information PART NUMBER INFORMATION Flow Ranges Approx. Meter Part End Connec- Max. Strainer End to End Bore Size K-factor Weight Number tions Mesh Length gpm (lpm) m3/d Pulse/Gal (lb) 3/8 in . 0 .6…3 3 .00 in . B110C-375-½... -
Page 12: Troubleshooting Guide
Control. Manage. Optimize. Blancett is a registered trademarks of Badger Meter, Inc . Other trademarks appearing in this document are the property of their respective entities . Due to continuous research, product improvements and enhancements, Badger Meter reserves the right to change product or system specifications without notice, except to the extent an outstanding contractual obligation exists .
