IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY.
Tools Needed
Helpline
If you have any problems with this product please contact
Customer Services Tel: 0844 844 8999
Regrettably self assembly items cannot be returned once assembly is part or fully completed unless the item is found to be faulty. Should
you need to return the unassembled product, please repack in the original packaging.
IMPORTANT
• We suggest you spend a short time reading through this leaflet and then follow the simple step-by step instructions.
• Carefully check that you have all the parts before beginning assembly.
• Keep fittings out of children's reach and keep children well away from construction area.
• Wall fixing are not included.
• We recommend that the packaging is used to protect the surfaces during assembly.
• Assemble this product close to the required position in the room to reduce handling.
• All assembly fittings should always be tightened properly.
PRODUCT INFORMATION
• Made from MDF and mirror glass
• This product contains 5 mm annealed mirror glass.
• Made in China
CARE INSTRUCTIONS
• For general cleaning, periodically dust with a soft cloth.
• Do not rub or scrub the surface when cleaning.
• Any spills should be removed immediately with a soft clean damp cloth and dried immediately.
• Avoid keeping furniture in direct sunlight or close to any heat source as this can cause cracking, discoloration or warping.
• All assembly fixings should always be tightened properly and periodically check all fixings and tighten if necessary.
• Do not place very hot or very cold items against or in proximity to mirror surface.
• Do not strike the glass with hard or pointed items.
• This item contains glass. Please handle with extreme care.
GLASS INFORMATION
• This item contains glass. Please handle with extreme care.
• BS 7449: 1991.
• Batch No.:2012/03
• This product contains 5 mm annealed glass. If the glass is chipped or broken replace with glass of the type described. Consult the
manufacturer, retailer or agent with regard to obtaining a manufacturing specification and shape for replacement glass quoting the model
number and batch number or date of manufacture.
FITTINGS

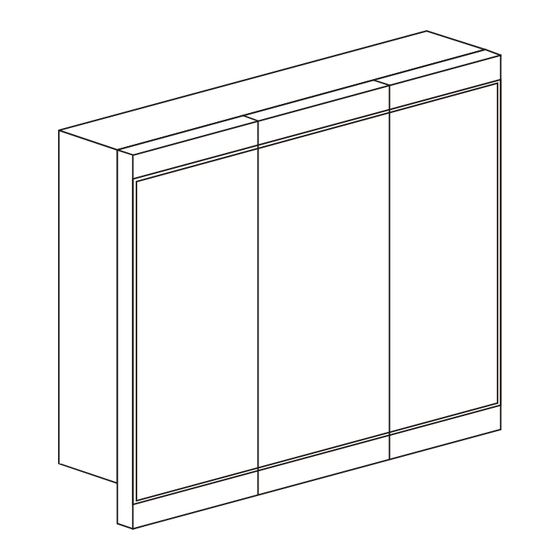

SPARKLE TRIPLE CABINET
ASSEMBLY INSTRUCTIONS.
Advertisement
Table of Contents
Related Manuals for Next SPARKLE
Summary of Contents for Next SPARKLE
- Page 1 SPARKLE TRIPLE CABINET ASSEMBLY INSTRUCTIONS. IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY. Tools Needed Helpline If you have any problems with this product please contact Customer Services Tel: 0844 844 8999 Regrettably self assembly items cannot be returned once assembly is part or fully completed unless the item is found to be faulty. Should you need to return the unassembled product, please repack in the original packaging.
- Page 2 PARTS STEP ONE 1. Attach 2 x panels 3 to panel 4 as shown in the diagram. STEP TWO 1. Insert 4 x wooden dowels (E) into 2 x panels 3. 2. Attach panels 1 & 2 to 2 x panels 3 as shown. STEP THREE 1.
- Page 3 STEP FOUR 1. Insert wooden dowels (E) into panel 5 as shown. 2. Insert 4 x cambolts (C) into panel 5 using a screwdriver to tighten. 3. Attach panel 5 to the assembled unit as shown. STEP FIVE 1. Insert 4 x camlocks (D) into panel 1 & 2 using a screwdriver to tighten.
- Page 4 STEP SEVEN 1. Insert 4 x camlocks (D) into panel 1 & 2 using a screwdriver to tighten. STEP EIGHT 1. Attach panel 8 to panel 2 with 6 x screws (B) by using a screwdriver to tighten. STEP NINE 1.
- Page 5 4. Lift the cabinet into position ensuring that the fixing clips attached to the cabinet are firmly hooked over the screw threads. Check the mirror periodically to see that no fitting has loosened and needs attention. Next Retail Ltd, Desford Road, Leicester, LE19 4AT...
