Santec 3465HO Installation Instructions

Please read the instructions completely before beginning the installation.

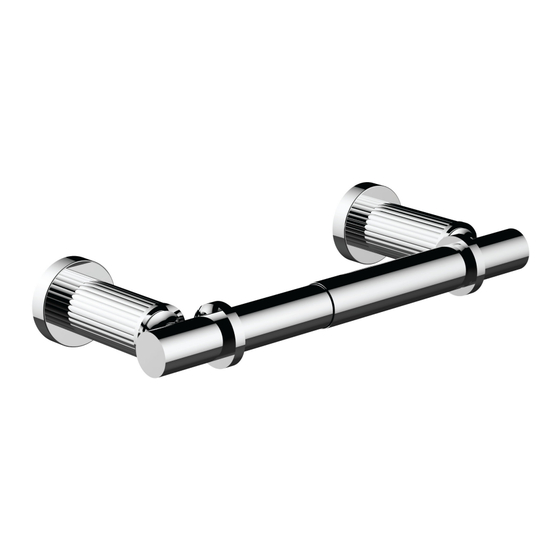

Paper Holder
INSTALLATION INSTRUCTIONS
1- T
ake the trim parts off the box.
Place the trim parts against the assigned wall location.
Make sure that the roller is leveled and the roller post positions are correct.
Leave 5' to 5-1/4" space between the roller posts for the rollers.
Mark the roller post flange positions and remove the trims.
2- Using the mounting hardware post as reference, mark the screw hole positions
in the center of the post flange mark on the wall.
2a- INSTALLING ON WOODEN SURFACE
- For wooden surface, the mounting hardware posts can be secured by
screwing the screws directly into the wall.
2b- IF INSTALLING ON A DRYWALL
- Using a drill, pre-drill holes for the toggles.
- Fold the toggle's leg and insert it into the wall.
- The mounting hardware posts can be secured by screwing the screws
into the toggles.
The measurements shown are for reference only. Products and specifications shown are subject to change without notice.
www.santecfaucet.com | P: 310.542.0063 F: 310.542.5681
Installation Instruction
WOODEN SURFACE
DRY WALL SURFACE
Rev 06/2016
Paper Holder
1/4
