Landscape Lighting Installation Instructions
IMPORTANT PLEASE READ!
These are installation instructions for landscape lighting kits and individual products such as spot lights,
path lights, bulbs, transformers, and hubs. The products you purchased may be different than those
represented in this instruction sheet, but will function the same.

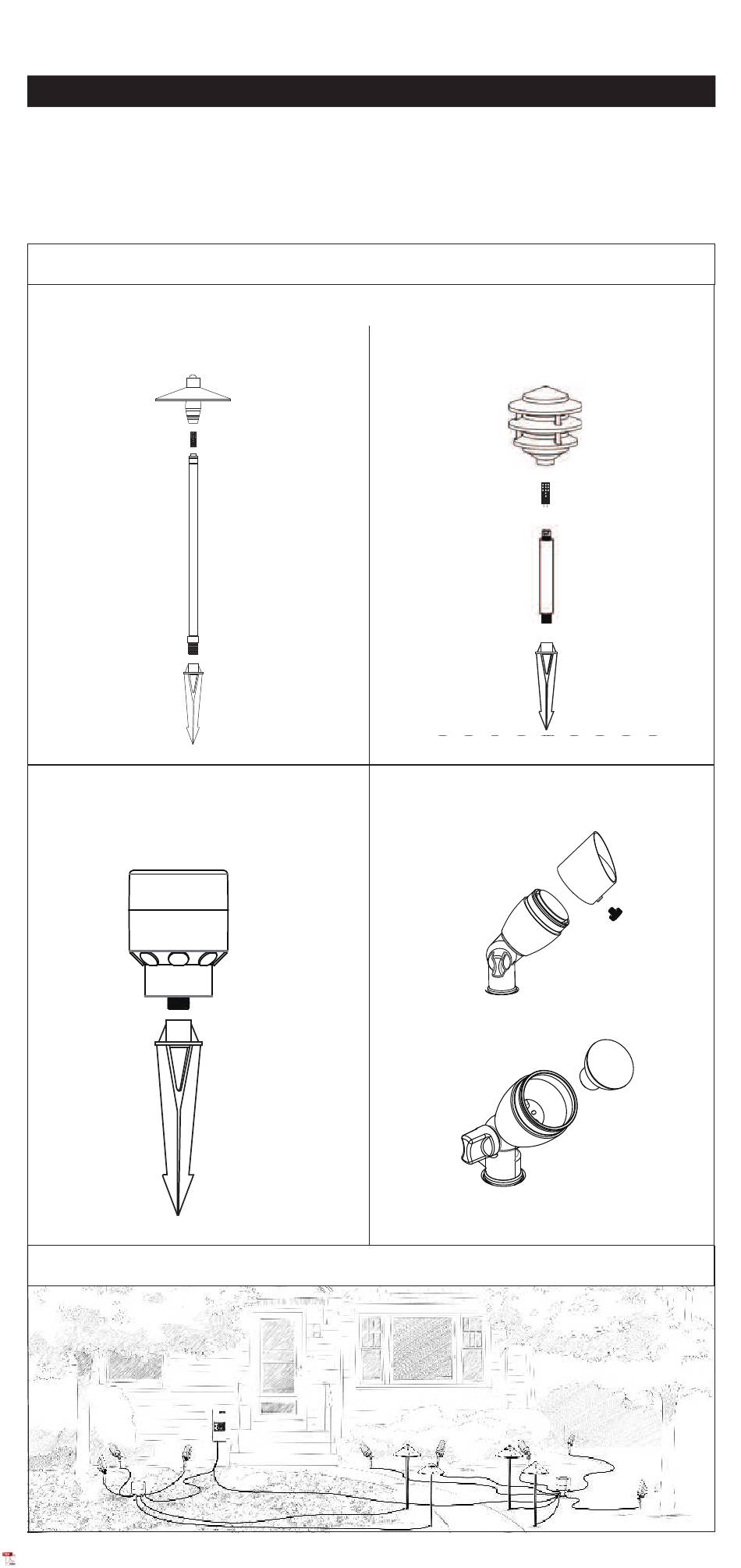

Step 1- Assemble Parts
Insert the bulb and attach
the top to the stem.
Top
Stem
Attach the smaller black
ground stakes to the hubs.
Step 2- Develop a Plan
• Position the light fixtures as desired near plants, trees, walkways or structures
located within 25 feet of the hubs.
• Position each of the hubs so that they're centrally located among the fixtures
per the plan developed.
Bulb
Stake
Hubs
Hub
Stake
Pathlights
Insert the bulb and attach
the top to the stem.
1) Remove the top
2) Install Bulb
3) Reinstall Top
Top
Bulb
Stem
Stake
Spotlights
Top
Bulb
Advertisement
Table of Contents
Related Manuals for STERNO HOME SHME1065
Summary of Contents for STERNO HOME SHME1065
- Page 1 Landscape Lighting Installation Instructions IMPORTANT PLEASE READ! These are installation instructions for landscape lighting kits and individual products such as spot lights, path lights, bulbs, transformers, and hubs. The products you purchased may be different than those represented in this instruction sheet, but will function the same. Step 1- Assemble Parts Pathlights Insert the bulb and attach...
- Page 2 Step 3- Set Up Wiring A. NOTE: Please make sure the transformer is ‘OFF’ before making any new wire connections. Insert main supply wire into the wire exits on the bottom of the transformer. Then connect one end of the main supply wire to one lever terminal on the “COM”...
