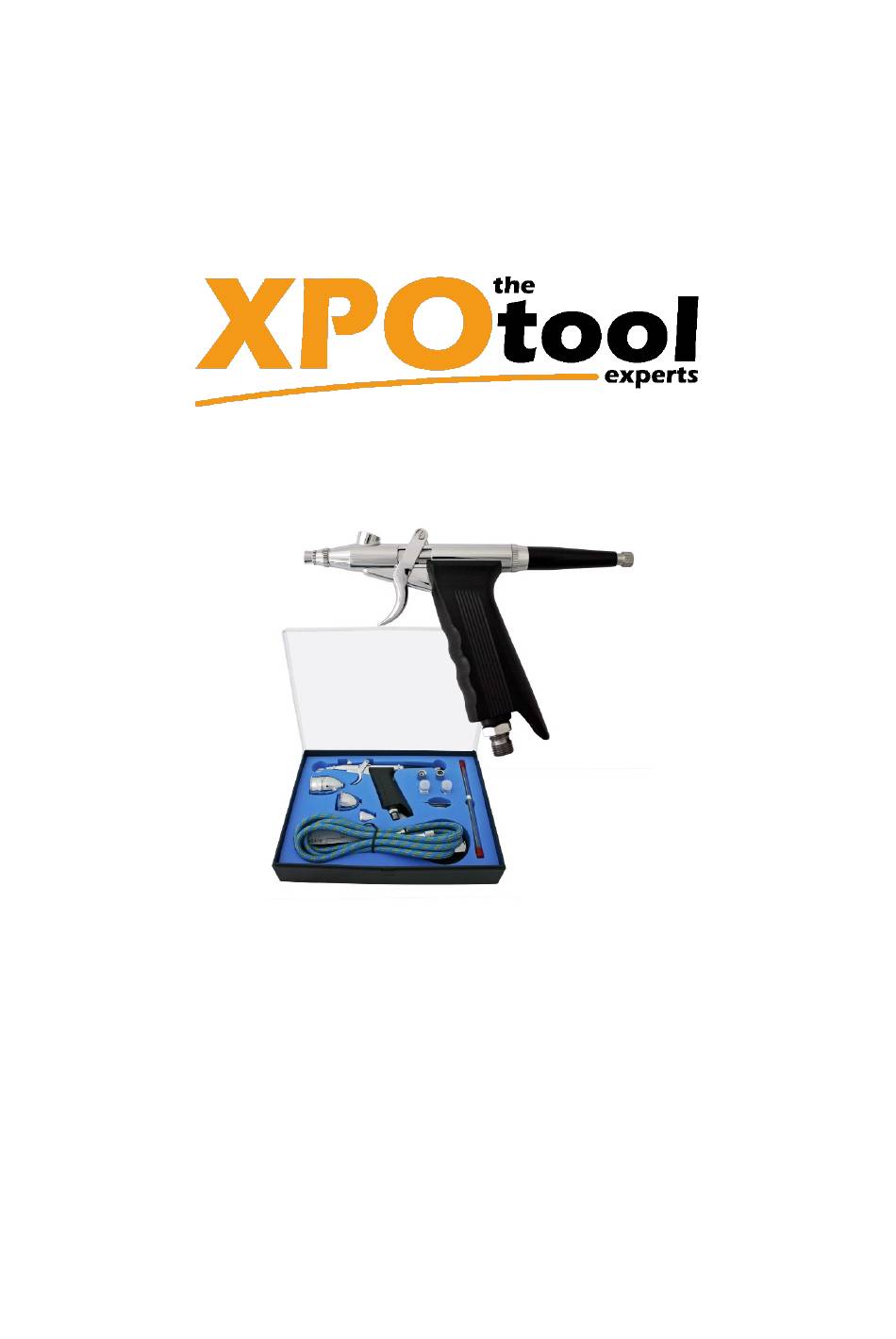

User's manual
Airbrush Gun Type 116AK with Accessories and Box
34156
Illustration similar, may vary depending on model
Please read and follow the operating instructions and safety information prior to initial operation.
Technical changes reserved!
Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further
developments.
Advertisement
Table of Contents
Related Manuals for XPOtool 34156
Summary of Contents for XPOtool 34156
- Page 1 User’s manual Airbrush Gun Type 116AK with Accessories and Box 34156 Illustration similar, may vary depending on model Please read and follow the operating instructions and safety information prior to initial operation. Technical changes reserved! Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further...
- Page 2 To allow for a trouble-free complaint or return, it is important to contact our customer service team before returning your goods. Retourenabteilung WilTec Wildanger Technik GmbH Königsbenden 28 52249 Eschweiler Germany E-mail: service@wiltec.info Tel: +49 2403 55592–0 Fax: +49 2403 55592–15 https://www.XPOtool.com Item 34156 Page 2 The Tool Experts 04 2022-1...
- Page 3 Do not spray arc-shaped patterns and do not pause spraying, as otherwise the paint will not be spread regularly. • To apply fine lines, remove the needle cover and bring the gun close to the surface. https://www.XPOtool.com Item 34156 Page 3 The Tool Experts 04 2022-1...
- Page 4 Technical specifications Nozzle diameter (㎜) 0.2 / 0.3 / 0.5 Paint cup capacity (mℓ) 2 / 5 / 13 Max. working pressure (㍴) 3.4 Weight (㎏) 0.75 Hose length (m) https://www.XPOtool.com Item 34156 Page 4 The Tool Experts 04 2022-1...
- Page 5 Needle return spring Pressure lever Spring limiter Needle locking screw Important Note: Reproduction and any commercial use (of parts) of this operating manual, requires a written permission of WilTec Wildanger Technik GmbH. https://www.XPOtool.com Item 34156 Page 5 The Tool Experts 04 2022-1...
