USER'S MANUAL

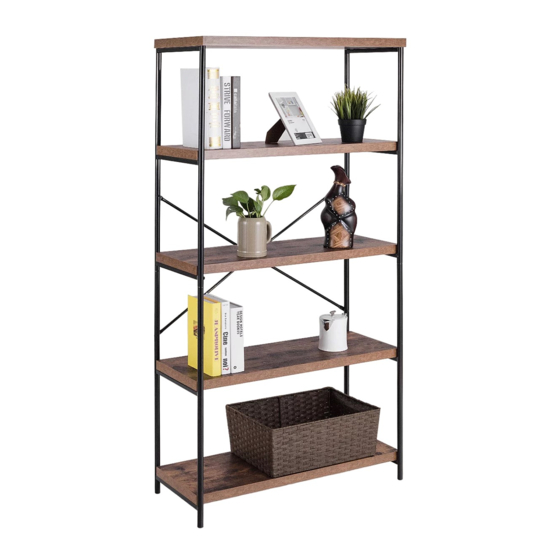

4 Tier Bookshelf
HW59370

Advertisement

loading
Need help?

Need help?

Do you have a question about the HW59370 and is the answer not in the manual?

Questions and answers

Related Manuals for Costway HW59370

Summary of Contents for Costway HW59370

  • Page 1 USER'S MANUAL 4 Tier Bookshelf HW59370...

  • Page 2: Product Assembly

    PRODUCT ASSEMBLY Hardware List 4 pcs 4 pcs 2 pcs Bolt 4*25mm Screw 4*14mm Bolt 6*12mm 4 pcs 2 pcs 1 pc Bracket Allen Wrench 22 pcs 2 pcs Plastic Anchor Screw 4*30mm Parts List 1 pc 1 pc Upper Left Side Frame Back Wire 1 pc 1 pc...
  • Page 3 PRODUCT ASSEMBLY Part List Assembly Overview...
  • Page 4 PRODUCT ASSEMBLY 4 pcs Step 1 1 pc a) Lay Side Frame (1, 2, 3 & 4) as shown on a material that does not scratch the surface of each part. b) Insert (2) to (1) and (4) to (3) till both holes for Bolt (G) are just in place. Important: the holes on Side Frames for Back Wire (5) are in same side.
  • Page 5 PRODUCT ASSEMBLY 2 pcs Step 2 2 pcs Attach Bracket (E) to 2nd Shelf (7) by using Screw (D). 16 pcs Step 3 Attach 2nd Shelf (7) and Shelves (8) to crossing bar on Side Frames by using Screw (C) as shown. Important: the holes on Side Frames for Back Wire are in under side.
  • Page 6 PRODUCT ASSEMBLY 4 pcs Step 4 Attach Top Panel (6) to top crossing bar on Side Frames by using Screw (C) as shown. Important: the front edge for (6) is over Side Frames.
  • Page 7 PRODUCT ASSEMBLY 4 pcs Step 5 4 pcs Attach Back Wire (5) to the designated holes on Side Frames by using Screw Bolt (A) and Nut (B) as shown.
  • Page 8 PRODUCT ASSEMBLY 2 pcs Step 6 2 pcs a) Drill two holes in a dry wall as per the dia of Plastic Anchor (N) and the distance between both Bracket (E). Press plastic Anchor (N) to the wall. Ensure that the Anchor fits securely in the wall. b) Attach Cabinet to the Anchor by using Screw (C).
