Tetra Pond 325 GPH Quick Start Manual

Water Garden Pumps
Submersible Flat Box Filter
WATER GARDEN PUMPS
325 GPH #26586
550 GPH #26587
1000 GPH #26588
1900 GPH #26589
SF1 #26592
BEFORE YOU START:
Please visit www.tetrapond.com for more detailed installation instructions,
time-saving tips, and inspirational ideas.

Attaching Tubing to Pump Outlet

Use the following method when only one water feature is being powered by pump.
1. For maximum flow attach the largest tubing fitting (included with the pump).
Water Garden Pump 325 GPH ½ in. ID or ¾ in. ID
Water Garden Pump 550 GPH ¾ in. ID or 1 in. ID
Water Garden Pump 1000 GPH 1 in. ID
Water Garden Pump 1900 GPH 1 ¼ in. ID
2. Loosely push hose clamp on tubing (clamp not included).
3. Push and twist tubing onto fitting.
4. For a more secure fit, use a stainless steel hose clamp.

Using the Complete Fountain Set (CFS)

Use this method when operating fountain set and additional water
feature or external filter from same pump. (See Figure E)
1. Thread the proper adapter (included with fountain set) into pump
outlet.
2. Assemble diverter assembly into adapter.
3. Fountain Spray and hose use:
• Fountain stems and spray head can be press-fit together for
desired height.
• ½ in. or ¾ in. tubing can be attached to barbed fitting
on diverter, or 1 in. tubing can be attached directly to the
threaded diverter stem (horizontal outlet).
• Secure tubing with hose clamp if needed.
4. Use flow control valve to regulate water between fountain spray and additional water feature.

Reducing Pump Clogging

Ponds typically contain various amounts of debris, such as leaves, string algae, and other plant
material that can clog the intake of water garden pumps and fountain heads.
Tetra®Pond offers four different options to reduce pump clogging.
1. Pump Cages
All Tetra®Pond Water Garden Pumps come with a pump cage. These
cages will screen out larger debris that can clog pumps. Should
you find your pump cage or pump impeller clogs too quickly in
your application, consider purchasing 1.) a Pump Pre-Filter, 2.)
an In-Pond Skimmer or 3.) a Submersible Flat Box Filter.
2. Pump Pre-Filter
This can be easily attached to the intake of any Water
Garden Pump. It prevents debris from clogging the pump
impeller, thus reducing pump clogging and maintenance.
These pre-filters do not clean the pond and therefore
should be used in conjunction with an external filter.
Should the pre-filter clog too quickly, you may consider
removing the foam and using the shell only.
3. In-Pond Skimmer
Suitable for ponds up to 1,000 gallons. It is easy to install and
can be used in pre-formed or flexible liner ponds. It prevents the
pump from clogging as it collects debris in an internal basket and
filters fine particles through a course pad. Both basket and pad can
be easily accessed for a regular maintenance. (Used with pumps
between 550 and 1900 gallons per hour.)
4. Submersible Flat Box Filter
This filter box can be easily attached to
the intake of any Tetra®Pond Water Garden
Pump. The sponge filter pads are ideal
for cleaning smaller ponds, and provide
fine-particle filtration that prevents
the clogging of the pump impeller and
fountain spray heads.
Interested in Further Reducing Pump
Clogging?
Additional pre-filters can be easily attached to one
another.
No fittings or tools needed.
Additional submersible filters can be added using
T connectors and tubing (found in plumbing
department).

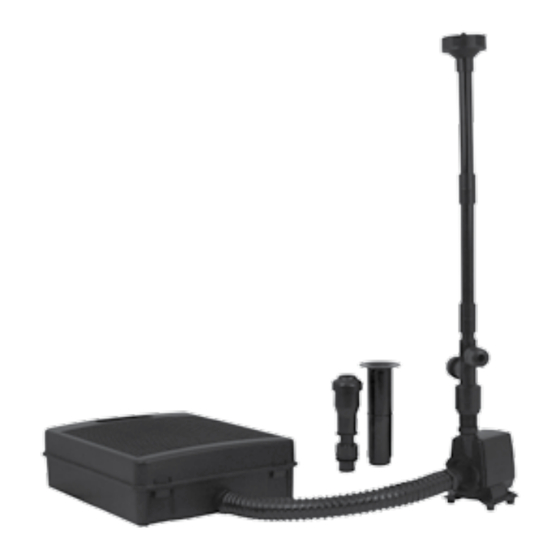

FK5 and FK6 Filtration Fountain Kits with prefilter and pump

How it works: (See Figure D)
The FK5 Filtration Fountain Kit provides filtration, aeration and circulation
for ponds 50 to 250 gallons.
The FK6 is suitable for ponds 250 to 500 gallons.
1. Water is drawn into the flat box filter.
2. Water passes through a coarse and a fine foam pad removing particles.
3. Water is drawn into pump.
4. Filtered water is discharged into the pond through the fountain set.
5. The fountain provides beneficial aeration to the pond.
Includes:
Submersible Pump:
FK5 - 325 gallon per hour @ 1 foot
FK6 - 550 gallon per hour @ 1 foot
Flat Box Filter:
Contains coarse foam pad and fine foam
pad. (See Figure H for details)
Tubing and Fittings:
1 in. diameter hose and two hose fittings
Fountain Set: (See Figure E for details)
Attaching the Flat Box Filter: (See Figure C)
Thread one of the adapters into filter.
Thread the other adapter into pump inlet.
Slide tubing onto the hose barbs on the adapters.
®
,
Filtration Fountain Kits
FK5 #26593
FK6 #26598
FK3 #26594

IMPORTANT SAFETY INSTRUCTIONS

WARNING – Risk of electric shock- This pump has not been investigated for use in swimming
pools or marine areas.
WARNING – To guard against injury, basic safety precautions should be observed, including the
following:
1. Read and follow all safety instructions.
DANGER— To avoid possible electric shock, special care should be taken since water is
2.
employed in the use of this equipment.
3. Do not operate any appliance if it has a damaged cord or plug, or if it is malfunctioning, or
if it is dropped or damaged in any manner.
4. Always unplug an appliance from an outlet when not in use, before putting on or taking
off parts, and before cleaning. Grasp the plug and pull to disconnect; never yank the plug.
5. Do not allow the pump to become iced up.
6. Do not expose the pump to direct sunlight for a long period of time.
7. Make sure the pump is securely installed and stable before operating it.
CAUTION— This pump has been evaluated for fresh water only.
8.
9. Do not use in salt water or highly chlorinated water.
10. This pump must not be used in swimming pools or areas where people are in contact with
the water.
11. Do not use an appliance for other than its intended use.
12. Read and observe all the important notices on the appliance.
13. Do not allow children to handle this equipment. This equipment should be kept away
from children.
WARNING:
This plug is supplied with a grounding conductor and grounding type attachment plug.
To reduce the risk of electric shock, be certain that it is connected to a grounding type receptacle.
Ground-Fault Circuit Interrupter Protection
To comply with the National Electrical Code (NFPA 70), and to provide additional protection from
the risk of electric shock, this unit should only be connected to a receptacle that is protected by a
ground-fault circuit interrupter (GFCI).
Extension Cords
Use only extension cords that are intended for outdoor use. These extension cords are identified
by a marking "Acceptable for use with outdoor appliances; store indoors while not in use". Use
only extension cords having an electrical rating not less than the rating of the product. Do not use
damaged extension cords; examine extension cords carefully before use and replace if damaged. Do
not abuse extension cord and do not yank on any cord to disconnect. Keep cord away from heat
and sharp edges. Always disconnect extension cords carefully; disconnect them from the receptacle
before disconnecting the product from the extension cord.
NEVER RUN THE PUMP UNLESS IT IS COMPLETELY SUBMERGED (UNDERWATER).
WARNING—THIS PUMP IS FITTED WITH A THERMAL CUT-OFF DEVICE THAT
TEMPORARILY SWITCHES OFF THE PUMP IN THE EVENT OF OVERHEATING.
THE PUMP MAY START AUTOMATICALLY AFTER THE PUMP COOLS DOWN.
Submersible Pump
Intended for outdoor use = CSA Enclosure 3
For use with maximum 86° water
SAVE THESE INSTRUCTIONS
CONSIGNES DE SÉCURITÉ IMPORTANTES
AVERTISSEMENT – Risque de choc électrique – Cette pompe n'a pas été testée pour l'utilisation
dans une piscine ou un environnement aquatique.
AVERTISSEMENT – Pour prévenir les blessures, des précautions de base doivent être prises, y
compris les précautions suivantes:
Lire et respecter toutes les consignes de sécurité.
1.
2. DANGER— Pour prévenir les chocs électriques, des précautions spéciales doivent être
prises étant donné que de l'eau est utilisée avec cet équipement.
3. Ne pas utiliser un appareil dont le cordon ou la fiche est endommagé, qui ne fonctionne
pas correctement ou qui a été échappé ou endommagé de quelque manière que ce soit.
4. Toujours débrancher l'appareil de la prise électrique lorsqu'il n'est pas utilisé, avant
d'installer ou de démonter des pièces et avant de le nettoyer. Saisir la fiche et la tirer pour
la débrancher; ne jamais l'arracher de force.
5. Ne pas laisser la pompe se couvrir de gel.
6. Ne pas exposer la pompe à la lumière directe du soleil pendant une période de temps
prolongée.
7. S'assurer que la pompe est installée et stable avant de l'utiliser.
8. MISE EN GARDE — Cette pompe a été testée en eau douce seulement.
9. Ne pas utiliser d'eau salée ni d'eau hautement chlorée.
10. La pompe ne doit pas être utilisée dans une piscine ni dans un endroit où les personnes
sont en contact avec l'eau.
11. Ne pas utiliser l'appareil à une fin autre que ce pour quoi il a été conçu.
12. Lire et respecter tous les avis importants qui figurent sur l'appareil.
13. Ne pas permettre aux enfants de manipuler cet équipement. Il doit être conservé hors de
portée des enfants.
AVERTISSEMENT:
réduire les risques de choc électrique, s'assurer de brancher la fiche dans une prise murale mise à
la terre.
Protection à disjoncteur de mise à la terre
Pour respecter le Code national de l'électricité (NFPA 70), et pour offrir une protection
supplémentaire contre les risques de choc électrique, cet appareil doit uniquement être branché dans
une prise protégée par un disjoncteur de fuite de terre.
Rallonges
Utiliser uniquement des rallonges conçues pour l'extérieur. Ces rallonges sont identifiées par la
marque « Acceptable pour les appareils utilisés à l'extérieur; ranger à l'intérieur entre les utilisations
». Utiliser uniquement des rallonges dont la classification électrique est égale ou supérieure au
calibre du produit. Ne pas utiliser des rallonges endommagées; examiner les rallonges avant de les
utiliser et les remplacer si elles sont endommagées. Ne pas manipuler rudement les rallonges et ne
pas tirer de force sur le cordon pour le débrancher. Garder les rallonges en retrait de la chaleur et des
bords tranchants. Toujours débrancher les rallonges soigneusement; débrancher la rallonge de la prise
murale avant de débrancher le produit de la rallonge.
NE JAMAIS UTILISER LA POMPE À MOINS QU'ELLE NE SOIT COMPLÈTEMENT SUBMERGÉE (SOUS
L'EAU).
AVERTISSEMENT —CETTE POMPE EST POURVUE D'UN DISPOSITIF D'ARRÊT
THERMIQUE QUI ÉTEINT TEMPORAIREMENT LA POMPE EN CAS DE SURCHAUFFE.
LA POMPE PEUT DÉMARRER AUTOMATIQUEMENT UNE FOIS QU'ELLE A REFROIDI.
POMPE SUBMERSIBLE
CONÇU POUR L'UTILISATION À L'EXTÉRIEUR – BOÎTIER CSA 3
POUR UTILISATION DANS DE L'EAU À 86° AU MAXIMUM
CONSERVER CES INSTRUCTIONS

FK3 Filtration Fountain Kit with Prefilter and 325 gph Pump

How it works: (See Figure B)
The FK3 Filtration Fountain Kit provides filtration, aeration and circulation for small ponds
under 100 gallons.
1. Water is drawn into the cylinder filter.
2. Water passes through the foam core removing particles.
3. Water is drawn into the pump.
4. Clean water is discharged into the pond through the fountain set.
5. The fountain provides beneficial aeration to the pond.
Includes:
Submersible Pump: 325 gallon per hour @ 1 foot
Pre-filter Includes: Foam insert and threaded adapter
Fountain Set: (See figure E for details)
Figure B
Figure C
United Pet Group, a Division of Spectrum Brands, Inc.
3001 Commerce Street, Blacksburg, VA 24060
Consumer Support Service (800) 526-0650 • www.tetrapond.com
Figure D
Cette fiche est pourvue d'un conducteur de terre et d'une mise à la terre. Pour
Figure A
