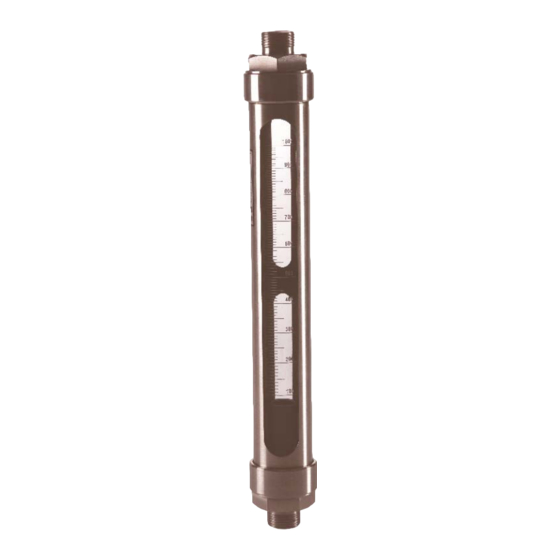

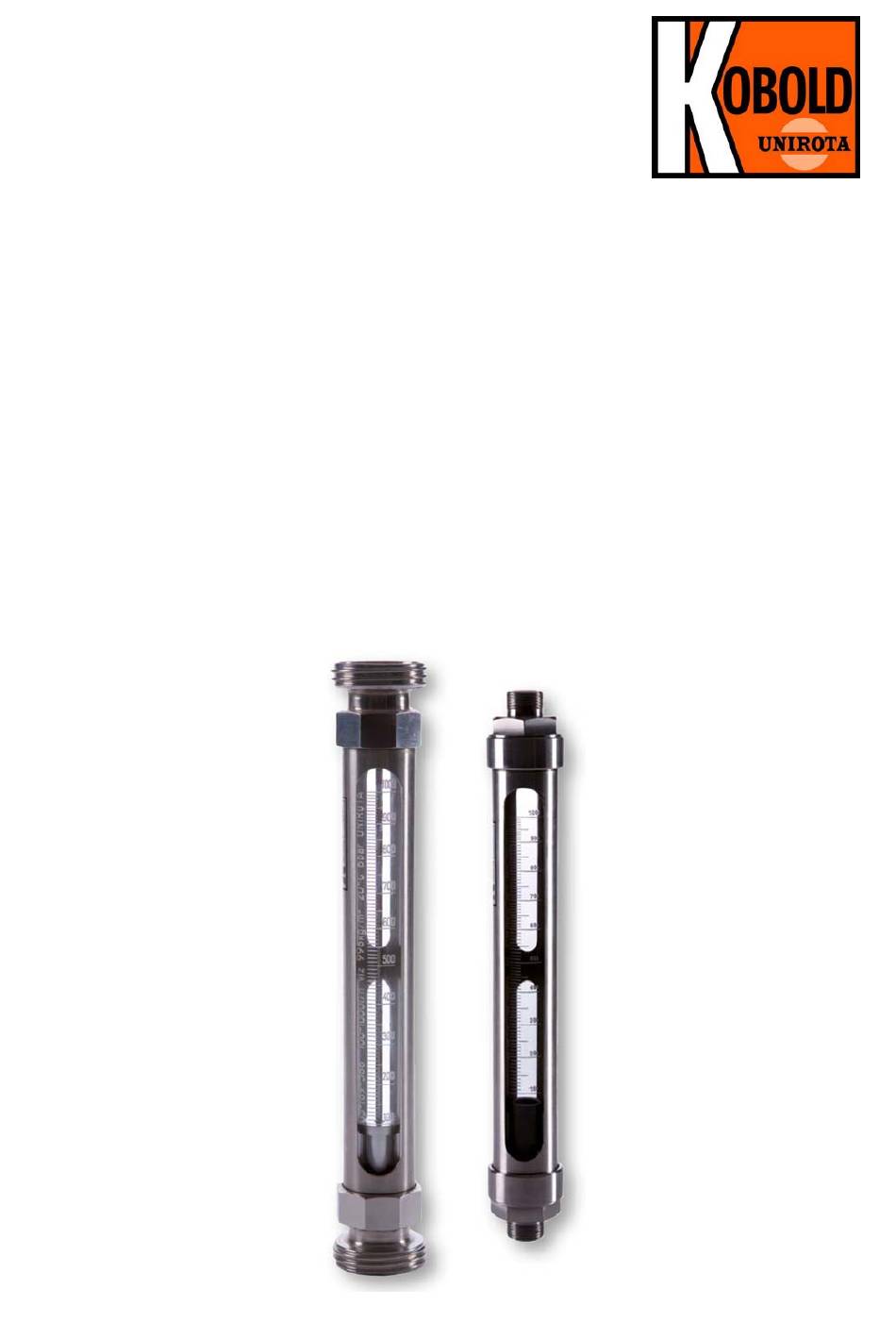

- Page 1 Operating Instructions Variable area flow meter Model: URM...
-
Page 2: Table Of Contents
EU Declaration of Conformance ..............10 EU Declaration of Conformance (contact) ........... 11 Manufactured by: Sold by: Kobold-Unirota Ltd. Kobold Messring GmbH 4400 Nyíregyháza Nordring 22-24 Derkovits út 132-136. D-65719 Hofheim Tel.: +36-42-342-215 Tel.: +49(0)6192-2990 Fax: +36-42-500-175 Fax: +49(0)6192-23398 E-Mail: info.hu@kobold.com... -
Page 3: Note
Please read these operating instructions before unpacking and putting the unit into operation. Follow the instructions precisely as described herein. The instruction manuals on our website www.kobold.com are always for currently manufactured version of our products. Due to technical changes, the instruction manuals available online may not always correspond to the product version you have purchased. -
Page 4: Operating Principle
The medium flows from below through a glass measuring cone that gets wider on top. Thus, the float is raised and indicates the respective flow rate on the scale provided on the measuring cone. To monitor flow rate limits, the URM meters can be optionally furnished with “open collector“ proximity switches. -
Page 5: Electrical Connection
Slide the switch housing up or down until the reference edge coincides with the desired switch-point scale reading. Overranging With non-pulsating flow, the maximum flow rate can be exceeded. Only an increase in pressure loss will result (max. permissible operating pressure must not be exceeded!) URM K05/0522 page 5... -
Page 6: Maintenance
9. Maintenance If the medium to be measured is clean, the series URM is virtually maintenance- free. If deposits form on the inner housing or parts, periodic cleaning of the unit is recommended. Remove the units from the piping with a suitable tool; clean the flow meter with a suitable cleaning agent or make use of an ultrasonic bath. -
Page 7: Technical Information
Material combinations Ordering Measuring code Connection Float Seal Ring cone Housing 1.4301 1.4301 1.4404 1.4404 PTFE 99** 1.4301 1.4301 borosilicate st.st. 1.4301 1.4404 1.4404 EPDM PTFE glass aluminium 1.4301 PTFE PTFE ** Customer specification on request URM K05/0522 page 7... -
Page 8: Order Codes
IA = G 2 ½ GA = G 2 ½ 65H = 2500…25 000 IB = G 3 GB = G 3 YYY = others on request request *Other switching functions on request **Customer specification on request page 8 URM K05/0522... -
Page 9: Dimensions
12. Dimensions Connection Seals Centering ring Protection tube Measuring tube Float ØA URM with female/male thread (F = female / M = male) Model ¼" ⁄ " ½" ¾" 1" 1 ¼" 1 ½" 2" 2 ½" 3" [mm] [mm] URM-xx 0... -
Page 10: Eu Declaration Of Conformance
13. EU Declaration of Conformance We, KOBOLD Unirota Kft. Nyíregyháza Hungary, declare under our sole responsibility that the product: Variable area flow meter Model: URM-… to which this declaration relates is in conformity with the standards noted below: EN IEC 63000:2018 Technical documentation for the assessment of electrical... -
Page 11: Eu Declaration Of Conformance (Contact)
14. EU Declaration of Conformance (contact) URM K05/0522 page 11...
