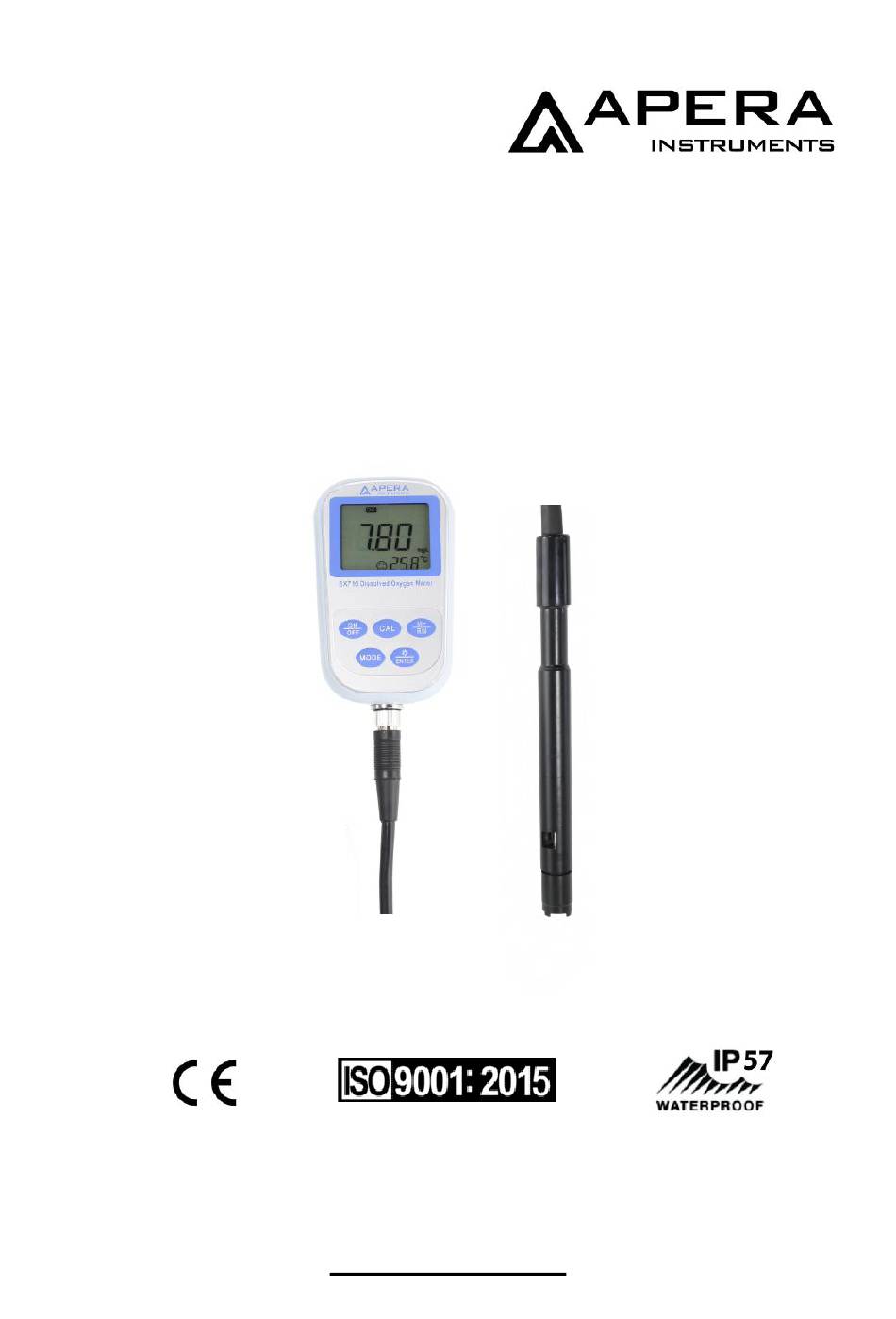

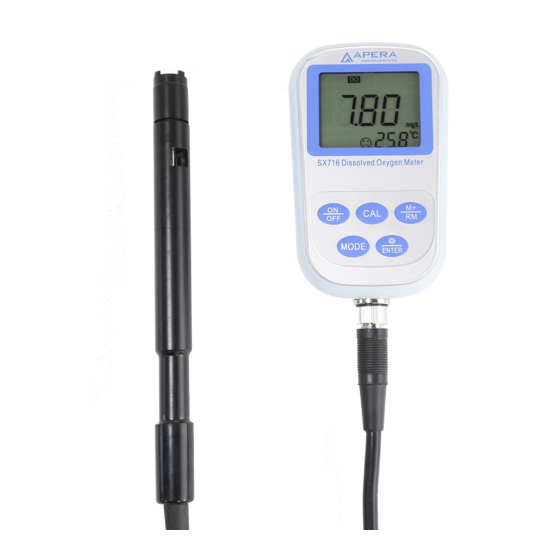

- Page 1 SX716 Portable Dissolved Oxygen Meter User Manual APERA INSTRUMENTS, LLC aperainst.com - 1 -...
-
Page 2: Table Of Contents
Table of Contents Brief Instruction ........................ - 3 - Technical Specifications ....................- 4 - About the Meter ....................... - 5 - Dissolved Oxygen ......................- 7 - Preparation before use ......................- 7 - DO Calibration (Saturated Oxygen) ..................- 9 - DO Measurement ........................ -
Page 3: Brief Instruction
Brief Instruction Thanks for purchasing Apera Instruments SX716 Portable DO Meter (will be called “the meter” in short in the following content). Before using the meter, please read this instruction manual carefully in order to help you properly use and maintain it. -
Page 4: Technical Specifications
Technical Specifications 2.1 Dissolved Oxygen Measuring range (0 to 19.99) mg/L (ppm); (0 to 200.0) % Resolution 0.1/0.01 mg/L (ppm) 1/0.1% Accuracy ±0.30 mg/L (ppm), including electrode error Response time ≤30s (25˚C, 90% response) Temp. compensation range (0 to 45) ˚C (automatic) Salinity compensation range (0 to 45) ppt (automatic) Barometric pressure... -
Page 5: About The Meter
About the Meter Screen Display ① —— Parameter icon ② —— Measuring value ③ —— Serial number and icon as measuring value to be stored and recalled and indication icon for special states. M+ — measuring value to be stored; RM — Stored value to be recalled; ④... - Page 6 3.2.3. — Function key Press the key to enter the parameter setting mode P1, P2, P3… 3.2.4. — Backlight and confirmation key (a) When in measurement mode, short press (less than 1.5s) to turn on/off the back light display. (b) When in calibration mode or the parameter setting mode, press this key to confirm, and then the meter enters measurement mode;...
-
Page 7: Dissolved Oxygen
Dissolved Oxygen 4.1 Preparation before use 4.1.1. Electrode connection - 7 -... - Page 8 4.1.2. Connect the DO electrode. Then Press key to power on the meter. 4.1.3. Choose DO unit: Hold to switch among mg/L, ppm and %. When the desired unit shows up, release the button to confirm the unit selection. 4.1.4. Check the sponge Check on the DO500 DO electrode: see picture (4-1).
-
Page 9: Do Calibration (Saturated Oxygen)
4.2 DO Calibration (Saturated Oxygen) Power on the meter, press key, the meter enters calibration mode, CAL will be flashing at the upper-right corner. Insert the DO electrode to the calibration sleeve, and tighten the sleeve cap. Let the electrode sit for 3 to 5 minutes. When the reading is fully stabilized, press key again to finish the calibration. -
Page 10: Notes About Do Measurement
4.4 Notes about DO Measurement a) When calibrating, the environment temperature and water temperature should be close to each other (≤10˚C). If the difference is large, please dip the electrode into the sample water for about 10 minutes, then calibrate the electrode according to Section 4.2. -
Page 11: Zero Oxygen Calibration
or kimwipe afterwards; rinse off the electrode with distilled water, then shake off excess water; Add some new inner solution into the membrane cap; screw on the cap. Then perform the saturated oxygen calibation according to 4.2 before measuring again. 4.5.4 Replace the membrane cap When the DO electrode’s response time becomes slower, obvious errors occur in measurement, or when the sensitive membrane of DO electrode is wrinkled, cracked or... -
Page 12: Salinity Calibration
1) Polarize the meter for 15 minutes, and then perform the saturated oxygen calibration according to the 4.2. 2) Place the electrode into zero-oxygen water, press key to enter calibration mode. When the stabilized reading is 0.02 ppm to 0.15 ppm after 5 minutes, press again to finish the calibration, then flashing 0.0% will show up, the calibration will be finished in several seconds and 0.00 ppm will show up. -
Page 13: Parameter Setting
of manual Barometric pressure compensation. We suggest to reset the value according to the standard barometric pressure table when there is a big change in barometric pressure to ensure the accuracy of barometric pressure compensation (Please see Appendix 2 and Appendix 3). For the procedure of Barometric pressure calibration, refer to 4.9.4. - Page 14 4.9.3 Salinity calibration setting (P2) (a) In P1 mode, press key to enter P2 mode, see picture (4-3). (b) Immerse the DO electrode into 12.88mS/cm calibration solution (sold separately), solution level should exceed salinity electrode; let it stand still after stirring; then press key when the value is stable and smiley face icon appears.
- Page 15 4.9.6 Backlight display time setting (P5) (a) Short press key in mode P4 to enter mode P5, see picture (4-6). (b) Press key to choose the auto-off time of backlight: 0 min, 1 min, 3 min or 6 min. The backlight display function will be closed if choosing 0 min.
-
Page 16: What's In The Kit
Limited Warranty We warrant this instrument to be free from defects in material and workmanship and agree to repair or replace free of charge, at option of APERA INSTRUMENTS, LLC, any malfunctioned or damaged product attributable to responsibility of APERA INSTRUMENTS, LLC for a period of THREE YEARS (SIX MONTHS for the electrode) from the delivery. -
Page 17: Appendix
Appendix Appendix 1 Content of Saturated Oxygen in Water at Different Temperature Temperature Temperature Temperature mg/L mg/L mg/L ˚C ˚C ˚C 14.64 9.86 7.30 14.22 9.66 7.18 13.82 9.46 7.07 13.44 9.27 6.95 13.09 9.08 6.84 12.74 8.90 6.73 12.42 8.73 6.63 12.11... -
Page 18: Appendix 2 Content Of Saturated Oxygen At Different Barometric Pressure
7.2 Appendix 2 Content of Saturated Oxygen at Different Barometric pressure Barometric pressure Dissovled Oxygen Concentration (mg/L) mmHg 15˚C 25˚C 35˚C 100.00 9.94 8.14 6.85 100.13 9.96 8.15 6.86 100.26 9.97 8.16 6.87 100.40 9.98 8.17 6.88 100.53 9.99 8.18 6.89 100.66 10.00... -
Page 19: Appendix 3 Content Of Oxygen At Different Altitude
Conversion between mmHg and kPa: mmHg×0.13333=kPa = P×DO ÷ 760 Note: — DO concentration under temperature t, Barometric pressure P, mg/L; P — Barometric pressure, mmHg; — DO concentration under temperature t, Barometric pressure 760mmHg, mg/L; 760 — Barometric pressure, mmHg. - Page 20 APERA INSTRUMENTS, LLC Address: 6656 Busch Blvd, Columbus Ohio 43229 Tel: 1-614-285-3080 Email: info@aperainst.com Website: aperainst.com - 20 -...
