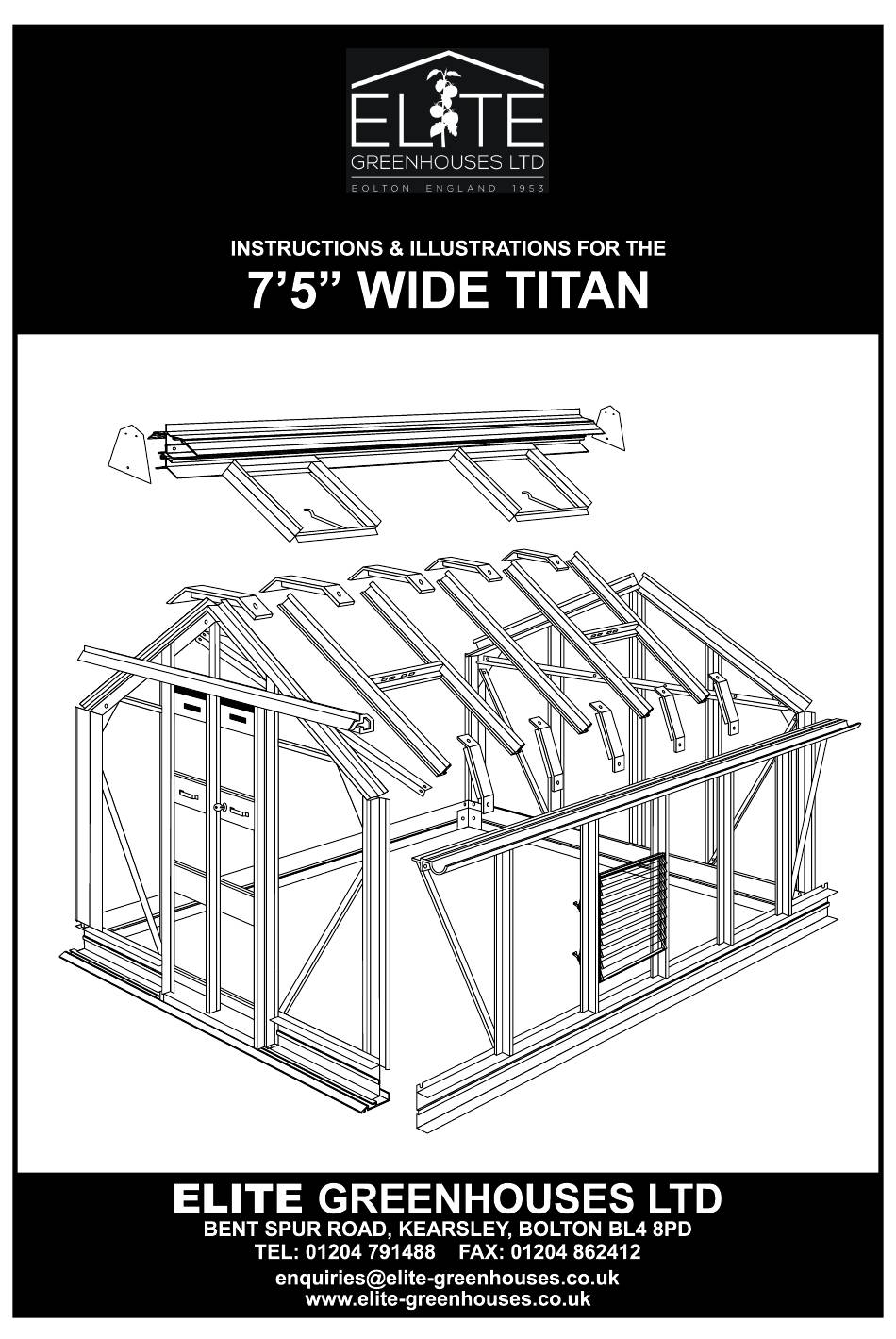

Page 4: Parts List
PARTS LIST 6 x 7 8 x 7 10 x 7 12 x 7 14 x 7 16 x 7 18 x 7 20 x 7 Ridge Gutter/eave Side built in base cill Side angle Door end built in base Door end cill Rear end built in base cill Rear end horizontal angle... - Page 5 HELPFUL HINTS AND ADVICE Please do take your time and be sure to read all instructions carefully before assembling. Do not assemble frame in high winds. The greenhouse frame must be anchored to a permanent foundation. This will not only help ...
- Page 6 When constructing a painted model please take care not to damage the finish by working on concrete or patios. We reserve the right to alter and improve our products. Various video’s on selected installation processes are available on our website. www.elite-greenhouses.co.uk DETAILED ASSEMBLY INSTRUCTIONS The contents of this carton are divided into the different frame assemblies that collectively...
- Page 7 SIDE FRAME ASSEMBLY From the main box you require: Pack of side block glazing bars marked “side”. Pack of gutters and side angles. Built in base side cills. From the pack of fittings you need: Nuts and bolts and glazing beading. PROCEDURE.
- Page 8 Put nuts on bottom bolts and lightly tighten. Do the same with the other side frame assembly. Make sure that the block glazing bars reach both the built in base cill and the eaves in each case. Tighten all nuts. (Key point). If you intend to fit any Elite accessories (louvres, shelf, staging) they will be packed with ½...
- Page 9 WELL DONE! YOU HAVE SUCCESSFULLY COMPLETED THE 2 SIDE FRAMES!
-
Page 10: Rear End Assembly
REAR END ASSEMBLY For the construction of this frame you require from the main box: 1 pack of corner bars marked “corner bars”, 1 rear end pack marked “rear end”, 1 rear end built in base cill marked “rear end” and 1 rear end horizontal brace marked “rear end”. - Page 11 REAR END ASSEMBLY...
- Page 12 Lay out the components of the frame on the ground as though you were standing on the inside i.e. with the internal bolt slots uppermost. Ensure that, having correctly identified the roof from the side corner bars, left and right hands (see previous text) you have the roof bars with the letter ‘R’...
- Page 13 You can now attach the 3 vertical block glazing bars to the built in base cill in a similar man- ner to 11 above, the longer bar to the middle hole, and the shorter ones to the outer holes. Be- fore attaching the nuts to the shorter bars place the diagonal angles onto the bottom bolt and put a nut on finger tip tight only.
- Page 14 DOOR END ASSEMBLY Components required Door end cill 2 Built in base cills 2 Long door end block glazing bars 2 Rectangular plates with 3 holes 2 Short horizontal braces 2 Roof corner bars (marked ‘R’) 2 Side corner bars (unmarked) 1 Main door track support 1 Top door track 2 Small door track support flat bar...
- Page 15 Follow the same procedure with regard to fixing the corner bracket/angle base leg as detailed on the rear end assembly. The long block glazing bars have 2 continuous bolt channels. Slide 2 bolts into the channel closest to the corner bar and 2 bolts into the channel closest to the door opening. The top bolt is secured to the prefabricated hole in the roof corner bar.
- Page 16 DOOR END ASSEMBLY...
- Page 17 ROOF VENT ASSEMBLY The roof vent pack has 5 pieces of aluminium: and from the main box of fittings you require 6’ of glazing beading 4 nuts and bolts 2 casement stay pins 1 casement stay 6 M4 stainless steel nuts and bolts PROCEDURE: Identify the slam bar and attach the 2 stay pins to the outer side of the angle using the M4 stainless steel nuts and bolts.
- Page 18 DOOR FRAME ASSEMBLY Each Door consists of: 1 unhanded door post 1 handed door post (handed post for left door is different profile to the handed right hand door post) 3 infill panels (1 with pre fabricated lock hole– right hand door only) for lock barrel 1 top and bottom door panels 3 panels of glass which must be fitted during door assembly.
- Page 19 Before fitting the unhanded door post, offer the glass panels to the door (see glazing plan in booklet for glass size guide on door), slide them in from the side. Carefully attach the unhand- ed door post in the same way as before, ensuring the glass is sitting in the correct position (sitting on the beading channels of the door posts) before tightening the screws.
- Page 20 13. The handles are fitted to the infill panel on each door (choose be- tween 1st or 2nd panel down). Position the handle centrally, and mark the hole position. Drill 7mm diameter holes (2 holes per door), then fit the handles, and secure with a nut and bolt.
- Page 21 ASSEMBLY OF THE GREENHOUSE UNIT PROCEDURE: With the help of a willing assistant, stand up the rear gable and one of the sides. Standing on the inside of the structure with the gutter facing away from you, insert the eave/gutter bar into the gap between the corner bars, so that the inside flanges which form the angle of the roof and side line up with the bolt slots in the corner bars.
- Page 22 The bottom built in base cill of the sides attaches to the corner bars in a similar way. Undo the nuts and bolts inserted in the gable end assembly, move the built in base cill under the corner bar so that the elongated hole in the vertical flange of the built in base cill lines up with the bolt slot in the corner bar.
- Page 23 Every glazing bar is fitted with a cantilever. Small cantilevers across the gutter on both sides (side bar to roof bar). Large cantilevers across the ridge (roof bar to roof bar). You must remember to insert one extra bolt per cantilever T-bar brace and one per vent per bar.
- Page 24 SECURING GREENHOUSE TO PERMANENT BASE The main structure is now complete and it must now be fitted onto its base for securing down. SQUARING UP You must make sure that the structure is level and square. Put one pane of glass in each corner of roof, each pane must be level with the small glass retaining lip just above the gutter and be running parallel with the roof glazing bars.
- Page 25 EXTERIOR DOOR TRACK This top door track has no holes in, but 1 continuous bolt slot. You must have the door track cen- trally positioned. Insert 3 bolts into the bolt slot and line them up with the 3 holes in the door track support, put the nuts on and tighten up.
-
Page 26: Finishing Off
FINISHING OFF To prevent the door from sliding past its opening, you must fix 2 angle brackets to the door end as- sembly. Insert a cropped head bolt into the bolt channel at the top of the left hand glazing bar (viewed from the inside) and fix and angle bracket as shown in the picture below. - Page 27 FITTING THE ROOF CANOPY This must be done AFTER the roof vent(s) is/are fitted. The canopy is fitted on top of the ridge bar, and is slight- ly longer than the ridge. If your greenhouse is over 6’ long, then the canopy will be made up using several piec- First sit the canopy on top of the ridge and position the canopies so that the overhang at each end of the ridge is the same and that the end of the canopy is level with the...
- Page 28 10 BLADE LOUVRE The louvre must be fitted to either side (excluding corner bays) Procedure Place top cill into position on side jamb of louvre and secure with self tapping screws. 2. Do same on the other top corner. 3. Do same with bottom cill. 4.
- Page 29 TOUGHENED GLASS Always handle glass with extreme care as failure to do so can result in injury. Your greenhouse is supplied with PVC bar capping and you will find the bar capping installation instructions with the bundle of capping. Your greenhouse is glazed using both wire clips and then bar capping on top. Wire Clips Start with the panes of glass on the side (see glazing plan later in this booklet), Insert 4 wire clips as illustrated, put one ’wing’...
- Page 30 FULL SHEET TOUGHENED GLASS SIZE 598 X 1489 585 X 1489 585 X 177 585 X 387 610 X 1456 640 X 610 450 X 457 450 X 610 545 X 100 585 X 715 598 X 1456 432 X 1780 598 X 1311 585 X 1311 T6 T10 T14 T15 T16 T17 T21 T41...
- Page 31 FULL SHEET TOUGHENED GLASS YOUR GREENHOUSE IS NOW COMPLETE If you have purchased any accessories such as staging, louvre, auto vents, rain water kits etc…, they will have their own detailed instructions in their packaging.
- Page 32 ELITE 1806...
