Summary of Contents for Rossi HB Series

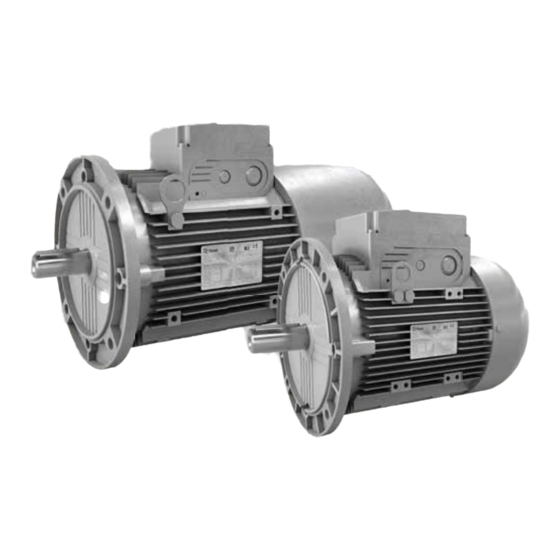

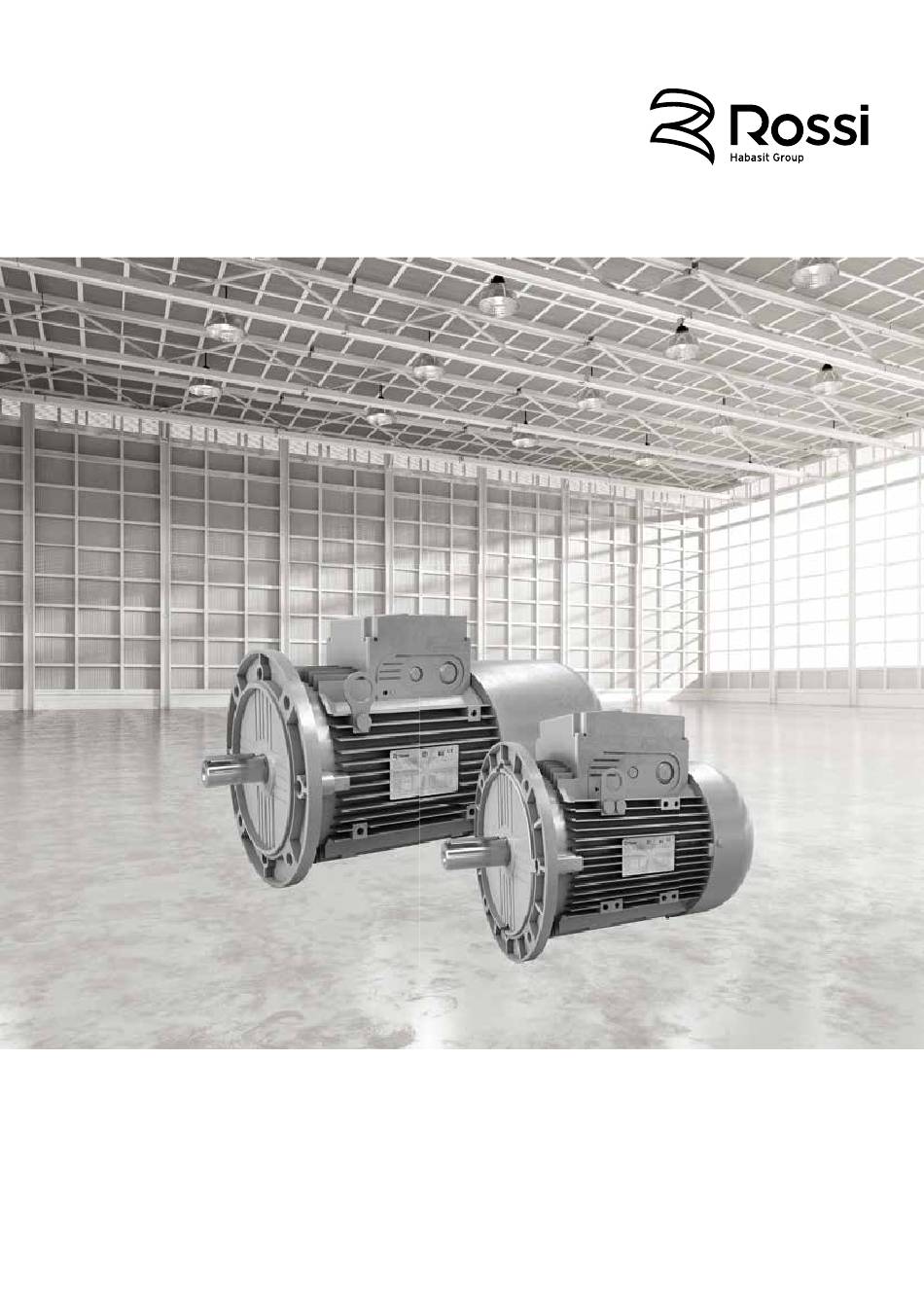

- Page 1 TX Operating instructions High effi ciency asynchronous three-phase motors UTD.164.06-2022.00_EN...
- Page 3 UTD.164.06-2022.00_EN...
- Page 4 UTD.164.06-2022.00_EN...
- Page 5 Index General and safety informations Recycling Safety Use conditions and limits Supply status and product designation Receipt Name plate Painting Protections and packing Storage Installation Mechanical installation Electrical installation Electric connections Motor connection Brake connection (rectifier HBZ, HEZ, HBV (HBVM)) HBF brake connection Auxiliary equipment connections: independent cooling fan Auxiliary equipment connections: bi-metal type thermal probes,...
- Page 6 Costructive scheme HB 63 ... 160S motors HB 63 ... 132 iFIT motors HE 160 motors HE 180 ... 315S motors HBZ 63 ... 160S motors HBZ 63 ... 132 iFIT motors HEZ 160 motors HEZ 180 ... 200 motors HBF 63 ...
- Page 7 General and safety informations This document is valid the following motor series: HB (included HBM, HBZ, HB3, HB...), HBZ (included HB2Z, HB...Z), HBF (included HB2F, HB...F), HBV (HBVM, HB2V, HB...V), HE (included HE3, HE3Z). Recycling Disposal in accordance with regulation 2012/19/EU (WEEE): This symbol means that the product contains materials that can be recovered or recycled and should not be disposed of with general waste.Disposal should be in accordance with EU directives where applicable.
- Page 8 The products relevant to this handbook correspond to the technical level reached at the moment the handbook is printed. Rossi S.p.A. reserves the right to introduce, without notice, the necessary changes for the increase of product performances. Use conditions and limits The motors are intended for use in industrial applications, in accordance with the nameplate data, with ambient temperature -15 to +40 °C (with peaks at -20 °C to +50 °C), maximum altitude 1000 m, according to CEI EN 60034-1.
- Page 9 Supply status and product designation Number of phases (11) Motor mass (21) Voltage tollerance (31) Braking torque Motor type (12) Insulation class I.CL..(22) Nominal frequency (32) Rectifier supply Size (13) Duty cycle S... (23) Frequency tollerance (33) Current absorbed by brake Number of poles (14) Motor code (24) Nominal current...
- Page 10 For a 2 year storing period in normal surroundings it is necessary to generously grease the sealings, the shafts and the unpainted machined surfaces, if any. For storages longer than 2 years or in aggressive surroundings or outdoors, consult Rossi S.p.A.. UTD.164.06-2022.00_EN...
-
Page 11: Mechanical Installation
For lifting and transporting the motor use the motor eyebolts (when provided) keeping in mind that these are suitable only for lifting the motor and not other machines fitted to it; be sure that load is properly balanced and provide lifting systems, and cables of adequate section. If necessary, motor masses are stated in Rossi technical catalogs. Mechanical installation... - Page 12 V-belts should not be excessively tensioned in order to avoid excessive loads on bearings and motor shaft (for maximum loads on shaft end and relevant bearing life see Rossi catalogs). Motor is dynamically balanced; in case of standardized shaft end the balancing is obtained with half key inserted into the shaft end and exclusively for the nominal rotation speed (in order to avoid vibrations and unbalances it is necessary that also power transmissions are balanced with half key).
-
Page 13: Electrical Installation
Installation Electrical installation Before putting into service and after long stillstanding or storing periods it is necessary to measure insulation resistance between the windings and to earth by adequate d.c. instrument (500 V). Insulation resistance control Attention! Do not touch the terminals during and just after the measurement because of live terminals. Insulation resistance, measured at +25°C winding temperature, must not be lower than 10 MΩ... - Page 14 Installation For single-phase motors follow the instructions on Fig. 2. Single-phase Balanced windings single-phase 2, 4, 6 pole motor Terminal block: 6 terminals Permanently connected terminals Direct starting Fig. 2 Single-phase motor connection and balanced windings single-phase motor connection Auxiliary capacitor, if any, is to be connected in parallel to the running one Also the use of inverters requires some precautions relevant to voltage peaks (U ) and voltage gradients (dU/dt) generated by this power supply type;...
-
Page 15: Electric Connections
Electric connections Motor connections Follow schemes on Fig. 1 (Pag. 11) e Fig. 2 (Pag. 12). Motor sizes ≤ 160S: before connecting the motor for the first time, proceed to knockout the openings on the terminal box to allow the cable entry; (see fig. on the left); after that, accurately remove any fragment still remaining inside the terminal box;... - Page 16 Verify that rectifier supply voltage is the one stated on motor name plate. In case of brake equipped with microswitch (HBZ, HEZ motor, ",SB", or ",SU" code on name plate) refer to the connection diagram of Fig. 4. Respect the power supply indications catalog Rossi S.p.A. Brake jam/release signal...
- Page 17 Electric connections HBF brake connection Brake coil pre-arranged as standard for separate brake supply. (Brake coil already Y-connected to the auxiliary terminal block: re-arrange the brake coil connection in case of motor Δ-connected or in case of separate supply with Δ voltage). For both cases, before commissioning, connect the auxiliary terminal block to the motor terminal block or to an external line.
- Page 18 Electric connections Auxiliary equipment connections: independent cooling fan For HB motors sizes ≤ 160S supply wires of independent cooling fan are marked by the letter «V» on cable terminals and are connected to auxiliary rectifier terminals inside the main compartment. For HE motors sizes ≥...
- Page 19 Electric connections Motor size wound independent cooling and stated for fan HE independent cooling fan name plate Motor size Code Type Y380 Y380 0,13 Y400 Y400 0,14 Y415 Y415 0,15 Y440 Y440 0,15 Y460 Y460 0,15 Y480 Y480 0,16 Y380 Y380 0,15 Y400...
- Page 20 Electric connections Auxiliary equipment connections: bi-metal type thermal probes, thermistor type thermal probe (PTC), anti-condensation heater The connection wires are inside the terminal box and are marked by the letter "B" (bi-metal type thermal probes), "T" (thermistor type thermal probes PTC) or "S" (anti-condensation heater) on cable terminals; they are connected to an auxiliary terminal block according to schemes of Tab.
-
Page 21: Maintenance
Maintenance Motor periodical maintenance Before carrying out maintenance, make sure that you have disconnected the power supply to the motor and other accessories (if any) and secured the motor against accidental insertion. Releasing the brake runs the risk of inhaling brake dust; wear a protective mask. Motor surfaces can reach high temperatures. - Page 22 Maintenance HBZ, HEZ brake periodical maintenance Verify, at regular intervals, that air-gap and backlash "g" (see Fig. 6) of release lever pullers, if any, are included within values stated in Tab. 5 (remove the wear dust of friction surface, if any). Excessive air-gap value deriving from friction surface wear makes brake noise level rise and could prevent its electric release.
- Page 23 Maintenance HBF brake periodical maintenance Verify, at regular intervals, that air-gap and backlash "g" (see Fig. 8) of release lever pullers, if any, are included within values stated in Tab. 6 (remove the wear dust of friction surface, if any). Tab.
- Page 24 Maintenance HBV (HBVM) brake periodical maintenance Verify, at regular intervals, that air-gap is included between values stated in Tab.7. Excessive air-gap value could produce: decrease of braking torque up to zero, rise of brake noise level, and even miss of electric release. Fig.9.
- Page 25 (Present according to the mounting position 44 Plug 45 Rotating protective ring 46 Thickness washer (only for size 132) This is not a valid reference for spare parts ordering; in this case it is necessary to consult the "Spare part tables". Consult Rossi S.p.A. UTD.164.06-2022.00_EN...
- Page 26 Constructive scheme HE 160 motor 1 Preload spring 2 Drive-end bearing 3 Drive-end endshield (flange) 4 Terminal box gasket 5 Terminal box cover gasket 6 Cable gland 7 Terminal block 8 Terminal box cover 9 Housing with stator windings 10 Terminal box 12 Non-drive end endshield 18 Safety circlip 19 Fan...
- Page 27 21 Key 42 Brake plate 22 Flywheel 23 V-ring 24 Electromagnet * On request This is not a valid reference for spare parts ordering; in this case it is necessary to consult the "Spare part tables". Consult Rossi S.p.A. UTD.164.06-2022.00_EN...
- Page 28 25 Fastening screw 26 Contrast spring 27 Toroid coil 28 Guiding bush 29 Intermediate anchor This is not a valid reference for spare parts ordering; in this case it is necessary to consult the "Spare part tables". Consult Rossi S.p.A. UTD.164.06-2022.00_EN...
- Page 29 18 Safety circlip 47 Lifting eyebolt 19 Fan 20 Fan cover 23 V-ring 24 Electromagnet This is not a valid reference for spare parts ordering; in this case it is necessary to consult the "Spare part tables". Consult Rossi S.p.A. UTD.164.06-2022.00_EN...
- Page 30 47 Lifting eyebolt 20 Fan cover 23 V-ring 24 Electromagnet 25 Fastening screw 26 Contrast spring This is not a valid reference for spare parts ordering; in this case it is necessary to consult the "Spare part tables". Consult Rossi S.p.A. UTD.164.06-2022.00_EN...
- Page 31 26 Contrast spring 53 Release hand lever 27 Toroid coil 28 Guiding bush * On request This is not a valid reference for spare parts ordering; in this case it is necessary to consult the "Spare part tables". Consult Rossi S.p.A. UTD.164.06-2022.00_EN...
- Page 32 48 Grub screw 20 Fan cover 49 Contrast spring 24 Electromagnet 25 Fastening screw This is not a valid reference for spare parts ordering; in this case it is necessary to consult the "Spare part tables". Consult Rossi S.p.A. UTD.164.06-2022.00_EN...
- Page 33 (see specific manufacturer's documentation) protection Notes: When consulting Rossi S.p.A., state: • all data on gear reducer or gearmotor name plate; • failure nature and duration; • when and under what conditions the failure happened;...
- Page 34 Anomalous noise Too high air-gap Re-adjust the correct value Notes: When consulting Rossi S.p.A., state: • all data on gear reducer or gearmotor name plate; • failure nature and duration; • when and under what conditions the failure happened; • during the warranty period, in order not to loose validity, do not disassemble nor tamper the gear reducer or gearmotor without approval by Rossi S.p.A.
- Page 36 Rossi, who were duly informed about Customer’s application purposes. In this case all the necessary data required for the selection shall be communicated exactly and in writing by the Customer, stated in the order and confirmed by Rossi. The Customer is always responsible for the safety of product applications. Every care has been taken in the drawing up of the catalog to ensure the accuracy of the information contained in this publication, however Rossi can accept no responsibility for any errors, omissions or outdated data.
