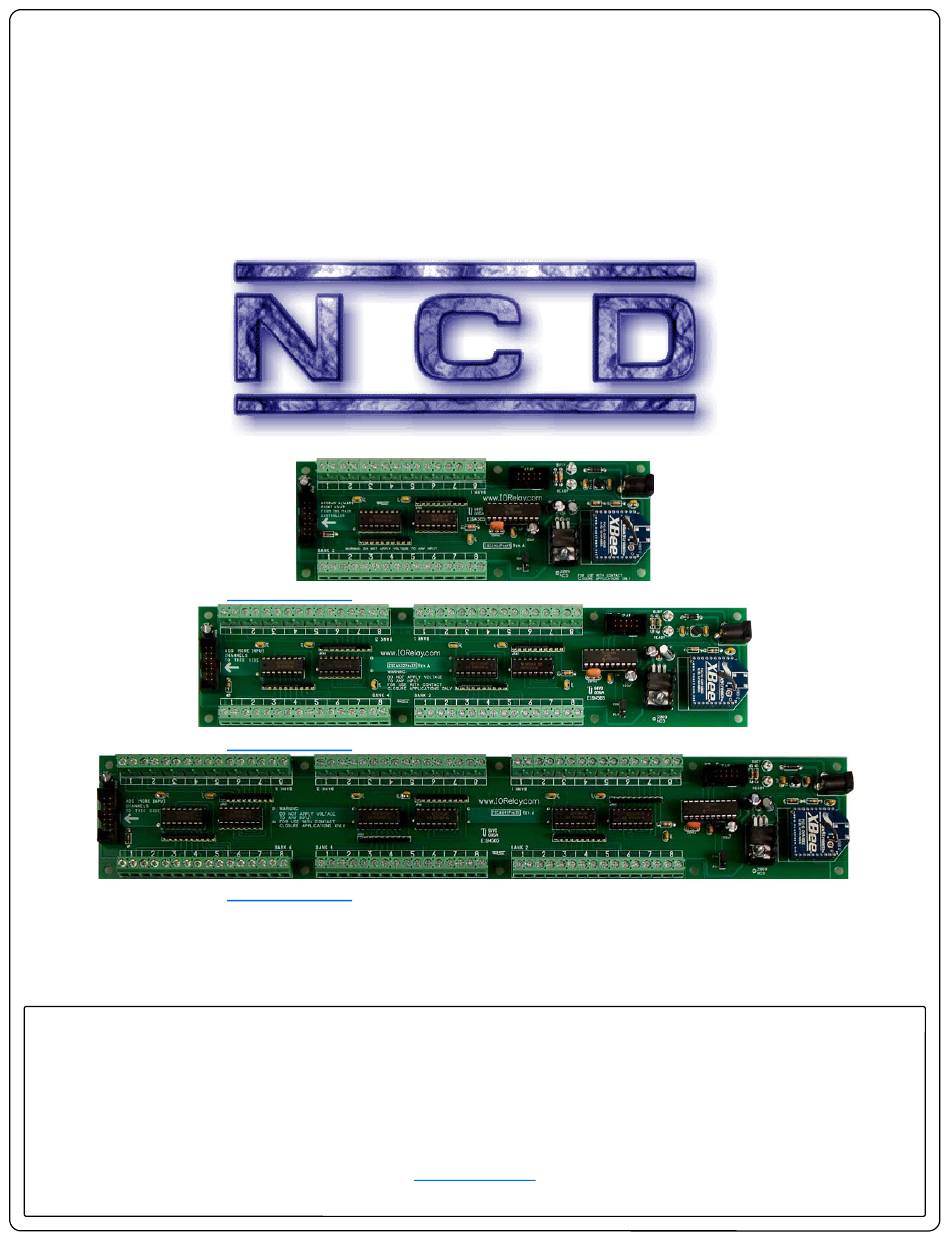

ZigBee Mirror Module
contact closure input transceiver module for use with Series 1 ZigBee Relay Controllers
ZigBee Mirror Modules allow you to remotely control wireless relays without the use of a computer and without the need for any program‐
ming skills. 2‐Way communication allows you to review the status of multiple remote relays. Targeting allows a single ZigBee Mirror Mod‐
ule to talk to 24 Different Remote Relay Controllers. The next page will provide you with a complete and detailed introduction to our Zig‐
Generation 2
ZSCAN16_MIRROR
16‐Channel Contact Closure Input ZigBee Mirror Module
ZSCAN32_MIRROR
32‐Channel Contact Closure Input ZigBee Mirror Module
ZSCAN48_MIRROR
48‐Channel Contact Closure Input ZigBee Mirror Module
National Control Devices, LLC
Phone: (417) 646‐5644
Bee Mirror Modules.
PO Box 455
Osceola, MO 64776
FAX: (866) 562‐0406
www.IORelay.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for NCD ZigBee ZSCAN16 MIRROR
Summary of Contents for NCD ZigBee ZSCAN16 MIRROR
- Page 1 ZigBee Mirror Module Generation 2 contact closure input transceiver module for use with Series 1 ZigBee Relay Controllers ZSCAN16_MIRROR 16‐Channel Contact Closure Input ZigBee Mirror Module ZSCAN32_MIRROR 32‐Channel Contact Closure Input ZigBee Mirror Module ZSCAN48_MIRROR 48‐Channel Contact Closure Input ZigBee Mirror Module ZigBee Mirror Modules allow you to remotely control wireless relays without the use of a computer and without the need for any program‐...
- Page 2 ONLY Digi Series 1 communications, meaning the current Feedback line of ZigBee Mirror Modules will ONLY communicate to NCD In some applications, you may want to know if the remote re‐ devices that utilize the ZigBee Series 1 communications mod‐...
- Page 3 Getting Started….QUICKLY! The best way to get stared using ZigBee Mirror Modules is to dive in and go through the entire process of setting up your controller for the first time...step by step. Before we get started, here is a shopping list of devices you need: Required Hardware: Any ZigBee Mirror Module (click on this link to see all available)
- Page 4 Getting Started….QUICKLY! By this point, you should know the COM port that was as‐ signed to your modem. Your ZigBee Modem should be plugged in and the USB LED lit. Please do not proceed until you have determined the correct COM port. Step 4: The next thing we need to do is locate the PGM/RUN jumper Step 4: Set the PGM/RUN Jumper to...
- Page 5 Getting Started….QUICKLY! It is now time to configure the Mirror Module for use in your application. The process is pretty easy. You will need to con‐ figure the Mirror Module so that it knows how many control‐ lers you want to talk to, the model of the relay controller, and a few other simple parameters.
- Page 6 Getting Started….QUICKLY! 2‐Way Communications is an important topic with regard to ZigBee Mirror Modules. This topic will be discussed at length on this page. It is a vital part of understanding how the con‐ troller functions. Step 10: Understanding 2‐Way Communications ZigBee Mirror Modules work by sending a relay control com‐...
- Page 7 Getting Started….QUICKLY! Input Assignment is another important topic when using Zig‐ Bee Mirror Modules. This Page will explain how inputs are mapped to Remote Relay controllers. Step 11: Managing Automatic Input Assignments The ZigBee Mirror software in combination with your settings will determine how inputs on the ZigBee Mirror Module will be mapped to remote relay controllers.
- Page 8 Getting Started….QUICKLY! Now that you have had an overview of configuration, it is Troubleshooting: time to apply your settings to the controller. Follow these We have extensively tested our ZigBee Mirror Module devices. steps to complete your configuration and begin testing your These devices have been tested with many types of controllers.
-
Page 9: Advanced Features
Advanced Features Advanced Features. There are a few settings that most users will never need, but it is worthy of mention in this section. Configure Refresh Setting ZigBee Mirror Modules should normally be configured to have a Refresh setting of 1 to 5. However, other refresh settings may be desirable for some applications. - Page 10 Mirror Module Hardware Power Connector: 2.1mm Center Positive Power Connection ZigBee Series 1 Module in API Mode set to 115.2K Baud. There are many ver‐ for use with Optional PWR12 12VDC Regulated Power Supply. sions of this module available as product options. We do NOT plan to make a ZB Mesh Version of this device anytime soon.
-
Page 11: Device Characteristics
Push Buttons obtain approval from these agencies as product volumes are Magnetic Reed Switches too low to be practical for all NCD devices. To date, many NCD Mechanical Relays devices have met these approvals without design modifica‐ Motion Detectors (if equipped with contact closure outputs) tions, when installed in a proper enclosure that meets certifica‐... -
Page 12: Warranty
30-Day Money-Back Guarantee If, within 30 days of having received your product, you find that it does not suit your needs, you may return it for a refund. NCD will refund the purchase price of the product, excluding shipping/ handling costs. This guarantee does not apply if the product has been altered or damaged.
