Summary of Contents for Planar PL2010MW

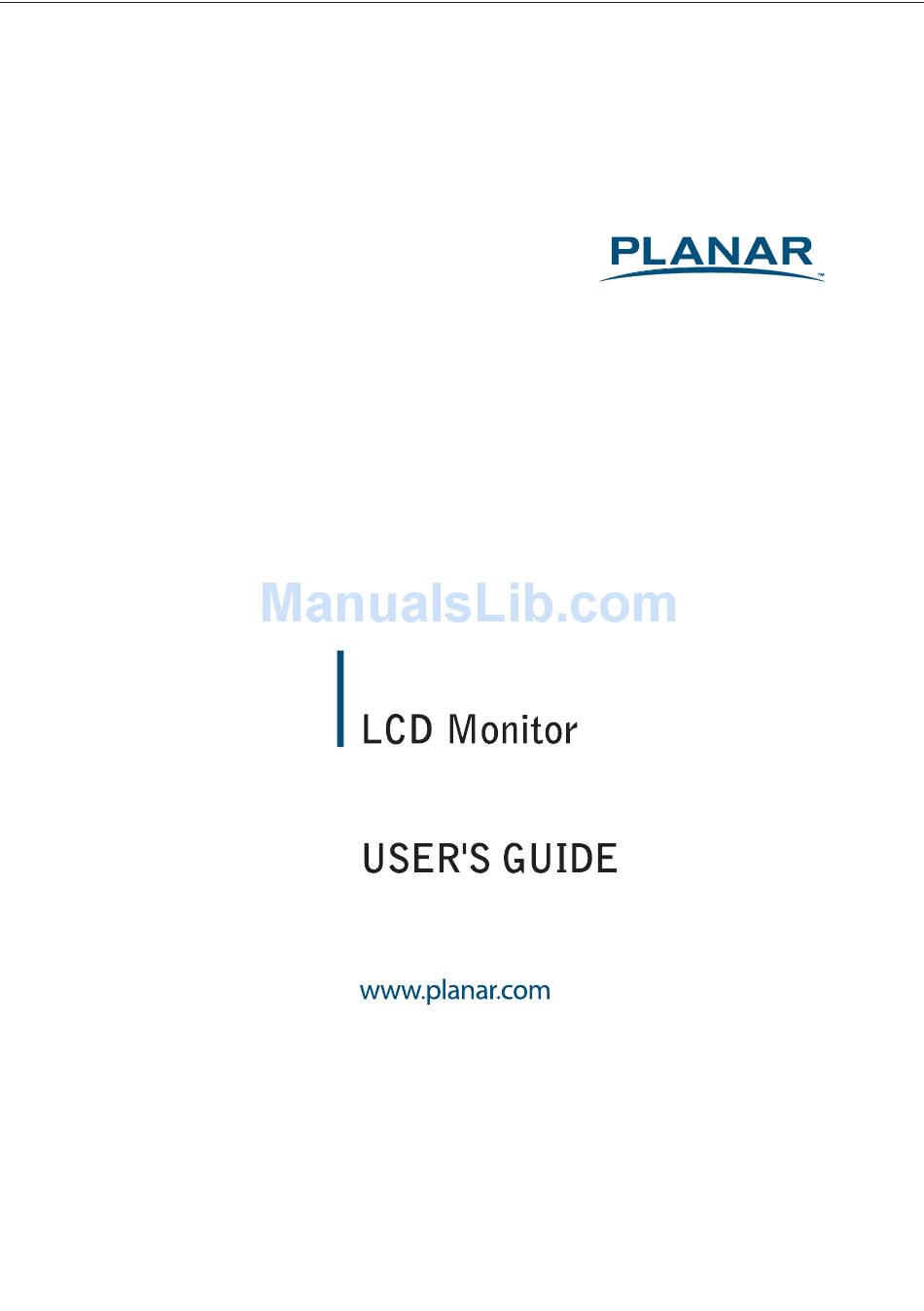

- Page 1 PL2010MW...
-
Page 2: Table Of Contents
Contents Contents...1 Preface ...2 Installation ...4 Unpacking...4 Connecting the LCD Monitor and Base...5 Viewing Angle Adjustment ...5 Detaching LCD Monitor from Its Stand...5 Interface for Arm Applications ...5 Connecting the Display ...5 Connecting the AC Power ...6 Connecting the Audio Cable ...6 Connect the other end of the audio cable to the LCD Monitor's "LINE IN"... -
Page 3: Preface
Preface This manual is designed to assist users in setting up and using the LCD Monitor. Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. -
Page 4: Important Safety Instructions
Important Safety Instructions Please read the following instructions carefully. This manual should be retained for future use. 1. To clean LCD Monitor screen; -- Power off LCD Monitor and unplug the AC Cord. -- Spray a non-solvent cleaning solution onto a rag. -- Gently clean the screen with dampened rag. -
Page 5: Installation
Installation Unpacking Before unpacking the LCD Monitor, prepare a suitable workspace for your Monitor and computer. You need a stable and clean surface near a wall power outlet. Make sure that LCD Monitor has enough space around it for sufficient airflow. Though the LCD Monitor uses very little power, some ventilation is needed to ensure that the Monitor does not become too hot. -
Page 6: Connecting The Lcd Monitor And Base
Connecting the LCD Monitor and Base When you open the box, place the base and put on the desk first. Then connect the LCD monitor and base. (See fig. 1-1) Viewing Angle Adjustment The LCD Monitor is designed to allow users to have a comfortable viewing angle. -
Page 7: Connecting The Ac Power
Connecting the AC Power 1. Connect the power cord to the LCD Monitor.(See Fig. 1-6) 2. Connect the power cord to an AC power source. Connecting the Audio Cable 1. Connect the audio cable to the "LINE OUT" jack on your PC's audio card or to the front panel's “AUDIO OUT”... -
Page 8: Display Controls
Display Controls User Controls A brief description and the location of all LCD Monitor functions controls and indicators: Power LED will be Green when monitor is on, be yellow when in power saving mode, be dark when monitor in off mode. Power ON/OFF switch. -
Page 9: Adjusting The Monitor's Display
Adjusting the Monitor's Display Main OSD Main Menu icon Menu item Auto Adjust Preset Mode Brightness Contrast Black Level Sharpness Sub Menu item Auto adjusts the H/V Position, Phase and Clock of Auto Adjusting picture. (available in analog mode only) STANDARD Default Setting. - Page 10 FULL Expansion Mode ASPECT H. Position V. Position Pixel Clock Phase 9300K 7500K 5000K sRGB User Preset R/G/B Volume D-SUB Input Select 720/640x400@70hz 1360/1280/1024x768@60hz Resolution Select 1600x900/1280x960@60hz 1680/1400x1050@60hz DDCCI ON/OFF H. Position V. Position OSD Time Language Recall Color Recall Recall All Information Selects wide format for display.
-
Page 11: Osd Lock Out Function
OSD Lock Out Function When monitor is in normal display, you can enable the “OSD Lock Out” function. Option 1: OSD lock – all 4 buttons are locked except the “POWER” button. Press and hold the lock the buttons. The monitor will show an “OSD Lock out” message for 5 seconds and the message will disappear automatically. -
Page 12: Technical Information
Technical Information Specifications LCD Panel Size Display Type Resolution Display Color Video Multi-mode Supported Audio Output Power Management Mode Power Consumption* DPM On DPM Off DC switch Off Disconnected *Meeting VESA DPM requirements measured from AC Input end of AC power cord. Plug &... - Page 13 Relative Humidity Temperature Storage Condition Relative Humidity Power Supply (AC Input) Input Voltage Single phase, 100 ~ 240VAC, 50 / 60 Hz Input Current 1.0 A maximum Size and Weight Dimensions 476 (W) x 347.6 (H) x 197 (D) mm 3.9 ±...
-
Page 14: Standard Timing Table
Standard Timing Table If the selected timing is NOT included in table below, this LCD monitor will use the most suitable available timing. Abbreviation MAC 640×480 MAC 832×624 PC98 640×400 (24.8kHz) VGA 720×350 70Hz VGA 720×400 70Hz VGA 640×480 60Hz VGA 640×480 72Hz VESA 640×480 75Hz VESA 800×600 56Hz... - Page 15 GTF1280x960 50Hz GTF1280x1024 50Hz GTF1600x1200 50Hz GTF640x480 50Hz GTF800x600 50Hz 1440x900 60Hz Red. Blanking 1440x900 60Hz 1440X900 75Hz 1400x1050 60Hz Red. Blanking 1400x1050 60Hz 1400x1050 75Hz 1680X1050 60Hz 1280 X768 60Hz Red. Blanking 1280 X768 60Hz 1280 X768 75Hz 1280 X768 85Hz VESA 1360 X768 60Hz VESA 1600x900 60Hz(R.B.) VESA 1366ｘ768 60Hz...
-
Page 16: Troubleshooting
Troubleshooting This LCD Monitor has pre-adjusted using factory standard VGA timings. Due to the output timing differences among various VGA cards in the market, users may initially experience an unstable or unclear display whenever a new display mode or new VGA card is selected. Attention This LCD Monitor Supports Multiple VGA Modes. -
Page 17: Product Registration And Technical Support
Product Registration and Technical Support Register Your Planar Products Today Thank you choosing Planar. To assure you receive all the benefits of your Planar product and services, register your Planar product today. Visit our website to register your product at http://www.planar.com/support/product_registration.html...
