Specifications
Environment
S-Video equipment
Devices
DVD, VCR, monitors, LCD projectors, CCD cameras, video
switchers, sequencers, multiplexers, and other S-Video
equipment
Transmission
Transparent to the user
Bandwidth
Video: DC to 6 MHz. Audio: 105 Hz to 28 kHz
Impedance – S-Video
75 ohms
Impedance – Audio
600 ohms min
Max. Input - Audio or
1.1Vp-p
Video
Less than 2 dB per pair over the frequency range
Insertion Loss – S-Video
Better than 15 dB over the frequency range
Return Loss
Greater than 40 dB over the frequency range
Common Mode Rejection
Cat 5 twisted pair cable – 1000 ft. (305 m)
Max. Distance
24AWG or lower solid copper twisted pair wire
Cable – UTP
Impedance: 100 ohms at 1 MHz
Maximum capacitance: 20 pF/ft
Attenuation: 6.6 dB/1000 ft at 1 MHz
One (1) 4-pin Mini DIN, two (2) RCA audio jacks, and one (1)
Connectors
RJ45
Up to 12 feet of audio cable (not included) may be used
S-Video Luma: pins 7&8
Pin Configuration
Reverse Polarity Sensitive
S-Video Chroma: pins 4&5
Audio 1: pins 1&2
Audio 2: pins 3&6
Temperature
Operating: 0° to 55°C. Storage: -20° to 85°C.
Humidity: up to 95%
Fire retardant plastic
Enclosure
2.40" x 2.25" x 1.00" plus 5" S-Video lead
Dimensions
2 years
Warranty
SVA2, SVA2-Pac
Order Information
*Specifications subject to change without notice.
2222 Pleasant View Road, Suite #1
Middleton, WI 53562
608-831-0880
FAX 608-831-1833
intelix@intelix.com
www.intelix.com

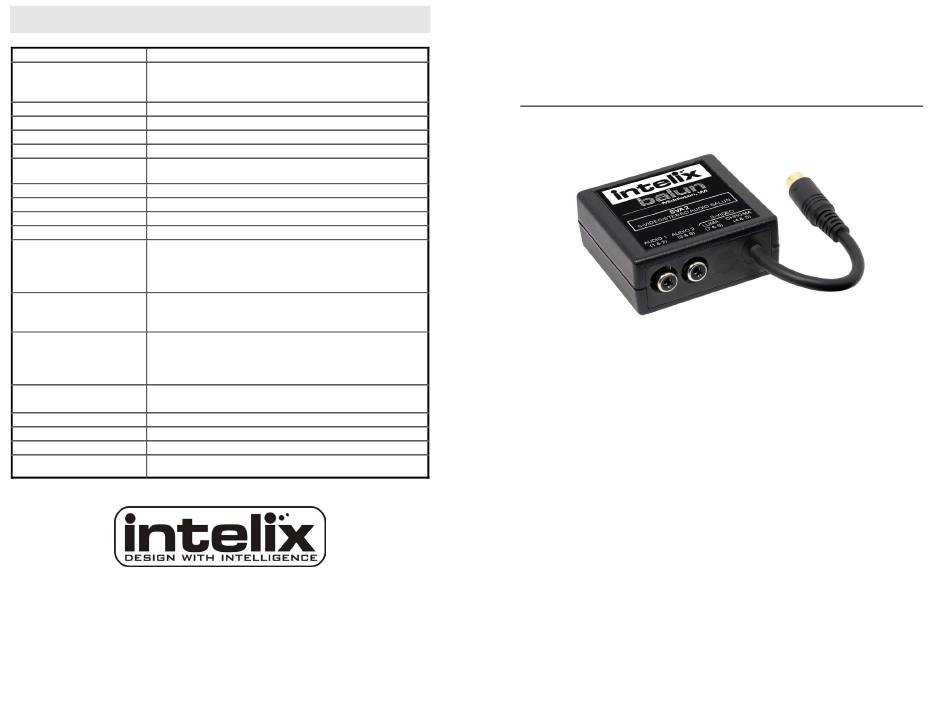

SVA2 Balun Set
Installation Guide
Overview
The SVA2 Balun allows the transmission of a single S-Video signal
and two analog audio signals via unshielded twisted pair (UTP) cable
in a point-to-point connection for versatile cabling.
Used in pairs, SVA2 Baluns eliminate costly and bulky S-Video
cable, allowing the connection of S-Video equipment to any
convenient modular outlet.
Applications
The SVA2 Balun allows pre-existing twisted pair cable to be used in
such applications as classroom video distribution, overhead projector
systems, PC-training systems, and tradeshow PC-demo systems in
the S-Video environment.
